Bosch 0601577001

Bosch 0601577001 jig saw: exploded parts diagram, 1 sheet, 152 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601577001: 152 positions on 1 sheet

Bosch 0601577001 parts list (1 sheet)

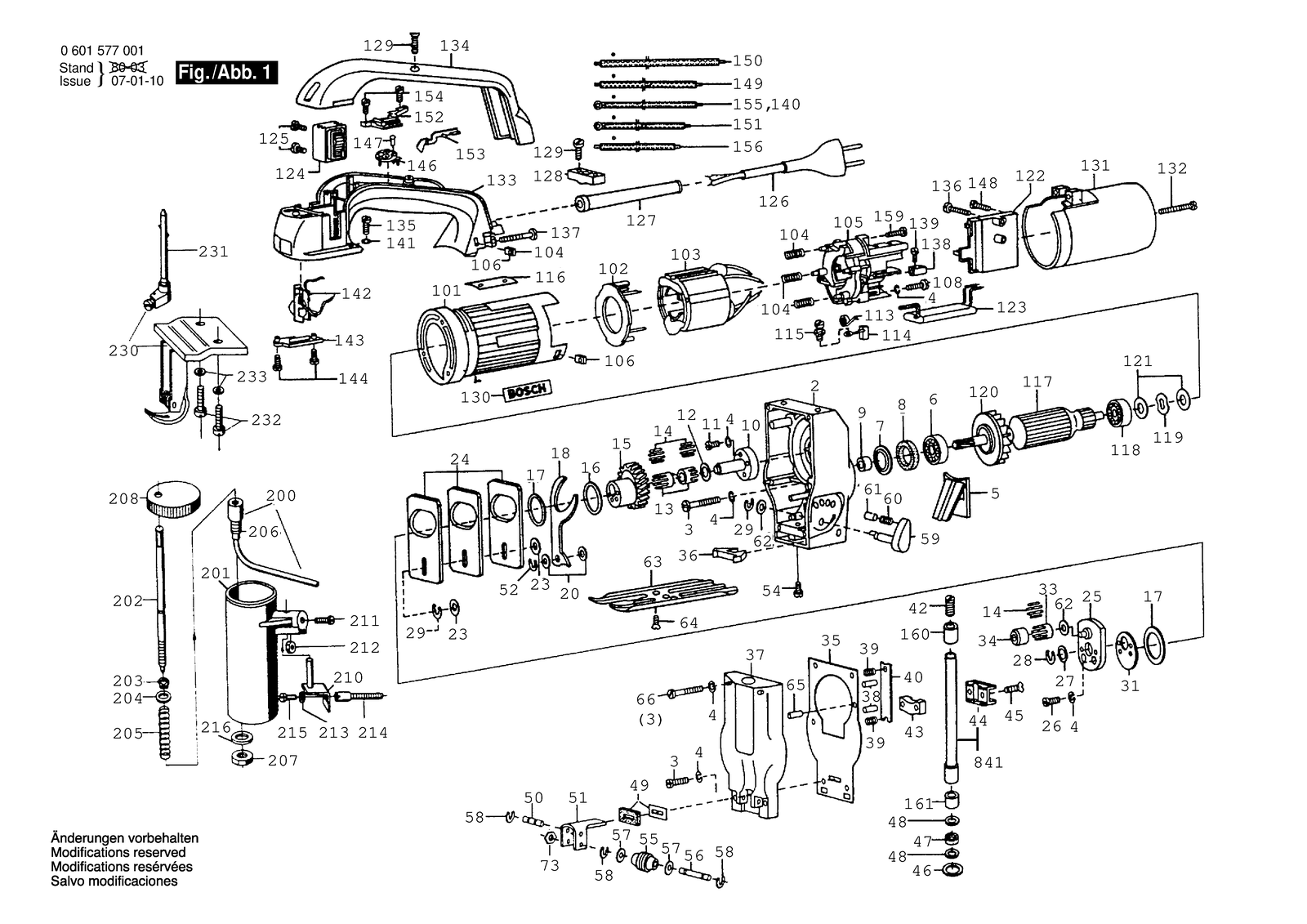

Bosch 0601577001 parts diagram, sheet 1
No.Part numberPart name
102603123009Bearing bolt
1012607010003Gear Housing
1022600522009Cover Disc
1032604220249Field 115V
1032604220250Field 110V
1032604220251Field 220V
1032604220252Field 240V
1032604220285Field 220V
1042604611024Compression Spring
1052607010004Commutator End Shield
1062603320001Square Nut M4
1082910021125Socket head cap screw DIN 84-AM4X15-8.8
112910021118Socket head cap screw DIN 84-AM4X8-8.8
1132604652000Spiral Spring
1142604320902Carbon-Brush Set
1152603410010Socket head cap screw
1162601100038Nameplate
1172604010388Nameplate 110-115V
1172604010389Armature 220V
1172604010390Armature 250V
1181900905019Groove ball bearing 6X19X6
1192600150003Shim
122600101616Shim 0,5 MM
1202606610013Clamping Strip
1212600101655Shim 0,2 MM
1212600101656Shim 0,3 MM
1212600101657Shim 0,5 MM
1232607329056Suppression Capacitor
1242607200048On-Off Switch
1252603410023Socket head cap screw M3X10 MM
1262604460080Elec. Cable W/Connection
1262604460081Power supply cord
1272600703011Grommet Ø8,3-Ø9,4X95 MM
1272600703012Grommet Ø6,5-Ø6,9X95 MM
1272600703013Grommet Ø7,6-Ø8,2X95 MM
1282601035001Cable Clip
1292910211019Tapping Screw DIN 7971-ST3,9X16-F
132600913027Needle-Roller Cage
1301601110013Manufacturer's nameplate
1312605500028Housing Cover
1322910215093Tapping Screw DIN 7971-3,9X38
1332602025025Auxiliary Handle
1342602025026Strap-Shaped Handle
1352910021154Socket head cap screw DIN 84-AM5X12-8.8
1362910211022Tapping Screw DIN 7971-BZ3,9X25
1372910021134Socket head cap screw DIN 84-BM4X30-8.8
1382604490003Connecting terminal
1392603410009Socket head cap screw
142603201037Needle Roller 1,5X5,8 MM
1402604412016Connecting Cable L = 58 MM
1412916690004Spring Lock Washer DIN 128-A5-FST
1422604505009Slide-Wiper Film Resistor
1422604505010Slide-Wiper Film Resistor
1432600099000Carbon-Brush Set
1442910211005Tapping Screw DIN 7971-ST2,9X9,5-F
1462604505004Dummy
1472603133000Screw
1482910011047Socket head cap screw DIN 84-AM3X4-5.8
1492604412013Connecting Cable L = 303 MM
152606319037Cylindrical Gear Z=50
1502604412011Connecting Cable L = 368 MM
1512604440001Elec. Cable W/Connection L = 273 MM
1522607200141On-Off Switch
1532602098003Buffer
1542910211001Tapping Screw DIN 7971-BZ2,2X6,5
1552604440004Connecting Cable L = 303 MM
1562604412009Connecting Cable L = 243 MM
1592910211004Tapping Screw DIN 7971-BZ2,9X6,5
162600102652Shim 0,5 MM
162600102653Shim 1,0 MM
1602600301046Sintered-Metal Bushing
1612600301045Bushing
182601923000Fork Lever
22605806917Gear Housing
202600100515Shim 0,3 MM
202600100516Shim 0,5 MM
2002605405005Coolant Tank
2012605405004Coolant Tank
2022603102003Valve Needle
2032916640003Spring retaining ring DIN 471-6X0,7-FST
2042916011013Plain Washer DIN 433-6,4-ST 50
2052604610002Compression Spring
2062600760001Valve bottom
2072915051107Hex Nut DIN 439-BM8-04
2082600502005RSV Cap
2102601331016Retaining Bracket
2112910011122Socket head cap screw DIN 84-AM4X12-5.8
2122915051104Hex Nut DIN 439-BM 4-04
2132916690003Spring Lock Washer DIN 128-A4-FST
2142603465007Stud bolt
2152910021118Socket head cap screw DIN 84-AM4X8-8.8
2162916011015Plain Washer 8,4 DIN 433-ST
232600100625Shim 0,1 MM
232600100626Shim 0,2 MM
232600100627Shim 0,3 MM
232600100628Shim 0,5 MM
2312608598001Support clamp
2322910011157Socket head cap screw DIN 84-AM5X15-5.8
2332916690004Spring Lock Washer DIN 128-A5-FST
242601015030Counterweight
252601072004Eccentric Disc
262910020120Socket head cap screw DIN 84-AM4X10-8.8
272600100575Shim 0,2 MM
272600100576Shim 0,3 MM
272600100577Shim 0,5 MM
282916080910Locking washer DIN 6799-7-FST
292916080008Locking washer DIN 6799-5-FST
32910021122Socket head cap screw DIN 84-AM4X12-8.8
312601072006Collet 0,3 MM
312601072007Eccentric Disc 0,5 MM
332600913010Needle-Roller Cage
342600917900Needle bearing
352601015039Sealing Plate
362602389001Bushing
372605808901Gear Cover
372605808902Gear Cover
381903201044Needle Roller A 3X15,8G2DIN5402
392604613000Compression Spring
42916690003Spring Lock Washer DIN 128-A4-FST
402601032014Guide
422603400000Clamp Screw
432602329011Clamping Saddle
442601321022Sliding Piece 31/35 MM
452603421040Countersunk-Head Screw DIN 7962-M3,5X8-10.9
462600101612Shim 0,5 MM
472600290017Seal Ring 0,5 MM
482600112031Supporting Disc 0,5 MM
492601015900Sealing Plate
52605500017Housing Cover
502603105015Bearing bolt
512607001018Roller Lever
522916080007Locking washer DIN 6799-4-FST
542910011148Socket head cap screw DIN 84-AM5X6-5.8
552600326900Guide Roller
581619P01375Roller Set
592607200042Switch Handle
62600905007Groove ball bearing 10 MM DIN 625
602604611023Dummy
612600506002Ratchet Sleeve
622600100568Shim 0,5 MM
622600100569Shim 1,0 MM
622600100570Shim 0,3 MM
632601016038Base Plate
642910501152Countersunk-Head Screw DIN 63-AM5X10-8.8
651903201042Needle Roller DIN 5402-A3X11,8-G2
662910021122Socket head cap screw DIN 84-AM4X12-8.8
662910021132Socket head cap screw DIN 84-AM4X25-8.8
72600500008Cupped Washer
732915051104Hex Nut DIN 439-BM 4-04
82600108020Felt Washer
8412600780913Lifting Rod
92600400020Receptacle
