Bosch 0601530003

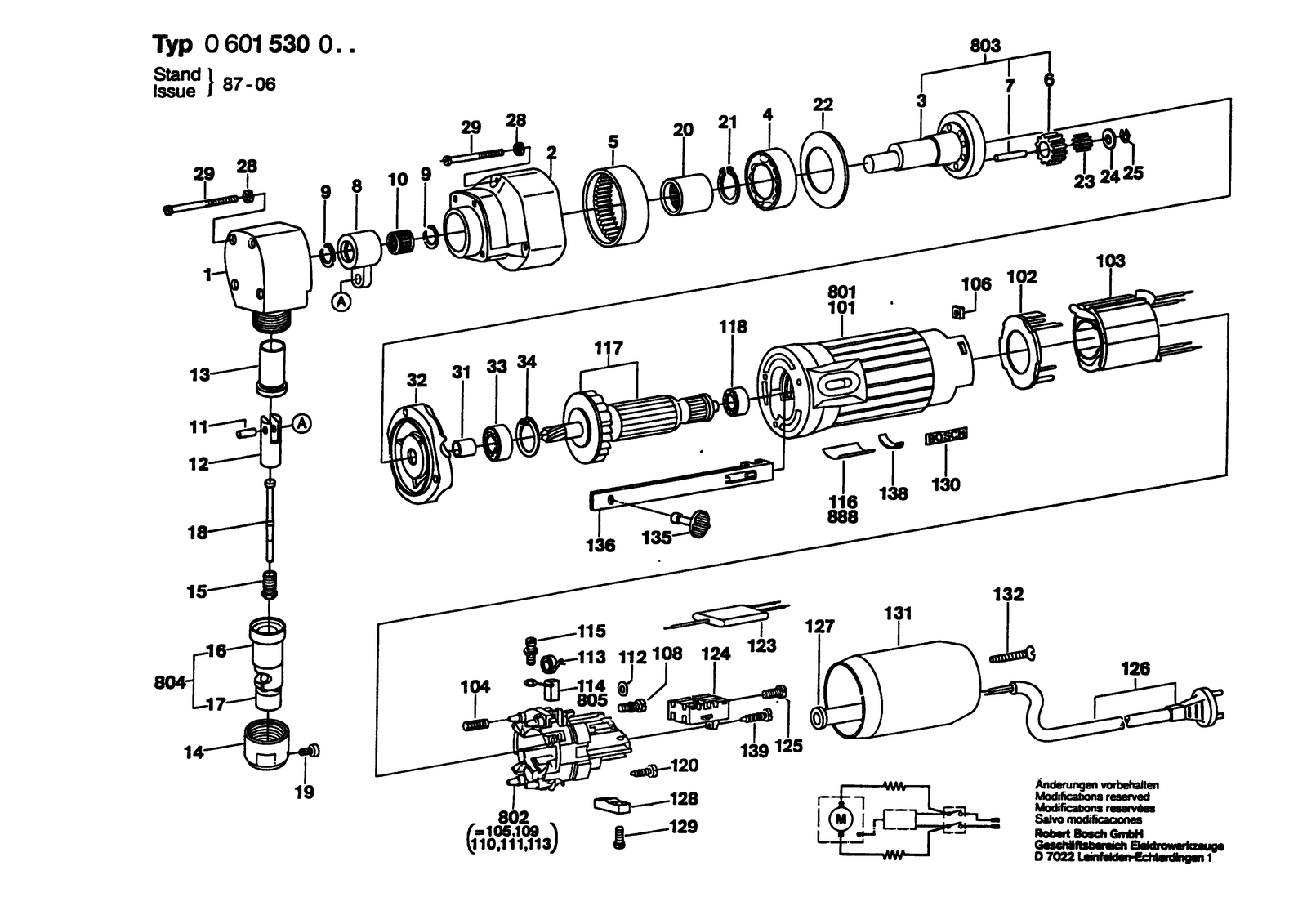

Bosch 0601530003 nibbler: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601530003: 78 positions on 1 sheet
Bosch 0601530003 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605500042 | Gear Cover |
| 1 | 2605500064 | Gear Cover |
| 10 | 2600913035 | Needle-Roller Cage |
| 102 | 2600522009 | Cover Disc |
| 103 | 2604220378 | Pole Shoe 100V |
| 103 | 2604220379 | Field 115V |
| 103 | 2604220380 | Pole Shoe 220V |
| 103 | 2604220381 | Pole Shoe 220V |
| 103 | 2604220382 | Field 240V |
| 104 | 2604611024 | Compression Spring |
| 106 | 2603320001 | Square Nut M4 |
| 108 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 11 | 2603100003 | Bearing bolt |
| 112 | 2916010005 | Plain Washer |
| 113 | 2604652000 | Spiral Spring |
| 115 | 2914501011 | Screw and washer assembly DIN7985-M3X6-Z1-4.8 |
| 117 | 2604010511 | Armature With Fan 100V |
| 117 | 2604010512 | Carton insert 115V |
| 117 | 2604010513 | Armature 220V |
| 117 | 2604010514 | Armature With Fan 240V |
| 118 | 1900905019 | Groove ball bearing 6X19X6 |
| 12 | 2603104001 | Power piston |
| 120 | 2603435016 | Tapping Screw 2,2X6,5 |
| 123 | 2607329076 | Suppression Capacitor |
| 124 | 2607200076 | On-Off Switch |
| 124 | 2607200674 | Switch |
| 125 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 126 | 1604460001 | Power supply cord |
| 126 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 126 | 2604460073 | Cable |
| 126 | 2604460074 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 126 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 126 | 2604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 126 | 3607030489 | Power supply cord |
| 127 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 127 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 127 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 128 | 2601035001 | Cable Clip |
| 129 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 13 | 2600422005 | Bushing |
| 130 | 1601110013 | Manufacturer's nameplate |
| 131 | 2600508001 | Housing Cover Blue |
| 131 | 2605500035 | Locating ring |
| 132 | 2910601020 | Rec ct-sunk tapping screw BZ 3,9X19 DIN 7972 |
| 135 | 2602026015 | Switch Handle Black |
| 136 | 2602319004 | Adjusting Slide |
| 138 | 1600026000 | Intermediate Piece Blue |
| 139 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 14 | 3603340017 | Union Nut |
| 15 | 2603455006 | Hollow Bolt |
| 18 | 2608639013 | Nibbling Punch |
| 19 | 2603414003 | Hex Socket Head Cap Screw |
| 2 | 2605806312 | Gear Housing |
| 20 | 2600914011 | Needle bearing |
| 21 | 2916650011 | Spring retaining ring DIN 471 20X1,2 |
| 22 | 2600550017 | Disc Spring |
| 23 | 1903201520 | Needle Roller |
| 24 | 1600100611 | Shim Thick 1,2 MM |
| 25 | 2916080908 | Locking washer 5 DIN 6799 |
| 28 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 29 | 2910021138 | Socket head cap screw DIN 84-BM4X40-8.8 |
| 3 | 2606122001 | Eccentric Shaft |
| 31 | 2600300047 | Seal Bushing |
| 32 | 2605700189 | Bearing Flange |
| 33 | 2600905007 | Groove ball bearing 10 MM DIN 625 |
| 34 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 4 | 1900900274 | Groove ball bearing 20X42X12 |
| 5 | 2606334040 | Ring Gear Z=66 |
| 6 | 3606316057 | Cylindrical Gear Z=30 |
| 7 | 2603105021 | Bearing bolt |
| 8 | 2602001001 | Connecting Rod |
| 801 | 2605108902 | Motor Housing |
| 802 | 2605808910 | Commutator End Shield |
| 803 | 2606122900 | Eccentric Shaft |
| 804 | 2608639900 | Lower Die |
| 805 | 2604320902 | Carbon-Brush Set |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2600224009 | Retaining ring |
