Bosch 0601528001

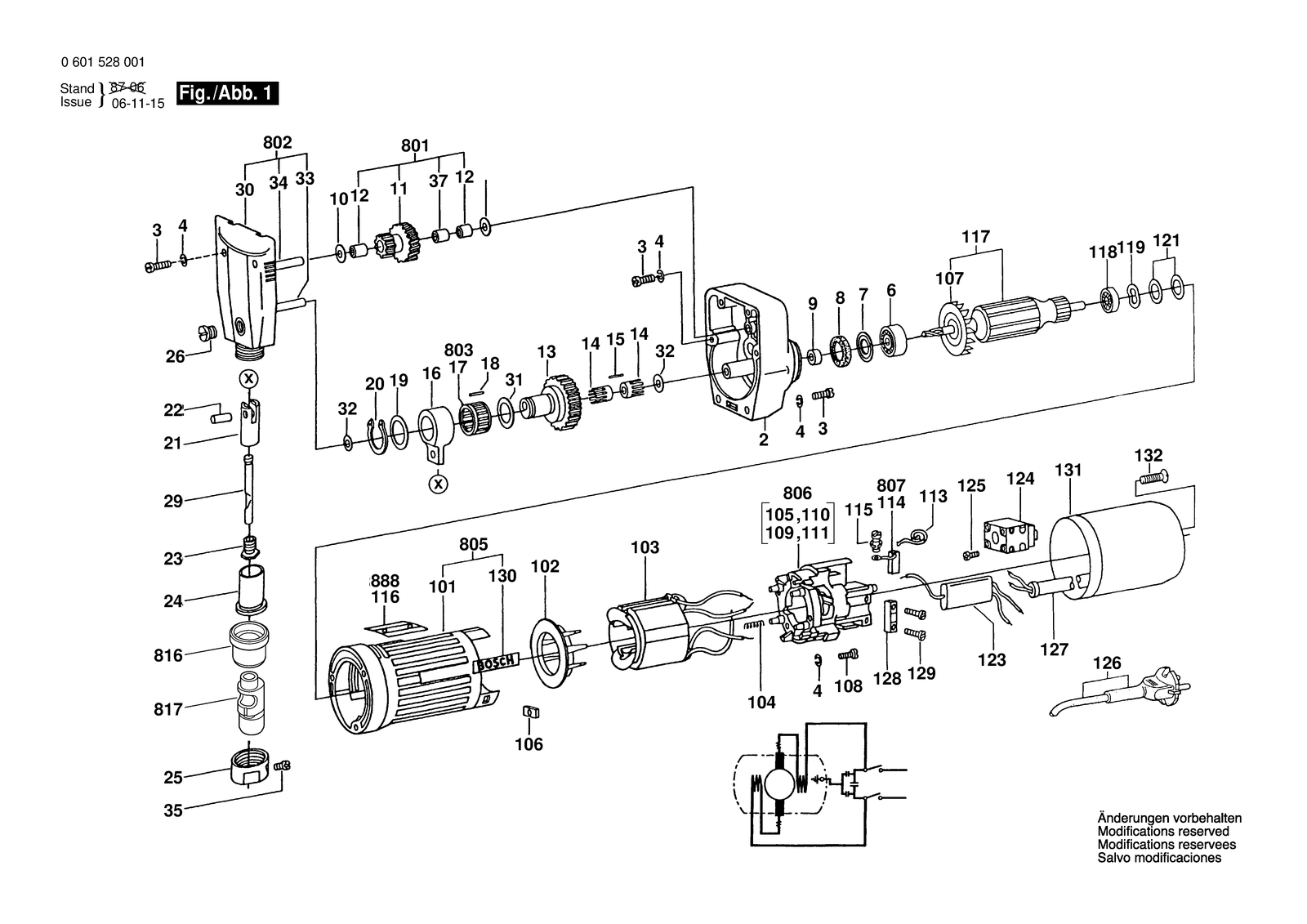

Bosch 0601528001 nibbler: exploded parts diagram, 1 sheet, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601528001: 74 positions on 1 sheet
Bosch 0601528001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2600100628 | Shim 0,5 MM |
| 102 | 2600522009 | Cover Disc |
| 103 | 2604220249 | Field 115V |
| 103 | 2604220250 | Field 110V |
| 103 | 2604220251 | Field 220V |
| 103 | 2604220252 | Field 240V |
| 104 | 2604611024 | Compression Spring |
| 106 | 2603320001 | Square Nut M4 |
| 107 | 2606610013 | Clamping Strip |
| 108 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 113 | 2604652000 | Spiral Spring |
| 115 | 2914501011 | Screw and washer assembly DIN7985-M3X6-Z1-4.8 |
| 117 | 2604010315 | Armature With Fan 110V |
| 117 | 2604010316 | Armature 220V |
| 117 | 2604010317 | Armature With Fan 240V |
| 117 | 2604010475 | Armature With Fan 115V |
| 118 | 1900905019 | Groove ball bearing 6X19X6 |
| 119 | 2600150003 | Shim |
| 12 | 2600914004 | Needle bearing |
| 121 | 2601101655 | Shim |
| 121 | 2601101656 | Shim |
| 121 | 2601101657 | Shim |
| 123 | 2607329056 | Suppression Capacitor |
| 124 | 2607200048 | On-Off Switch |
| 125 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 126 | 2604460016 | Power supply cord |
| 126 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 126 | 2604460056 | Power supply cord |
| 126 | 2604460060 | Elec. Cable W/Connection |
| 126 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 127 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 127 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 127 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 128 | 2601035001 | Cable Clip |
| 129 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 13 | 2606300016 | Cylindrical Gear Z=58 |
| 130 | 1601110013 | Manufacturer's nameplate |
| 131 | 2600508028 | Housing Cover Blue |
| 132 | 2910601020 | Rec ct-sunk tapping screw BZ 3,9X19 DIN 7972 |
| 14 | 2600913033 | Needle-Roller Cage |
| 15 | 1903201000 | Needle Roller 2X7,8 G 2 DIN 5402 |
| 16 | 2602001006 | Connecting Rod |
| 18 | 1903201001 | Needle Roller 2X9,8 G2 DIN 5402 |
| 19 | 2600102029 | Shim 0,8 MM |
| 2 | 2605700015 | Bearing Flange |
| 20 | 2916650012 | Spring retaining ring 22X1,2 DIN 471 |
| 21 | 2603104001 | Power piston |
| 22 | 2603100003 | Bearing bolt |
| 23 | 2603455006 | Hollow Bolt |
| 24 | 2600422005 | Bushing |
| 25 | 2603314016 | Union Nut |
| 26 | 2603463001 | Screw Plug |
| 29 | 2608639013 | Nibbling Punch |
| 3 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 31 | 2600102028 | Shim |
| 32 | 2600100563 | Shim 0,5 MM |
| 33 | 2603100032 | Spring Pin |
| 34 | 2603100031 | Bearing bolt |
| 35 | 2910011148 | Socket head cap screw DIN 84-AM5X6-5.8 |
| 37 | 2600309003 | Spacer Bushing |
| 4 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 6 | 1900900270 | Groove ball bearing 6000 DIN 625 |
| 7 | 2600500008 | Cupped Washer |
| 8 | 2600108020 | Felt Washer |
| 801 | 2606328903 | Cylindrical Gear |
| 802 | 2605806919 | Gear Housing |
| 803 | 2600910002 | Needle-Roller Cage |
| 805 | 2607010003 | Gear Housing |
| 806 | 2607010004 | Commutator End Shield |
| 807 | 2604320902 | Carbon-Brush Set |
| 816 | 3608639030 | Lower Die Ring |
| 817 | 2608639003 | Lower Die |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2600400020 | Receptacle |
