Bosch 0601526000

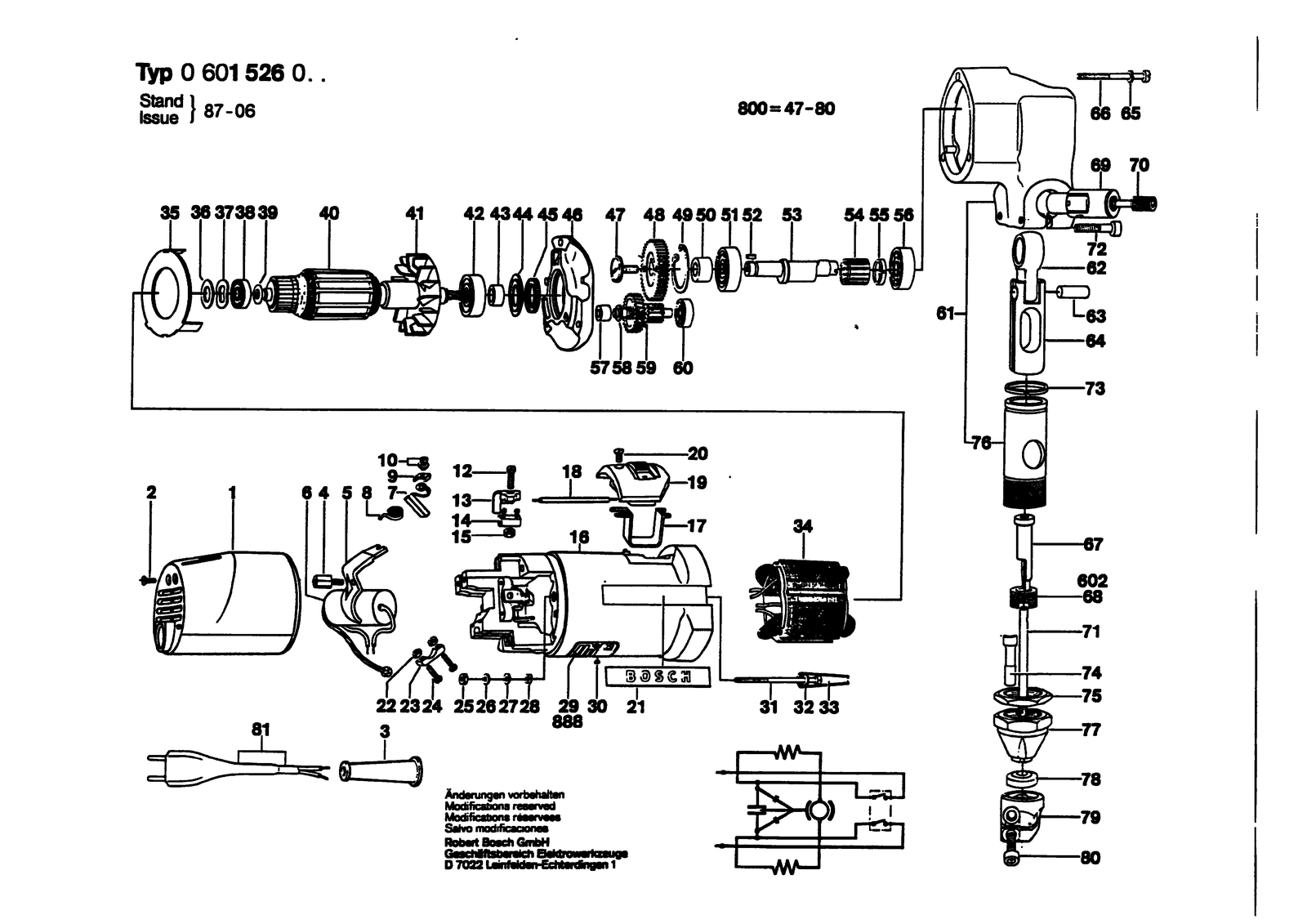

Bosch 0601526000 nibbler: exploded parts diagram, 1 sheet, 92 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601526000: 92 positions on 1 sheet
Bosch 0601526000 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3600508023 | Housing Cover Blue |
| 10 | 2603410010 | Socket head cap screw |
| 12 | 2910011028 | Dummy M 2,6X5 DIN 84 |
| 13 | 2602305034 | Clamping Piece |
| 14 | 2604490003 | Connecting terminal |
| 15 | 2915011002 | Hex Nut M 2,6 DIN 934-M-6 |
| 16 | 2605108032 | Motor Housing Blue |
| 17 | 2601322002 | Insulating Part |
| 18 | 2604411061 | Cable |
| 19 | 2607200045 | Switch |
| 2 | 2910501084 | Countersunk-Head Screw DIN 63-AM3,5X8-5.8 |
| 20 | 2910501048 | Countersunk-Head Screw M 3X6 DIN 63-5.8 |
| 21 | 2601007003 | Sticker |
| 22 | 2915011002 | Hex Nut M 2,6 DIN 934-M-6 |
| 23 | 2601035005 | Cable Clip |
| 24 | 2910011033 | Socket head cap screw DIN 84-AM2,6X15-5.8 |
| 25 | 2915051103 | Hex Nut DIN 439-BM 3 |
| 26 | 2916690001 | Spring Lock Washer A3-FST |
| 27 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 28 | 2915011003 | Hex Nut DIN 934-M 3-M-8 |
| 29 | 2601100038 | Nameplate |
| 3 | 2600703006 | Grommet Ø9,5 MM |
| 3 | 2600703007 | Grommet Ø7 MM |
| 3 | 2600703008 | Grommet Ø8,2 MM |
| 30 | 2917724031 | Round-Head Grooved Pin 2X3 DIN 1476 St |
| 31 | 2910011074 | Socket head cap screw DIN 84-BM3X50-5.8 |
| 32 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 33 | 2601099015 | Cable Clip |
| 34 | 2604220218 | Pole Shoe 24V |
| 34 | 2604220219 | Pole Shoe 42V |
| 34 | 2604220268 | Field 110V |
| 34 | 2604220269 | Field 220-230V |
| 34 | 2604220270 | Field 240V |
| 34 | 2604220307 | Field 115V |
| 35 | 2600113019 | Seal Ring |
| 36 | 2600100699 | Shim |
| 37 | 2600150002 | Shim |
| 38 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 39 | 2600100612 | Shim 0,3 MM |
| 4 | 2603527004 | Hex Screw |
| 40 | 2604010275 | Armature 220-230V |
| 40 | 2604010276 | Armature With Fan 24V |
| 40 | 2604010277 | Armature With Fan 42V |
| 40 | 2604010278 | Armature With Fan 100-115V |
| 40 | 2604010279 | Armature 240V |
| 41 | 2606610038 | Fan |
| 42 | 1900905007 | Groove ball bearing 609-ZY DIN 625 |
| 43 | 2600300044 | Seal Bushing |
| 44 | 2600500017 | Cupped Washer |
| 45 | 2600108026 | Felt Washer |
| 46 | 2605700135 | Intermediate Flange |
| 47 | 1603410007 | Socket head cap screw |
| 48 | 1606316012 | Cylindrical Gear Z=43 |
| 49 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 5 | 2601301002 | Fastening Clamp |
| 50 | 1600300071 | Spacer Sleeve |
| 51 | 3600900025 | Groove ball bearing |
| 52 | 1609223006 | Guide |
| 53 | 1606110001 | Eccentric Shaft |
| 54 | 1609269002 | Needle-Roller Bearing |
| 55 | 1600224032 | Clamp ring |
| 56 | 1900905007 | Groove ball bearing 609-ZY DIN 625 |
| 57 | 1900301005 | Sintered-Metal Bushing |
| 58 | 2600100612 | Shim 0,3 MM |
| 59 | 1606328085 | Toothed Shaft Z=31/12 |
| 6 | 2607329048 | Suppression Filter |
| 60 | 1900900232 | Groove ball bearing 5X16X5 |
| 602 | 1607950033 | Key |
| 61 | 1605110022 | Gear Housing |
| 62 | 1602001004 | Connecting Rod |
| 63 | 1603100025 | Conrod Pin |
| 64 | 1603104008 | Tappet |
| 65 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 66 | 2910021138 | Socket head cap screw DIN 84-BM4X40-8.8 |
| 67 | 1608635032 | Cut-Off Punch |
| 68 | 1603344046 | Threaded Ring |
| 69 | 1603121015 | Transverse Member |
| 70 | 1603402014 | Set screw |
| 71 | 1603501016 | Support Pin |
| 72 | 2910141164 | Hex Socket Head Cap Screw DIN 912-M 5X25-8.8 |
| 73 | 1609202007 | Piston Ring |
| 74 | 1600311006 | Supporting Pan |
| 75 | 1603300007 | Hex Screw |
| 76 | 1600361009 | Guide Sleeve |
| 77 | 1603314007 | Guide Bushing |
| 78 | 1608635031 | Lower Die |
| 79 | 1608042004 | Die Carrier |
| 8 | 2604652000 | Spiral Spring |
| 80 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 800 | 1608584007 | Gear Head |
| 81 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 9 | 2601321005 | Clamping Saddle |
