Bosch 0601501001 shears: exploded parts diagram, 1 sheet, 106 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601501001: 106 positions on 1 sheet

Bosch 0601501001 parts list (1 sheet)

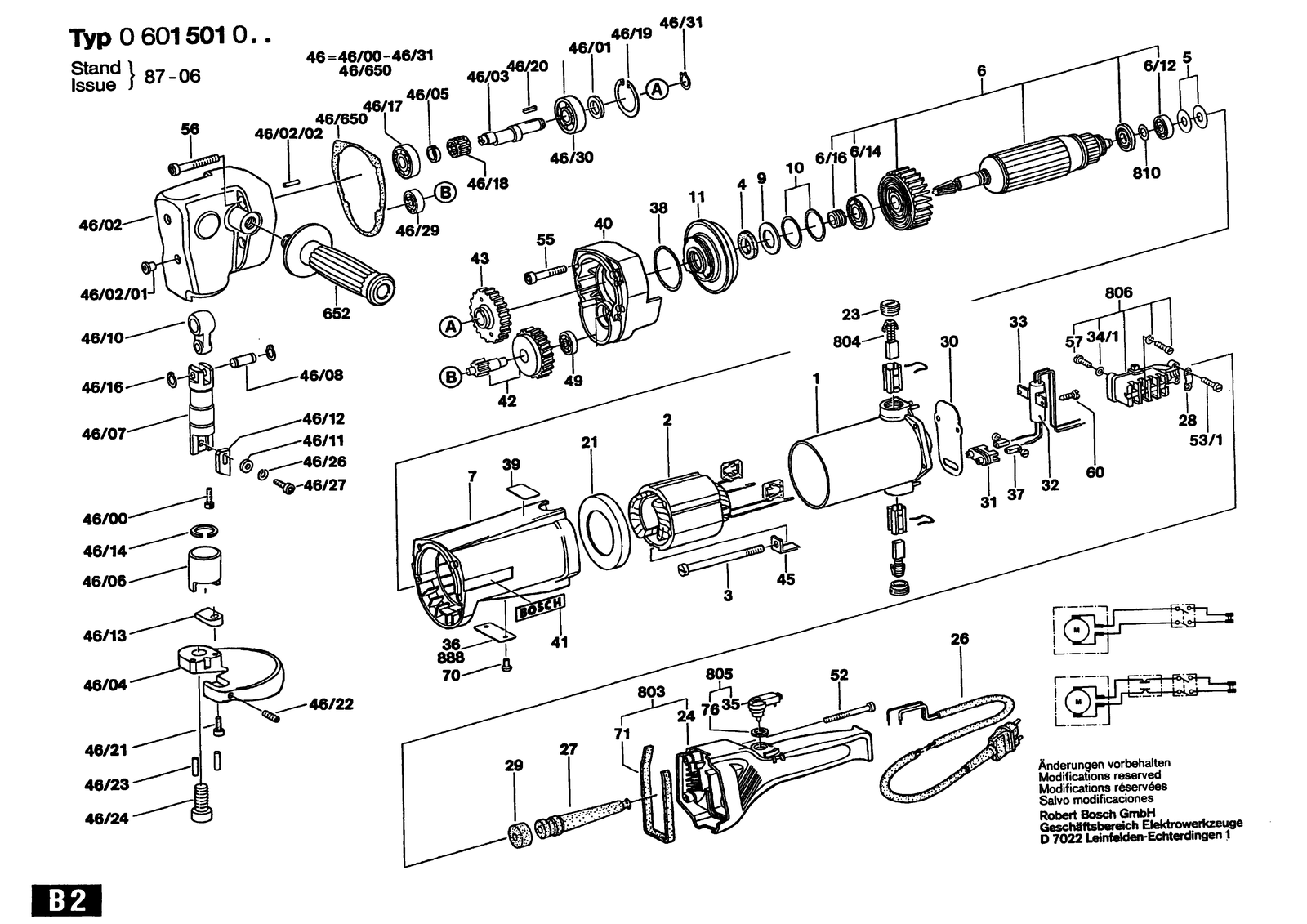

Bosch 0601501001 parts diagram, sheet 1
No.Part numberPart name
11605108069Pole housing
101600102601Shim Thick 0,30 MM
101600102602Shim Thick 0,10 MM
101600102603Shim Thick 0,15 MM
111605820131Bearing Flange
21604220045Field 100-110V
21604220048Field 220V
21604220049Field 220V
211600502001Air-Deflector Ring
231603465003Screw Plug
241605132068Handle
261604460033Power supply cord AUS 2,65M 2 X 1,0MM Pvc
261604460092Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2
261604460203Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F
261604460447Power supply cord CH 4,15M 2 X 1,0MM H07RN-F
261604461007Elec. Cable W/Connection
261604461009Power supply cord
261607000228Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F
271600703008Grommet
271600703013Grommet
281601302013Fastening Clamp
281601302014Fastening Clamp
291600113003Sealing Plate
32910021181Socket head cap screw
301601037001Fixing plate
311600306002Grommet
321604413001Connecting Cable
321607328034Suppression Filter
331601302003Fastening Clamp
34/12916011005Plain Washer DIN 433-3,2-ST 50
351602026030Control Lever
371600390006Sleeve Terminal
381600210004O-Ring 54,0X3,0 MM
391601110058Reference Plate Double Insulation
41600108048Sealing disk
401605820900Bearing Housing
411601110011Manufacturer's nameplate
421606328077Spindle With Gear Z=14
431606317063Cylindrical Gear Z=48
451601331032Holding Bracket
461608584002Gear Head
46/001603410006Adjusting Screw
46/011600103024Plain Washer
46/021605110023Gear Housing
46/02/011609274002Lubricating Nipple
46/02/022917510120Straight Pin DIN 7-5M 6X16-ST
46/031606110003Eccentric Shaft
46/041608042001Cutting Table
46/051600224030Clamp ring
46/061600400021Guide Sleeve
46/071603121014Tappet
46/081603105010Bearing bolt
46/101609220000Connecting Rod
46/111609201000Plain Washer
46/121608635015Cutter Plate
46/131608635014Cutter Plate
46/162916650001Spring retaining ring DIN 471-10X1MM-FST
46/171900905301Groove ball bearing 6301 Zy DIN 625
46/181609209001Needle-Roller Cage
46/192916660019Spring retaining ring DIN 472-42X1,75MM
46/201902300263Parallel Key A 5X5X14 DIN 6885
46/212910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
46/222912041196Set screw M 6X15-DIN 913-45H
46/232917510186Straight Pin 8 M 6X50 DIN 7
46/242910141483Hex Socket Head Cap Screw M 18X50 DIN 912-8.8
46/262916690005Spring Lock Washer M6
46/272910141201Hex Socket Head Cap Screw DIN 912-M6X20-8.8
46/291900905200Groove ball bearing 6200-Z DIN 625
46/301900905302Groove ball bearing 6303 Zy DIN 625
46/312916650006Retaining clip DIN 471-15X1-FST
46/6501601015005Seal
491900900302Groove ball bearing 12X32X10
51600102608Shim Thick 0,05 MM
51600102625Shim Thick 0,15 MM
51600102626Shim Thick 0,1 MM
51600102627Shim Thick 0,3 MM
522910011166Socket head cap screw DIN 84-BM5X30-5.8
53/12910021122Socket head cap screw DIN 84-AM4X12-8.8
552910141172Hex Socket Head Cap Screw DIN 912-M5X45-8.8
562910141213Hex Socket Head Cap Screw DIN 912-M6X50-8.8
572910021050Socket head cap screw DIN 84-AM3X8-8.8
572910211006Tapping Screw DIN 7971-BZ2,9X13
61604011055Armature 110-115V
61604011057Armature 220V
61604011058Armature 240V
6/121900900109Magneto Ball Bearing E 12 TD 615
6/141900900115Magneto Ball Bearing BO 17 D 615
6/161603344037Threaded Ring
601603435000Self-Cutting Screw Ø 3,9X13 MM
652160202509ZAuxiliary Handle
65216020250A1Auxiliary Handle
71605102030Motor Housing
71605102031Motor Housing
702917721031Round-Head Grooved Pin DIN 1476-2X3-ST
711601014002Sealing Cord
761600205008Felt Washer
8031605132060Handle
8041607014100Carbon-Brush Set
8051602026030Control Lever
8061607000034Switch Kit
8101600101616Shim Thick 0,1 MM
8101600101617Shim Thick 0,2 MM
8101600101618Shim Thick 0,3 MM
8101600101619Shim Thick 0,05 MM
888160111A3H3Nameplate
91600102609Shim Thick 0,8 MM
