Bosch 0601403001

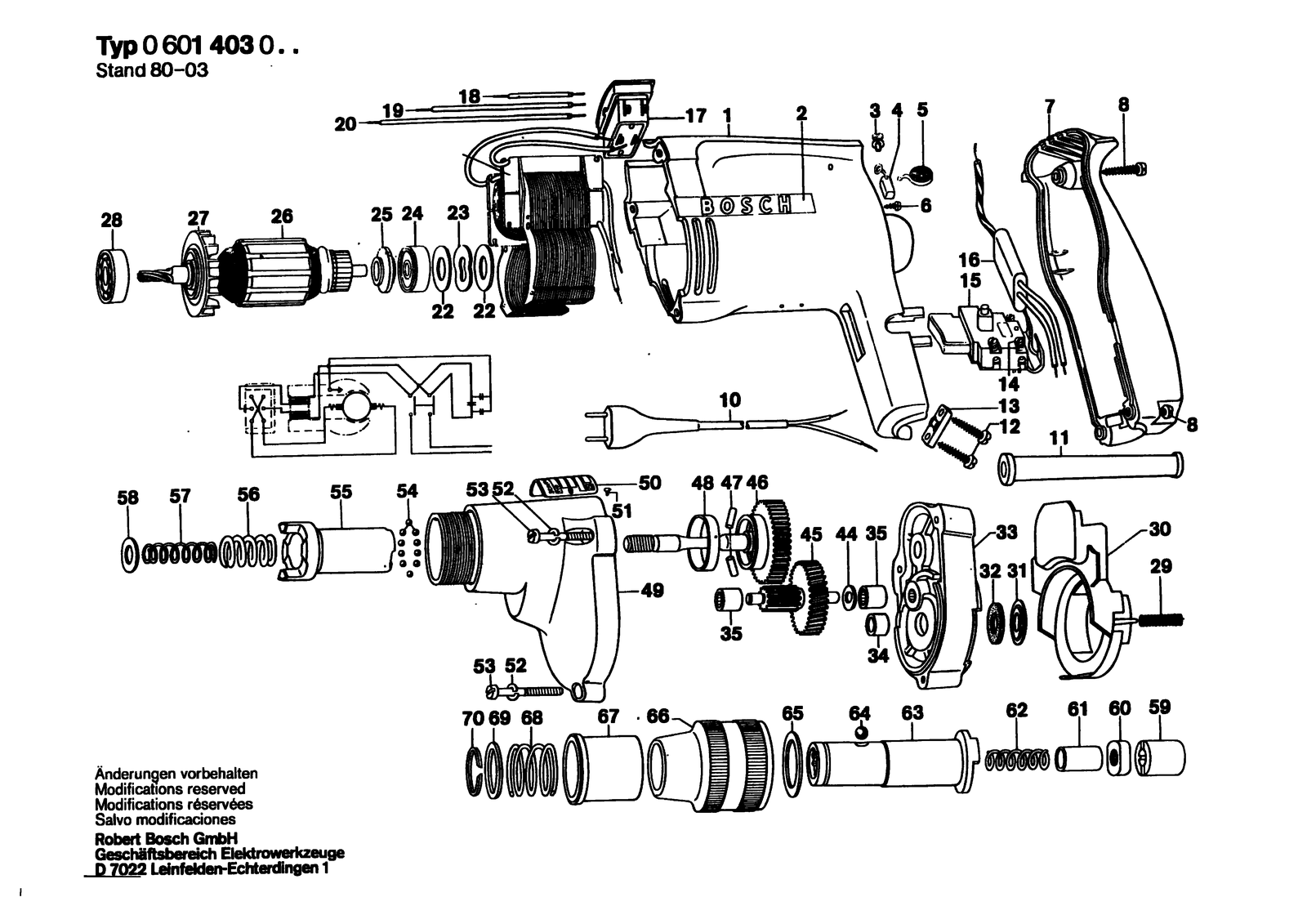

Bosch 0601403001 pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601403001: 71 positions on 1 sheet
Bosch 0601403001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104912 | Motor Housing |
| 10 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 10 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 10 | 2604460056 | Power supply cord |
| 10 | 2604460060 | Elec. Cable W/Connection |
| 10 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 10 | 3604460141 | Power supply cord |
| 11 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 11 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 11 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 12 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 13 | 2601035001 | Cable Clip |
| 14 | 2603410023 | Socket head cap screw M3X10 MM |
| 15 | 2607200043 | On-Off Switch |
| 16 | 2607329051 | Suppression Filter |
| 17 | 2607200052 | On-Off Switch |
| 18 | 2604411505 | Connecting Cable |
| 19 | 2604465026 | Suppressor Box |
| 2 | 2601007003 | Sticker |
| 20 | 2604465027 | Suppressor Box |
| 22 | 2600101020 | Shim 0,5 MM |
| 22 | 2600101022 | Shim 0,2 MM |
| 22 | 2600101023 | Shim 0,3 MM |
| 23 | 2600150004 | Shim |
| 24 | 1900905018 | Ball Bearing 7X22X7 |
| 25 | 2600121002 | Armature Plate |
| 26 | 2604010382 | Nameplate 110V |
| 26 | 2604010384 | Armature 220V |
| 26 | 2604010385 | Armature With Fan 240V |
| 27 | 2606610032 | Fan |
| 28 | 2600905007 | Groove ball bearing 10 MM DIN 625 |
| 29 | 2604611026 | Compression Spring |
| 3 | 2603410010 | Socket head cap screw |
| 30 | 2601328022 | Cover Disc |
| 31 | 2600500008 | Cupped Washer |
| 32 | 2600108020 | Felt Washer |
| 33 | 2605700908 | Flanged Bearing |
| 34 | 2600400020 | Receptacle |
| 35 | 2600914004 | Needle bearing |
| 4 | 2604320906 | Carbon-Brush Set |
| 44 | 2600100570 | Shim 0,3 MM |
| 45 | 2606308900 | Toothed Shaft Z= 13/37 |
| 46 | 2606100057 | Spindle With Gear Z= 44 |
| 47 | 1603100013 | Roller |
| 48 | 2600209018 | Retaining snap ring |
| 49 | 2605806916 | Gear Housing |
| 5 | 2604652002 | Spiral Spring |
| 50 | 160111A3H3 | Nameplate |
| 51 | 2917724031 | Round-Head Grooved Pin 2X3 DIN 1476 St |
| 52 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 53 | 2603410024 | Socket head cap screw |
| 54 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 55 | 2606445000 | Coupling Half |
| 56 | 1604619005 | Compression Spring |
| 57 | 1604616010 | Compression Spring |
| 58 | 2600100608 | Shim |
| 59 | 1600309004 | Bushing |
| 6 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 60 | 1603341000 | Round Nut |
| 61 | 1600506003 | Guide Sleeve |
| 62 | 1604612002 | Compression Spring |
| 63 | 2606455004 | Coupling Half |
| 64 | 1903230011 | Ball DIN 5401-6 G28 |
| 65 | 1600110002 | Sealing disk |
| 66 | 2600460002 | Guide Sleeve |
| 67 | 1600328013 | Protection Sleeve |
| 68 | 1604616006 | Compression Spring |
| 69 | 1600102623 | Plain Washer Thick 1,0 MM |
| 7 | 2605132007 | Housing Cover Blue |
| 70 | 1600116001 | Retaining ring |
| 8 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
