Bosch 0601401001

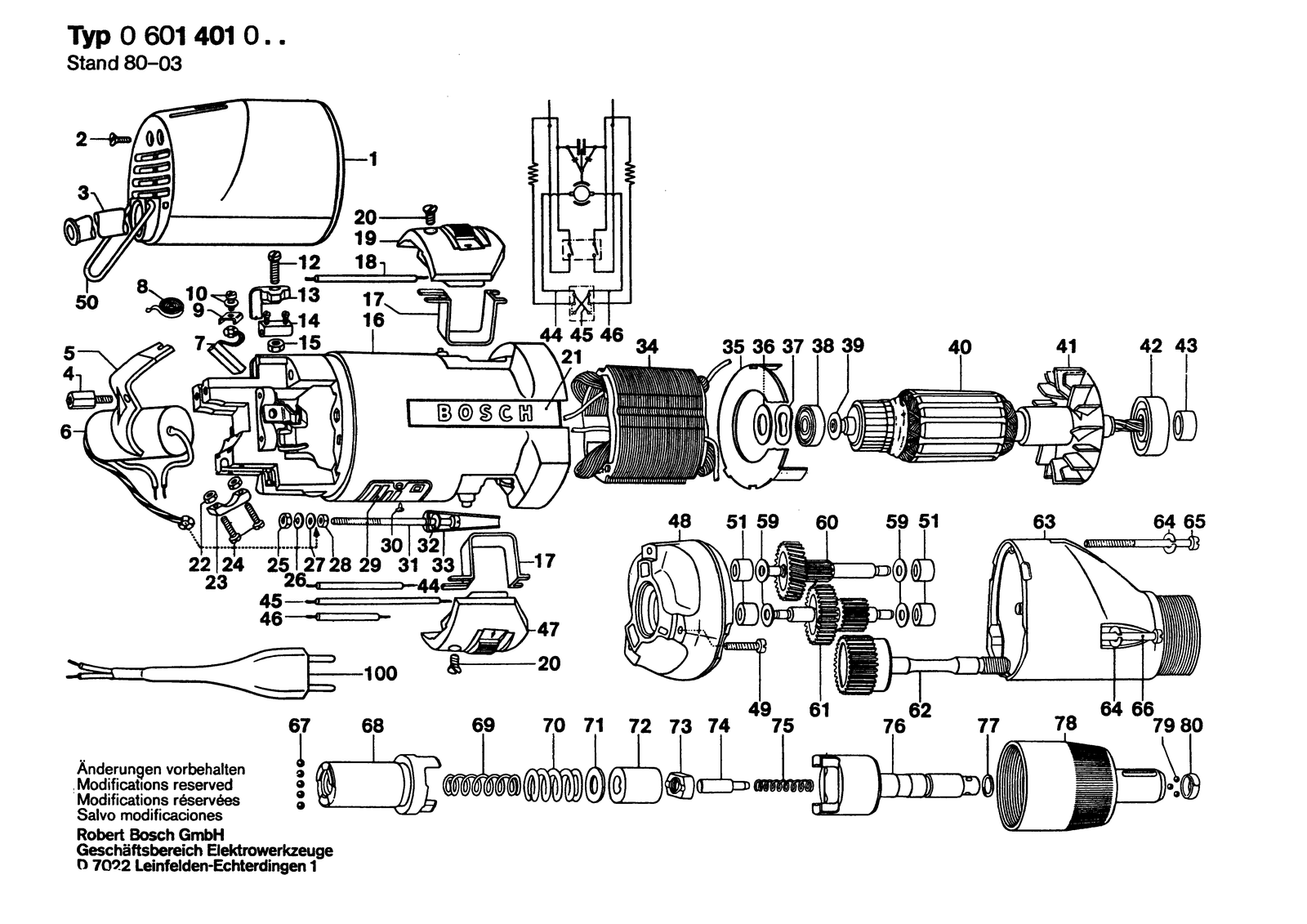

Bosch 0601401001 pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601401001: 85 positions on 1 sheet
Bosch 0601401001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3600508023 | Housing Cover Blue |
| 10 | 2603410010 | Socket head cap screw |
| 100 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 100 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 100 | 2604460032 | Elec. Cable W/Connection |
| 100 | 2604460035 | Elec. Cable W/Connection |
| 100 | 2604460036 | Elec. Cable W/Connection |
| 100 | 3604460138 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 100 | 3604460141 | Power supply cord |
| 12 | 2910011028 | Dummy M 2,6X5 DIN 84 |
| 13 | 2602305034 | Clamping Piece |
| 14 | 2604490003 | Connecting terminal |
| 15 | 2915011002 | Hex Nut M 2,6 DIN 934-M-6 |
| 16 | 2605108033 | Motor Housing |
| 17 | 2601322002 | Insulating Part |
| 18 | 2604411061 | Cable |
| 19 | 2607200045 | Switch |
| 2 | 2910501084 | Countersunk-Head Screw DIN 63-AM3,5X8-5.8 |
| 20 | 2910501048 | Countersunk-Head Screw M 3X6 DIN 63-5.8 |
| 21 | 2601007003 | Sticker |
| 22 | 2915011002 | Hex Nut M 2,6 DIN 934-M-6 |
| 23 | 2601035005 | Cable Clip |
| 24 | 2910011033 | Socket head cap screw DIN 84-AM2,6X15-5.8 |
| 25 | 2915051103 | Hex Nut DIN 439-BM 3 |
| 26 | 2916690001 | Spring Lock Washer A3-FST |
| 27 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 28 | 2915011003 | Hex Nut DIN 934-M 3-M-8 |
| 3 | 2600703006 | Grommet Ø9,5 MM |
| 3 | 2600703007 | Grommet Ø7 MM |
| 3 | 2600703008 | Grommet Ø8,2 MM |
| 30 | 2917724031 | Round-Head Grooved Pin 2X3 DIN 1476 St |
| 31 | 2910011074 | Socket head cap screw DIN 84-BM3X50-5.8 |
| 32 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 33 | 2601099015 | Cable Clip |
| 34 | 2604220227 | Pole Shoe 110V |
| 34 | 2604220228 | Pole Shoe 220-230V |
| 34 | 2604220229 | Pole Shoe 240V |
| 34 | 2604220308 | Pole Shoe 115V |
| 35 | 2600113019 | Seal Ring |
| 36 | 2600100699 | Shim |
| 37 | 2600150002 | Shim |
| 38 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 39 | 2600100612 | Shim 0,3 MM |
| 4 | 2603527004 | Hex Screw |
| 40 | 2604010322 | Armature With Fan 115V |
| 40 | 2604010323 | Armature With Fan 220-230V |
| 40 | 2604010324 | Armature With Fan 240V |
| 41 | 2606610038 | Fan |
| 42 | 1900905007 | Groove ball bearing 609-ZY DIN 625 |
| 43 | 2600300044 | Seal Bushing |
| 44 | 2604411037 | Connecting Cable |
| 45 | 2604411064 | Elec. Cable W/Connection |
| 46 | 2604411505 | Connecting Cable |
| 47 | 2607200044 | On-Off Switch |
| 48 | 2605820012 | Intermediate Bearing |
| 49 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 5 | 2601301002 | Fastening Clamp |
| 50 | 1604682003 | Suspension Loop |
| 51 | 2600300058 | Bushing |
| 59 | 2600100613 | Shim 0,50 MM |
| 6 | 2607329048 | Suppression Filter |
| 60 | 2606100051 | Toothed Shaft Z=11/34 |
| 61 | 2606100050 | Toothed Shaft Z=18/35 |
| 62 | 2606100052 | Spindle With Gear Z=37 |
| 63 | 2605806227 | Gear Housing |
| 64 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 65 | 2910021142 | Socket head cap screw DIN 84-BM4X45-8.8 |
| 66 | 2910011140 | Socket head cap screw DIN 84-BM4X45-5.8 |
| 67 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 68 | 2606445000 | Coupling Half |
| 69 | 1604616010 | Compression Spring |
| 70 | 1604619005 | Compression Spring |
| 71 | 1600100607 | Shim |
| 72 | 1600309004 | Bushing |
| 73 | 1603341000 | Round Nut |
| 74 | 1603120022 | Pressure Spindle |
| 75 | 1604626002 | Compression Spring |
| 76 | 2606455002 | Carrier 6 Kt., 6,3 MM |
| 76 | 2606455901 | Dummy |
| 77 | 1900210103 | O-Ring 8,0X1,5 MM |
| 78 | 2600460001 | Guide Sleeve |
| 79 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 8 | 2604652000 | Spiral Spring |
| 80 | 1600224011 | Spring Lock Washer |
| 9 | 2601321005 | Clamping Saddle |
