Bosch 0601331139

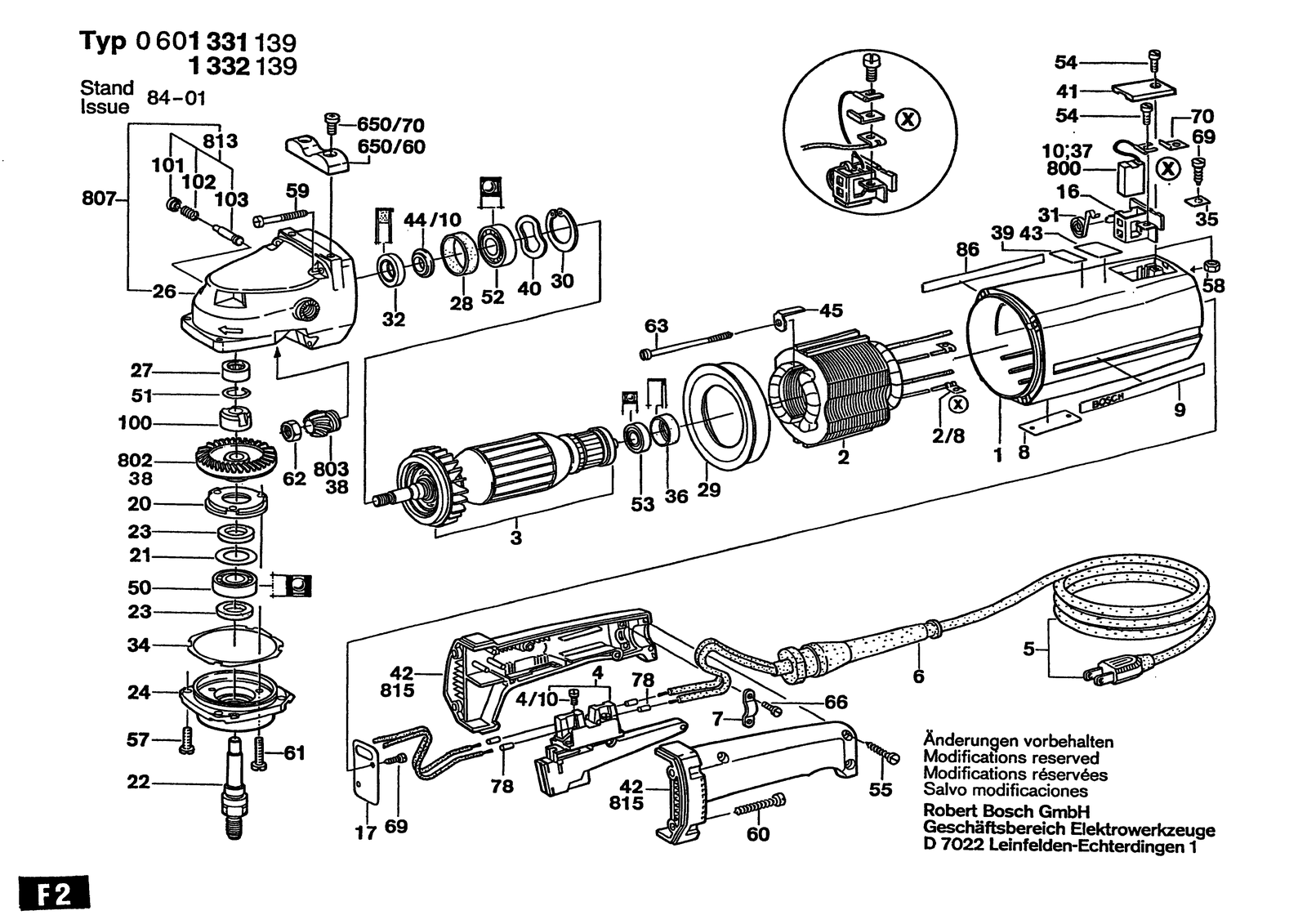

Bosch 0601331139 angle grinder: exploded parts diagram, 3 sheets, 140 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601331139: 140 positions on 3 sheets
Bosch 0601331139 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108124 | Motor Housing Blue |
| 1 | 1605108124 | Motor Housing Blue |
| 100 | 1600390010 | Grooved Ring |
| 100 | 1600390010 | Grooved Ring |
| 16 | 1604336008 | Brush Holder |
| 16 | 1604336008 | Brush Holder |
| 17 | 1601037006 | Cover Plate |
| 17 | 1601037006 | Cover Plate |
| 2 | 1604220247 | Field 115V |
| 2 | 1604220247 | Field 115V |
| 2/8 | 1901350003 | Terminal lug 1,5-4X4 |
| 2/8 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 1605808054 | Bearing cover |
| 20 | 1605808054 | Bearing cover |
| 21 | 1600102012 | Cover Disc |
| 21 | 1600102012 | Cover Disc |
| 22 | 1603523091 | Grinding Spindle 5/8"-UNC-2A |
| 22 | 1603523091 | Grinding Spindle 5/8"-UNC-2A |
| 23 | 1600108055 | Sealing disk |
| 23 | 1600108055 | Sealing disk |
| 24 | 1607000229 | Assembly Of Service Parts |
| 24 | 1607000229 | Assembly Of Service Parts |
| 27 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 27 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 28 | 1600206019 | Retaining snap ring |
| 28 | 1600206019 | Retaining snap ring |
| 29 | 1600502013 | Guide Pulley |
| 29 | 1600502013 | Guide Pulley |
| 3 | 1604012046 | Armature 100-115V |
| 3 | 1604012046 | Armature 100-115V |
| 30 | 1600119004 | Spring retaining ring |
| 30 | 1600119004 | Spring retaining ring |
| 31 | 1604652015 | Spiral Spring |
| 31 | 1604652015 | Spiral Spring |
| 32 | 1600290008 | Rotary shaft lip seal White |
| 32 | 1600290008 | Rotary shaft lip seal White |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 35 | 1601030022 | Tab Washer |
| 35 | 1601030022 | Tab Washer |
| 36 | 1600206015 | Rubber Ring |
| 36 | 1600206015 | Rubber Ring |
| 39 | 1601110358 | Reference Plate Caution |
| 39 | 1601110358 | Reference Plate Caution |
| 4 | 1607200064 | Switch |
| 4 | 1607200064 | Switch |
| 40 | 1600150009 | Spring Washer Ø32,3XØ43,5X0,6 MM |
| 40 | 1600150009 | Spring Washer Ø32,3XØ43,5X0,6 MM |
| 41 | 1605500089 | Sealing cap Blue |
| 41 | 1605500089 | Sealing cap Blue |
| 43 | 1601110058 | Reference Plate Double Insulation |
| 43 | 1601110058 | Reference Plate Double Insulation |
| 44/10 | 1600120070 | Faceplate |
| 44/10 | 1600120070 | Faceplate |
| 45 | 1601331032 | Holding Bracket |
| 45 | 1601331032 | Holding Bracket |
| 5 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 50 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 50 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 51 | 2916620011 | Retaining ring Ø22 MM |
| 51 | 2916620011 | Retaining ring Ø22 MM |
| 52 | 1900900413 | Groove ball bearing 6203-TH/C3 DIN 625 |
| 52 | 1900900413 | Groove ball bearing 6203-TH/C3 DIN 625 |
| 53 | 1600900029 | Groove ball bearing |
| 53 | 1900900407 | Groove ball bearing 10X26X8 |
| 53 | 1600900029 | Groove ball bearing |
| 53 | 1900900407 | Groove ball bearing 10X26X8 |
| 54 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 54 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 55 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 55 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 57 | 2910011157 | Socket head cap screw DIN 84-AM5X15-5.8 |
| 57 | 2910011157 | Socket head cap screw DIN 84-AM5X15-5.8 |
| 58 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 58 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 59 | 3603415560 | Screw B 4,8X45 MM |
| 59 | 3603415560 | Screw B 4,8X45 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 2910211036 | Tapping Screw DIN 7971-ST4,8X25-F |
| 60 | 2910211036 | Tapping Screw DIN 7971-ST4,8X25-F |
| 61 | 2910011162 | Socket head cap screw DIN 84-AM5X20-5.8 |
| 61 | 2910011162 | Socket head cap screw DIN 84-AM5X20-5.8 |
| 62 | 1603300009 | Hex Nut M12X1,5 MM |
| 62 | 1603300009 | Hex Nut M12X1,5 MM |
| 63 | 1603429001 | Tapping Screw B4,8X85 MM |
| 63 | 1603429001 | Tapping Screw B4,8X85 MM |
| 650/10 | 160202509Z | Auxiliary Handle |
| 650/10 | 16020250A1 | Auxiliary Handle |
| 650/10 | 160202509Z | Auxiliary Handle |
| 650/10 | 16020250A1 | Auxiliary Handle |
| 650/60 | 1608039008 | Storage Ledge |
| 650/60 | 1608039008 | Storage Ledge |
| 650/70 | 2910021196 | Socket head cap screw DIN 84-AM6X15-8.8 |
| 650/70 | 2910021196 | Socket head cap screw DIN 84-AM6X15-8.8 |
| 66 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 66 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 69 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 69 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 7 | 1601302014 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 70 | 1611331007 | Tab Washer |
| 70 | 1611331007 | Tab Washer |
| 702 | 1605510180 | Protective Cover Ø230 MM |
| 702 | 1605510180 | Protective Cover Ø230 MM |
| 702/20 | 1600309009 | Union Ø32,3XØ34,9X75 MM |
| 702/20 | 1600309009 | Union Ø32,3XØ34,9X75 MM |
| 702/30 | 2915191007 | Wing Nut DIN 315-M8-GT-C |
| 702/30 | 2915191007 | Wing Nut DIN 315-M8-GT-C |
| 702/40 | 2916011016 | Plain Washer DIN 125-A 8,4-ST |
| 702/40 | 2916011016 | Plain Washer DIN 125-A 8,4-ST |
| 702/50 | 2910141240 | Hex Socket Head Cap Screw DIN 912-M8X18-8.8 |
| 702/50 | 2910141240 | Hex Socket Head Cap Screw DIN 912-M8X18-8.8 |
| 703 | 1607000140 | Parts Set |
| 703 | 1607000140 | Parts Set |
| 703/11 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 703/11 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 78 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 78 | 3604477009 | End Splice |
| 8 | 160111A3H3 | Nameplate |
| 8 | 160111A3H3 | Nameplate |
| 800 | 1607014103 | Carbon-Brush Set |
| 800 | 1607014103 | Carbon-Brush Set |
| 802 | 1606333138 | Crown Gear Z=51 |
| 802 | 1606333208 | Crown Gear Z=55 |
| 803 | 1606333209 | Bevel Gear Z=18 |
| 803 | 1606333207 | Bevel Gear Z=15 |
| 807 | 1607000904 | Parts Set |
| 807 | 1607000904 | Parts Set |
| 813 | 1607000161 | Parts Set |
| 813 | 1607000161 | Parts Set |
| 815 | 1605132083 | Handle Blue |
| 815 | 1605132083 | Handle Blue |
| 86 | 1601110073 | Sticker Double Insulation |
| 86 | 1601110073 | Sticker Double Insulation |
| 9 | 1601110003 | Manufacturer's nameplate |
| 9 | 1601110003 | Manufacturer's nameplate |
