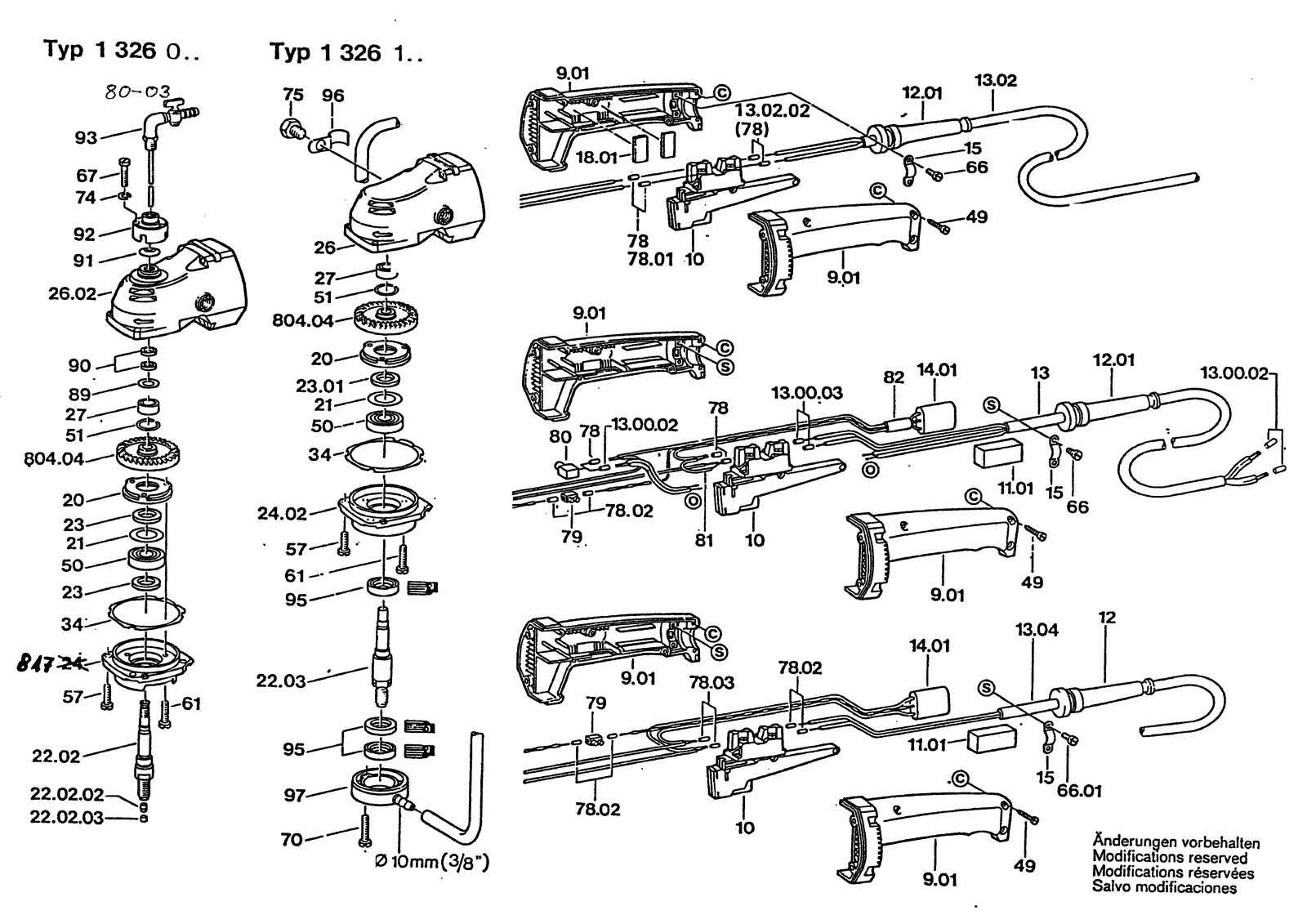

Bosch 0601326103 angle grinder: exploded parts diagram, 1 sheet, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601326103: 66 positions on 1 sheet
Bosch 0601326103 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1607000034 | Switch Kit |
| 10 | 1607000034 | Switch Kit |
| 12 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 12 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 12 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 12 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 13 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 13 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 13 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 13 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 13 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 15 | 1601302013 | Fastening Clamp |
| 15 | 1601302014 | Fastening Clamp |
| 15 | 1601302013 | Fastening Clamp |
| 15 | 1601302014 | Fastening Clamp |
| 20 | 1605808054 | Bearing cover |
| 20 | 1605808054 | Bearing cover |
| 21 | 1600102012 | Cover Disc |
| 21 | 1600102012 | Cover Disc |
| 23 | 1600108055 | Sealing disk |
| 23 | 1600108055 | Sealing disk |
| 24 | 1605805051 | Bearing Flange |
| 24 | 1605805051 | Bearing Flange |
| 26 | 1605806362 | Gear Housing |
| 26 | 1605806362 | Gear Housing |
| 27 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 27 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 3 | 1604220155 | Field 220V |
| 3 | 1604220156 | Field 115V |
| 3 | 1604220157 | Field 100V |
| 3 | 1604220158 | Field 240V |
| 3 | 1604220154 | Field 220V |
| 3 | 1604220155 | Field 220V |
| 3 | 1604220156 | Field 115V |
| 3 | 1604220157 | Field 100V |
| 3 | 1604220158 | Field 240V |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 50 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 50 | 1900905281 | Groove ball bearing 17X40X12 |
| 51 | 2916620011 | Retaining ring Ø22 MM |
| 51 | 2916620011 | Retaining ring Ø22 MM |
| 57 | 2910021157 | Socket head cap screw DIN 84-AM5X15-8.8 |
| 57 | 2910021157 | Socket head cap screw DIN 84-AM5X15-8.8 |
| 61 | 2910021162 | Socket head cap screw DIN 84-AM5X20-8.8 |
| 61 | 2910021162 | Socket head cap screw DIN 84-AM5X20-8.8 |
| 66 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 66 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 70 | 2910021164 | Socket head cap screw DIN 84-AM5X25-8.8 |
| 70 | 2910021164 | Socket head cap screw DIN 84-AM5X25-8.8 |
| 75 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 75 | 2911051382 | Hex Screw DIN 933-M 14X16-5.8 |
| 75 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 75 | 2911051382 | Hex Screw DIN 933-M 14X16-5.8 |
| 92 | 1600328012 | Connecting Flange |
| 92 | 1600328012 | Connecting Flange |
| 93 | 1607415002 | Shut-Off Tap |
| 93 | 1607415002 | Shut-Off Tap |
| 95 | 1600283004 | Rotary shaft lip seal Ø35X22X6/6,5 MM |
| 95 | 1600283004 | Rotary shaft lip seal Ø35X22X6/6,5 MM |
| 96 | 1601300004 | Clamp |
| 96 | 1601300004 | Clamp |
| 97 | 1605703061 | Connecting Flange |
| 97 | 1605703061 | Connecting Flange |
