Bosch 0601319003

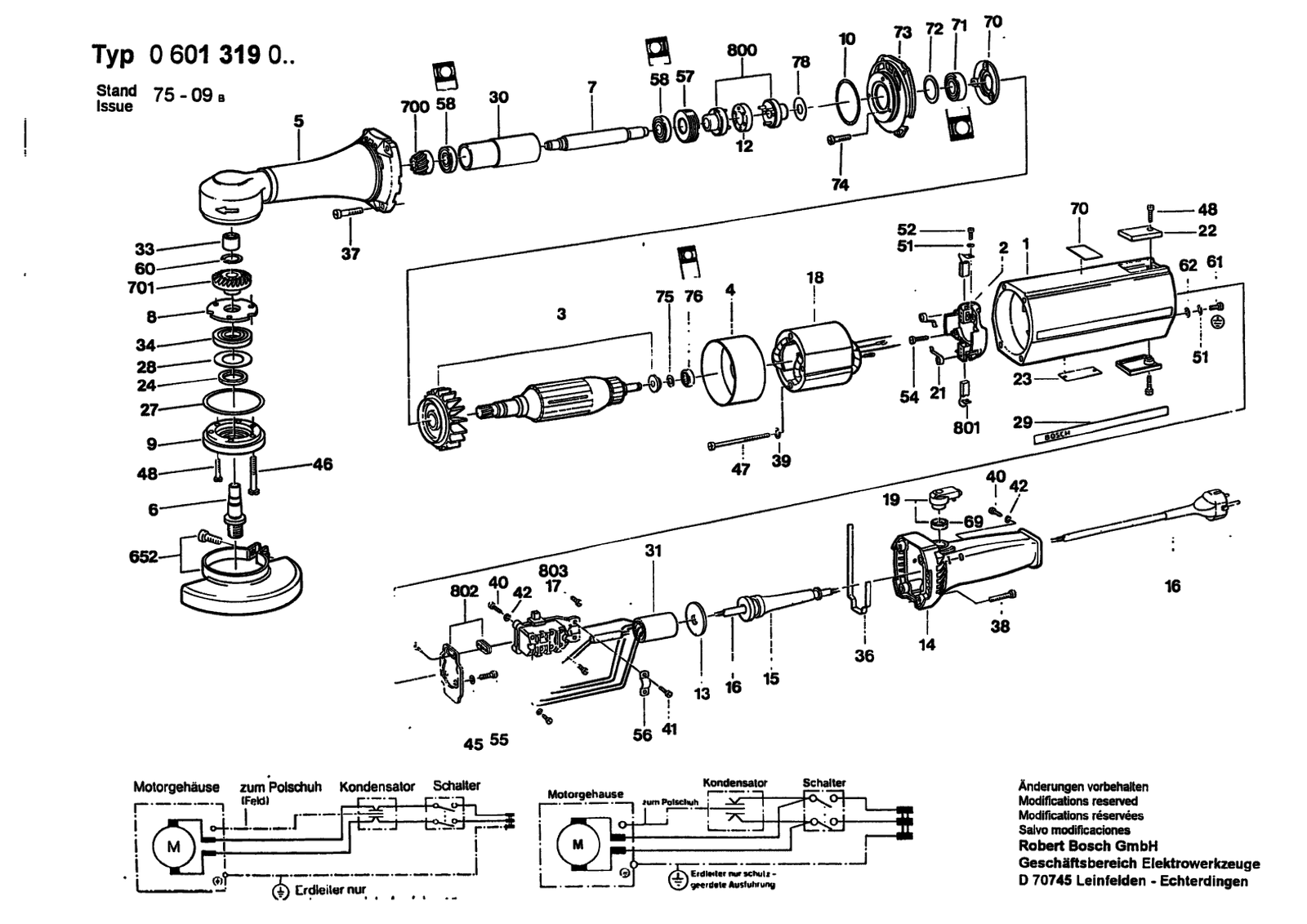

Bosch 0601319003 univ. neck angle grinder: exploded parts diagram, 1 sheet, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601319003: 77 positions on 1 sheet
Bosch 0601319003 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108042 | Motor Housing |
| 10 | 1900210146 | O-Ring 45X3MM |
| 12 | 1606442000 | Carrier |
| 13 | 1600113002 | Seal |
| 14 | 3605132048 | Handle Dark Blue |
| 15 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 16 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 16 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 16 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 16 | 1604460202 | Power supply cord GB 110V 4,15M 2 X 2,5MM H07 Rn-F |
| 16 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 16 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 16 | 1614460039 | Power supply cord I 4,15M 2 X 1,0MM H07 Rn-F |
| 17 | 1607000034 | Switch Kit |
| 18 | 1604220029 | Field 110-115V |
| 18 | 1604220031 | Field 220V |
| 18 | 1604220032 | Field 240V |
| 19 | 1602026030 | Control Lever |
| 2 | 1604336006 | Brush Holder |
| 21 | 1604652015 | Spiral Spring |
| 22 | 3605500057 | Sealing cap Blue |
| 23 | 160111A3H3 | Nameplate |
| 24 | 1600108054 | Sealing disk |
| 27 | 1600102667 | Shim |
| 28 | 1600102666 | Shim |
| 29 | 1601110003 | Manufacturer's nameplate |
| 3 | 1604010103 | Armature 220V |
| 3 | 1604010104 | Armature 110-115V |
| 3 | 1604010106 | Armature 240V |
| 30 | 1600420004 | Spacer Sleeve |
| 31 | 1607329005 | Suppression Capacitor |
| 31 | 1607329018 | Suppression Capacitor |
| 33 | 1600910009 | Needle bearing Ø 17 MM |
| 34 | 1900900209 | Groove ball bearing 16 004/C3 DIN 625 |
| 36 | 1601014000 | Sealing Cord |
| 37 | 2910011162 | Socket head cap screw DIN 84-AM5X20-5.8 |
| 38 | 2910011165 | Socket head cap screw AM 5X28 DIN 84-5.8 |
| 39 | 2916680006 | Spring Lock Washer DIN 127-B 5 |
| 4 | 1600209002 | Air-Deflector Ring |
| 40 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 41 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 42 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 45 | 2916011006 | Plain Washer DIN 125-A3,2-ST |
| 46 | 2910011166 | Socket head cap screw DIN 84-BM5X30-5.8 |
| 47 | 1603410008 | Socket head cap screw |
| 48 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 5 | 1605806286 | Gear Housing |
| 51 | 1600150006 | Spring Washer DIN 137-A4 |
| 52 | 2910011120 | Socket head cap screw DIN 84-AM4X10-5.8 |
| 54 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 55 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 56 | 1601302014 | Fastening Clamp |
| 57 | 1603344044 | Threaded Ring |
| 58 | 1900905121 | Groove ball bearing 12X28X8 |
| 6 | 1603523065 | Grinding Spindle M14 |
| 60 | 1600119001 | Spring retaining ring Ø 17 MM |
| 61 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 62 | 2916010410 | Plain Washer A 4,3 DIN 125-ST |
| 652 | 1605510053 | Protective Cover |
| 69 | 1600205008 | Felt Washer |
| 7 | 1603022020 | Drive Shaft |
| 70 | 1600501019 | Bearing cover |
| 700 | 1606333127 | Bevel Gear Z=17 |
| 701 | 1606333126 | Bevel Gear Z=33 |
| 71 | 1600900020 | Groove ball bearing 17X35X10 |
| 72 | 1600102002 | Shim |
| 73 | 3605820064 | Bearing Flange |
| 74 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 75 | 1420100023 | Shim Thick 0,10 MM |
| 75 | 1600100632 | Shim Thick 0,2 MM |
| 76 | 1900905018 | Ball Bearing 7X22X7 |
| 78 | 1600101626 | Shim |
| 800 | 1600320026 | Carrier |
| 801 | 1607014102 | Carbon-Brush Set |
| 802 | 1602388007 | Sealing Plate |
| 803 | 1607000034 | Switch Kit |
| 9 | 1605808046 | Bearing cover |
