Bosch 0601206001
Bosch 0601206001 straight grinders: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

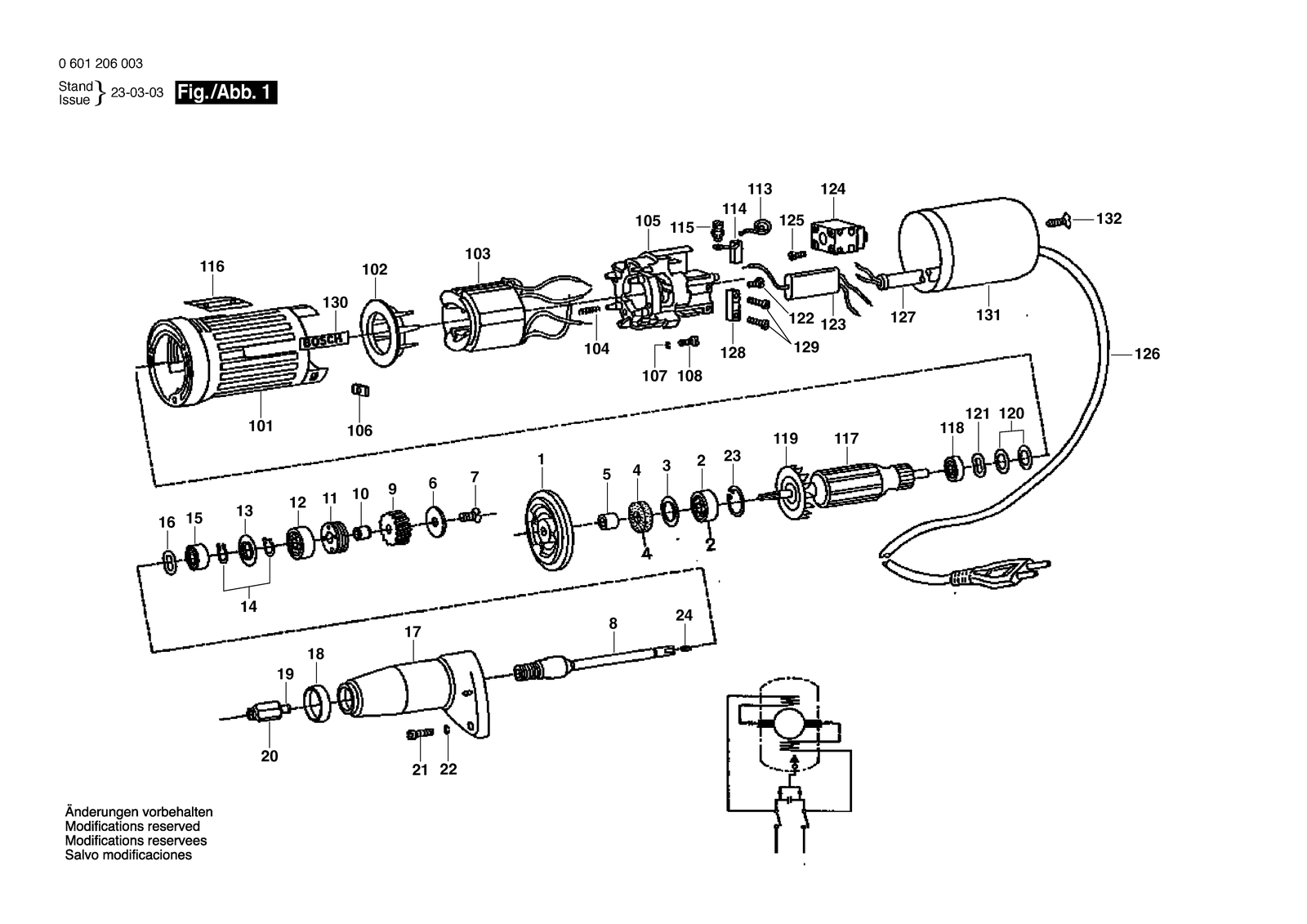

All parts of Bosch 0601206001: 70 positions on 1 sheet
Bosch 0601206001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605700179 | Bearing Flange |
| 10 | 2600300012 | Spacer Sleeve |
| 101 | 2607010003 | Gear Housing |
| 102 | 2600522009 | Cover Disc |
| 103 | 2604220317 | Pole Shoe 115V |
| 103 | 2604220318 | Pole Shoe 110V |
| 103 | 2604220319 | Pole Shoe Left Rotation 220V |
| 103 | 2604220324 | Pole Shoe 220V |
| 103 | 2604220325 | Pole Shoe 240V |
| 104 | 2604611024 | Compression Spring |
| 105 | 2607010004 | Commutator End Shield |
| 106 | 2603320001 | Square Nut M4 |
| 107 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 108 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 11 | 1603344004 | Threaded Ring |
| 113 | 2604652000 | Spiral Spring |
| 114 | 2604320902 | Carbon-Brush Set |
| 115 | 2603410010 | Socket head cap screw |
| 116 | 2601100038 | Nameplate |
| 117 | 2604010452 | Armature With Fan 110-115V |
| 117 | 2604010453 | Armature 220-240V |
| 118 | 1900905019 | Groove ball bearing 6X19X6 |
| 119 | 2606610012 | Fan |
| 12 | 3600900025 | Groove ball bearing |
| 120 | 2600101655 | Shim 0,2 MM |
| 120 | 2600101656 | Shim 0,3 MM |
| 120 | 2600101657 | Shim 0,5 MM |
| 121 | 2600150003 | Shim |
| 122 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 123 | 2607329056 | Suppression Capacitor |
| 124 | 2607200048 | On-Off Switch |
| 125 | 2603410023 | Socket head cap screw M3X10 MM |
| 126 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 126 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 126 | 2604460056 | Power supply cord |
| 126 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 126 | 3604460138 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 127 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 127 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 127 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 128 | 2601035001 | Cable Clip |
| 129 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 13 | 2600500009 | Cupped Washer |
| 130 | 1601110013 | Manufacturer's nameplate |
| 131 | 2600508028 | Housing Cover Blue |
| 132 | 2910601020 | Rec ct-sunk tapping screw BZ 3,9X19 DIN 7972 |
| 14 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 15 | 3600900026 | Groove ball bearing |
| 16 | 2600150005 | Shim |
| 17 | 2605806221 | Flanged Bearing |
| 17 | 2605806946 | Grinding Spindle |
| 18 | 2600501001 | Cover Ring 8,5 MM |
| 19 | 2608570081 | Collet Ø 8 MM |
| 19 | 2608570082 | Collet Ø 3 MM |
| 19 | 2608570083 | Collet Ø 3,175 MM = 1/8" |
| 19 | 2608570085 | Collet Ø 6,35 MM = 1/4" |
| 19 | 2608570129 | Collet Ø 6 MM |
| 2 | 2600905007 | Groove ball bearing 10 MM DIN 625 |
| 20 | 3603342009 | Round Nut |
| 21 | 2910011128 | Socket head cap screw DIN 84-AM4X18-5.8 |
| 22 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 23 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 24 | 2602300007 | Flat Key |
| 3 | 2600500008 | Cupped Washer |
| 4 | 2600108020 | Felt Washer |
| 5 | 2600300043 | Seal Bushing |
| 6 | 2600130001 | Disc Cam |
| 7 | 2603421010 | Countersunk-Head Screw |
| 8 | 2603523036 | Grinding Spindle |
| 9 | 2606320008 | Cylindrical Gear Z=23 |
