Bosch 0601204001

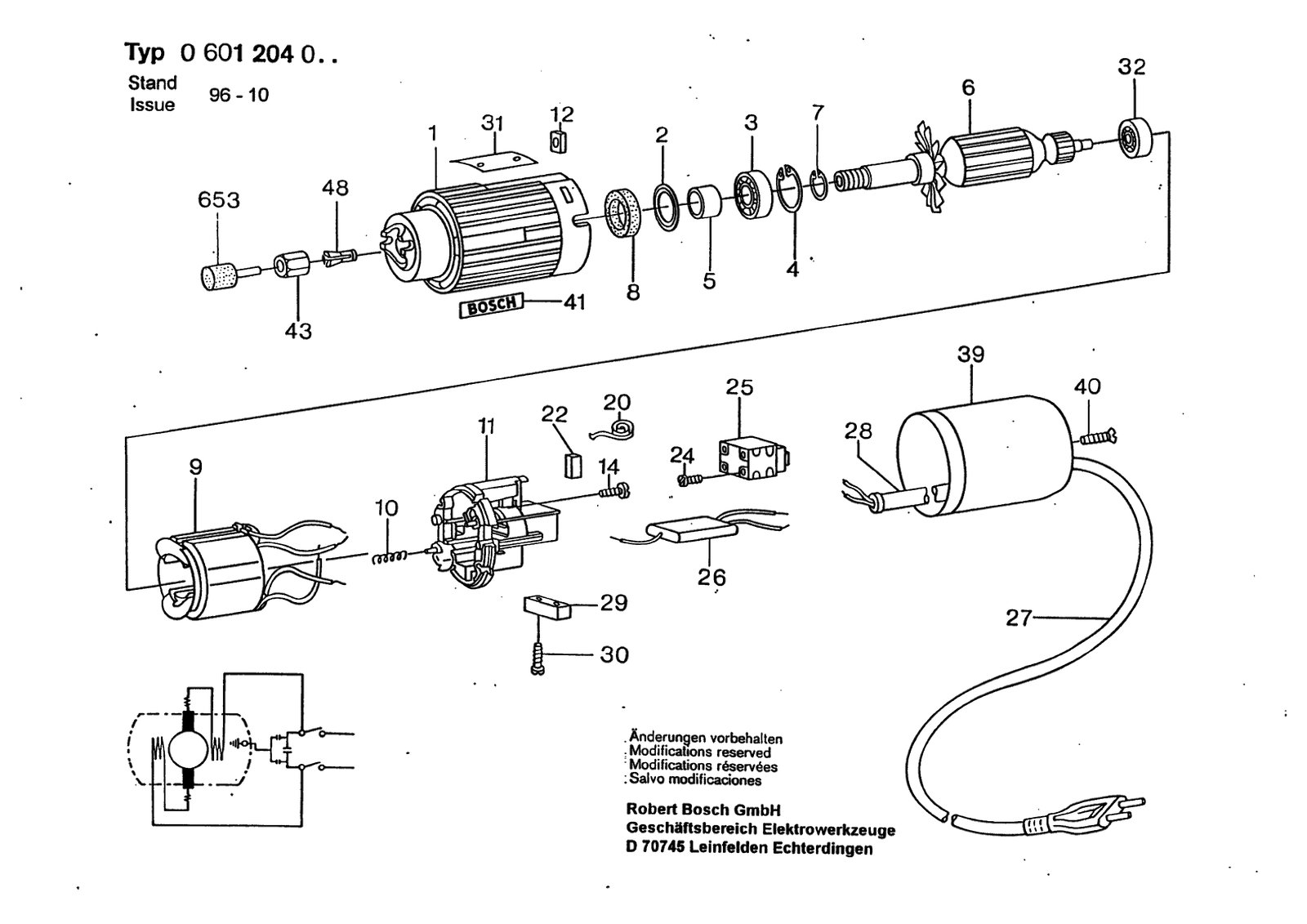

Bosch 0601204001 straight grinders: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601204001: 51 positions on 1 sheet
Bosch 0601204001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605102058 | Motor Housing Blue |
| 10 | 2604611024 | Compression Spring |
| 11 | 2605808900 | Commutator End Shield Blue |
| 12 | 2603320001 | Square Nut M4 |
| 14 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 2 | 2600500033 | Cupped Washer |
| 20 | 1604652004 | Spiral Spring |
| 22 | 1604321900 | Carbon Brush |
| 24 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 25 | 2607200048 | On-Off Switch |
| 26 | 2607329056 | Suppression Capacitor |
| 27 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 27 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 27 | 2604460056 | Power supply cord |
| 27 | 2604460060 | Elec. Cable W/Connection |
| 27 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 27 | 3604460138 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 27 | 3604460141 | Power supply cord |
| 28 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 28 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 28 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 29 | 2601035001 | Cable Clip |
| 3 | 2600905005 | Groove ball bearing Ø 8 MM |
| 30 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 31 | 160111A3H3 | Nameplate |
| 32 | 1900905019 | Groove ball bearing 6X19X6 |
| 39 | 2600508028 | Housing Cover Blue |
| 4 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 40 | 2910601020 | Rec ct-sunk tapping screw BZ 3,9X19 DIN 7972 |
| 41 | 1601110013 | Manufacturer's nameplate |
| 43 | 2603312001 | Union Nut SW 14 |
| 48 | 2608570065 | Collet Ø 6 MM / Ø 8 MM |
| 48 | 2608570066 | Collet Ø 6,4 MM=1/4"/Ø 8 MM |
| 48 | 2608570067 | Collet Ø 3MM |
| 48 | 2608570068 | Dummy Ø 3,2MM,1/8" |
| 5 | 2600300062 | Sintered-Metal Bushing |
| 6 | 2604010353 | Armature With Fan 115V |
| 6 | 2604010354 | Nameplate 100-110V |
| 6 | 2604010355 | Armature 220V |
| 6 | 2604010356 | Armature 240V |
| 653 | 2608620012 | Abrasive pencil Ø 6 MM |
| 653 | 2608620013 | Abrasive pencil Ø6,4 MM=1/4" |
| 653 | 2608620014 | Abrasive pencil Ø 6 MM |
| 653 | 2608620015 | Abrasive pencil Ø6,4 MM=1/4" |
| 7 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 8 | 2600108033 | Felt Washer |
| 9 | 2604220249 | Field 115V |
| 9 | 2604220250 | Field 110V |
| 9 | 2604220251 | Field 220V |
| 9 | 2604220252 | Field 240V |
| 9 | 2604220285 | Field 220V |
