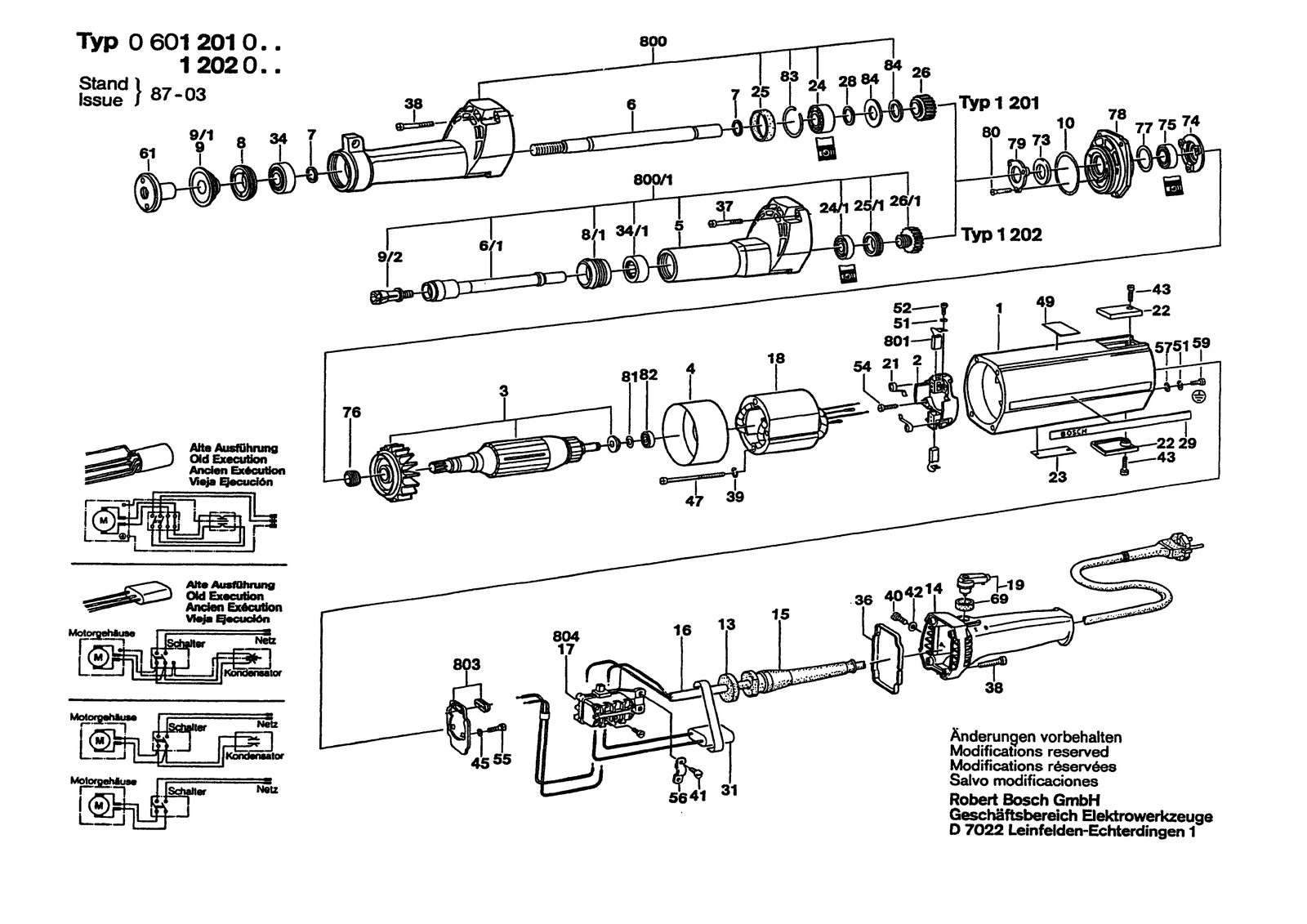

Bosch 0601201001 straight grinders: exploded parts diagram, 1 sheet, 133 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601201001: 133 positions on 1 sheet
Bosch 0601201001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108042 | Motor Housing |
| 1 | 1605108042 | Motor Housing |
| 10 | 1600210004 | O-Ring 54,0X3,0 MM |
| 10 | 1600210004 | O-Ring 54,0X3,0 MM |
| 13 | 1600113002 | Seal |
| 13 | 1600113002 | Seal |
| 14 | 3605132048 | Handle Dark Blue |
| 14 | 3605132048 | Handle Dark Blue |
| 15 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 15 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 16 | 1604421016 | Power supply cord |
| 16 | 1604460021 | Power supply cord |
| 16 | 1604460024 | Power supply cord |
| 16 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 16 | 1604460080 | Power supply cord |
| 16 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 16 | 1604461009 | Power supply cord |
| 16 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 16 | 1607000391 | Power supply cord |
| 16 | 1604421016 | Power supply cord |
| 16 | 1604460021 | Power supply cord |
| 16 | 1604460024 | Power supply cord |
| 16 | 1604460080 | Power supply cord |
| 16 | 1604461009 | Power supply cord |
| 16 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 16 | 1607000391 | Power supply cord |
| 17 | 1607200059 | On-Off Switch |
| 17 | 1607000034 | Switch Kit |
| 18 | 1604220029 | Field 110-115V |
| 18 | 1604220030 | Field 150V |
| 18 | 1604220031 | Field 220V |
| 18 | 1604220032 | Field 240V |
| 18 | 1604220067 | Pole Shoe 42V |
| 18 | 1604220029 | Field 110-115V |
| 18 | 1604220030 | Field 150V |
| 18 | 1604220031 | Field 220V |
| 18 | 1604220032 | Field 240V |
| 18 | 1604220067 | Pole Shoe 42V |
| 19 | 1602026030 | Control Lever |
| 19 | 1602026030 | Control Lever |
| 2 | 1604336006 | Brush Holder |
| 2 | 1604336006 | Brush Holder |
| 21 | 1604652015 | Spiral Spring |
| 21 | 1604652015 | Spiral Spring |
| 22 | 3605500057 | Sealing cap Blue |
| 22 | 3605500057 | Sealing cap Blue |
| 24 | 1900905162 | Groove ball bearing 15X32X9 |
| 25 | 1600206018 | Intermediate Ring |
| 26 | 1606320028 | Cylindrical Gear Z=29 |
| 28 | 1600101016 | Cover Disc |
| 29 | 1601110003 | Manufacturer's nameplate |
| 29 | 1601110003 | Manufacturer's nameplate |
| 3 | 1604010086 | Armature 220V |
| 3 | 1604010087 | Armature 42V |
| 3 | 1604010088 | Armature 110-115V |
| 3 | 1604010089 | Armature 150V |
| 3 | 1604010090 | Armature 250V |
| 3 | 1604010086 | Armature 220V |
| 3 | 1604010087 | Armature 42V |
| 3 | 1604010088 | Armature 110-115V |
| 3 | 1604010089 | Armature 150V |
| 3 | 1604010090 | Armature 250V |
| 31 | 1607328034 | Suppression Filter |
| 31 | 1607328034 | Suppression Filter |
| 34 | 1900900351 | Groove ball bearing 15X42X13 |
| 34 | 3600905110 | Cyl. Roller Bearing I-82 006 M DIN 5412 |
| 36 | 1601014000 | Sealing Cord |
| 36 | 1601014000 | Sealing Cord |
| 38 | 2910021165 | Socket head cap screw DIN 84-AM5X28-8.8 |
| 38 | 2910021165 | Socket head cap screw DIN 84-AM5X28-8.8 |
| 39 | 2916680006 | Spring Lock Washer DIN 127-B 5 |
| 39 | 2916680006 | Spring Lock Washer DIN 127-B 5 |
| 4 | 1600209002 | Air-Deflector Ring |
| 4 | 1600209002 | Air-Deflector Ring |
| 40 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 40 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 41 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 41 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 42 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 42 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 43 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 43 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 45 | 2916011006 | Plain Washer DIN 125-A3,2-ST |
| 45 | 2916011006 | Plain Washer DIN 125-A3,2-ST |
| 47 | 1603410008 | Socket head cap screw |
| 47 | 1603410008 | Socket head cap screw |
| 49 | 1601110058 | Reference Plate Double Insulation |
| 49 | 1601110058 | Reference Plate Double Insulation |
| 51 | 1600150006 | Spring Washer DIN 137-A4 |
| 51 | 1600150006 | Spring Washer DIN 137-A4 |
| 54 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 54 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 55 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 55 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 56 | 1601302014 | Fastening Clamp |
| 56 | 1601302014 | Fastening Clamp |
| 57 | 2916010410 | Plain Washer A 4,3 DIN 125-ST |
| 57 | 2916010410 | Plain Washer A 4,3 DIN 125-ST |
| 59 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 59 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 6 | 1603050012 | Grinding Spindle |
| 61 | 1603345009 | Round Nut |
| 69 | 1600205008 | Felt Washer |
| 69 | 1600205008 | Felt Washer |
| 7 | 1600200009 | Intermediate Ring |
| 73 | 1600108018 | Felt Disc |
| 73 | 1600108018 | Felt Disc |
| 74 | 1600501019 | Bearing cover |
| 74 | 1600501019 | Bearing cover |
| 75 | 1600900020 | Groove ball bearing 17X35X10 |
| 75 | 1600900020 | Groove ball bearing 17X35X10 |
| 76 | 1603344031 | Threaded Ring |
| 76 | 1603344031 | Threaded Ring |
| 77 | 1600102002 | Shim |
| 77 | 1600102002 | Shim |
| 78 | 1605820100 | Bearing Flange |
| 78 | 1605820100 | Bearing Flange |
| 79 | 1600501024 | Cover Disc |
| 79 | 1600501024 | Cover Disc |
| 8 | 1603344002 | Threaded Ring |
| 800 | 1605806373 | Gear Housing |
| 801 | 1607014102 | Carbon-Brush Set |
| 801 | 1607014102 | Carbon-Brush Set |
| 81 | 1420100023 | Shim Thick 0,10 MM |
| 81 | 1600100632 | Shim Thick 0,2 MM |
| 81 | 1420100023 | Shim Thick 0,10 MM |
| 81 | 1600100632 | Shim Thick 0,2 MM |
| 82 | 1900905018 | Ball Bearing 7X22X7 |
| 82 | 1900905018 | Ball Bearing 7X22X7 |
| 83 | 2916603018 | Retaining ring 35 DIN 9045 |
| 84 | 1600101002 | Plain Washer |
| 9 | 1605703005 | Clamping-Flange Ø 100 MM |
| 9/1 | 1608570041 | Collet Ø 8, M8, SW14 |
