Bosch 0601181003

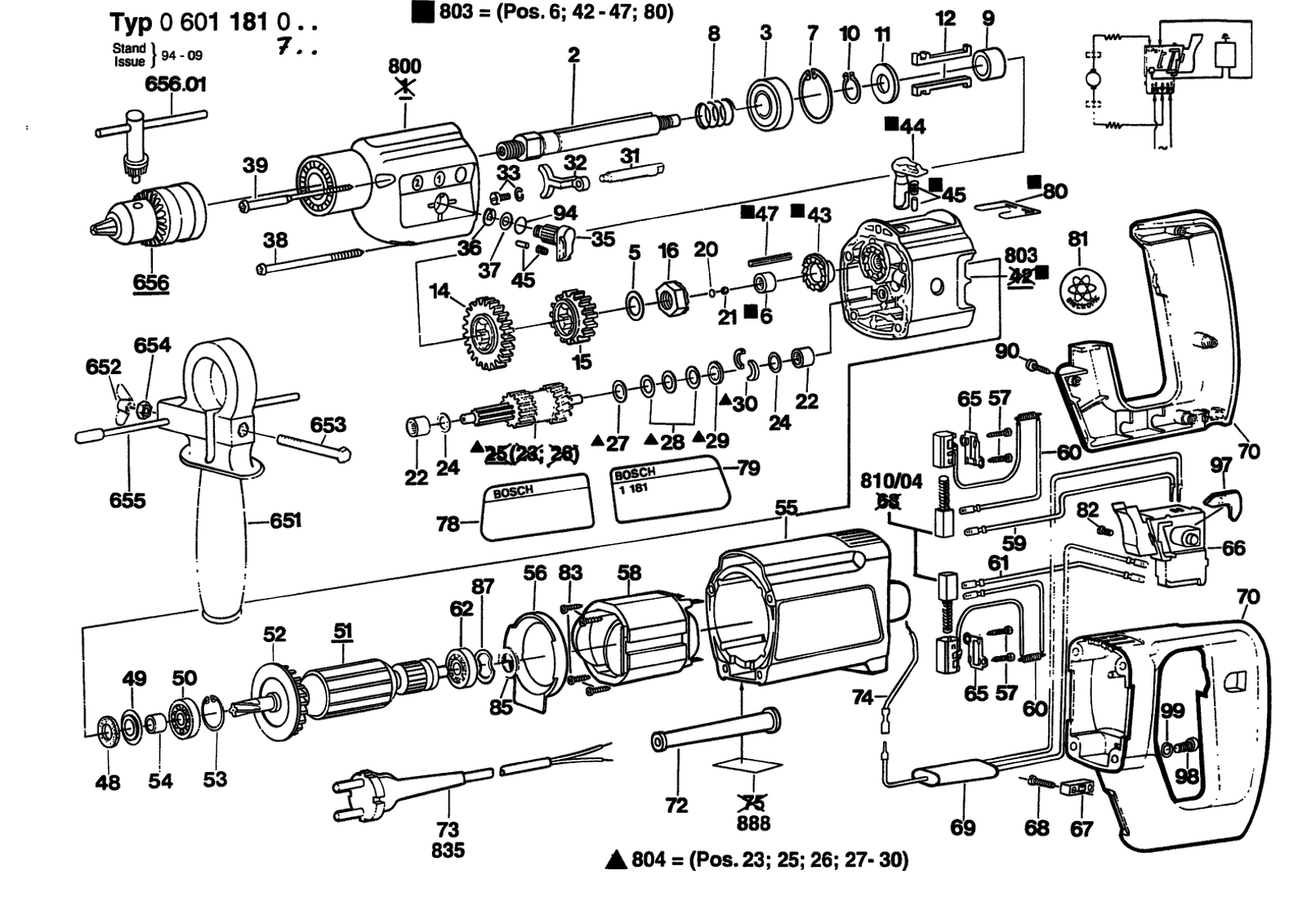

Bosch 0601181003 percussion drill: exploded parts diagram, 1 sheet, 200 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601181003: 200 positions on 1 sheet
Bosch 0601181003 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 10 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 11 | 2600101671 | Retaining Washer |
| 11 | 2600101671 | Retaining Washer |
| 12 | 2602300027 | Flat Key |
| 12 | 2602300027 | Flat Key |
| 14 | 2606317036 | Cylindrical Gear Z=48 |
| 14 | 2606317036 | Cylindrical Gear Z=48 |
| 15 | 2606317037 | Cylindrical Gear Z=36 |
| 15 | 2606317037 | Cylindrical Gear Z=36 |
| 16 | 2600190031 | Locating Washer |
| 16 | 2600190052 | Catch Disk |
| 16 | 2600190031 | Locating Washer |
| 16 | 2600190052 | Catch Disk |
| 2 | 2606135010 | Drilling Spindle 1/2" |
| 2 | 2606135026 | Drilling Spindle 1/2" |
| 2 | 2606135010 | Drilling Spindle 1/2" |
| 2 | 2606135026 | Drilling Spindle 1/2" |
| 20 | 2600000012 | Shim washer 0,2 MM |
| 20 | 2600000014 | Shim washer 0,5 MM |
| 20 | 2600000012 | Shim washer 0,2 MM |
| 20 | 2600000014 | Shim washer 0,5 MM |
| 21 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 21 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 22 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 22 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 24 | 2600100607 | Shim 0,3 MM |
| 24 | 2600100607 | Shim 0,3 MM |
| 27 | 2600100682 | Shim 0,5 MM |
| 27 | 2600100683 | Shim 0,3 MM |
| 27 | 2600100684 | Shim 0,2 MM |
| 27 | 2600100682 | Shim 0,5 MM |
| 27 | 2600100683 | Shim 0,3 MM |
| 27 | 2600100684 | Shim 0,2 MM |
| 28 | 2600550008 | Disc Spring |
| 28 | 2600550008 | Disc Spring |
| 29 | 2600114001 | Supporting Disc |
| 29 | 2600114001 | Supporting Disc |
| 3 | 1900905163 | Groove ball bearing 17X35X10 |
| 3 | 1900905163 | Groove ball bearing 17X35X10 |
| 30 | 2600116001 | Locking washer |
| 30 | 2600116001 | Locking washer |
| 31 | 2603070012 | Toothed rack |
| 31 | 2603070012 | Toothed rack |
| 32 | 2602033003 | Fork Lever |
| 32 | 2602033003 | Fork Lever |
| 33 | 2914501011 | Screw and washer assembly DIN7985-M3X6-Z1-4.8 |
| 33 | 2914501011 | Screw and washer assembly DIN7985-M3X6-Z1-4.8 |
| 35 | 2602026034 | Rotary Knob |
| 35 | 2602026034 | Rotary Knob |
| 36 | 2916080910 | Locking washer DIN 6799-7-FST |
| 36 | 2916080910 | Locking washer DIN 6799-7-FST |
| 37 | 2600101612 | Shim 0,5 MM |
| 37 | 2600101612 | Shim 0,5 MM |
| 38 | 2603435019 | Headless Screw 74 MM |
| 38 | 2603435019 | Headless Screw 74 MM |
| 39 | 2603435012 | Tapping Screw 79 MM |
| 39 | 2603435012 | Tapping Screw 79 MM |
| 43 | 2600190029 | Locating Washer |
| 43 | 2600190029 | Locating Washer |
| 44 | 2602026017 | Rotary Knob |
| 44 | 2602026017 | Rotary Knob |
| 45 | 2600590006 | Ratchet Cap |
| 45 | 2600590006 | Ratchet Cap |
| 47 | 2917780105 | Slotted Spring Pin 4X30 MM DIN 7346 |
| 47 | 2917780105 | Slotted Spring Pin 4X30 MM DIN 7346 |
| 48 | 2600108077 | Felt Washer |
| 48 | 2600108077 | Felt Washer |
| 49 | 2600500002 | Cupped Washer |
| 49 | 2600500002 | Cupped Washer |
| 5 | 2600101616 | Shim 0,5 MM |
| 5 | 2600101617 | Shim 0,3 MM |
| 5 | 2600101616 | Shim 0,5 MM |
| 5 | 2600101617 | Shim 0,3 MM |
| 50 | 2600905021 | Groove ball bearing 9X24X7 |
| 50 | 2600905021 | Groove ball bearing 9X24X7 |
| 51 | 2604010523 | Armature With Fan 100V |
| 51 | 2604010524 | Armature 220-240V |
| 51 | 2604010526 | Armature 110-115V |
| 51 | 2604010631 | Armature 110-115V |
| 51 | 2604010523 | Armature With Fan 100V |
| 51 | 2604010524 | Armature 220-240V |
| 51 | 2604010526 | Armature 110-115V |
| 51 | 2604010631 | Armature 110-115V |
| 52 | 2606610049 | Fan |
| 52 | 2606610049 | Fan |
| 53 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 53 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 54 | 2600400008 | Receptacle |
| 54 | 2600400008 | Receptacle |
| 55 | 2605108014 | Motor Housing Blue |
| 55 | 2605108014 | Motor Housing Blue |
| 56 | 2601328033 | Cover Disc |
| 56 | 2601328033 | Cover Disc |
| 57 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 57 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 58 | 1604220254 | Field 220-240V |
| 58 | 1614220158 | Field 100V |
| 58 | 2604220395 | Field 110V |
| 58 | 2604220439 | Field 110-115V |
| 58 | 2604220491 | Field 220-230V |
| 58 | 1604220254 | Field 220-240V |
| 58 | 1614220158 | Field 100V |
| 58 | 2604220395 | Field 110V |
| 58 | 2604220439 | Field 110-115V |
| 58 | 2604220491 | Field 220-230V |
| 59 | 2604448042 | Cable |
| 59 | 2604448036 | Connecting Cable |
| 6 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 6 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 60 | 2604337003 | Brush Holder |
| 60 | 2604465062 | Suppressor Box |
| 61 | 2604448036 | Connecting Cable |
| 61 | 2604448043 | Connecting Cable White L=193 MM |
| 62 | 1900905018 | Ball Bearing 7X22X7 |
| 62 | 1900905018 | Ball Bearing 7X22X7 |
| 65 | 2601015047 | Brush Plate |
| 65 | 2601015047 | Brush Plate |
| 651 | 1619PB4323 | Auxiliary Handle |
| 651 | 2602025031 | Auxiliary Handle Black |
| 652 | 2915191006 | Wing Nut M6 DIN 315-G-GTW-40 |
| 652 | 2915191006 | Wing Nut M6 DIN 315-G-GTW-40 |
| 653 | 2911011220 | Hex Screw DIN 931-M6X75-8.8 |
| 653 | 2911011220 | Hex Screw DIN 931-M6X75-8.8 |
| 654 | 2601098001 | Conical Spring Washer |
| 654 | 2601098001 | Conical Spring Washer |
| 655 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 655 | 2607010026 | Depth-Gauge |
| 656 | 1608571055 | Key Chuck Ø1,5-13 Mm, 1/2" |
| 656 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 656 | 2607950007 | Chuck Wrench SG2 |
| 656/01 | 2607950007 | Chuck Wrench SG2 |
| 66 | 2607200260 | Switch |
| 66 | 2607200137 | On-Off Switch |
| 66 | 2607200372 | On-Off Switch |
| 67 | 2601035001 | Cable Clip |
| 67 | 2601035001 | Cable Clip |
| 68 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 68 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 69 | 2607329103 | Suppression Capacitor |
| 69 | 2607329103 | Suppression Capacitor |
| 7 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 7 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 70 | 2605133000 | Handle Blue |
| 70 | 2605133000 | Handle Blue |
| 72 | 2600707059 | Grommet Ø6,9 MM |
| 72 | 2600707061 | Grommet Ø8,8 MM |
| 72 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 72 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 72 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 73 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 73 | 2604460056 | Power supply cord |
| 73 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 73 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 73 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 73 | 2604460056 | Power supply cord |
| 73 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 74 | 2604448003 | Cable |
| 74 | 2604448003 | Cable |
| 78 | 2601110093 | Sticker |
| 78 | 2601110093 | Sticker |
| 79 | 2601110249 | Sticker |
| 79 | 2601110250 | Sticker |
| 8 | 2604616002 | Compression Spring |
| 8 | 2604616002 | Compression Spring |
| 80 | 2601110076 | Sticker Drill/impact Drill |
| 80 | 2601110076 | Sticker Drill/impact Drill |
| 800 | 2605806973 | Gear Housing |
| 800 | 2605806973 | Gear Housing |
| 803 | 2605700933 | Intermediate Flange |
| 81 | 2601110041 | Reference Plate Yellow |
| 81 | 2601110041 | Reference Plate Yellow |
| 82 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 82 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 83 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 83 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 835 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 835 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 85 | 2600101020 | Shim 0,5 MM |
| 85 | 2600101022 | Shim 0,2 MM |
| 85 | 2600101023 | Shim 0,3 MM |
| 85 | 2600101020 | Shim 0,5 MM |
| 85 | 2600101022 | Shim 0,2 MM |
| 85 | 2600101023 | Shim 0,3 MM |
| 87 | 2600150004 | Shim |
| 87 | 2600150004 | Shim |
| 888 | 160111A3H3 | Nameplate |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2600300016 | Spacer Bushing |
| 9 | 2600300016 | Spacer Bushing |
| 90 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 90 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 94 | 1600210024 | O-Ring 12,0X1,0 MM |
| 94 | 1600210024 | O-Ring 12,0X1,0 MM |
| 97 | 2601022000 | Damping Plate |
| 97 | 2601022000 | Damping Plate |
| 98 | 2910951132 | Oval-Head Screw DIN 7985-M4X25-8.8 |
| 98 | 2910021132 | Socket head cap screw DIN 84-AM4X25-8.8 |
| 99 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 99 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
