Bosch 0601179003 percussion drill: exploded parts diagram, 1 sheet, 103 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601179003: 103 positions on 1 sheet

Bosch 0601179003 parts list (1 sheet)

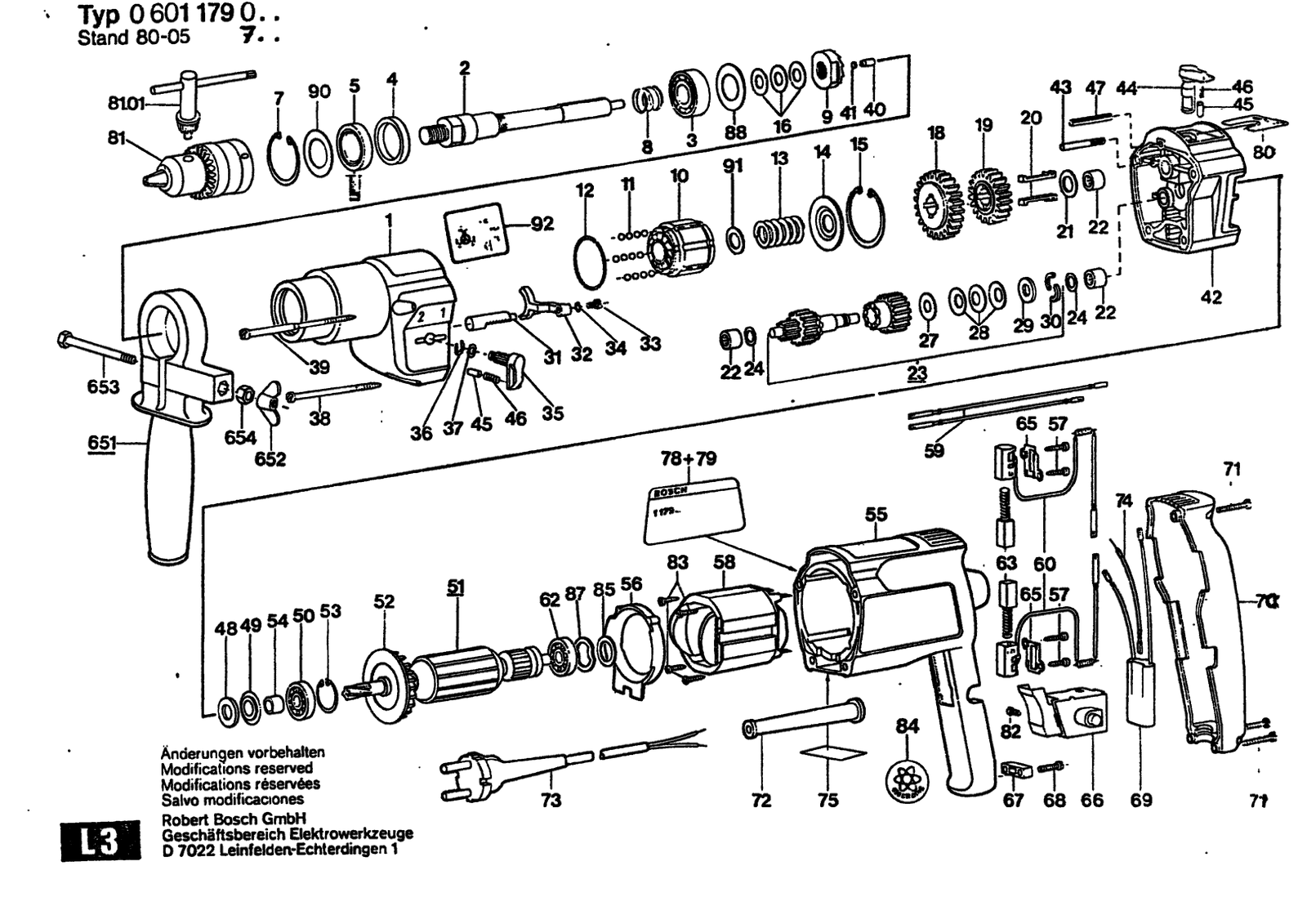

Bosch 0601179003 parts diagram, sheet 1
No.Part numberPart name
12605806954Gear Housing
102608710008Striker
111903230204Ball 5/32"
122604601011Retaining ring
132604619008Compression Spring
142600101082Supporting Disc
152916663018Spring retaining ring 40X1,75 DIN 472
162600101027Shim washer 0,3 MM
162600101666Shim 0,3 MM
162600101667Shim washer 0,5 MM
182606317028Cylindrical Gear Z=48
192606317029Cylindrical Gear Z=36
22606135003Drilling Spindle
202602300001Flat Key
212600101001Shim
222600914010Needle-Roller Bearing Ø6 MM
232606309903Overload Clutch
242600100570Shim 0,3 MM
272600100682Shim 0,5 MM
272600100683Shim 0,3 MM
272600100684Shim 0,2 MM
282600550008Disc Spring
292600114001Supporting Disc
31900900202Attachment 160 03 DIN 625
302600116001Locking washer
312603070010Toothed rack
322602033000Fork Lever
332914501011Screw and washer assembly DIN7985-M3X6-Z1-4.8
342916690001Spring Lock Washer A3-FST
352602026023Rotary Knob
362916080007Locking washer DIN 6799-4-FST
372600100618Shim washer
382603435071Headless Screw 65 MM
392603435012Tapping Screw 79 MM
42600201007Spacer Ring
402603200019Pressure Spindle 0,2 MM
412600000015Shim washer 0,3 MM
412600000016Shim washer
412600000017Shim washer 0,5 MM
412600000019Shim washer 0,8 MM
422605700923Assembly Of Service Parts
432603200011Holding Pin
442602026027Rotary Knob
452600590006Ratchet Cap
462600590006Ratchet Cap
472917780105Slotted Spring Pin 4X30 MM DIN 7346
482600108077Felt Washer
492600500002Cupped Washer
52600283011Radial Seal
502600905021Groove ball bearing 9X24X7
512604010523Armature With Fan 100V
512604010524Armature 220-240V
512604010526Armature 110-115V
522606610049Fan
532916660008Spring retaining ring DIN 472-24X1,2 MM
542600400008Receptacle
552605104116Motor Housing Blue
562601328033Cover Disc
572603490017Torx Oval-Head Screw 3X10
581604220254Field 220-240V
582604220395Field 110V
582604220491Field 220-230V
592604448005Cable White L=130 MM
602604465062Suppressor Box
652601015047Brush Plate
6512602025031Auxiliary Handle Black
6522915191006Wing Nut M6 DIN 315-G-GTW-40
6532911011220Hex Screw DIN 931-M6X75-8.8
6542601098001Conical Spring Washer
672601035001Cable Clip
682910211019Tapping Screw DIN 7971-ST3,9X16-F
692607329096Suppression Filter
72916660014Spring retaining ring DIN 472 35X1,5 MM
702605132040Housing Cover Blue
712910211021Tapping Screw DIN 7971-ST3,9X22-F
722600703011Grommet Ø8,3-Ø9,4X95 MM
722600703012Grommet Ø6,5-Ø6,9X95 MM
732604460056Power supply cord
732604460061Power supply cord AUS 2,6M 2 X 0,75MM Pvc
732604460093Power supply cord
742604448003Cable
782601110093Sticker
792601110094Sticker
792601110096Sticker
82604616002Compression Spring
802601110076Sticker Drill/impact Drill
811607950044Chuck Wrench SG2, SW4
811608571045Key Chuck Ø 1-10 Mm, 1/2"
822603410001Socket head cap screw M3X6,5-4.8
832603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
842601110041Reference Plate Yellow
852600101020Shim 0,5 MM
852600101022Shim 0,2 MM
852600101023Shim 0,3 MM
872600150004Shim
882600102042Shim washer
92600190025Catch Disk
902600102043Shim 0,3 MM
902600102044Shim 0,5 MM
912600100692Shim 0,2 MM
912600100693Shim 0,3 MM
912600100695Shim 0,5 MM
922601110158Reference Plate
