Bosch 0601178003

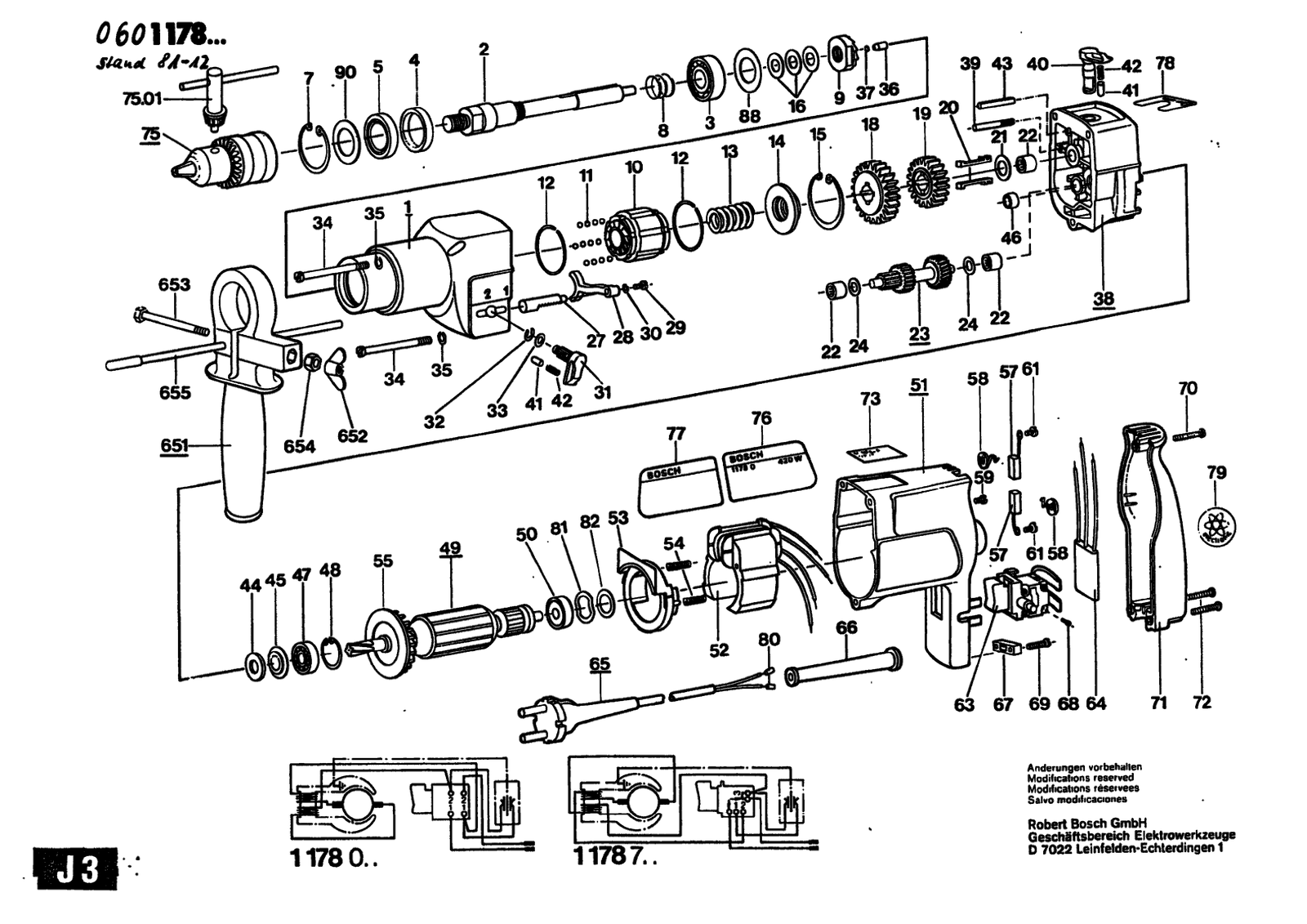

Bosch 0601178003 percussion drill: exploded parts diagram, 1 sheet, 96 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601178003: 96 positions on 1 sheet
Bosch 0601178003 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605806956 | Assembly Of Service Parts |
| 10 | 2608710008 | Striker |
| 11 | 1903230204 | Ball 5/32" |
| 12 | 2604601011 | Retaining ring |
| 13 | 2604619008 | Compression Spring |
| 14 | 2600101082 | Supporting Disc |
| 15 | 2916663018 | Spring retaining ring 40X1,75 DIN 472 |
| 16 | 2600101027 | Shim washer 0,3 MM |
| 16 | 2600101666 | Shim 0,3 MM |
| 16 | 2600101667 | Shim washer 0,5 MM |
| 18 | 2606316097 | Cylindrical Gear Z=68 |
| 19 | 2606316096 | Toothed Gear Z=56 |
| 2 | 2606135003 | Drilling Spindle |
| 20 | 2602300001 | Flat Key |
| 21 | 2600101001 | Shim |
| 22 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 23 | 2606309901 | Assembly Of Service Parts Z=31/27/16 |
| 24 | 2600100570 | Shim 0,3 MM |
| 27 | 2603070010 | Toothed rack |
| 28 | 2602033001 | Fork Lever |
| 29 | 2910011048 | Socket head cap screw DIN 84-AM3X6-5.8 |
| 3 | 1900900202 | Attachment 160 03 DIN 625 |
| 30 | 2916690001 | Spring Lock Washer A3-FST |
| 31 | 2602026023 | Rotary Knob |
| 32 | 2916080007 | Locking washer DIN 6799-4-FST |
| 33 | 2600100618 | Shim washer |
| 34 | 2603410038 | Socket head cap screw M 4X53 MM |
| 35 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 36 | 2603200019 | Pressure Spindle 0,2 MM |
| 37 | 2600000015 | Shim washer 0,3 MM |
| 37 | 2600000016 | Shim washer |
| 37 | 2600000017 | Shim washer 0,5 MM |
| 37 | 2600000019 | Shim washer 0,8 MM |
| 38 | 2605700924 | Assembly Of Service Parts |
| 39 | 2603200011 | Holding Pin |
| 4 | 2600201007 | Spacer Ring |
| 40 | 2602026021 | Rotary Knob |
| 41 | 2600590006 | Ratchet Cap |
| 42 | 2600590006 | Ratchet Cap |
| 43 | 2917780105 | Slotted Spring Pin 4X30 MM DIN 7346 |
| 44 | 2600108000 | Felt Washer |
| 45 | 2600500030 | Cupped Washer |
| 46 | 2600300049 | Seal Bushing |
| 47 | 1900905029 | Ball Bearing 8X22X7 |
| 48 | 2600119000 | Spring retaining ring |
| 49 | 2604010535 | Armature With Fan 100V |
| 49 | 2604010536 | Armature With Fan 110-115V |
| 49 | 2604010537 | Armature 220V |
| 49 | 2604010538 | Armature With Fan 240V |
| 5 | 2600283011 | Radial Seal |
| 50 | 1900905018 | Ball Bearing 7X22X7 |
| 51 | 2605104960 | Motor Housing Blue |
| 52 | 2604222294 | Pole Shoe 100V |
| 52 | 2604222295 | Field 110-115V |
| 52 | 2604222297 | Field 240V |
| 52 | 2604222298 | Field 220V |
| 53 | 2601328036 | Armature |
| 54 | 2604611026 | Compression Spring |
| 55 | 2606610021 | Fan |
| 58 | 2604652002 | Spiral Spring |
| 59 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 61 | 2603410010 | Socket head cap screw |
| 63 | 2607200043 | On-Off Switch |
| 63 | 2607200065 | On-Off Switch |
| 63 | 2607200066 | On-Off Switch |
| 64 | 2607329051 | Suppression Filter |
| 65 | 2604460093 | Power supply cord |
| 651 | 2602025031 | Auxiliary Handle Black |
| 652 | 2915191006 | Wing Nut M6 DIN 315-G-GTW-40 |
| 653 | 2911011220 | Hex Screw DIN 931-M6X75-8.8 |
| 654 | 2601098001 | Conical Spring Washer |
| 655 | 2607010026 | Depth-Gauge |
| 66 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 66 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 66 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 67 | 2601035001 | Cable Clip |
| 68 | 2603410023 | Socket head cap screw M3X10 MM |
| 69 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 7 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 70 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 71 | 2605132017 | Housing Cover Blue |
| 72 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 75 | 1608571045 | Key Chuck Ø 1-10 Mm, 1/2" |
| 75/01 | 1607950044 | Chuck Wrench SG2, SW4 |
| 77 | 2601110099 | Sticker |
| 78 | 2601110076 | Sticker Drill/impact Drill |
| 79 | 2601110041 | Reference Plate Yellow |
| 8 | 2604616002 | Compression Spring |
| 80 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 81 | 2600150004 | Shim |
| 82 | 2600101020 | Shim 0,5 MM |
| 82 | 2600101022 | Shim 0,2 MM |
| 82 | 2600101023 | Shim 0,3 MM |
| 88 | 2600102042 | Shim washer |
| 9 | 2600190025 | Catch Disk |
| 90 | 2600102044 | Shim 0,5 MM |
