Bosch 0601174001

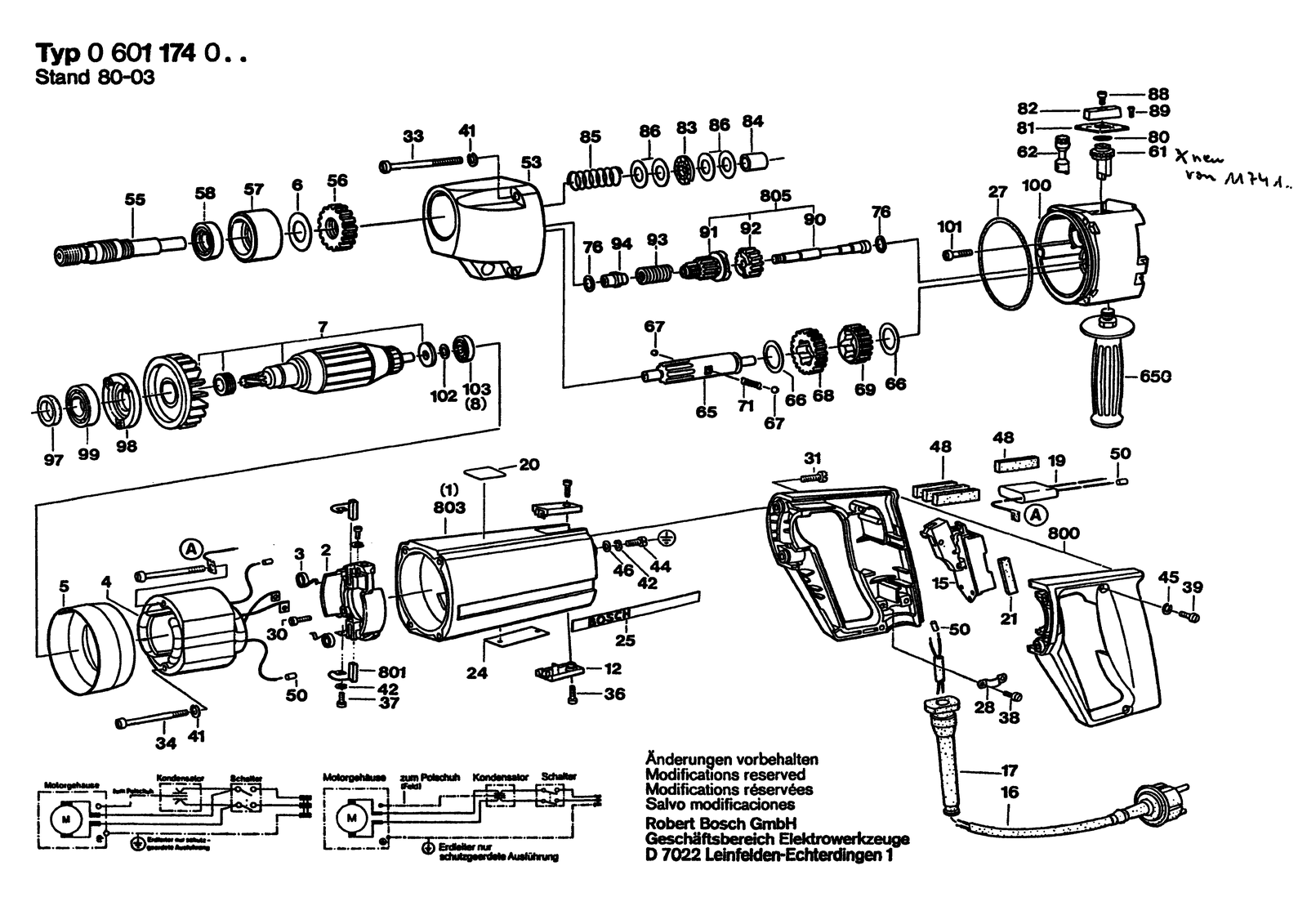

Bosch 0601174001 percussion drill: exploded parts diagram, 1 sheet, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601174001: 84 positions on 1 sheet
Bosch 0601174001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 100 | 1605820192 | Bearing Housing |
| 101 | 2910021293 | Socket head cap screw |
| 102 | 1140100600 | Shim |
| 102 | 1420100023 | Shim Thick 0,10 MM |
| 103 | 1900905018 | Ball Bearing 7X22X7 |
| 12 | 3605500057 | Sealing cap Blue |
| 15 | 1607200037 | Switch |
| 15 | 1607200078 | Switch |
| 16 | 1604460023 | Power supply cord |
| 16 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 16 | 1604460096 | Power supply cord |
| 16 | 1604461010 | Power supply cord |
| 16 | 1607000391 | Power supply cord |
| 16 | 3607030489 | Power supply cord |
| 17 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 19 | 1607328012 | Suppression Filter |
| 2 | 1604336005 | Brush Holder |
| 20 | 1601110058 | Reference Plate Double Insulation |
| 21 | 1602381001 | Insulating Strip 33X10X6 MM |
| 25 | 1601110003 | Manufacturer's nameplate |
| 25 | 1601110004 | Manufacturer's nameplate |
| 27 | 1600210006 | O-Ring 74,0X3,0 MM |
| 28 | 1601302014 | Fastening Clamp |
| 3 | 1604652001 | Spiral Spring |
| 30 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 31 | 2910021154 | Socket head cap screw DIN 84-AM5X12-8.8 |
| 33 | 1603429001 | Tapping Screw B4,8X85 MM |
| 33 | 2910021181 | Socket head cap screw |
| 34 | 2910021176 | Dummy DIN 84-BM5X55-8.8 |
| 36 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 37 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 38 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 39 | 2910011128 | Socket head cap screw DIN 84-AM4X18-5.8 |
| 39 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 4 | 1604220082 | Field 220-230V |
| 4 | 1604220106 | Field 115V |
| 4 | 1604220206 | Field 100-120V |
| 41 | 2916680006 | Spring Lock Washer DIN 127-B 5 |
| 42 | 1600150006 | Spring Washer DIN 137-A4 |
| 44 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 45 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 46 | 2916010410 | Plain Washer A 4,3 DIN 125-ST |
| 48 | 1602381006 | Insulating Plate 20X20X50 MM |
| 5 | 1600209002 | Air-Deflector Ring |
| 50 | 3604477009 | End Splice |
| 55 | 1603528005 | Drilling Spindle 5/8"-16 UN-2A |
| 56 | 1606317077 | Cylindrical Gear Z=43 |
| 57 | 1605801026 | Guide Bushing |
| 58 | 3600283043 | Rotary shaft lip seal |
| 6 | 1600102676 | Shim Thick 0,6 MM |
| 61 | 1607000126 | Parts Set |
| 62 | 1606325014 | Control Shaft |
| 65 | 1606309062 | Spindle With Gear Z=15 |
| 650 | 160202509Z | Auxiliary Handle |
| 650 | 16020250A1 | Auxiliary Handle |
| 66 | 1600101647 | Shim Thick 0,6 MM |
| 67 | 1903230009 | Ball DIN 5401-5 G28 |
| 68 | 1606317075 | Cylindrical Gear Z=41 |
| 69 | 1606317074 | Cylindrical Gear Z=32 |
| 7 | 1609991109 | Armature 220-240V |
| 7 | 1609991110 | Armature 110-115V |
| 71 | 1604611022 | Compression Spring |
| 76 | 3340101600 | Shim |
| 80 | 3600210086 | O-Ring 12,0X1,5 MM |
| 800 | 3605133019 | Handle Black |
| 801 | 1607014101 | Carbon-Brush Set |
| 801 | 1607014102 | Carbon-Brush Set |
| 805 | 1607016015 | Set Of Gears Z=13/22/30 |
| 81 | 1601038025 | Notched Plate |
| 82 | 1602026044 | Control Lever |
| 83 | 1600920003 | Needle-Roller Bearing |
| 84 | 1600301006 | Sintered-Metal Bushing |
| 85 | 1604616018 | Compression Spring |
| 86 | 1600103026 | Support Disc |
| 88 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 89 | 2910511120 | Dummy AM 4X10 DIN 63-8.8 |
| 90 | 1603520018 | Drive Shaft |
| 91 | F000635176 | Cylindrical Gear |
| 92 | 1606325022 | Cylindrical Gear Z=30 |
| 93 | 1604619013 | Compression Spring |
| 94 | 1600363011 | Threaded Bushing |
| 97 | 1600108003 | Felt Disc |
| 98 | 1600501019 | Bearing cover |
| 99 | 1600900001 | Groove ball bearing 17X35X10 |
