Bosch 0601171001

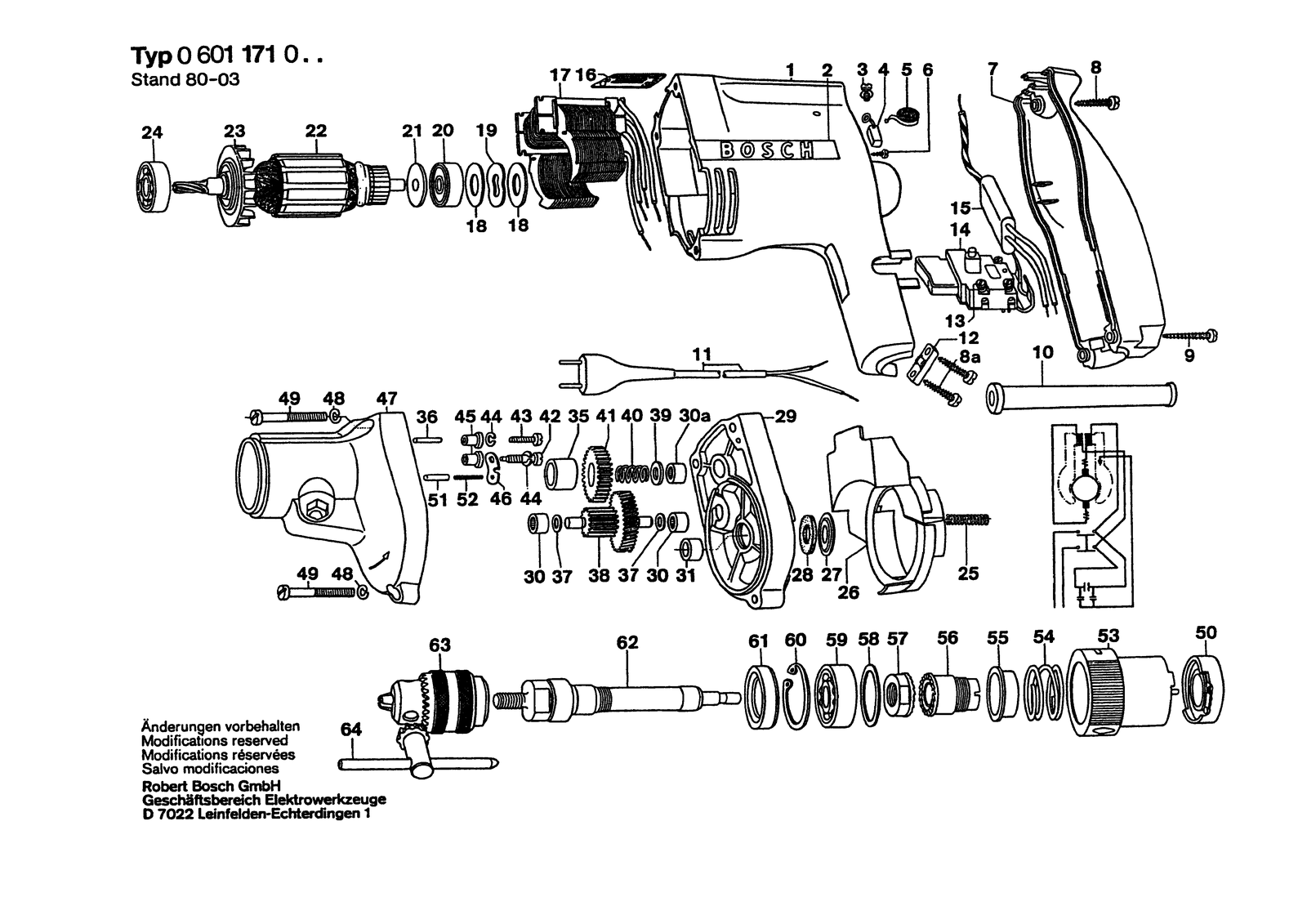

Bosch 0601171001 percussion drill: exploded parts diagram, 1 sheet, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601171001: 66 positions on 1 sheet
Bosch 0601171001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104900 | Motor Housing Blue |
| 10 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 10 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 10 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 11 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 11 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 12 | 2601035001 | Cable Clip |
| 13 | 2603410023 | Socket head cap screw M3X10 MM |
| 14 | 2607200043 | On-Off Switch |
| 14 | 2607200065 | On-Off Switch |
| 15 | 2607329051 | Suppression Filter |
| 17 | 2604222219 | Pole Shoe 110-115V |
| 17 | 2604222221 | Pole Shoe 220V |
| 17 | 2604222222 | Pole Shoe 240V |
| 17 | 2604222270 | Pole Shoe 220V |
| 18 | 2600101655 | Shim 0,2 MM |
| 18 | 2600101656 | Shim 0,3 MM |
| 18 | 2600101657 | Shim 0,5 MM |
| 19 | 2600150003 | Shim |
| 2 | 2601007003 | Sticker |
| 20 | 1900905019 | Groove ball bearing 6X19X6 |
| 21 | 2600121000 | Plain Washer |
| 22 | 2604010296 | Armature With Fan 110-115V |
| 22 | 2604010298 | Armature With Fan 220V |
| 22 | 2604010299 | Armature With Fan 240-250V |
| 23 | 2606610013 | Clamping Strip |
| 24 | 1900905029 | Ball Bearing 8X22X7 |
| 25 | 2604611026 | Compression Spring |
| 26 | 2601328016 | Cover Disc |
| 27 | 2600500030 | Cupped Washer |
| 28 | 2600108000 | Felt Washer |
| 29 | 2605700905 | Intermediate Flange |
| 3 | 2603410010 | Socket head cap screw |
| 30 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 31 | 2600300049 | Seal Bushing |
| 35 | 2600309002 | Spacer Bushing |
| 36 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 37 | 2600100607 | Shim 0,3 MM |
| 38 | 2606100048 | Toothed Gear Z=41/17 |
| 39 | 2600100570 | Shim 0,3 MM |
| 40 | 2604611027 | Dummy |
| 41 | 2606316039 | Toothed Gear Z=35 |
| 42 | 2603412003 | Socket head cap screw |
| 43 | 2910011122 | Socket head cap screw DIN 84-AM4X12-5.8 |
| 44 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 45 | 2600322042 | Guide Bushing |
| 46 | 2601034024 | Pressure Plate |
| 47 | 2605806905 | Gear Housing |
| 48 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 5 | 2604652002 | Spiral Spring |
| 51 | 2600556001 | Straight Pin |
| 52 | 2604612001 | Compression Spring |
| 54 | 2604616000 | Compression Spring |
| 55 | 2600521016 | Capsule |
| 56 | 2600362028 | Drive Bushing |
| 57 | 2600190009 | Plastic Bag |
| 58 | 2600102654 | Shim |
| 59 | 1900900272 | Groove ball bearing 15X32X9 |
| 6 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 62 | 2603523032 | Stud bolt 3/8" |
| 63 | 2603571003 | Chuck |
| 64 | 2607950028 | Assembly Wrench |
| 7 | 2605132005 | Housing Cover |
| 8 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 8 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 9 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
