Bosch 0601170001

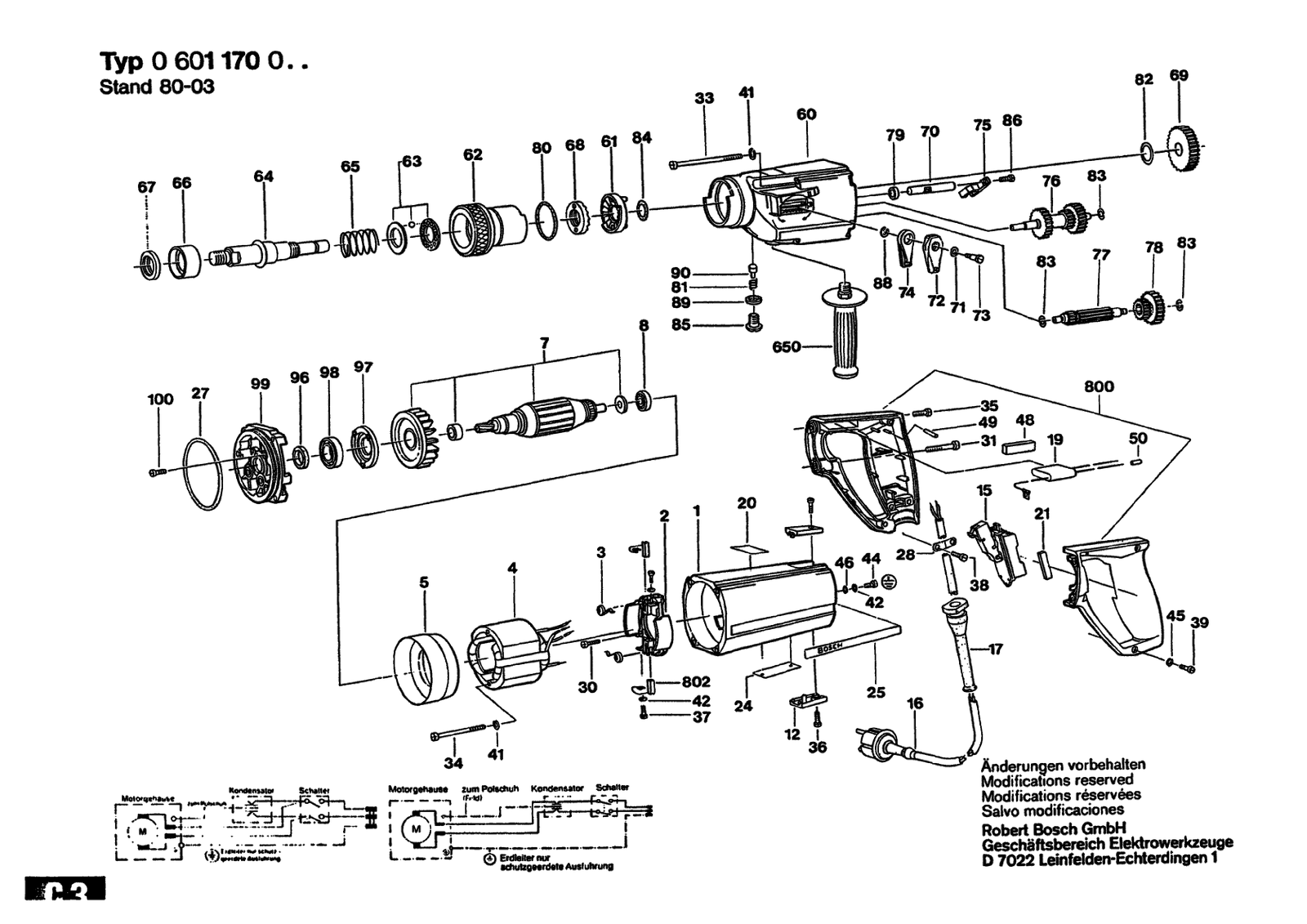

Bosch 0601170001 drill: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601170001: 78 positions on 1 sheet
Bosch 0601170001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 100 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 12 | 3605500057 | Sealing cap Blue |
| 15 | 1607200037 | Switch |
| 15 | 1607200078 | Switch |
| 16 | 1604460015 | Power supply cord CH 4,15M 2 X 1,0MM H05 Vv-F |
| 16 | 1604460023 | Power supply cord |
| 16 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 16 | 1604461010 | Power supply cord |
| 16 | 3607030489 | Power supply cord |
| 17 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 19 | 1607328012 | Suppression Filter |
| 2 | 1604336005 | Brush Holder |
| 20 | 1601110058 | Reference Plate Double Insulation |
| 21 | 1602381001 | Insulating Strip 33X10X6 MM |
| 25 | 1601110004 | Manufacturer's nameplate |
| 27 | 1600210006 | O-Ring 74,0X3,0 MM |
| 28 | 1601302014 | Fastening Clamp |
| 3 | 1604652001 | Spiral Spring |
| 30 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 31 | 2910021154 | Socket head cap screw DIN 84-AM5X12-8.8 |
| 33 | 1603435006 | Tapping Screw B4,8X90 MM |
| 34 | 2910021176 | Dummy DIN 84-BM5X55-8.8 |
| 35 | 2910021163 | Dummy DIN 84-AM5X22-8.8 |
| 36 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 37 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 38 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 39 | 2910021128 | Socket head cap screw DIN 84-AM4X18-8.8 |
| 39 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 4 | 1604220082 | Field 220-230V |
| 4 | 1604220206 | Field 100-120V |
| 41 | 2916680006 | Spring Lock Washer DIN 127-B 5 |
| 42 | 1600150006 | Spring Washer DIN 137-A4 |
| 44 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 45 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 46 | 2916010410 | Plain Washer A 4,3 DIN 125-ST |
| 5 | 1600209002 | Air-Deflector Ring |
| 50 | 3604477009 | End Splice |
| 60 | 1605806276 | Spindle Bearing |
| 61 | 1606490004 | Locating Washer |
| 62 | 1600328015 | Guide Bushing |
| 63 | 1900920004 | D-Groove Ball Thr Bearing |
| 64 | 1603526002 | Drilling Spindle |
| 65 | 1604616001 | Compression Spring |
| 650 | 160202509Z | Auxiliary Handle |
| 650 | 16020250A1 | Auxiliary Handle |
| 66 | 1600300039 | Bushing |
| 67 | 1600281004 | Seal Ring |
| 68 | 1606490006 | Locating Washer |
| 69 | 1603317045 | Toothed Gear Z=50 |
| 7 | 1609991109 | Armature 220-240V |
| 7 | 1609991110 | Armature 110-115V |
| 70 | 1603104005 | Adjusting bolt |
| 71 | 1420100620 | Shim Thick 0,2 MM |
| 72 | 1602026037 | Control Lever |
| 73 | 1603413005 | Socket head cap screw M3,5X5,5 MM |
| 74 | 1602388010 | Rubber Profile |
| 75 | 1602120006 | Control Lever |
| 76 | 1606328049 | Toothed Gear Z=21 |
| 77 | 1606309036 | Spindle With Gear Z=12 |
| 78 | 1606328063 | Toothed Gear Z=26/35 |
| 79 | 1600283003 | Rotary shaft lip seal |
| 8 | 2600905032 | Ball Bearing 7X19X6 |
| 80 | 1900210143 | O-Ring 40X3MM |
| 800 | 3605133019 | Handle Black |
| 802 | 1607014101 | Carbon-Brush Set |
| 81 | 1234611000 | Compression Spring |
| 82 | 1600101615 | Shim |
| 83 | 1710100040 | Shim |
| 84 | 1410210010 | Seal Ring 16,0X3,0 MM |
| 85 | 1603418001 | Hollow Bolt |
| 86 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 88 | 2916680004 | Spring Lock Washer DIN 127-B3,5 |
| 89 | 2916680010 | Spring Lock Washer |
| 90 | 1603203007 | Guiding bolt |
| 96 | 1600108003 | Felt Disc |
| 97 | 1600501019 | Bearing cover |
| 98 | 1600900001 | Groove ball bearing 17X35X10 |
| 99 | 1605820038 | Bearing Flange |
