Bosch 0601129003

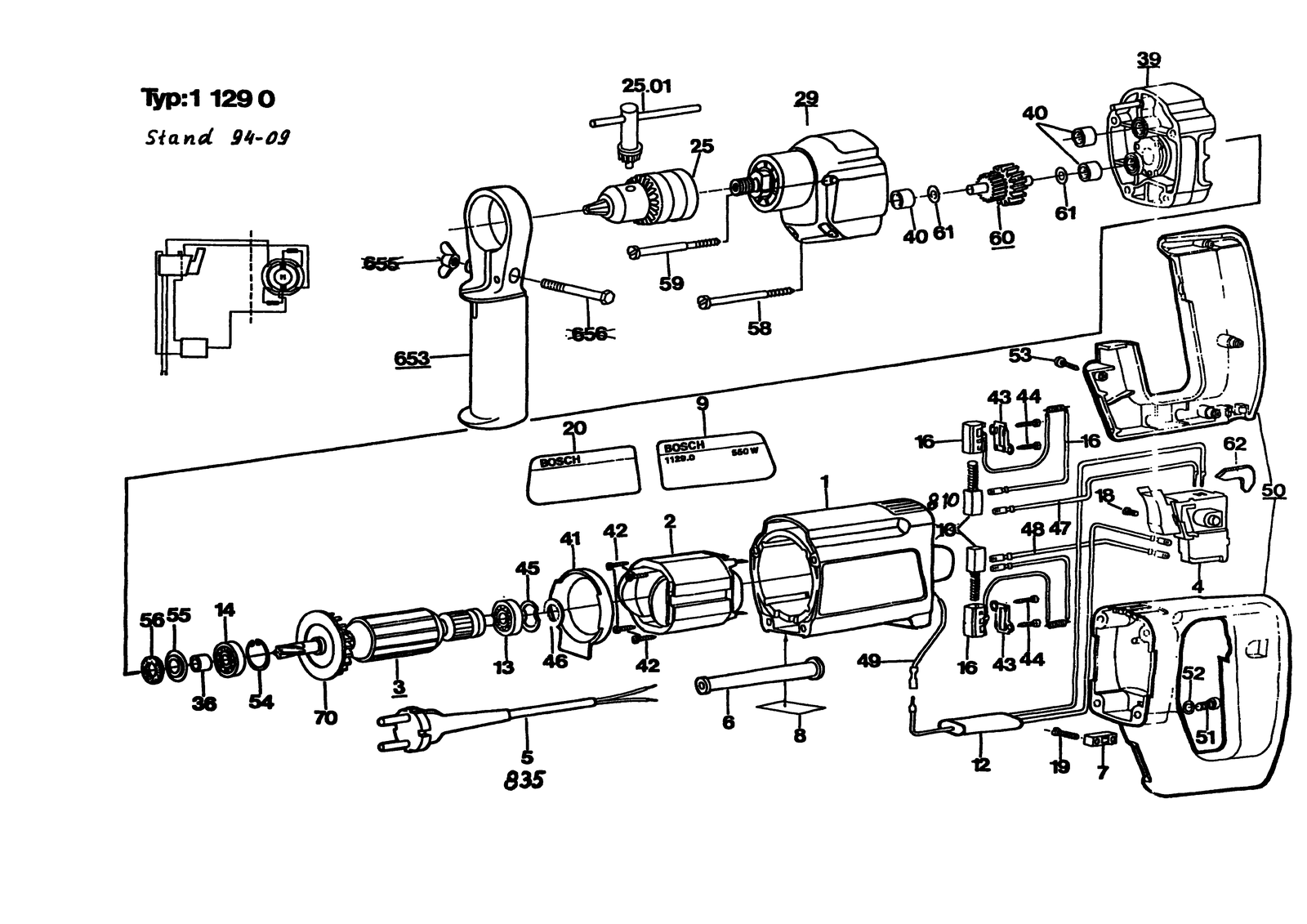

Bosch 0601129003 drill: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601129003: 56 positions on 1 sheet
Bosch 0601129003 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605108014 | Motor Housing Blue |
| 12 | 2607329103 | Suppression Capacitor |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604448016 | Connecting Cable White L=52MM |
| 16 | 2604448034 | Connecting Cable White L=88 MM |
| 16 | 2604448100 | Connecting Cable White L=68 MM |
| 16 | 2604465068 | Suppression Filter |
| 16 | 2604465071 | Suppressor Box L=93/85 MM |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 2 | 2604220427 | Field 100V |
| 2 | 2604220429 | Field 220-230V |
| 20 | 2601110093 | Sticker |
| 25 | 1608571048 | Key Chuck Ø 1,5-13 MM,1/2" |
| 29 | 2605806974 | Gear Housing Z=55 |
| 3 | 2604010572 | Armature 100V |
| 3 | 2604010575 | Armature 220-240V |
| 36 | 2600400008 | Receptacle |
| 39 | 2605700935 | Intermediate Flange |
| 4 | 2607200260 | Switch |
| 40 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 41 | 2601328033 | Cover Disc |
| 42 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 43 | 2601015047 | Brush Plate |
| 44 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 45 | 2600150004 | Shim |
| 46 | 2600101020 | Shim 0,5 MM |
| 46 | 2600101022 | Shim 0,2 MM |
| 46 | 2600101023 | Shim 0,3 MM |
| 47 | 2604448042 | Cable |
| 48 | 2604448004 | Connecting Cable White L=176 MM |
| 49 | 2604448003 | Cable |
| 5 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 50 | 2605133000 | Handle Blue |
| 51 | 2910021132 | Socket head cap screw DIN 84-AM4X25-8.8 |
| 52 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 53 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 54 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 55 | 2600500002 | Cupped Washer |
| 56 | 2600108077 | Felt Washer |
| 58 | 2603435018 | Headless Screw |
| 59 | 2603435017 | Headless Screw |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 60 | 2606100902 | Spindle With Gear Z= 10/29 |
| 61 | 2600100607 | Shim 0,3 MM |
| 62 | 2601022000 | Damping Plate |
| 653 | 1619PB4323 | Auxiliary Handle |
| 7 | 2601035001 | Cable Clip |
| 70 | 2606610049 | Fan |
| 8 | 160111A3H3 | Nameplate |
| 835 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 9 | 2601110315 | Sticker |
