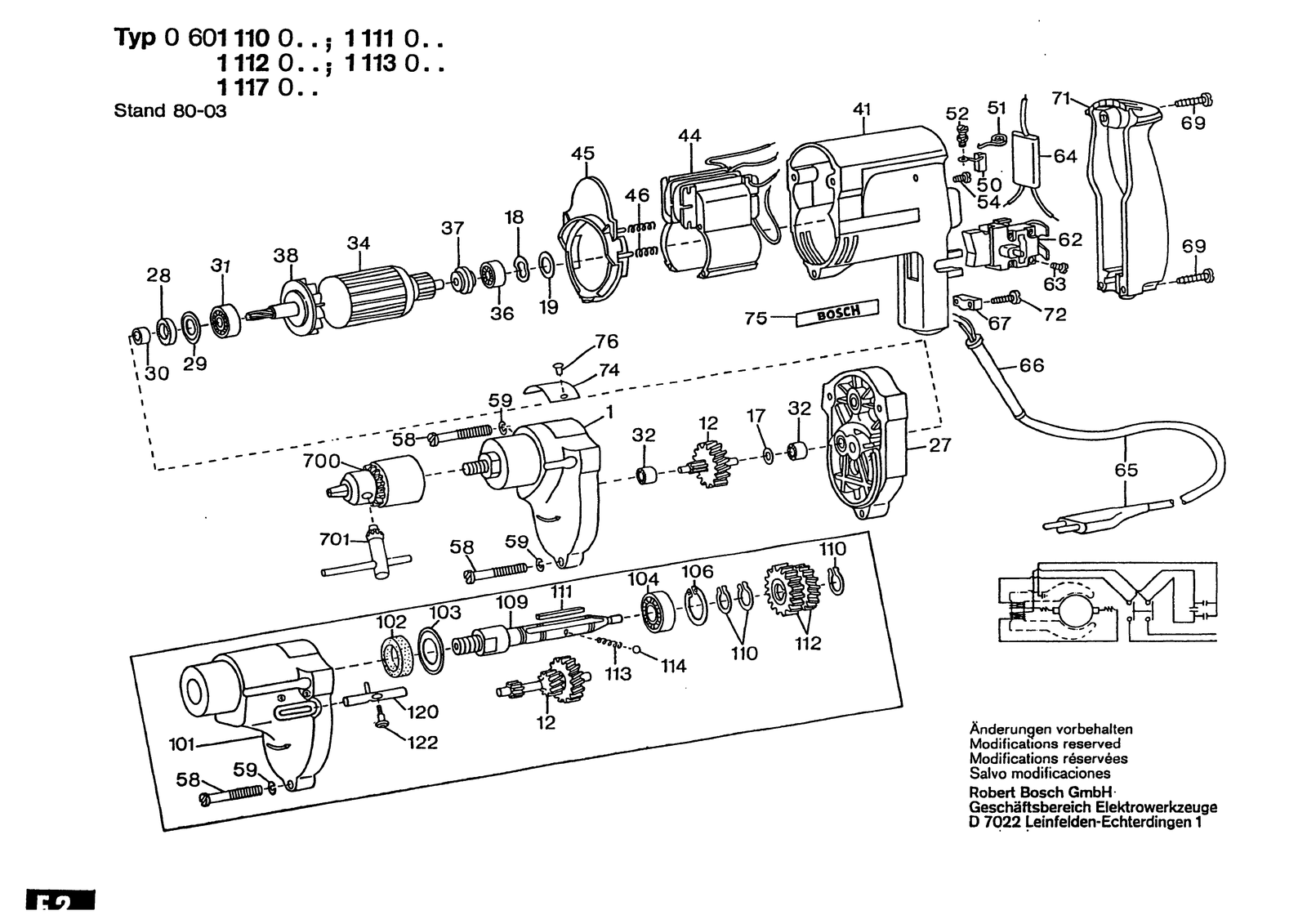

Bosch 0601111000 drill: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601111000: 63 positions on 1 sheet
Bosch 0601111000 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2605806250 | Gear Housing |
| 102 | 2600108033 | Felt Washer |
| 103 | 2600500033 | Cupped Washer |
| 104 | 1900900302 | Groove ball bearing 12X32X10 |
| 106 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 109 | 2603523006 | Stud bolt |
| 110 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 111 | 2602300014 | Flat Key |
| 112 | 2606328037 | Cylindrical Gear Z=43/35 |
| 113 | 2604611016 | Compression Spring |
| 114 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 12 | 2606100954 | Dummy Z= 37/19/10 |
| 120 | 2603103017 | Switching Pin |
| 122 | 2603231006 | Felt Washer |
| 17 | 2600100570 | Shim 0,3 MM |
| 18 | 2600150003 | Shim |
| 19 | 2600101020 | Shim 0,5 MM |
| 19 | 2600101022 | Shim 0,2 MM |
| 19 | 2600101023 | Shim 0,3 MM |
| 27 | 2605700903 | Intermediate Flange |
| 28 | 2600108020 | Felt Washer |
| 29 | 2600500008 | Cupped Washer |
| 30 | 2600400020 | Receptacle |
| 31 | 2600905007 | Groove ball bearing 10 MM DIN 625 |
| 32 | 2600914004 | Needle bearing |
| 34 | 2604010441 | Armature With Fan 110-115V |
| 34 | 2604010442 | Armature 220V |
| 34 | 2604010443 | Armature 240V |
| 36 | 1900905018 | Ball Bearing 7X22X7 |
| 37 | 2600121002 | Armature Plate |
| 41 | 2605104903 | Motor Housing |
| 44 | 2604222227 | Pole Shoe 110-115V |
| 44 | 2604222229 | Pole Shoe 220V |
| 44 | 2604222230 | Pole Shoe 240V |
| 44 | 2604222235 | Pole Shoe 220V |
| 45 | 2601328018 | Brush |
| 46 | 2604611026 | Compression Spring |
| 51 | 2604652002 | Spiral Spring |
| 52 | 2603410010 | Socket head cap screw |
| 54 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 58 | 2603410026 | Thread-Forming Screw |
| 59 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 62 | 2607200043 | On-Off Switch |
| 63 | 2603410023 | Socket head cap screw M3X10 MM |
| 64 | 2607329051 | Suppression Filter |
| 65 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 65 | 2604460016 | Power supply cord |
| 65 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 65 | 2604460056 | Power supply cord |
| 65 | 2604460060 | Elec. Cable W/Connection |
| 65 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 66 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 66 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 66 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 67 | 2601035001 | Cable Clip |
| 69 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 700 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 701 | 2607950007 | Chuck Wrench SG2 |
| 71 | 2605132007 | Housing Cover Blue |
| 72 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 74 | 2601100038 | Nameplate |
| 75 | 2601007003 | Sticker |
| 76 | 2917724032 | Grooved Nail 2X4 DIN 1476-ST |
