Bosch 0601108001

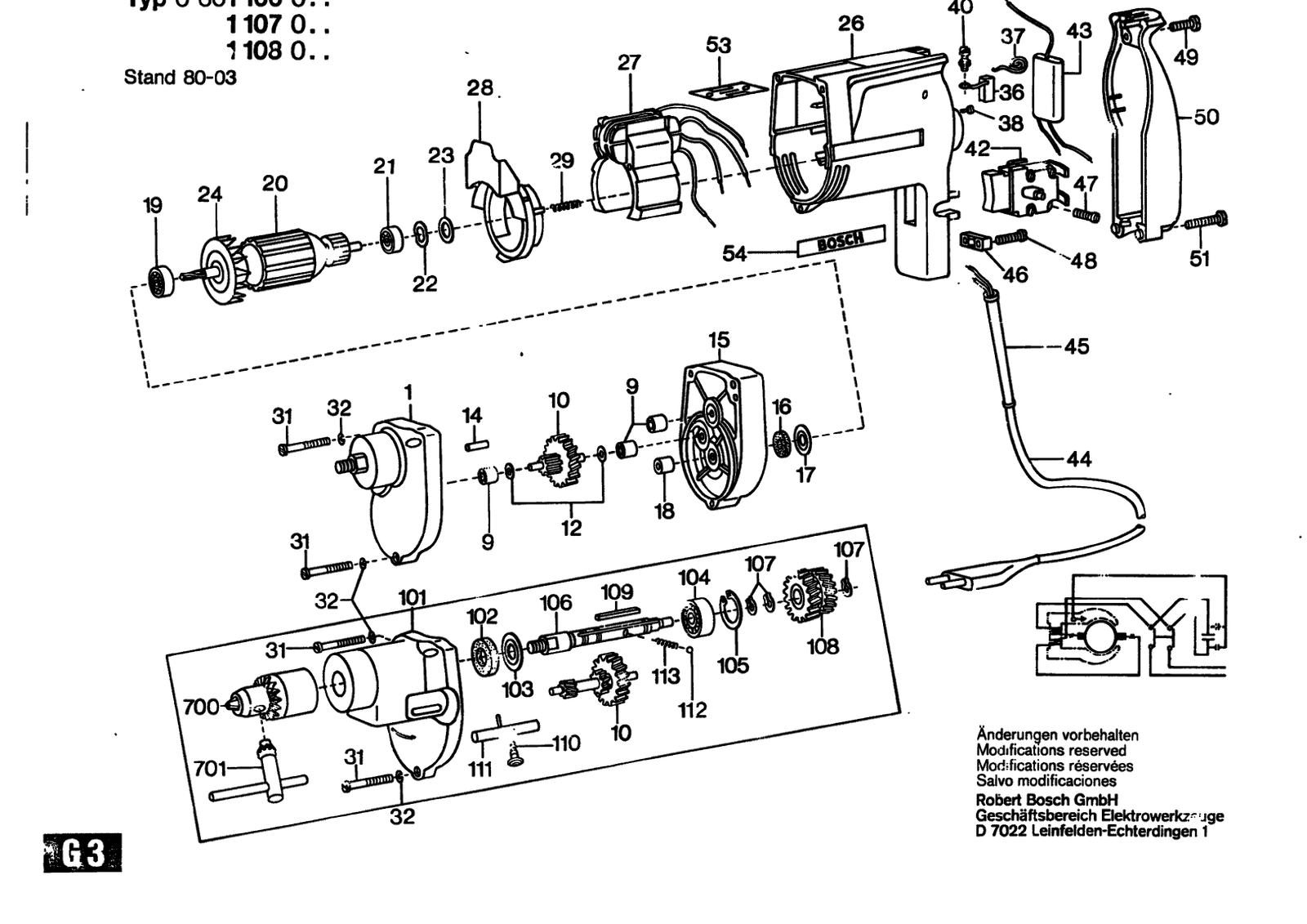

Bosch 0601108001 drill: exploded parts diagram, 1 sheet, 208 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601108001: 208 positions on 1 sheet
Bosch 0601108001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605806900 | Gear Housing |
| 1 | 2605806900 | Gear Housing |
| 1 | 2605806900 | Gear Housing |
| 10 | 2606100041 | Spindle With Gear Z= 16/41 |
| 10 | 2606100042 | Spindle With Gear Z= 13/41 |
| 10 | 2606100045 | Spindle With Gear Z= 41/19/13 |
| 101 | 2605806208 | Gear Housing |
| 101 | 2605806208 | Gear Housing |
| 101 | 2605806208 | Gear Housing |
| 102 | 2600108031 | Sealing disk |
| 102 | 2600108031 | Sealing disk |
| 102 | 2600108031 | Sealing disk |
| 103 | 2600500012 | Cupped Washer |
| 103 | 2600500012 | Cupped Washer |
| 103 | 2600500012 | Cupped Washer |
| 104 | 1900900270 | Groove ball bearing 6000 DIN 625 |
| 104 | 1900900270 | Groove ball bearing 6000 DIN 625 |
| 104 | 1900900270 | Groove ball bearing 6000 DIN 625 |
| 105 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 105 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 105 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 106 | 2603122030 | Drilling Spindle |
| 106 | 2603122030 | Drilling Spindle |
| 106 | 2603122030 | Drilling Spindle |
| 107 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 107 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 107 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 108 | 2606328035 | Toothed Gear Z=37/31 |
| 108 | 2606328035 | Toothed Gear Z=37/31 |
| 108 | 2606328035 | Toothed Gear Z=37/31 |
| 109 | 2602300025 | Cast Supporting Table |
| 109 | 2602300025 | Cast Supporting Table |
| 109 | 2602300025 | Cast Supporting Table |
| 110 | 2603231006 | Felt Washer |
| 110 | 2603231006 | Felt Washer |
| 110 | 2603231006 | Felt Washer |
| 111 | 2603103015 | Switching Pin |
| 111 | 2603103015 | Switching Pin |
| 111 | 2603103015 | Switching Pin |
| 112 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 112 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 112 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 113 | 2604611025 | Compression Spring |
| 113 | 2604611025 | Compression Spring |
| 12 | 2600100607 | Shim 0,3 MM |
| 12 | 2600100607 | Shim 0,3 MM |
| 12 | 2600100607 | Shim 0,3 MM |
| 14 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 14 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 14 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 15 | 2605700900 | Intermediate Flange |
| 15 | 2605700901 | Intermediate Flange |
| 15 | 2605700901 | Intermediate Flange |
| 16 | 2600108000 | Felt Washer |
| 16 | 2600108000 | Felt Washer |
| 16 | 2600108000 | Felt Washer |
| 17 | 2600500080 | Cupped Washer |
| 17 | 2600500080 | Cupped Washer |
| 17 | 2600500080 | Cupped Washer |
| 18 | 2600300049 | Seal Bushing |
| 18 | 2600300049 | Seal Bushing |
| 18 | 2600300049 | Seal Bushing |
| 19 | 1900905029 | Ball Bearing 8X22X7 |
| 19 | 1900905029 | Ball Bearing 8X22X7 |
| 19 | 1900905029 | Ball Bearing 8X22X7 |
| 20 | 2604010287 | Armature With Fan 24V |
| 20 | 2604010288 | Armature With Fan 42V |
| 20 | 2604010289 | Connecting Wire 110-115V |
| 20 | 2604010291 | Armature With Fan 220V |
| 20 | 2604010292 | Armature With Fan 250V |
| 20 | 2604010295 | Armature With Fan 42V |
| 20 | 2604010296 | Armature With Fan 110-115V |
| 20 | 2604010298 | Armature With Fan 220V |
| 20 | 2604010299 | Armature With Fan 240-250V |
| 20 | 2604010295 | Armature With Fan 42V |
| 20 | 2604010296 | Armature With Fan 110-115V |
| 20 | 2604010298 | Armature With Fan 220V |
| 20 | 2604010299 | Armature With Fan 240-250V |
| 21 | 1900905019 | Groove ball bearing 6X19X6 |
| 21 | 1900905019 | Groove ball bearing 6X19X6 |
| 21 | 1900905019 | Groove ball bearing 6X19X6 |
| 22 | 2600150003 | Shim |
| 22 | 2600150003 | Shim |
| 22 | 2600150003 | Shim |
| 23 | 2600101655 | Shim 0,2 MM |
| 23 | 2600101656 | Shim 0,3 MM |
| 23 | 2600101657 | Shim 0,5 MM |
| 23 | 2600101655 | Shim 0,2 MM |
| 23 | 2600101656 | Shim 0,3 MM |
| 23 | 2600101657 | Shim 0,5 MM |
| 23 | 2600101655 | Shim 0,2 MM |
| 23 | 2600101656 | Shim 0,3 MM |
| 23 | 2600101657 | Shim 0,5 MM |
| 24 | 2606610013 | Clamping Strip |
| 24 | 2606610013 | Clamping Strip |
| 24 | 2606610013 | Clamping Strip |
| 26 | 2605104900 | Motor Housing Blue |
| 26 | 2605104900 | Motor Housing Blue |
| 26 | 2605104900 | Motor Housing Blue |
| 27 | 2604222200 | Pole Shoe 24V |
| 27 | 2604222201 | Pole Shoe 42V |
| 27 | 2604222204 | Pole Shoe 220V |
| 27 | 2604222206 | Pole Shoe 110-115V |
| 27 | 2604222208 | Pole Shoe 220V |
| 27 | 2604222209 | Pole Shoe 240V |
| 27 | 2604222214 | Pole Shoe 42V |
| 27 | 2604222219 | Pole Shoe 110-115V |
| 27 | 2604222221 | Pole Shoe 220V |
| 27 | 2604222222 | Pole Shoe 240V |
| 27 | 2604222214 | Pole Shoe 42V |
| 27 | 2604222219 | Pole Shoe 110-115V |
| 27 | 2604222221 | Pole Shoe 220V |
| 27 | 2604222222 | Pole Shoe 240V |
| 28 | 2601328015 | Cover Disc |
| 28 | 2601328016 | Cover Disc |
| 28 | 2601328016 | Cover Disc |
| 29 | 2604611026 | Compression Spring |
| 29 | 2604611026 | Compression Spring |
| 29 | 2604611026 | Compression Spring |
| 31 | 2910021132 | Socket head cap screw DIN 84-AM4X25-8.8 |
| 31 | 2910021134 | Socket head cap screw DIN 84-BM4X30-8.8 |
| 31 | 2910021134 | Socket head cap screw DIN 84-BM4X30-8.8 |
| 32 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 32 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 32 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 36 | 2604320902 | Carbon-Brush Set |
| 36 | 2604320902 | Carbon-Brush Set |
| 36 | 2604320902 | Carbon-Brush Set |
| 37 | 2604652000 | Spiral Spring |
| 37 | 2604652000 | Spiral Spring |
| 37 | 2604652000 | Spiral Spring |
| 38 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 38 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 38 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 42 | 2607200043 | On-Off Switch |
| 42 | 2607200065 | On-Off Switch |
| 42 | 2607200066 | On-Off Switch |
| 42 | 2607200043 | On-Off Switch |
| 42 | 2607200065 | On-Off Switch |
| 42 | 2607200066 | On-Off Switch |
| 42 | 2607200065 | On-Off Switch |
| 42 | 2607200066 | On-Off Switch |
| 43 | 2607329051 | Suppression Filter |
| 43 | 2607329051 | Suppression Filter |
| 43 | 2607329051 | Suppression Filter |
| 44 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 44 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 44 | 2604460056 | Power supply cord |
| 44 | 2604460060 | Elec. Cable W/Connection |
| 44 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 44 | 3604460069 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 44 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 44 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 44 | 2604460056 | Power supply cord |
| 44 | 2604460060 | Elec. Cable W/Connection |
| 44 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 44 | 3604460069 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 44 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 44 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 44 | 2604460056 | Power supply cord |
| 44 | 2604460060 | Elec. Cable W/Connection |
| 44 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 44 | 3604460069 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 45 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 45 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 45 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 45 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 45 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 45 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 45 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 45 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 45 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 46 | 2601035001 | Cable Clip |
| 46 | 2601035001 | Cable Clip |
| 46 | 2601035001 | Cable Clip |
| 47 | 2603410023 | Socket head cap screw M3X10 MM |
| 47 | 2603410023 | Socket head cap screw M3X10 MM |
| 47 | 2603410023 | Socket head cap screw M3X10 MM |
| 48 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 48 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 48 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 49 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 49 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 49 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 50 | 2605132005 | Housing Cover |
| 50 | 2605132005 | Housing Cover |
| 50 | 2605132005 | Housing Cover |
| 51 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 51 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 51 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 53 | 160111A3H3 | Nameplate |
| 53 | 160111A3H3 | Nameplate |
| 53 | 160111A3H3 | Nameplate |
| 54 | 2601007003 | Sticker |
| 54 | 2601007003 | Sticker |
| 54 | 2601007003 | Sticker |
| 700 | 1607000F3W | Key Chuck |
| 700 | 1608572012 | Chuck Ø 0-8 MM,3/8", |
| 700 | 1607000F3W | Key Chuck |
| 700 | 1608572012 | Chuck Ø 0-8 MM,3/8", |
| 700 | 1607000F3W | Key Chuck |
| 700 | 1608572012 | Chuck Ø 0-8 MM,3/8", |
| 701 | 2607950007 | Chuck Wrench SG2 |
| 701 | 2607950007 | Chuck Wrench SG2 |
| 701 | 2607950007 | Chuck Wrench SG2 |
| 9 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 9 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 9 | 2600914010 | Needle-Roller Bearing Ø6 MM |
