Bosch 0601105903

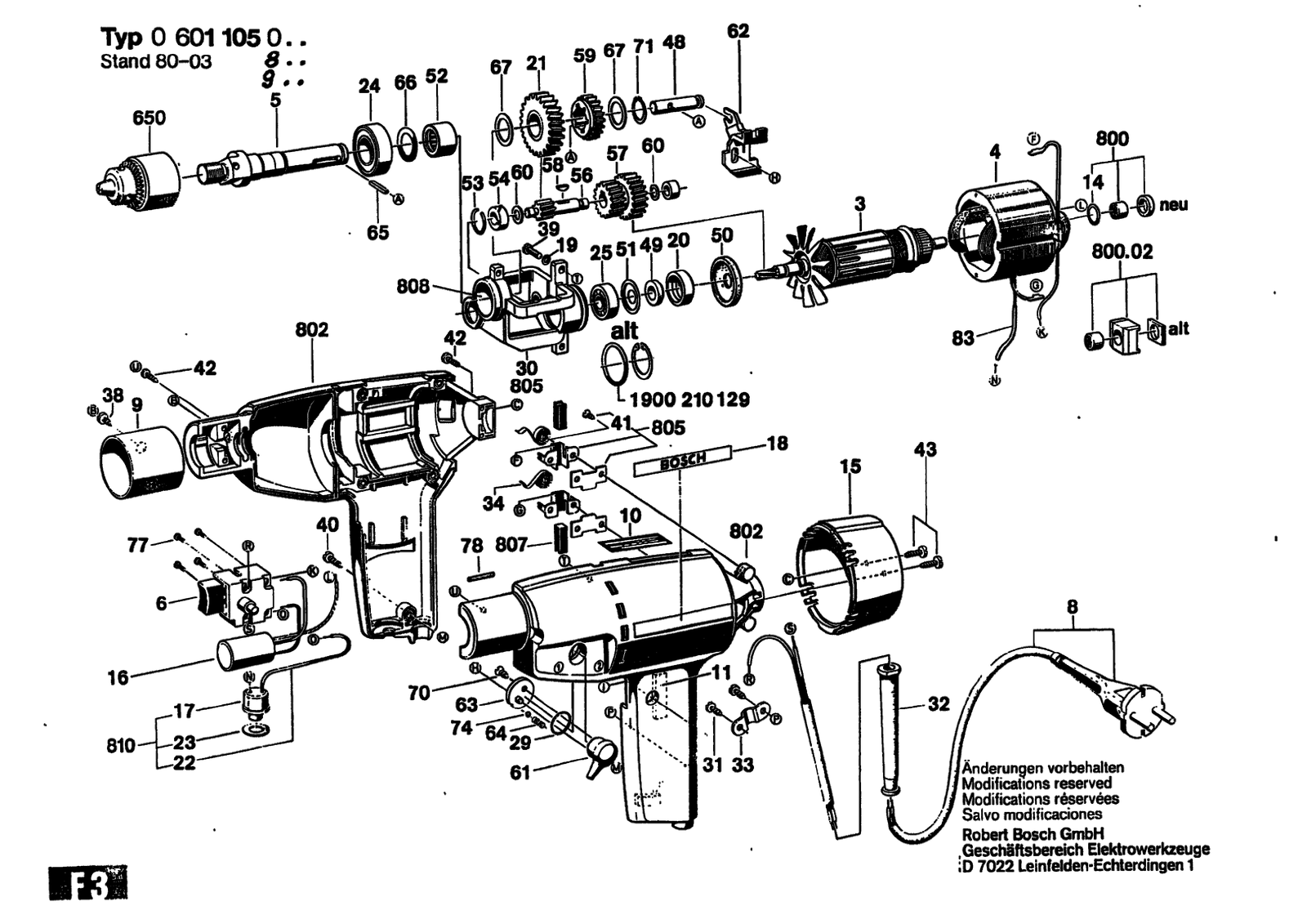

Bosch 0601105903 drill: exploded parts diagram, 1 sheet, 237 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601105903: 237 positions on 1 sheet
Bosch 0601105903 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 160111A3H5 | Nameplate |
| 10 | 160111A3H5 | Nameplate |
| 10 | 160111A3H5 | Nameplate |
| 11 | 1602381001 | Insulating Strip 33X10X6 MM |
| 11 | 1602381001 | Insulating Strip 33X10X6 MM |
| 11 | 1602381001 | Insulating Strip 33X10X6 MM |
| 14 | 1610210014 | O-Ring 8,0X2,5 MM |
| 14 | 1610210014 | O-Ring 8,0X2,5 MM |
| 14 | 1610210014 | O-Ring 8,0X2,5 MM |
| 15 | 1605500066 | Sealing cap Green |
| 15 | 1605500071 | Sealing cap Blue |
| 15 | 1605500092 | Sealing cap Black |
| 15 | 1605500066 | Sealing cap Green |
| 15 | 1605500071 | Sealing cap Blue |
| 15 | 1605500092 | Sealing cap Black |
| 15 | 1605500066 | Sealing cap Green |
| 15 | 1605500071 | Sealing cap Blue |
| 15 | 1605500092 | Sealing cap Black |
| 16 | 1607328034 | Suppression Filter |
| 16 | 2607329069 | Suppression Capacitor |
| 16 | 1607328034 | Suppression Filter |
| 16 | 2607329069 | Suppression Capacitor |
| 16 | 1607328034 | Suppression Filter |
| 16 | 2607329069 | Suppression Capacitor |
| 17 | 1607202006 | Overload Switch |
| 17 | 1607202006 | Overload Switch |
| 17 | 1607202006 | Overload Switch |
| 18 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 18 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 18 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 19 | 2616690003 | Spring Lock Washer |
| 19 | 2616690003 | Spring Lock Washer |
| 19 | 2616690003 | Spring Lock Washer |
| 20 | 1600501055 | Backup ring |
| 20 | 1600501055 | Backup ring |
| 20 | 1600501055 | Backup ring |
| 21 | 1606320052 | Toothed Gear Z=38 |
| 21 | 1606320052 | Toothed Gear Z=38 |
| 21 | 1606320052 | Toothed Gear Z=38 |
| 22 | 1604412020 | Connecting Cable L=100 MM |
| 22 | 1604412020 | Connecting Cable L=100 MM |
| 22 | 1604412020 | Connecting Cable L=100 MM |
| 23 | 1600109006 | Sealing disk |
| 23 | 1600109006 | Sealing disk |
| 23 | 1600109006 | Sealing disk |
| 24 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 24 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 24 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 25 | 1900900235 | Groove ball bearing 627 Y DIN 625 |
| 25 | 1900900235 | Groove ball bearing 627 Y DIN 625 |
| 25 | 1900900235 | Groove ball bearing 627 Y DIN 625 |
| 29 | 1600210024 | O-Ring 12,0X1,0 MM |
| 29 | 1600210024 | O-Ring 12,0X1,0 MM |
| 29 | 1600210024 | O-Ring 12,0X1,0 MM |
| 3 | 1604010119 | Armature With Fan 110-115V |
| 3 | 1604010120 | Armature With Fan 220V |
| 3 | 1604010121 | Armature With Fan 240V |
| 3 | 1604010119 | Armature With Fan 110-115V |
| 3 | 1604010120 | Armature With Fan 220V |
| 3 | 1604010121 | Armature With Fan 240V |
| 3 | 1604010119 | Armature With Fan 110-115V |
| 3 | 1604010120 | Armature With Fan 220V |
| 3 | 1604010121 | Armature With Fan 240V |
| 31 | 2603435011 | Tapping Screw |
| 31 | 2603435011 | Tapping Screw |
| 31 | 2603435011 | Tapping Screw |
| 32 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 32 | 2600703006 | Grommet Ø9,5 MM |
| 32 | 2600703008 | Grommet Ø8,2 MM |
| 32 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 32 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 32 | 2600703006 | Grommet Ø9,5 MM |
| 32 | 2600703008 | Grommet Ø8,2 MM |
| 32 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 32 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 32 | 2600703006 | Grommet Ø9,5 MM |
| 32 | 2600703008 | Grommet Ø8,2 MM |
| 32 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 33 | 1601302014 | Fastening Clamp |
| 33 | 1601302014 | Fastening Clamp |
| 33 | 1601302014 | Fastening Clamp |
| 34 | 1604652004 | Spiral Spring |
| 34 | 1604652004 | Spiral Spring |
| 34 | 1604652004 | Spiral Spring |
| 38 | 2910211016 | Tapping Screw DIN 7971-BZ3,9X6,5 |
| 38 | 2910211016 | Tapping Screw DIN 7971-BZ3,9X6,5 |
| 38 | 2910211016 | Tapping Screw DIN 7971-BZ3,9X6,5 |
| 39 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 39 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 39 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 4 | 1604220070 | Field 110-115V |
| 4 | 1604220071 | Field 220V |
| 4 | 1604220076 | Pole Shoe 240V |
| 4 | 1604220095 | Pole Shoe 110V |
| 4 | 1604220070 | Field 110-115V |
| 4 | 1604220071 | Field 220V |
| 4 | 1604220076 | Pole Shoe 240V |
| 4 | 1604220095 | Pole Shoe 110V |
| 4 | 1604220070 | Field 110-115V |
| 4 | 1604220071 | Field 220V |
| 4 | 1604220076 | Pole Shoe 240V |
| 4 | 1604220095 | Pole Shoe 110V |
| 40 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 40 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 40 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 41 | 2910601304 | Tapping Screw DIN 7976-ST2,9X6,5-C-H |
| 41 | 2910601304 | Tapping Screw DIN 7976-ST2,9X6,5-C-H |
| 41 | 2910601304 | Tapping Screw DIN 7976-ST2,9X6,5-C-H |
| 42 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 42 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 42 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 43 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 43 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 43 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 48 | 2603105011 | Control Shaft |
| 48 | 2603105011 | Control Shaft |
| 48 | 2603105011 | Control Shaft |
| 49 | 1600108052 | Seal Ring |
| 49 | 1600108052 | Seal Ring |
| 49 | 1600108052 | Seal Ring |
| 5 | 1603523062 | Drilling Spindle |
| 5 | 1603523062 | Drilling Spindle |
| 5 | 1603523062 | Drilling Spindle |
| 50 | 1600502008 | O-Ring |
| 50 | 1600502008 | O-Ring |
| 50 | 1600502008 | O-Ring |
| 51 | 1600500017 | Cupped Washer |
| 51 | 1600500017 | Cupped Washer |
| 51 | 1600500017 | Cupped Washer |
| 52 | 1600910008 | Needle-Roller Bearing |
| 52 | 1600910008 | Needle-Roller Bearing |
| 52 | 1600910008 | Needle-Roller Bearing |
| 53 | 2916600008 | Retaining ring 14 DIN 9045 |
| 53 | 2916600008 | Retaining ring 14 DIN 9045 |
| 53 | 2916600008 | Retaining ring 14 DIN 9045 |
| 54 | 2600301043 | Bushing Ø8G7XØ14R6X6MM |
| 54 | 2600301043 | Bushing Ø8G7XØ14R6X6MM |
| 54 | 2600301043 | Bushing Ø8G7XØ14R6X6MM |
| 56 | 1606312008 | Toothed Shaft Z=10 |
| 56 | 1606312008 | Toothed Shaft Z=10 |
| 56 | 1606312008 | Toothed Shaft Z=10 |
| 57 | 1606328099 | Toothed Gear Z=20/36 |
| 57 | 1606328099 | Toothed Gear Z=20/36 |
| 57 | 1606328099 | Toothed Gear Z=20/36 |
| 58 | 1900023004 | Woodruff Key DIN 6888-3X3,7-ST-60 |
| 58 | 1900023004 | Woodruff Key DIN 6888-3X3,7-ST-60 |
| 58 | 1900023004 | Woodruff Key DIN 6888-3X3,7-ST-60 |
| 59 | 1606320053 | Cylindrical Gear |
| 59 | 1606320053 | Cylindrical Gear |
| 59 | 1606320053 | Cylindrical Gear |
| 6 | 1607200060 | On-Off Switch |
| 6 | 1607200060 | On-Off Switch |
| 6 | 1607200060 | On-Off Switch |
| 60 | 1600100611 | Shim Thick 1,2 MM |
| 60 | 1600100611 | Shim Thick 1,2 MM |
| 60 | 1600100611 | Shim Thick 1,2 MM |
| 61 | 1602026040 | Control Lever |
| 61 | 1602026040 | Control Lever |
| 61 | 1602026040 | Control Lever |
| 62 | 1601328001 | Control Fork |
| 62 | 1601328001 | Control Fork |
| 62 | 1601328001 | Control Fork |
| 63 | 1600148005 | Eccentric Disc |
| 63 | 1600148005 | Eccentric Disc |
| 63 | 1600148005 | Eccentric Disc |
| 64 | 1604611016 | Compression Spring |
| 64 | 1604611016 | Compression Spring |
| 64 | 1604611016 | Compression Spring |
| 65 | 1602300017 | Flat Key |
| 65 | 1602300017 | Flat Key |
| 65 | 1602300017 | Flat Key |
| 650 | 1608571081 | Key Chuck Ø1,0-10MM,1/2" |
| 650 | 1608572007 | Keyless Chuck Ø1-10 Mm, 1/2" |
| 650 | 1608571081 | Key Chuck Ø1,0-10MM,1/2" |
| 66 | 2600210025 | Seal Ring 13,0X4,0 MM |
| 66 | 2600210025 | Seal Ring 13,0X4,0 MM |
| 66 | 2600210025 | Seal Ring 13,0X4,0 MM |
| 67 | 2000101600 | Shim Ø14,5X21,5X0,5 MM |
| 67 | 2000101600 | Shim Ø14,5X21,5X0,5 MM |
| 67 | 2000101600 | Shim Ø14,5X21,5X0,5 MM |
| 70 | 2910611017 | Tapping Screw DIN 7981-B 3,9X9,5 |
| 70 | 2910611017 | Tapping Screw DIN 7981-B 3,9X9,5 |
| 70 | 2910611017 | Tapping Screw DIN 7981-B 3,9X9,5 |
| 71 | 2916652005 | Spring retaining ring 14X1MM DIN 471 |
| 71 | 2916652005 | Spring retaining ring 14X1MM DIN 471 |
| 71 | 2916652005 | Spring retaining ring 14X1MM DIN 471 |
| 74 | 1903230304 | Warning Label 3 MM DIN 5401 |
| 74 | 1903230304 | Warning Label 3 MM DIN 5401 |
| 74 | 1903230304 | Warning Label 3 MM DIN 5401 |
| 77 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 77 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 77 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 78 | 5541468300 | Round Rubber Ø3X9,5 MM |
| 78 | 5541468300 | Round Rubber Ø3X9,5 MM |
| 78 | 5541468300 | Round Rubber Ø3X9,5 MM |
| 8 | 1604460056 | Power supply cord |
| 8 | 1604460057 | Power supply cord |
| 8 | 1604460083 | Power supply cord |
| 8 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 8 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 8 | 2604460075 | Power supply cord |
| 8 | 3607030489 | Power supply cord |
| 8 | 1604460056 | Power supply cord |
| 8 | 1604460057 | Power supply cord |
| 8 | 1604460083 | Power supply cord |
| 8 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 8 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 8 | 2604460075 | Power supply cord |
| 8 | 3607030489 | Power supply cord |
| 8 | 1604460056 | Power supply cord |
| 8 | 1604460057 | Power supply cord |
| 8 | 1604460083 | Power supply cord |
| 8 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 8 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 8 | 2604460075 | Power supply cord |
| 8 | 3607030489 | Power supply cord |
| 800 | 1600301900 | Sintered-Metal Bushing |
| 800 | 1600301900 | Sintered-Metal Bushing |
| 800 | 1600301900 | Sintered-Metal Bushing |
| 802 | 1605104910 | Assembly Of Service Parts Blue |
| 802 | 1605104923 | Assembly Of Service Parts Green |
| 802 | 1605104910 | Assembly Of Service Parts Blue |
| 802 | 1605104923 | Assembly Of Service Parts Green |
| 802 | 1605104910 | Assembly Of Service Parts Blue |
| 802 | 1605104923 | Assembly Of Service Parts Green |
| 805 | 1601323901 | Brush Holder |
| 805 | 1601323901 | Brush Holder |
| 805 | 1601323901 | Brush Holder |
| 807 | 1604321900 | Carbon Brush |
| 807 | 1604321900 | Carbon Brush |
| 807 | 1604321900 | Carbon Brush |
| 808 | 1605807906 | Assembly Of Service Parts |
| 808 | 1605807906 | Assembly Of Service Parts |
| 808 | 1605807906 | Assembly Of Service Parts |
| 9 | 1600400900 | Guide Sleeve Ø38XØ43X40 MM |
| 9 | 1600400900 | Guide Sleeve Ø38XØ43X40 MM |
| 9 | 1600400900 | Guide Sleeve Ø38XØ43X40 MM |
