Bosch 0600590001

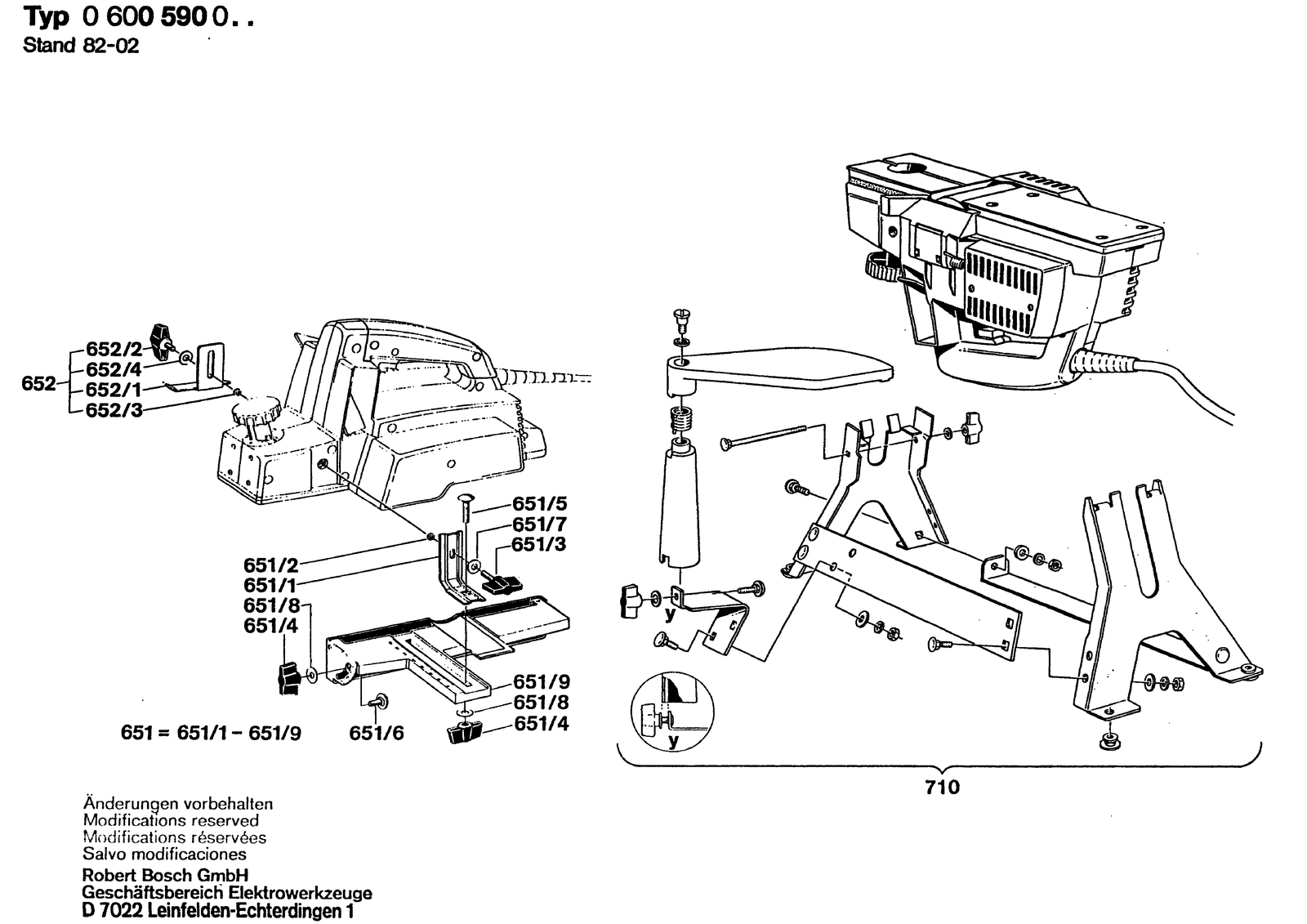

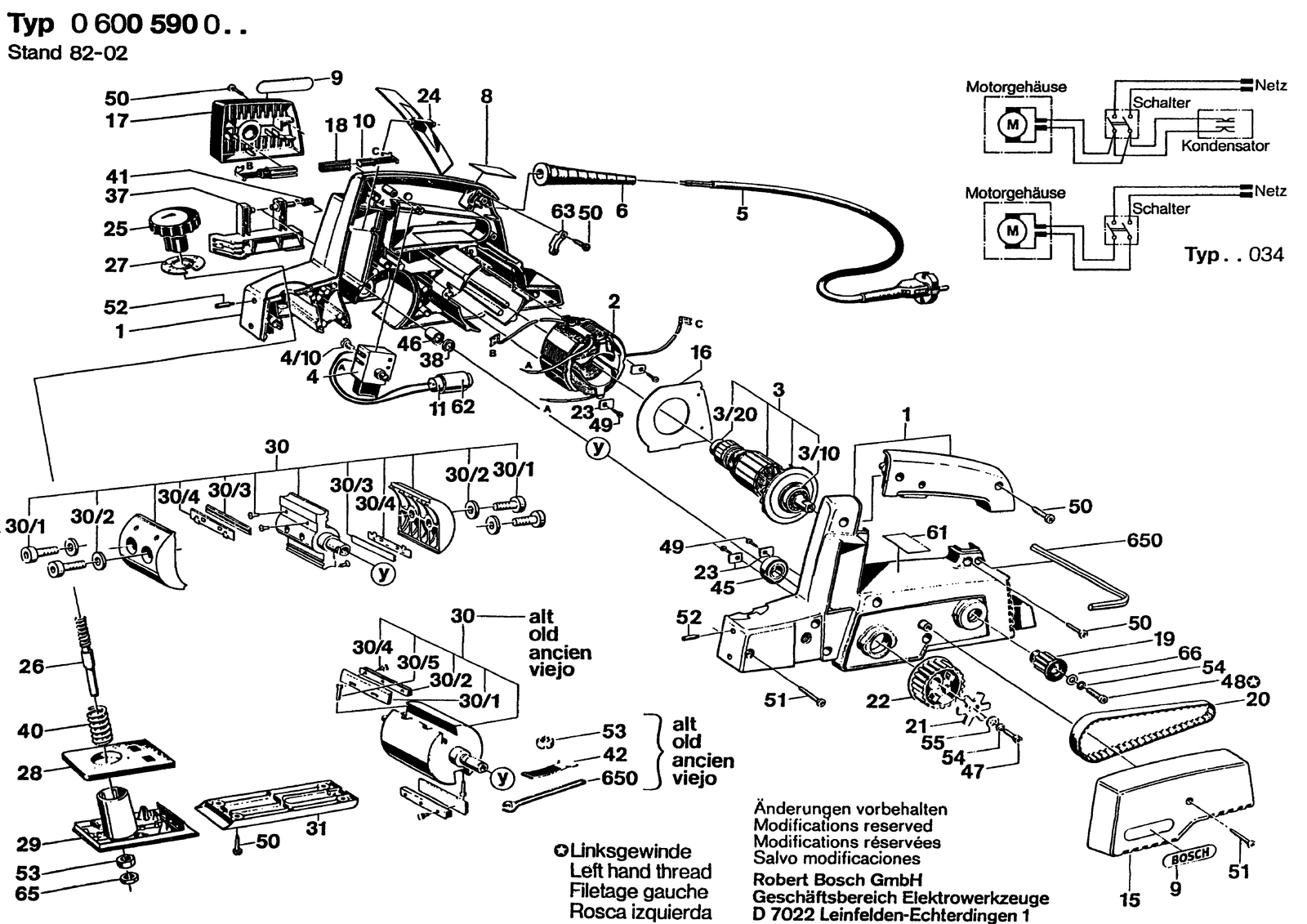

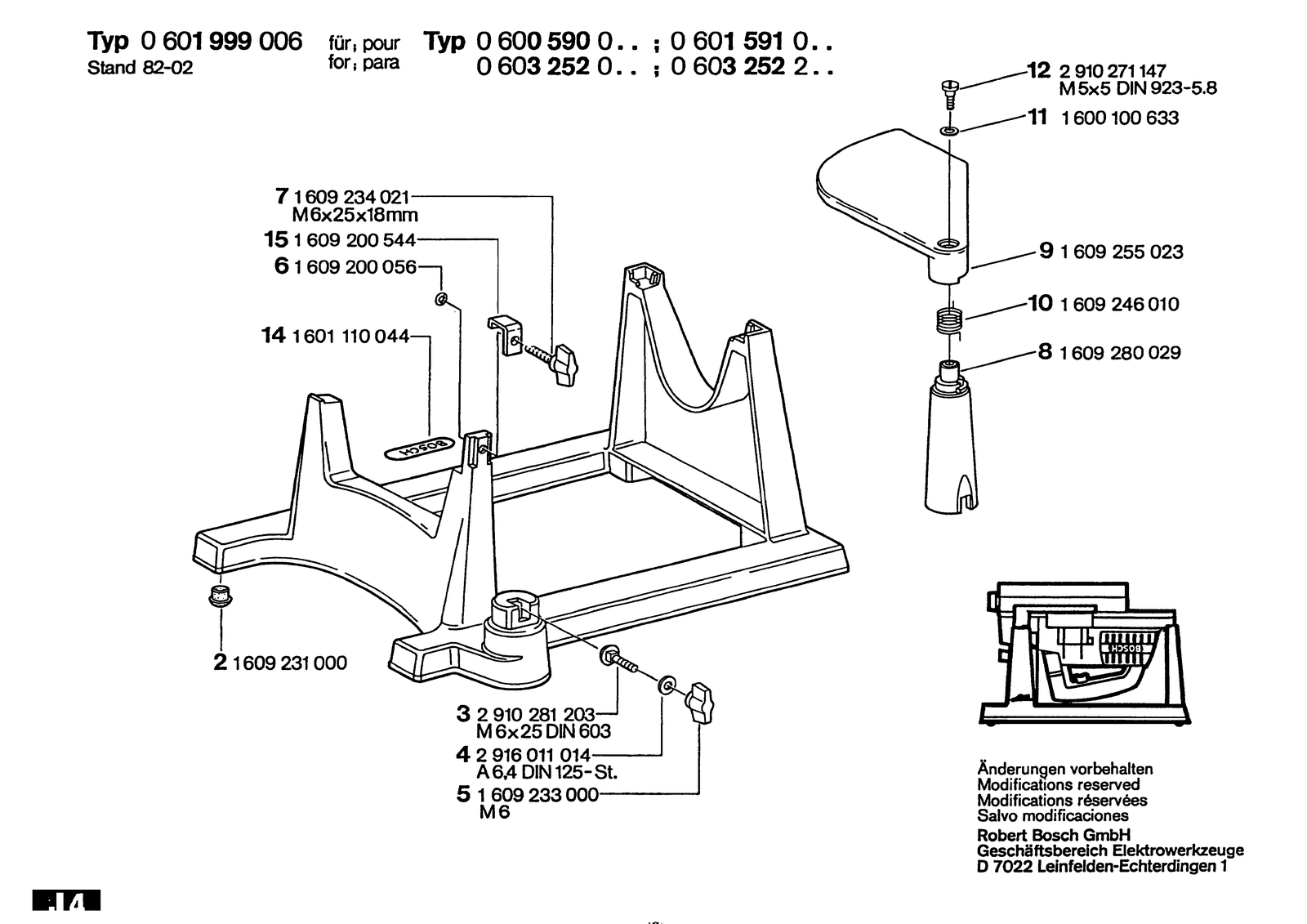

Bosch 0600590001 portable planer: exploded parts diagram, 3 sheets, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0600590001: 74 positions on 3 sheets
Bosch 0600590001 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1609200887 | Suppression Filter |
| 15 | 1609201550 | Gear Cover |
| 16 | 1609201077 | Cover Plate |
| 17 | 1609200026 | Sealing cap |
| 18 | 1609200032 | Brush Holder |
| 19 | 1609200016 | Pulley Z=13 |
| 2 | 1609201074 | Field 220V |
| 2 | 1609201078 | Field 110-115V |
| 2 | 1609201080 | Field 100V |
| 20 | 1609200894 | Toothed Belt |
| 21 | 1609200052 | Driver Disc |
| 22 | 1609200015 | Pulley |
| 23 | 1609200039 | Backing Plate |
| 24 | 1609200031 | Flap |
| 25 | 1609200038 | Rotary Handle |
| 26 | 1609200045 | Threaded Spindle |
| 27 | 1609200042 | Graduated Dial |
| 28 | 1609200043 | Sealing Plate |
| 29 | 1609201076 | Adjusting Slide |
| 3 | 1609201075 | Armature 220-240V |
| 3 | 1609201079 | Armature 110-115V |
| 3 | 1609201081 | Armature 100V |
| 3/10 | 1609200715 | Groove ball bearing 6 001 Llu C 3/3K DIN 625 |
| 3/20 | 1609200716 | Groove ball bearing 607 Llb C3/3K DIN 625 |
| 30 | 1609201085 | Cutter head |
| 30/1 | 1609201086 | Hex Socket Head Cap Screw |
| 30/2 | 2918660004 | Plain Washer DIN 126-9-A2 |
| 30/3 | 1609200978 | Planing knife |
| 30/4 | 1609201129 | Receiver Rail |
| 31 | 1609200019 | Base Plate |
| 37 | 1609200021 | Sealing cap |
| 38 | 1609202009 | Seal Ring |
| 4 | 1609200748 | On-Off Switch |
| 4 | 1609200751 | On-Off Switch |
| 40 | 1604619017 | Compression Spring |
| 41 | 1609200044 | Coiled Spring |
| 45 | 1609200715 | Groove ball bearing 6 001 Llu C 3/3K DIN 625 |
| 46 | 1609209006 | Needle bearing |
| 47 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 48 | 1609234023 | Socket head cap screw Lefthand Threads M 5X16 MM |
| 49 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 5 | 1604460022 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 1604460134 | Power supply cord J 4,2M 2 X 1,25MM Gummi |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1607000391 | Power supply cord |
| 50 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 51 | 2910611082 | Tapping Screw B 3,9X32 DIN 7981 |
| 52 | 2912081126 | Set screw M 4X16 DIN 915-45H |
| 53 | 2915011010 | Hex Nut DIN 934-M 10-M-8 |
| 54 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 55 | 2916201003 | Plain Washer 5,3 DIN 7349 |
| 6 | 1609207001 | Grommet Ø9X90 MM |
| 61 | 1601110058 | Reference Plate Double Insulation |
| 62 | 1609200550 | Adhesive Tape |
| 63 | 1609213000 | Fastening Clamp |
| 65 | 2915051108 | Hex Nut DIN 439-BM10-04 |
| 650 | 1609201069 | Screwdriver SW5 |
| 651/1 | 1609200029 | Stop Bracket |
| 651/2 | 1609200056 | Rubber Ring G 9X13X3 MM |
| 651/3 | 1609234016 | Wing Screw M6X20 MM |
| 651/4 | 1609233000 | Wing Nut M6 |
| 651/5 | 2910281203 | Round-Head Bolt DIN 603-M6X25 |
| 651/6 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 651/7 | 1609201082 | Plain Washer Ø6,4XØ16X2 MM |
| 651/8 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 652 | 1608132006 | Depth-Gauge |
| 652/1 | 1601331039 | Stop Bracket |
| 652/2 | 1609234017 | Wing Screw |
| 652/3 | 1609200056 | Rubber Ring G 9X13X3 MM |
| 652/4 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 66 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 710 | 1609200980 | Base |
| 9 | 1601110044 | Manufacturer's nameplate |
