Bosch 0600550001

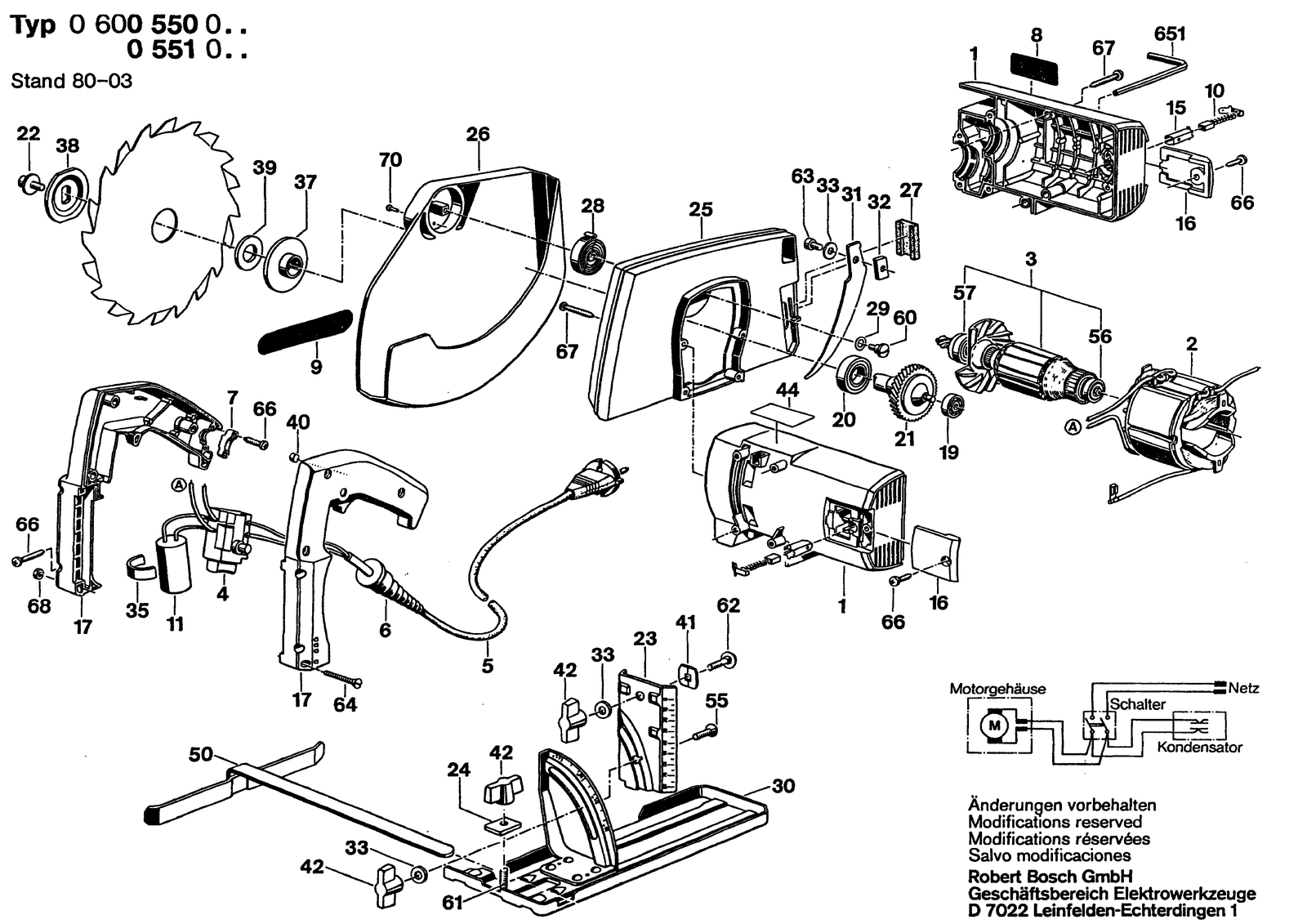

Bosch 0600550001 circular hand saw: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0600550001: 58 positions on 1 sheet
Bosch 0600550001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609200074 | Motor Housing |
| 11 | 1609200546 | Suppression Capacitor |
| 11 | 1609200750 | Suppression Filter |
| 15 | 1609200032 | Brush Holder |
| 16 | 1609200079 | Sealing cap |
| 17 | 1609200075 | Handle |
| 19 | 2600905032 | Ball Bearing 7X19X6 |
| 2 | 1609200089 | Field |
| 2 | 1609200090 | Field 110-115V |
| 2 | 1609200091 | Field 220V |
| 20 | 1900905163 | Groove ball bearing 17X35X10 |
| 21 | 1609200665 | Cylindrical Gear Z=37 |
| 22 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 23 | 1608000076 | Dial |
| 24 | 1601030024 | Clamping Piece |
| 25 | 1609200095 | Protective Cover |
| 26 | 1609200094 | Pivoting Blade Guard |
| 27 | 1602386002 | Buffer |
| 28 | 1604652009 | Spiral Spring |
| 29 | 1600100633 | Plain Washer Thick 0,3 MM |
| 3 | 1609200659 | Armature 110-115V |
| 3 | 1609200660 | Armature 220-240V |
| 3 | 1609200661 | Armature 100V |
| 30 | 1608000075 | Base Plate 110X298 MM |
| 31 | 1600025012 | Riving Knife |
| 32 | 1601030025 | Perforated Panel M6-20X10X5 MM |
| 33 | 1609201082 | Plain Washer Ø6,4XØ16X2 MM |
| 37 | 1609257000 | Intermediate Flange |
| 38 | 1605703069 | Conical Spring Washer SW 46 |
| 39 | 1609201003 | Locating Ring |
| 4 | 1609200748 | On-Off Switch |
| 4 | 1609200751 | On-Off Switch |
| 40 | 1609200048 | Plug |
| 41 | 1601030026 | Slide Plate |
| 42 | 1609233000 | Wing Nut M6 |
| 44 | 1601110058 | Reference Plate Double Insulation |
| 5 | 1604460022 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1607000391 | Power supply cord |
| 50 | 1601036004 | End stop |
| 55 | 1603490000 | Countersunk-Head Screw M6X20 MM |
| 56 | 1609200716 | Groove ball bearing 607 Llb C3/3K DIN 625 |
| 57 | 1609200717 | Groove ball bearing |
| 6 | 1609207001 | Grommet Ø9X90 MM |
| 60 | 2910271147 | Pan head screw DIN 923-M5X5-5.8 |
| 61 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 62 | 2910281203 | Round-Head Bolt DIN 603-M6X25 |
| 63 | 2910375193 | Hex Socket Head Cap Screw DIN 6912 M6X12-8.8 |
| 64 | 2910501134 | Countersunk-Head Screw DIN 63-BM4X30-5.8 |
| 651 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 66 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 67 | 2910611082 | Tapping Screw B 3,9X32 DIN 7981 |
| 68 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 7 | 1609213000 | Fastening Clamp |
| 70 | 2917721051 | Round-Head Grooved Pin 2,6X3 DIN 1476-ST |
| 9 | 1601110016 | Manufacturer's nameplate |
| 9 | 160111A3H3 | Nameplate |
