Bosch 0600304003

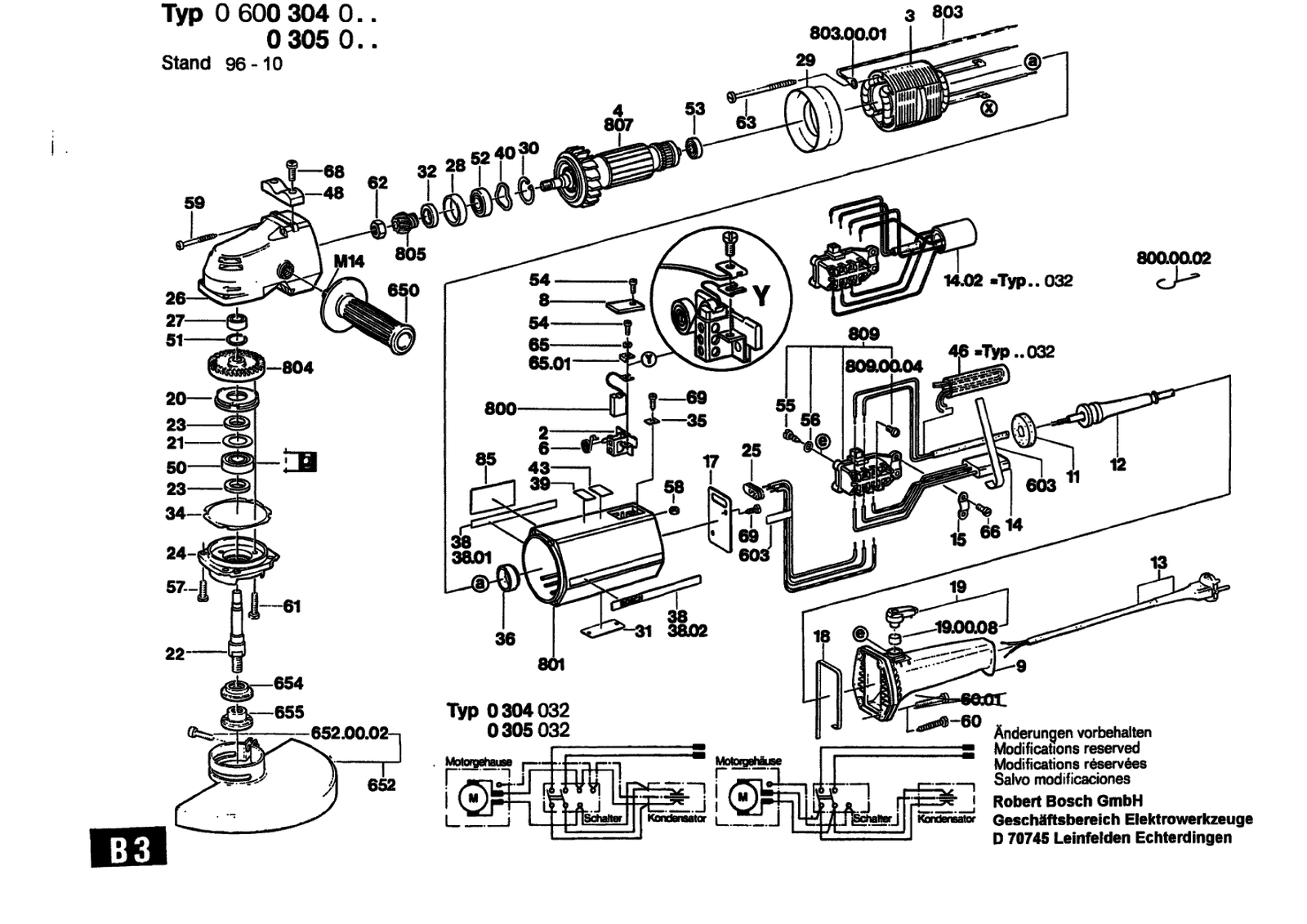

Bosch 0600304003 angle grinder: exploded parts diagram, 1 sheet, 180 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0600304003: 180 positions on 1 sheet
Bosch 0600304003 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1600113002 | Seal |
| 11 | 1602381006 | Insulating Plate 20X20X50 MM |
| 11 | 1600113002 | Seal |
| 11 | 1602381006 | Insulating Plate 20X20X50 MM |
| 12 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 12 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 12 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 12 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 13 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 13 | 1604461027 | Elec. Cable W/Connection |
| 13 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 13 | 1614460006 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 13 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 13 | 1604461027 | Elec. Cable W/Connection |
| 13 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 13 | 1614460006 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 14 | 1607328034 | Suppression Filter |
| 14 | 1607328034 | Suppression Filter |
| 14/02 | 1607328034 | Suppression Filter |
| 14/02 | 1607328034 | Suppression Filter |
| 15 | 1601302013 | Fastening Clamp |
| 15 | 1601302013 | Fastening Clamp |
| 17 | 1601037006 | Cover Plate |
| 17 | 1601037006 | Cover Plate |
| 18 | 1601014005 | Profile Strip 3,4X7X240 MM |
| 18 | 1601014005 | Profile Strip 3,4X7X240 MM |
| 19 | 1602026041 | Control Lever |
| 19 | 1602026041 | Control Lever |
| 19/00/08 | 1600205019 | Felt Washer |
| 19/00/08 | 1600205019 | Felt Washer |
| 2 | 1604336008 | Brush Holder |
| 2 | 1604336008 | Brush Holder |
| 20 | 1605808054 | Bearing cover |
| 20 | 1605808054 | Bearing cover |
| 21 | 1600102012 | Cover Disc |
| 21 | 1600102012 | Cover Disc |
| 22 | 1603523032 | Grinding Spindle M14X1,5 MM |
| 22 | 1603523091 | Grinding Spindle 5/8"-UNC-2A |
| 22 | 1603523032 | Grinding Spindle M14X1,5 MM |
| 22 | 1603523091 | Grinding Spindle 5/8"-UNC-2A |
| 23 | 1600108055 | Sealing disk |
| 23 | 1600108055 | Sealing disk |
| 24 | 1607000229 | Assembly Of Service Parts |
| 24 | 1607000229 | Assembly Of Service Parts |
| 25 | 1600306001 | Grommet |
| 25 | 1600306001 | Grommet |
| 26 | 1605806324 | Gear Housing Silver |
| 26 | 1605806362 | Gear Housing |
| 26 | 1605806324 | Gear Housing Silver |
| 26 | 1605806362 | Gear Housing |
| 27 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 27 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 28 | 1600206014 | Rubber Ring Wide 10 MM |
| 28 | 1600206014 | Rubber Ring Wide 10 MM |
| 29 | 1600502007 | Air-Deflector Ring |
| 29 | 1600502007 | Air-Deflector Ring |
| 3 | 1604220098 | Field 220V |
| 3 | 1604220099 | Field 115V |
| 3 | 1604220109 | Field 220V |
| 3 | 1604220110 | Field 110V |
| 3 | 1604220111 | Field 240V |
| 3 | 1604220098 | Field 220V |
| 3 | 1604220099 | Field 115V |
| 3 | 1604220109 | Field 220V |
| 3 | 1604220110 | Field 110V |
| 3 | 1604220111 | Field 240V |
| 30 | 2916660017 | Spring retaining ring DIN 472 38X1,5MM |
| 30 | 2916660017 | Spring retaining ring DIN 472 38X1,5MM |
| 31 | 160111A3H3 | Nameplate |
| 31 | 160111A3H3 | Nameplate |
| 32 | 1600290008 | Rotary shaft lip seal White |
| 32 | 1600290008 | Rotary shaft lip seal White |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 35 | 1601030022 | Tab Washer |
| 35 | 1601030022 | Tab Washer |
| 38 | 1601110003 | Manufacturer's nameplate |
| 38 | 1601110003 | Manufacturer's nameplate |
| 38/01 | 1601110073 | Sticker Double Insulation |
| 38/01 | 1601110073 | Sticker Double Insulation |
| 38/02 | 1601110073 | Sticker Double Insulation |
| 38/02 | 1601110073 | Sticker Double Insulation |
| 4 | 1604011223 | Armature 220V |
| 4 | 1604011224 | Armature 110V |
| 4 | 1604011225 | Armature 115V |
| 4 | 1604011226 | Armature 240V |
| 4 | 1604011223 | Armature 220V |
| 4 | 1604011224 | Armature 110V |
| 4 | 1604011225 | Armature 115V |
| 4 | 1604011226 | Armature 240V |
| 40 | 1600150007 | Spring Washer Ø27,5X38,4 MM |
| 40 | 1600150007 | Spring Washer Ø27,5X38,4 MM |
| 43 | 1601110058 | Reference Plate Double Insulation |
| 43 | 1601110058 | Reference Plate Double Insulation |
| 48 | 1608039008 | Storage Ledge |
| 48 | 1608039008 | Storage Ledge |
| 50 | 1900905281 | Groove ball bearing 17X40X12 |
| 50 | 1900905281 | Groove ball bearing 17X40X12 |
| 51 | 2916620011 | Retaining ring Ø22 MM |
| 51 | 2916620011 | Retaining ring Ø22 MM |
| 53 | 1900900407 | Groove ball bearing 10X26X8 |
| 53 | 1900900407 | Groove ball bearing 10X26X8 |
| 54 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 54 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 55 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 55 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 57 | 2910021157 | Socket head cap screw DIN 84-AM5X15-8.8 |
| 57 | 2910021157 | Socket head cap screw DIN 84-AM5X15-8.8 |
| 58 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 58 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 6 | 1604652015 | Spiral Spring |
| 6 | 1604652015 | Spiral Spring |
| 60 | 2910211036 | Tapping Screw DIN 7971-ST4,8X25-F |
| 60 | 2910211036 | Tapping Screw DIN 7971-ST4,8X25-F |
| 61 | 2910021162 | Socket head cap screw DIN 84-AM5X20-8.8 |
| 61 | 2910021162 | Socket head cap screw DIN 84-AM5X20-8.8 |
| 62 | 1603300009 | Hex Nut M12X1,5 MM |
| 62 | 1603300009 | Hex Nut M12X1,5 MM |
| 63 | 1603435006 | Tapping Screw B4,8X90 MM |
| 63 | 1603435006 | Tapping Screw B4,8X90 MM |
| 65 | 1600150006 | Spring Washer DIN 137-A4 |
| 65 | 1600150006 | Spring Washer DIN 137-A4 |
| 65/01 | 1611331007 | Tab Washer |
| 65/01 | 1611331007 | Tab Washer |
| 650 | 160202509Z | Auxiliary Handle |
| 650 | 16020250A1 | Auxiliary Handle |
| 650 | 160202509Z | Auxiliary Handle |
| 650 | 16020250A1 | Auxiliary Handle |
| 652 | 1605510083 | Protective Cover Ø190 MM (7") |
| 652 | 1605510199 | Protective Cover Ø180 MM |
| 652 | 1605510082 | Protective Cover Ø230 MM (9") |
| 652 | 1605510198 | Protective Cover Ø230 MM |
| 652/00/02 | 2910141242 | Hex Socket Head Cap Screw DIN 912-M8X20-8.8 |
| 652/00/02 | 2910141242 | Hex Socket Head Cap Screw DIN 912-M8X20-8.8 |
| 654 | 1605703053 | Clamping Flange Ø104,5 MM |
| 654 | 2600501006 | Clamping-Flange Ø45 MM |
| 654 | 1605703053 | Clamping Flange Ø104,5 MM |
| 654 | 2600501006 | Clamping-Flange Ø45 MM |
| 655 | 1603340001 | Round Nut 5/8" |
| 655 | 2603345004 | Round Nut M14 |
| 655 | 1603340001 | Round Nut 5/8" |
| 655 | 2603345004 | Round Nut M14 |
| 66 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 66 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 66 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 66 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 68 | 2910021196 | Socket head cap screw DIN 84-AM6X15-8.8 |
| 68 | 2910021196 | Socket head cap screw DIN 84-AM6X15-8.8 |
| 69 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 69 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 8 | 1605500089 | Sealing cap Blue |
| 8 | 1605500089 | Sealing cap Blue |
| 800 | 1607014103 | Carbon-Brush Set |
| 800 | 1607014103 | Carbon-Brush Set |
| 800/00/02 | 1604682006 | Extractor Hook |
| 800/00/02 | 1604682006 | Extractor Hook |
| 801 | 1605108902 | Assembly Of Service Parts Blue |
| 801 | 1605108902 | Assembly Of Service Parts Blue |
| 803 | 1604440004 | Connecting Cable |
| 803 | 1604440004 | Connecting Cable |
| 803/00/01 | 1601353003 | Terminal lug |
| 803/00/01 | 1601353003 | Terminal lug |
| 804 | 1606333147 | Crown Gear Z=52 |
| 804 | 1606333144 | Crown Gear Z=59 |
| 805 | 1606333148 | Bevel Gear Z=17 |
| 805 | 1606333145 | Bevel Gear Z=15 |
| 807 | 1604011926 | Armature 115V |
| 807 | 1604011926 | Armature 115V |
| 809 | 1607000034 | Switch Kit |
| 809 | 1607000034 | Switch Kit |
| 809/00/04 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 809/00/04 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 85 | 1601110060 | Reference Plate |
| 85 | 1601110061 | Reference Plate |
| 9 | 1605132079 | Handle Blue |
| 9 | 1605132083 | Handle Blue |
| 9 | 1605132079 | Handle Blue |
| 9 | 1605132083 | Handle Blue |
