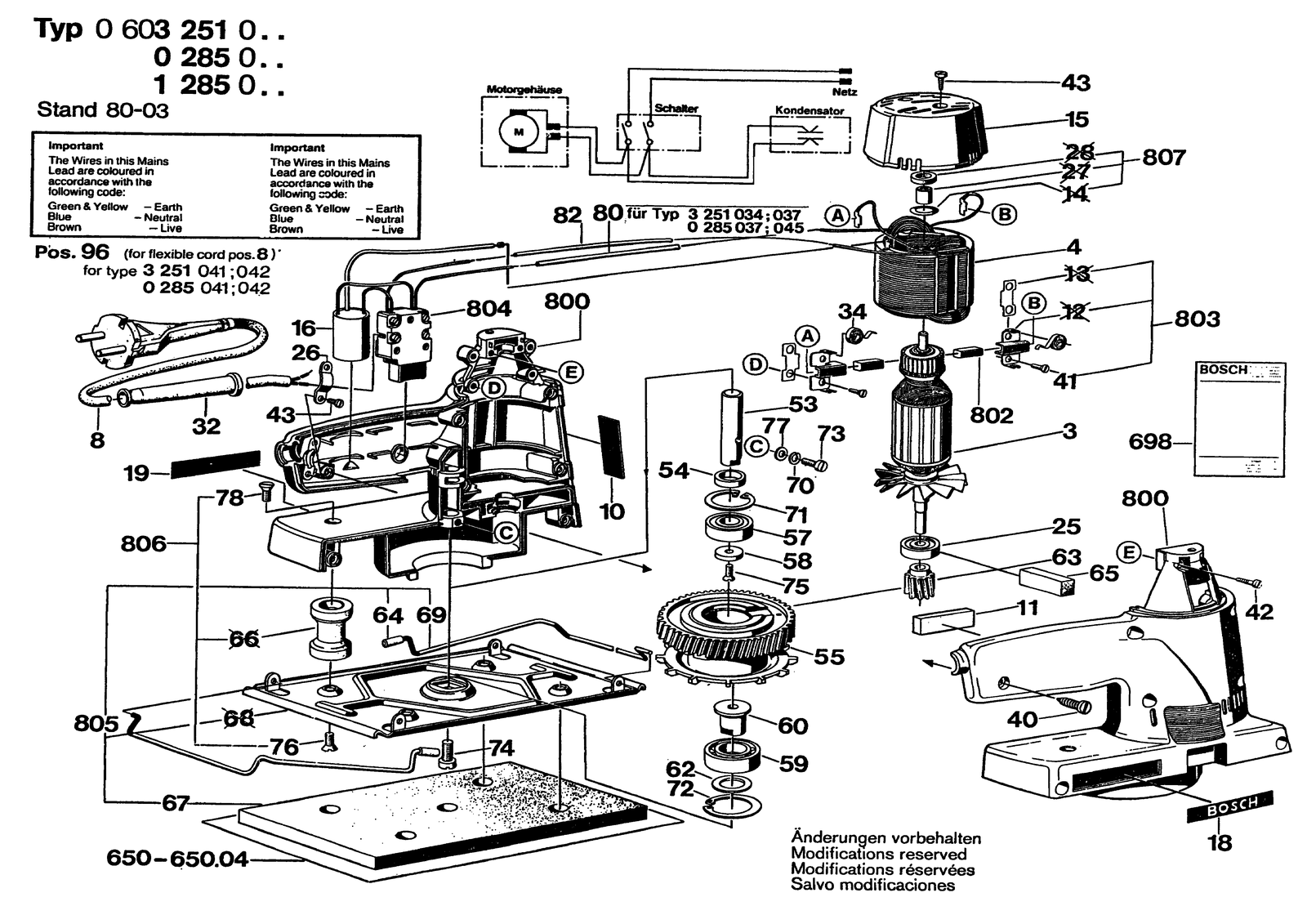

Bosch 0600285001 belt sander: exploded parts diagram, 1 sheet, 57 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0600285001: 57 positions on 1 sheet
Bosch 0600285001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1602381001 | Insulating Strip 33X10X6 MM |
| 15 | 1605500066 | Sealing cap Green |
| 16 | 1607328003 | Suppression Capacitor |
| 16 | 1607328034 | Suppression Filter |
| 16 | 1607329025 | Suppression Capacitor |
| 18 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 19 | 1601110053 | Sticker |
| 25 | 1900905042 | Groove ball bearing DIN 625 RSY-C3-627-2 |
| 26 | 1601302014 | Fastening Clamp |
| 3 | 1604010127 | Armature 220V |
| 3 | 1604010128 | Armature 100-115V |
| 3 | 1604010129 | Armature 240V |
| 32 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 34 | 1604652004 | Spiral Spring |
| 4 | 1604220070 | Field 110-115V |
| 4 | 1604220071 | Field 220V |
| 4 | 1604220076 | Pole Shoe 240V |
| 40 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 41 | 2910601004 | Tapping Screw DIN 7972-BZ2,9X6,5 |
| 42 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 43 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 53 | 1603159005 | Bearing bolt |
| 54 | 1600200020 | Spacer Ring |
| 55 | 1606320067 | Cylindrical Gear Z=59 |
| 57 | 1600905003 | Groove ball bearing |
| 58 | 1600114038 | Conical Spring Washer |
| 59 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 60 | 1603345031 | Round Nut |
| 62 | 1600101019 | Plain Washer |
| 63 | 1606320065 | Cylindrical Gear Z=12 |
| 64 | 1600510001 | Protective Cap |
| 65 | 1602380010 | Rubber Plate |
| 67 | 1602388017 | Rubber Plate 114X227X88 MM |
| 69 | 1608045012 | Clamping Saddle |
| 70 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 71 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 72 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 73 | 2910011120 | Socket head cap screw DIN 84-AM4X10-5.8 |
| 74 | 2910021193 | Socket head cap screw DIN 84-AM6X12-8.8 |
| 75 | 2910781118 | Countersunk-Head Screw DIN 963-M4X8-8.8 |
| 76 | 2910511150 | Countersunk-Head Screw DIN 63-AM 5X8-63 |
| 77 | 2916021010 | Plain Washer A 4,3 DIN 125 St |
| 78 | 2910781152 | Countersunk-Head Screw M5X10 DIN 963-8.8 |
| 8 | 1604460057 | Power supply cord |
| 8 | 1604460065 | Power supply cord |
| 8 | 1604460083 | Power supply cord |
| 8 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 8 | 2604460075 | Power supply cord |
| 8 | 2604460290 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 8 | 3607030489 | Power supply cord |
| 800 | 1605104918 | Motor Housing Green |
| 802 | 1604321900 | Carbon Brush |
| 803 | 1601323901 | Brush Holder |
| 804 | 1607200060 | On-Off Switch |
| 805 | 1601038902 | Assembly Of Service Parts |
| 806 | 1607000045 | Parts Set |
| 807 | 1600301900 | Sintered-Metal Bushing |
