Makita MLT100N: exploded parts diagram, 6 sheets, 348 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move

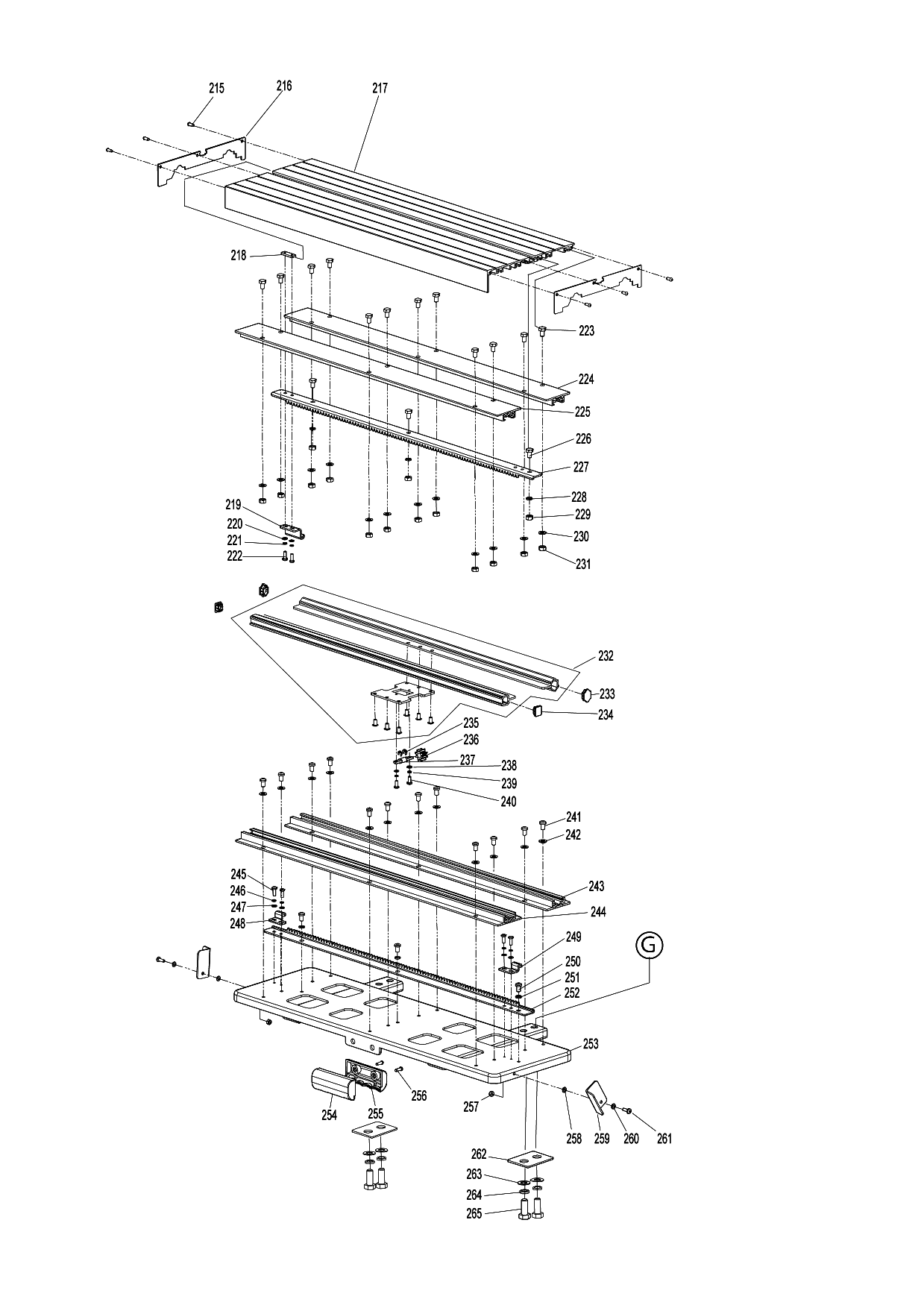

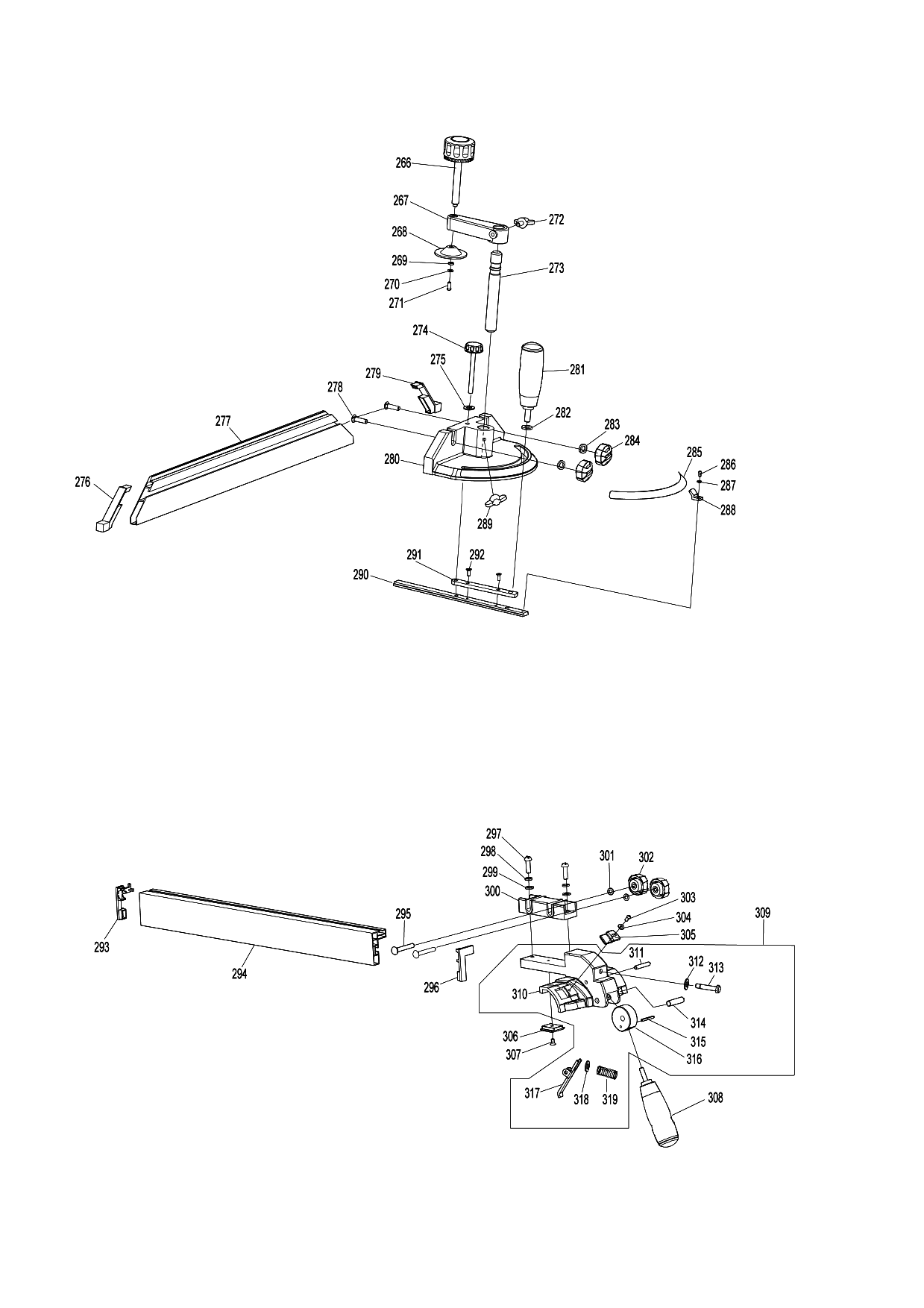

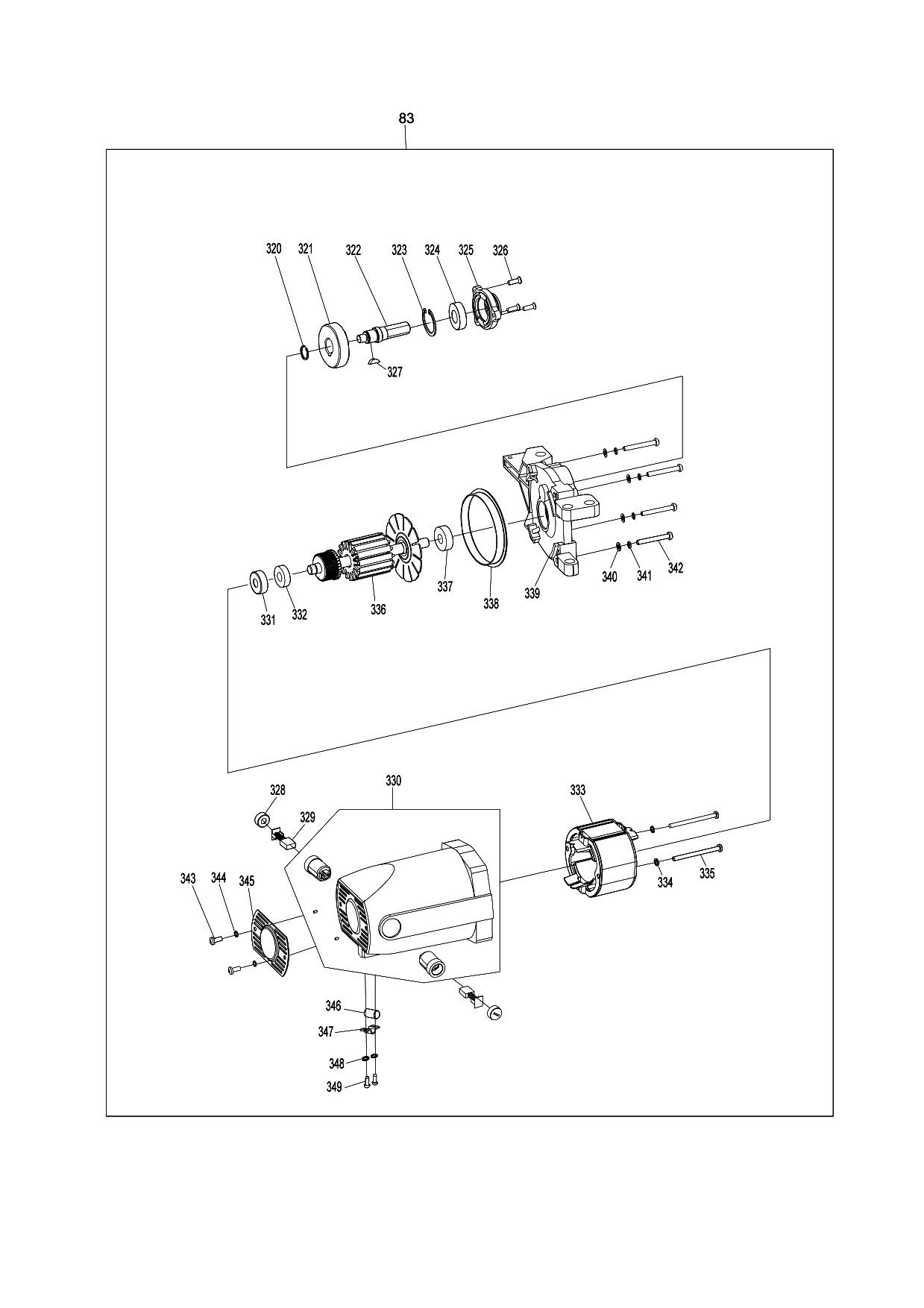

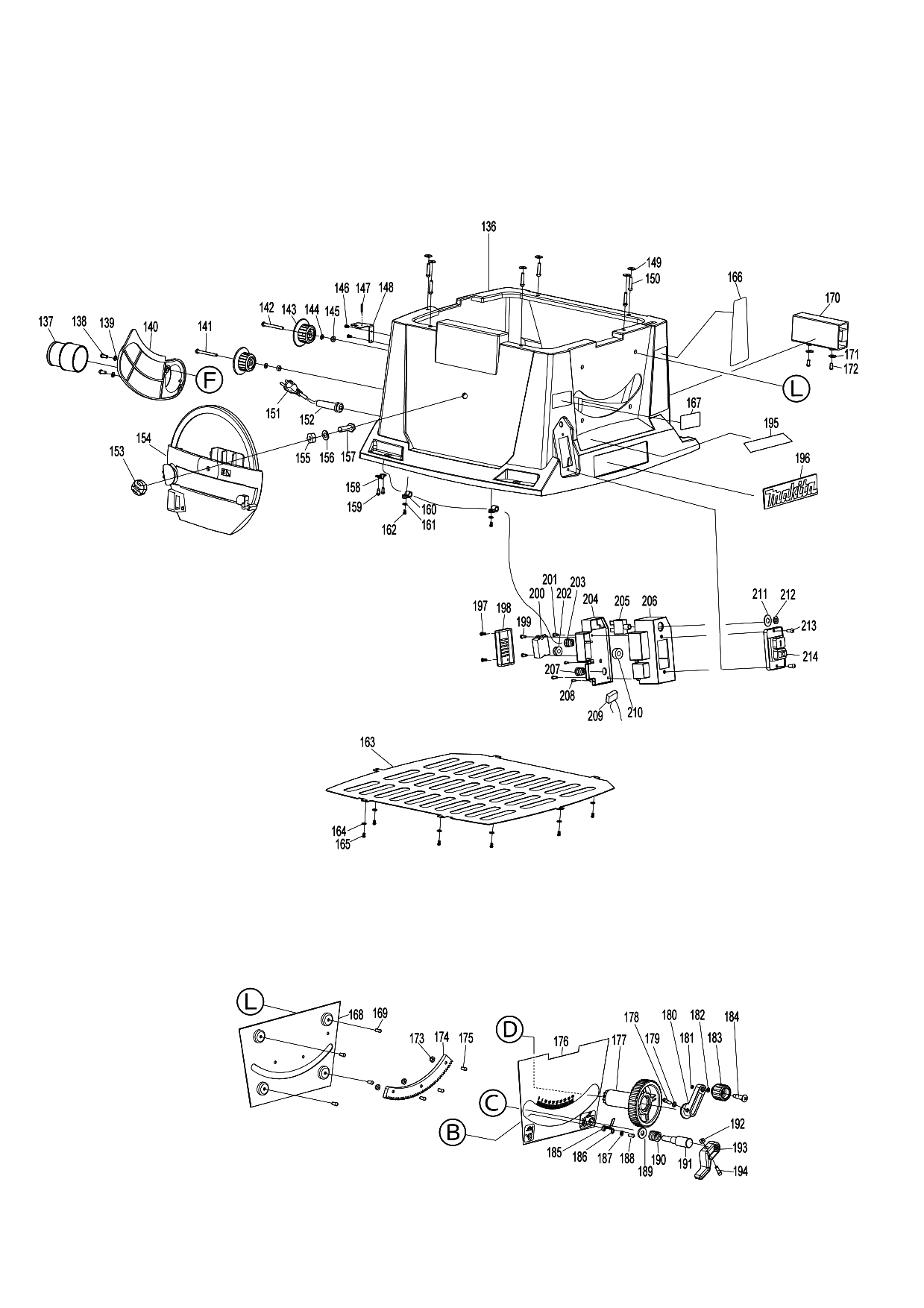

All parts on this sheet0
All parts of Makita MLT100N: 348 positions on 6 sheets

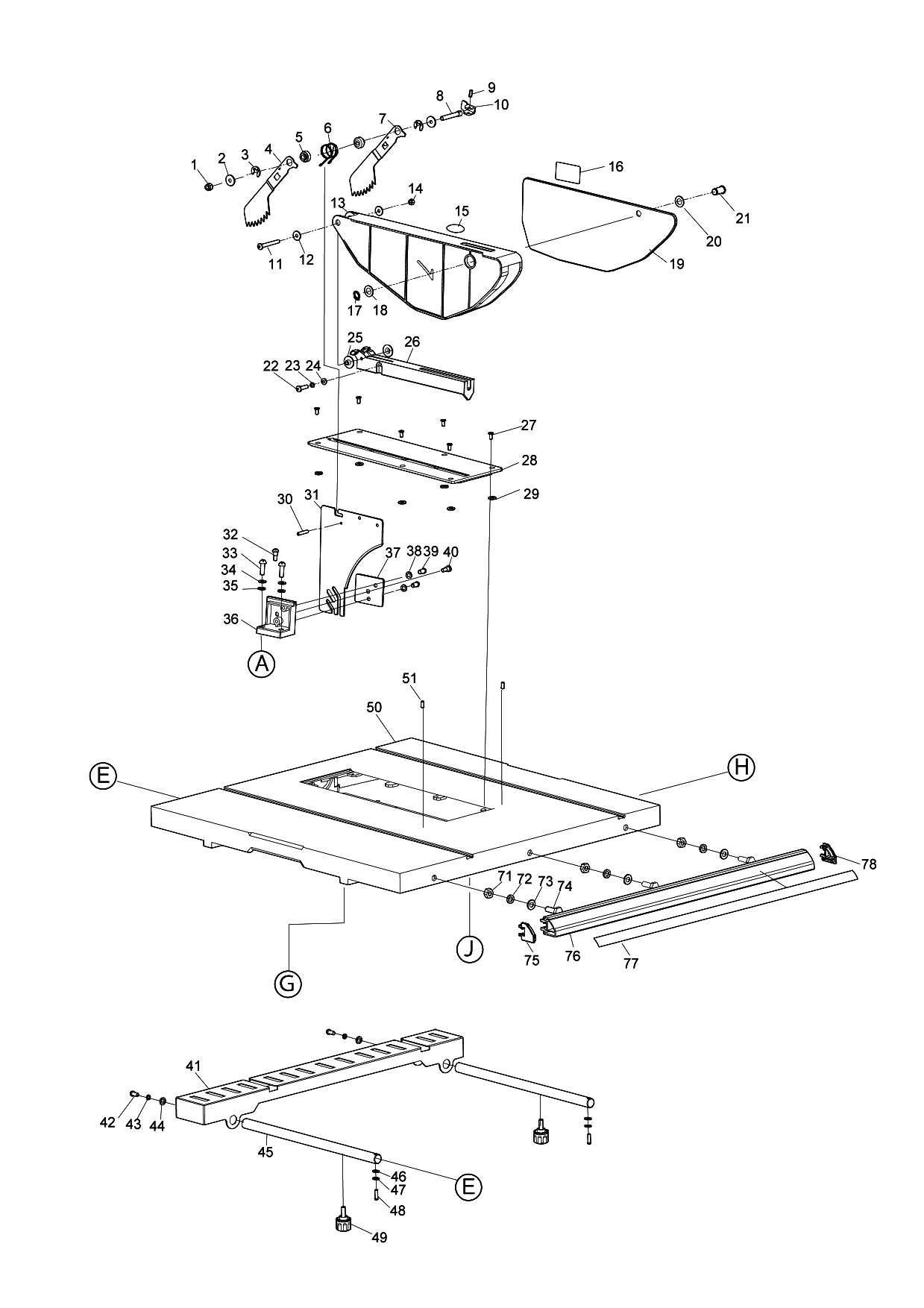

Sheet 1: Makita MLT100N parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | JM27000051 | Makita JM27000051 LOCK NUT, MLT100 |
| 2 | JM27000055 | Makita JM27000055 WASHER, MLT100 |
| 3 | JM00000198 | |
| 4 | JM00000059 | |
| 5 | JM00000057 | |
| 6 | JM00000058 | |
| 7 | JM00000056 | |
| 8 | JM00000055 | |
| 9 | JM27000059 | Makita JM27000059 PIN, MLT100 |
| 10 | JM27000061 | Makita JM27000061 WRENCH, MLT100 |
| 11 | JM00000052 | |
| 12 | JM27000055 | Makita JM27000055 WASHER, MLT100 |
| 13 | JM00000054 | |
| 14 | JM27000183 | Makita JM27000183 NUT, MLT100 |
| 15 | JM2708B060 | |
| 16 | JM27080108 | |
| 17 | JM27000163 | Makita JM27000163 RETAINING RING, MLT100 |
| 18 | JM27000064 | Makita JM27000064 WASHER A, MLT100 |
| 19 | JM00000053 | |
| 20 | JM27000064 | Makita JM27000064 WASHER A, MLT100 |
| 21 | JM27000063 | Makita JM27000063 PIN, MLT100 |
| 22 | JM27000156 | Makita JM27000156 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 23 | JM27000048 | Makita JM27000048 SPRING WASHER, MLT100 |
| 24 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 25 | JM27000352 | |
| 26 | JM00000051 | |
| 27 | JM27000066 | Makita JM27000066 CROSS HEAD SUNK SCREW, MLT100 |
| 28 | JM27000067 | Makita JM27000067 Plastic Table Insert for MLT100 |
| 29 | JM27000453 | |
| 30 | JM00000049 | |
| 31 | JM00000048 | |
| 32 | JM00000047 | |
| 33 | JM27000149 | Makita JM27000149 H.S.BOLT, MLT100 |
| 34 | JM27000017 | Makita JM27000017 SPRING WASHER, MLT100 |
| 35 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 36 | JM27000148 | Makita JM27000148 BRACKET, MLT100 |
| 37 | JM27000151 | Makita JM27000151 FIX PLATE, MLT100 |
| 38 | JM27000017 | Makita JM27000017 SPRING WASHER, MLT100 |
| 39 | JM27000149 | Makita JM27000149 H.S.BOLT, MLT100 |
| 40 | JM00000046 | |
| 41 | JM27000045 | |
| 42 | JM27000167 | Makita JM27000167 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 43 | JM27000048 | Makita JM27000048 SPRING WASHER, MLT100 |
| 44 | JM27000047 | Makita JM27000047 BIG FLAT WASHER, MLT100 |
| 45 | JM27000044 | Makita JM27000044 SLDING BAR B, MLT100 |
| 46 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 47 | JM27000048 | Makita JM27000048 SPRING WASHER, MLT100 |
| 48 | JM27000167 | Makita JM27000167 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 49 | JM27000043 | Makita JM27000043 LOCK KNOB, MLT100 |
| 50 | JM00000003 | |
| 51 | JM27000339 | Makita JM27000339 H.S.BOLT WITH GLUE, MLT100 |
| 71 | JM27000070 | Makita JM27000070 HEX NUT, MLT100 |
| 72 | JM27000071 | Makita JM27000071 SPRING WASHER, MLT100 |
| 73 | JM27000072 | Makita JM27000072 FLAT WASHER, MLT100 |
| 74 | JM27000073 | Makita JM27000073 SQUARE NECK BOLT, MLT100 |
| 75 | JM27000078 | Makita JM27000078 COVER B, MLT100 |
| 76 | JM27000082 | Makita JM27000082 FRONT RAIL, MLT100 |
| 77 | JM27000333 | Makita JM27000333 SCALE LABEL(MMSCALE), MLT100 |
| 78 | JM27000074 | Makita JM27000074 COVER A, MLT100 |
Sheet 2: Makita MLT100N parts diagram
| No. | Part number | Part name |
|---|---|---|
| 52 | JM27000068 | Makita JM27000068 RIGHT EXTENSION TABLE, MLT100 |
| 53 | JM27000004 | Makita JM27000004 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 54 | JM27000006 | Makita JM27000006 HANDLE,INTERIOR HALF, MLT100 |
| 55 | JM27000005 | Makita JM27000005 HANDLE,EXTERIOR HALF, MLT100 |
| 56 | JM27000425 | |
| 57 | JM27000428 | |
| 58 | JM27000069 | Makita JM27000069 H.S.BOLT, MLT100 |
| 59 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 60 | JM27000048 | Makita JM27000048 SPRING WASHER, MLT100 |
| 61 | JM27000167 | Makita JM27000167 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 62 | JM27000043 | Makita JM27000043 LOCK KNOB, MLT100 |
| 63 | JM27000070 | Makita JM27000070 HEX NUT, MLT100 |
| 64 | JM27000071 | Makita JM27000071 SPRING WASHER, MLT100 |
| 65 | JM27000072 | Makita JM27000072 FLAT WASHER, MLT100 |
| 66 | JM27000073 | Makita JM27000073 SQUARE NECK BOLT, MLT100 |
| 67 | JM27000078 | Makita JM27000078 COVER B, MLT100 |
| 68 | JM27000075 | |
| 69 | JM27000335 | Makita JM27000335 SCALE LABEL,EXT.TABLE(MMSCALE), MLT100 |
| 70 | JM27000074 | Makita JM27000074 COVER A, MLT100 |
| 79 | JM27000156 | Makita JM27000156 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 80 | JM27000048 | Makita JM27000048 SPRING WASHER, MLT100 |
| 81 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 82 | JM27000157 | Makita JM27000157 BAR, MLT100 |
| 83 | JM27000147 | |
| 84 | JM27000158 | Makita JM27000158 ROD, MLT100 |
| 85 | JM27000160 | Makita JM27000160 ADJUSTING BRACKET, MLT100 |
| 86 | JM27000159 | Makita JM27000159 KEY, MLT100 |
| 87 | JM27000162 | Makita JM27000162 BEVEL GEAR, MLT100 |
| 88 | JM27000163 | Makita JM27000163 RETAINING RING, MLT100 |
| 89 | JM27000161 | Makita JM27000161 H.S.BOLT, MLT100 |
| 90 | JM27000048 | Makita JM27000048 SPRING WASHER, MLT100 |
| 91 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 92 | JM27000042 | Makita JM27000042 CROSS HEAD SCREW, MLT100 |
| 93 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 94 | JM27000154 | Makita JM27000154 COVER, MLT100 |
| 95 | JM27000153 | Makita JM27000153 FRAME, MLT100 |
| 96 | JM27000172 | Makita JM27000172 H.S.BOLT WITH GLUE, MLT100 |
| 97 | JM27000112 | Makita JM27000112 BRACKET B, MLT100 |
| 98 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 99 | JM27000017 | Makita JM27000017 SPRING WASHER, MLT100 |
| 100 | JM27000111 | Makita JM27000111 HEX BOLT, MLT100 |
| 101 | JM27000152 | Makita JM27000152 SLIDING PLATE, MLT100 |
| 102 | JM27000173 | Makita JM27000173 PLATE, MLT100 |
| 103 | JM27000039 | Makita JM27000039 FIX BRACKET A, MLT100 |
| 104 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 105 | JM27000017 | Makita JM27000017 SPRING WASHER, MLT100 |
| 106 | JM27000038 | Makita JM27000038 CROSS HEAD SCREW, MLT100 |
| 107 | JM27000170 | Makita JM27000170 PROTECTION PLATE, MLT100 |
| 108 | JM27000042 | Makita JM27000042 CROSS HEAD SCREW, MLT100 |
| 109 | JM27000163 | Makita JM27000163 RETAINING RING, MLT100 |
| 110 | JM27000162 | Makita JM27000162 BEVEL GEAR, MLT100 |
| 111 | JM27000159 | Makita JM27000159 KEY, MLT100 |
| 112 | JM27000165 | Makita JM27000165 ROD, MLT100 |
| 113 | JM27000171 | Makita JM27000171 INNER FLANGE, MLT100 |
| 114 | JM27000100 | Makita JM27000100 BLADE INNER LING 30.0, MLT100 |
| 115 | JM27000097 | Makita JM27000097 BLADE 260X30, MLT100 |
| 116 | JM27000179 | Makita JM27000179 OUTER FLANGE, MLT100 |
| 117 | JM27000180 | Makita JM27000180 NUT, MLT100 |
| 118 | JM27000178 | Makita JM27000178 PROTECTION PLATE, MLT100 |
| 119 | JM27000176 | Makita JM27000176 HEX LOCK NUT, MLT100 |
| 120 | JM27000175 | Makita JM27000175 BIG WASHER, MLT100 |
| 121 | JM27000174 | Makita JM27000174 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 122 | JM27000184 | Makita JM27000184 SUPPORT BRACKET, MLT100 |
| 123 | JM27000042 | Makita JM27000042 CROSS HEAD SCREW, MLT100 |
| 124 | JM27000109 | Makita JM27000109 BIG FLAT WASHER, MLT100 |
| 125 | JM27000177 | Makita JM27000177 SELF TAPPING SCREW, MLT100 |
| 126 | JM27000181 | Makita JM27000181 PROTECTION PLATE, MLT100 |
| 127 | JM27000182 | Makita JM27000182 PLATE, MLT100 |
| 128 | JM27000047 | Makita JM27000047 BIG FLAT WASHER, MLT100 |
| 129 | JM27000042 | Makita JM27000042 CROSS HEAD SCREW, MLT100 |
| 130 | JM27000183 | Makita JM27000183 NUT, MLT100 |
| 131 | JM27000047 | Makita JM27000047 BIG FLAT WASHER, MLT100 |
| 132 | JM27000042 | Makita JM27000042 CROSS HEAD SCREW, MLT100 |
| 133 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 134 | JM27000013 | Makita JM27000013 SPRING WASHER, MLT100 |
| 135 | JM27000027 | Makita JM27000027 HEX CAP SCREW(OR BOLT), MLT100 |
Sheet 3: Makita MLT100N parts diagram
| No. | Part number | Part name |
|---|---|---|
| 136 | JM27000106 | OTHR New Genuine Makita JM27000106 CABINET ASSEMBLY(A) |
| 137 | JM27000090 | Makita JM27000090 DUST PORT, MLT100 |
| 138 | JM27000011 | Makita JM27000011 HEX CAP SCREW(OR BOLT), MLT100 |
| 139 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 140 | JM27000089 | Makita JM27000089 PROTECTION PLATE, MLT100 |
| 141 | JM27000092 | Makita JM27000092 HEX.BOLT, MLT100 |
| 142 | JM27000091 | Makita JM27000091 HEX.BOLT, MLT100 |
| 143 | JM27000093 | Makita JM27000093 CORD BRACKET, MLT100 |
| 144 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 145 | JM27000032 | Makita JM27000032 HEX NUT, MLT100 |
| 146 | JM27000177 | Makita JM27000177 SELF TAPPING SCREW, MLT100 |
| 147 | JM00000049 | |
| 148 | JM00000050 | |
| 149 | JM27000047 | Makita JM27000047 BIG FLAT WASHER, MLT100 |
| 150 | JM27000156 | Makita JM27000156 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 151 | JM23000156 | Makita JM23000156 POWER SUPPLY CORD, MT230 |
| 152 | JM27000094 | Makita JM27000094 CORD PROTECTION TUBE, MLT100 |
| 153 | JM27000085 | Makita JM27000085 LOCK KNOB A, MLT100 |
| 154 | JM00000147 | |
| 155 | JM00000135 | |
| 156 | JM27000003 | Makita JM27000003 FLAT WASHER, MLT100 |
| 157 | JM27000104 | Makita JM27000104 HEX.BOLT, MLT100 |
| 158 | JM27000102 | Makita JM27000102 CLAMP PLATE, MLT100 |
| 159 | JM27000103 | Makita JM27000103 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 160 | JM27000332 | Makita JM27000332 CLAMP, MLT100 |
| 161 | JM27000109 | Makita JM27000109 BIG FLAT WASHER, MLT100 |
| 162 | JM27000004 | Makita JM27000004 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 163 | JM27000108 | Makita JM27000108 BOTTOM, MLT100 |
| 164 | JM27000109 | Makita JM27000109 BIG FLAT WASHER, MLT100 |
| 165 | JM27000004 | Makita JM27000004 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 166 | ||
| 167 | JM00000009 | |
| 168 | JM27000143 | Makita JM27000143 SUPPORT PLATE, MLT100 |
| 169 | JM27000144 | Makita JM27000144 CROSS HEAD SUNK SCREW, MLT100 |
| 170 | JM27000145 | Makita JM27000145 TUBE, MLT100 |
| 171 | JM27000109 | Makita JM27000109 BIG FLAT WASHER, MLT100 |
| 172 | JM27000004 | Makita JM27000004 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 173 | JM27000183 | Makita JM27000183 NUT, MLT100 |
| 174 | JM27000142 | Makita JM27000142 RACK BRACKET, MLT100 |
| 175 | JM27000317 | Makita JM27000317 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 176 | JM27000110 | Makita JM27000110 FRONT PANEL LABEL, MLT100 |
| 177 | JM27000166 | Makita JM27000166 WHEEL, MLT100 |
| 178 | JM27000167 | Makita JM27000167 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 179 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 180 | JM00000152 | |
| 181 | JM00000151 | |
| 182 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 183 | JM00000153 | |
| 184 | JM27000169 | Makita JM27000169 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 185 | JM27000164 | Makita JM27000164 POINTER, MLT100 |
| 186 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 187 | JM27000013 | Makita JM27000013 SPRING WASHER, MLT100 |
| 188 | JM27000027 | Makita JM27000027 HEX CAP SCREW(OR BOLT), MLT100 |
| 189 | JM27000141 | Makita JM27000141 BUSH, MLT100 |
| 190 | JM27000140 | Makita JM27000140 TORSION SPRING, MLT100 |
| 191 | JM27000139 | Makita JM27000139 LOCK BOLT, MLT100 |
| 192 | JM27000032 | Makita JM27000032 HEX NUT, MLT100 |
| 193 | JM27000138 | Makita JM27000138 LOCK HANDLE, MLT100 |
| 194 | JM27000137 | Makita JM27000137 HEX.NUT, MLT100 |
| 195 | JM27080020 | |
| 196 | JM27000113 | Makita JM27000113 LOGO LABEL, MLT100 |
| 197 | JM27000114 | Makita JM27000114 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 198 | JM27000115 | Makita JM27000115 SOFT START DEVICE COVER, MLT100 |
| 199 | JM27000117 | Makita JM27000117 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 200 | JM27000116 | Makita JM27000116 SOFT START DEVICE, MLT100 |
| 201 | JM27000004 | Makita JM27000004 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 202 | JM00000157 | |
| 203 | JM27000118 | Makita JM27000118 STRAIN &RELIEF, MLT100 |
| 204 | JM27000119 | Makita JM27000119 SWITCH COVER, MLT100 |
| 205 | JM27000121 | Makita JM27000121 OVERLOAD SWITCH, MLT100 |
| 206 | JM27000120 | Makita JM27000120 SWITCH BOX, MLT100 |
| 207 | JM00000155 | |
| 208 | JM27000114 | Makita JM27000114 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 209 | JM27000342 | Makita JM27000342 CAPACITOR, MLT100 |
| 210 | JM00000134 | |
| 211 | JM27000122 | Makita JM27000122 OVERLOAD SWITCH LABEL, MLT100 |
| 212 | JM27000123 | Makita JM27000123 OVERLOAD SWITCH NUT, MLT100 |
| 213 | JM27000136 | Makita JM27000136 CROSS HEAD SCREW, MLT100 |
| 214 | JM27000443 | Makita JM27000443 MAGNETIC SWITCH A, MLT100 |
Sheet 4: Makita MLT100N parts diagram
| No. | Part number | Part name |
|---|---|---|
| 215 | JM27000037 | Makita JM27000037 SELF TAPPING SCREW, MLT100 |
| 216 | JM27000036 | Makita JM27000036 SLDING TABLE COVER, MLT100 |
| 217 | JM27000035 | Makita JM27000035 SLIDING TABLE, MLT100 |
| 218 | JM27000034 | Makita JM27000034 CONNECTION NUT, MLT100 |
| 219 | JM27000031 | Makita JM27000031 GEAR LIMITED,C, MLT100 |
| 220 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 221 | JM27000013 | Makita JM27000013 SPRING WASHER, MLT100 |
| 222 | JM27000011 | Makita JM27000011 HEX CAP SCREW(OR BOLT), MLT100 |
| 223 | JM27000033 | Makita JM27000033 HEX BOLT, MLT100 |
| 224 | JM27000022 | Makita JM27000022 FIX RAIL,I, MLT100 |
| 225 | JM27000014 | Makita JM27000014 FIX FLAT RAIL, MLT100 |
| 226 | JM27000033 | Makita JM27000033 HEX BOLT, MLT100 |
| 227 | JM27000018 | Makita JM27000018 SLIDING TABLE,RACK RAIL, MLT100 |
| 228 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 229 | JM27000032 | Makita JM27000032 HEX NUT, MLT100 |
| 230 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 231 | JM27000032 | Makita JM27000032 HEX NUT, MLT100 |
| 232 | JM00000149 | |
| 233 | JM27000021 | Makita JM27000021 SLIDING RAIL COVER, MLT100 |
| 234 | JM27000020 | Makita JM27000020 SLIDING FLAT RAIL COVER, MLT100 |
| 235 | JM27000029 | Makita JM27000029 RETAINING RING, MLT100 |
| 236 | JM27000025 | Makita JM27000025 Gear for MLT100 |
| 237 | JM27000028 | Makita JM27000028 SHAFT, MLT100 |
| 238 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 239 | JM27000013 | Makita JM27000013 SPRING WASHER, MLT100 |
| 240 | JM27000027 | Makita JM27000027 HEX CAP SCREW(OR BOLT), MLT100 |
| 241 | JM27000016 | Makita JM27000016 HEX CAP SCREW(OR BOLT), MLT100 |
| 242 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 243 | JM27000022 | Makita JM27000022 FIX RAIL,I, MLT100 |
| 244 | JM27000014 | Makita JM27000014 FIX FLAT RAIL, MLT100 |
| 245 | JM27000011 | Makita JM27000011 HEX CAP SCREW(OR BOLT), MLT100 |
| 246 | JM27000013 | Makita JM27000013 SPRING WASHER, MLT100 |
| 247 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 248 | JM27000012 | Makita JM27000012 FIX BRACKET B, MLT100 |
| 249 | JM27000019 | Makita JM27000019 FIX BRACKET B, MLT100 |
| 250 | JM27000016 | Makita JM27000016 HEX CAP SCREW(OR BOLT), MLT100 |
| 251 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 252 | JM27000018 | Makita JM27000018 SLIDING TABLE,RACK RAIL, MLT100 |
| 253 | JM27000008 | Makita JM27000008 BOTTOM, MLT100 |
| 254 | JM27000005 | Makita JM27000005 HANDLE,EXTERIOR HALF, MLT100 |
| 255 | JM27000006 | Makita JM27000006 HANDLE,INTERIOR HALF, MLT100 |
| 256 | JM27000004 | Makita JM27000004 CROSS HEAD SELF TAPPING SCREW, MLT100 |
| 257 | JM27000007 | Makita JM27000007 HEX.LOCK NUT, MLT100 |
| 258 | JM00000154 | |
| 259 | JM27000010 | Makita JM27000010 LIMITED BRACKET, MLT100 |
| 260 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 261 | JM27000011 | Makita JM27000011 HEX CAP SCREW(OR BOLT), MLT100 |
| 262 | JM27000327 | Makita JM27000327 SLIDING TABLE PAD, MLT100 |
| 263 | JM27000003 | Makita JM27000003 FLAT WASHER, MLT100 |
| 264 | JM27000002 | Makita JM27000002 SPRING WASHER, MLT100 |
| 265 | JM27000001 | Makita JM27000001 HEX.BOLT, MLT100 |
Sheet 5: Makita MLT100N parts diagram
| No. | Part number | Part name |
|---|---|---|
| 266 | JM27000217 | Makita JM27000217 THREAD ROD, MLT100 |
| 267 | JM27000218 | Makita JM27000218 LINK, MLT100 |
| 268 | JM27000219 | Makita JM27000219 PLATE, MLT100 |
| 269 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 270 | JM27000013 | Makita JM27000013 SPRING WASHER, MLT100 |
| 271 | JM27000027 | Makita JM27000027 HEX CAP SCREW(OR BOLT), MLT100 |
| 272 | JM27000210 | Makita JM27000210 WING NUT, MLT100 |
| 273 | JM27000216 | Makita JM27000216 PIN, MLT100 |
| 274 | JM27000213 | Makita JM27000213 LOCK KNOB, MLT100 |
| 275 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 276 | JM27000220 | Makita JM27000220 INSERT, MLT100 |
| 277 | JM27000221 | Makita JM27000221 FENCE, MLT100 |
| 278 | JM27000222 | Makita JM27000222 SQUARE NECK BOLT, MLT100 |
| 279 | JM27000220 | Makita JM27000220 INSERT, MLT100 |
| 280 | JM27000223 | Makita JM27000223 MITER GUAGE, MLT100 |
| 281 | JM27000215 | Makita JM27000215 HANDLE, MLT100 |
| 282 | JM27000212 | Makita JM27000212 WASHER, MLT100 |
| 283 | JM27000211 | Makita JM27000211 BIG WASHER, MLT100 |
| 284 | JM27000203 | Makita JM27000203 LOCK NUT, MLT100 |
| 285 | JM27000214 | Makita JM27000214 SCALE LABEL, MLT100 |
| 286 | JM27000209 | Makita JM27000209 CROSS HEAD SCREW, MLT100 |
| 287 | JM27000208 | Makita JM27000208 FLAT WASHER, MLT100 |
| 288 | JM27000207 | Makita JM27000207 POINTER, MLT100 |
| 289 | JM27000210 | Makita JM27000210 WING NUT, MLT100 |
| 290 | JM27000206 | Makita JM27000206 SLIDING BAR, MLT100 |
| 291 | JM27000225 | Makita JM27000225 PAD, MLT100 |
| 292 | JM27000066 | Makita JM27000066 CROSS HEAD SUNK SCREW, MLT100 |
| 293 | JM27000205 | Makita JM27000205 INSERT, MLT100 |
| 294 | JM27000201 | Makita JM27000201 RIP FENCE, MLT100 |
| 295 | JM27000204 | Makita JM27000204 SQUARE NECK BOLT, MLT100 |
| 296 | JM27000200 | Makita JM27000200 INSERT, MLT100 |
| 297 | JM27000149 | Makita JM27000149 H.S.BOLT, MLT100 |
| 298 | JM27000017 | Makita JM27000017 SPRING WASHER, MLT100 |
| 299 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 300 | JM27000199 | Makita JM27000199 BRACKET, MLT100 |
| 301 | JM27000211 | Makita JM27000211 BIG WASHER, MLT100 |
| 302 | JM27000203 | Makita JM27000203 LOCK NUT, MLT100 |
| 303 | JM27000198 | Makita JM27000198 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 304 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 305 | JM27000197 | Makita JM27000197 POINTER, MLT100 |
| 306 | JM27000190 | Makita JM27000190 FRICTION PAD, MLT100 |
| 307 | JM27000066 | Makita JM27000066 CROSS HEAD SUNK SCREW, MLT100 |
| 308 | JM27000186 | Makita JM27000186 HANDLE, MLT100 |
| 310 | JM27000192 | Makita JM27000192 BRACKET, MLT100 |
| 311 | JM27000191 | Makita JM27000191 PIN, MLT100 |
| 312 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 313 | JM27000196 | Makita JM27000196 SCREW, MLT100 |
| 314 | JM27000188 | Makita JM27000188 PIN, MLT100 |
| 315 | JM27000187 | Makita JM27000187 PIN, MLT100 |
| 316 | JM27000189 | Makita JM27000189 ECCENTRIC WHEEL, MLT100 |
| 317 | JM27000194 | Makita JM27000194 PAW, MLT100 |
| 318 | JM27000024 | Makita JM27000024 FLAT WASHER, MLT100 |
| 319 | JM27000193 | Makita JM27000193 PRESSION SPRING, MLT100 |
Sheet 6: Makita MLT100N parts diagram
| No. | Part number | Part name |
|---|---|---|
| 320 | JM27000325 | Makita JM27000325 RETAINING RING, MLT100 |
| 321 | JM27000324 | Makita JM27000324 GEAR, MLT100 |
| 322 | JM27000321 | Makita JM27000321 OUTER SHAFT, MLT100 |
| 323 | JM27000320 | Makita JM27000320 RETAINING RING, MLT100 |
| 324 | JM27000319 | Makita JM27000319 BEARING, MLT100 |
| 325 | JM27000318 | Makita JM27000318 GEAR COVER, MLT100 |
| 326 | JM27000317 | Makita JM27000317 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 327 | JM27000323 | Makita JM27000323 KEY, MLT100 |
| 328 | JM27000294 | Makita JM27000294 BRUSH COVER, MLT100 |
| 329 | JM23000123 | Makita JM23000123 Carbon Brushes CB-500 for MT230 MLS100 |
| 330 | JM00000150 | |
| 331 | JM27000361 | Makita JM27000361 ABSORB RING, MLT100 |
| 332 | JM27000445 | Makita JM27000445 BEARING 6001-2Z, MLT100 |
| 333 | JM27000302 | Makita JM27000302 Stator 230V for MLT100 |
| 334 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 335 | JM27000305 | Makita JM27000305 CROSS HEAD,SELF TAPPING SCREW, MLT100 |
| 336 | JM27000309 | Makita JM27000309 ROTOR(230V)ASSEMBLY, MLT100 |
| 337 | JM27000446 | Makita JM27000446 BEARING 6201-2Z, MLT100 |
| 338 | JM27000313 | Makita JM27000313 RING, MLT100 |
| 339 | JM27000424 | Makita JM27000424 Gear Box Assembly for MLT100 |
| 340 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 341 | JM27000048 | Makita JM27000048 SPRING WASHER, MLT100 |
| 342 | JM27000316 | Makita JM27000316 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 343 | JM27000292 | Makita JM27000292 HEX SOCKET CAP SCREW(OR BOLT), MLT100 |
| 344 | JM27000155 | Makita JM27000155 FLAT WASHER, MLT100 |
| 345 | JM27000293 | Makita JM27000293 COVER, MLT100 |
| 346 | JM00000156 | |
| 347 | JM27000299 | Makita JM27000299 CLAMP PLATE, MLT100 |
| 348 | JM27000009 | Makita JM27000009 FLAT WASHER, MLT100 |
| 349 | JM27000004 | Makita JM27000004 CROSS HEAD SELF TAPPING SCREW, MLT100 |
Selected parts0
