Makita MLS100
Makita MLS100: exploded parts diagram, 2 sheets, 146 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita MLS100: 146 positions on 2 sheets

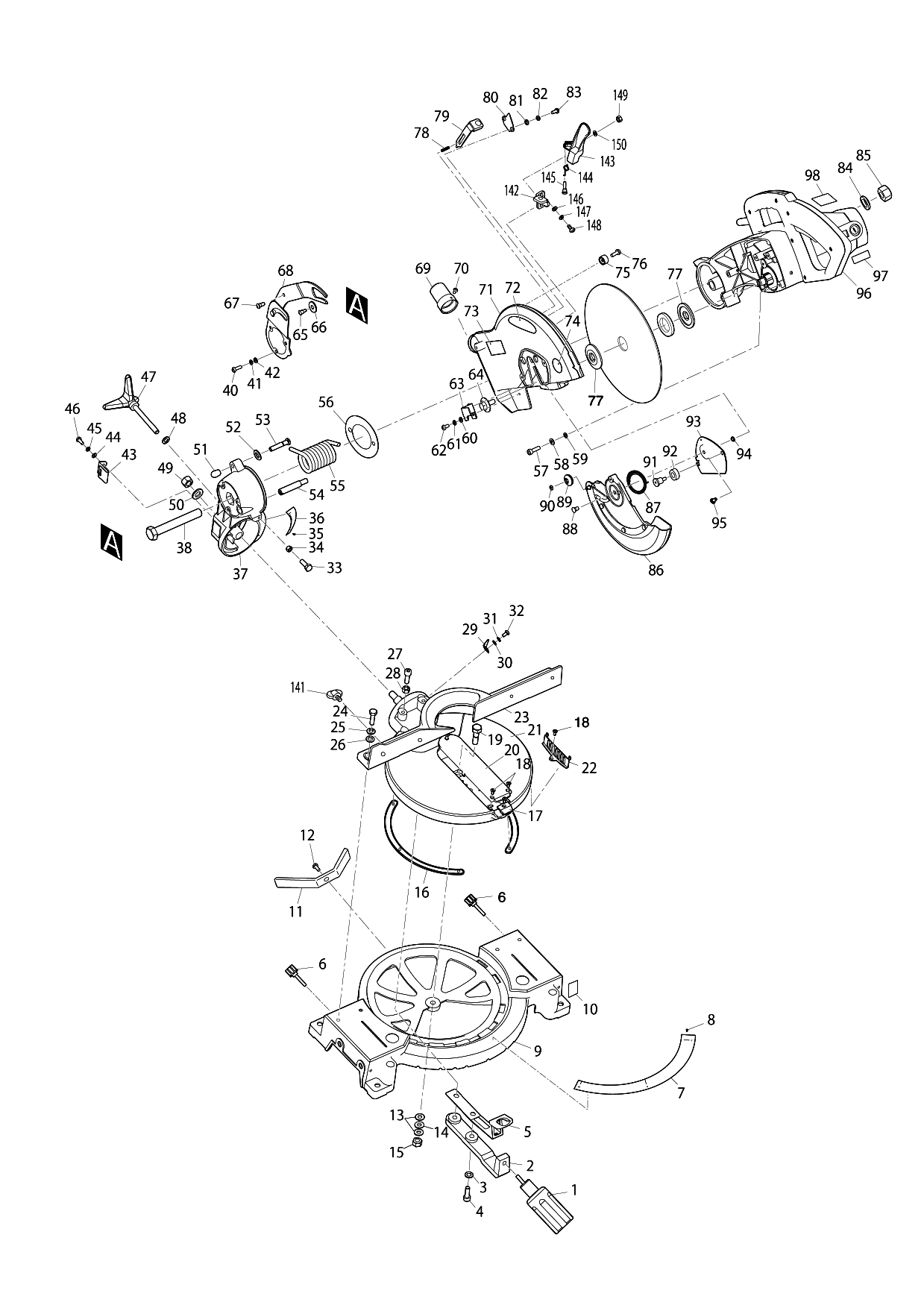

Sheet 1: Makita MLS100 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | JM23000001 | Makita JM23000001 GRIP, MT230 |
| 2 | JM23000002 | Makita JM23000002 HANDLE BRACKET, MT230 |
| 3 | JM23000003 | Makita JM23000003 FLAT WASHER 8, MT230 |
| 4 | JM23000004 | Makita JM23000004 HEX. SOCKET HEAD, MT230 |
| 5 | JM23000005 | Makita JM23000005 KNOCK SPRING, MT230 |
| 6 | JM23000006 | Makita JM23000006 LOCK KNOB FOR, MT230 |
| 7 | JM23000007 | Makita JM23000007 MITER ANGLE LABEL, MT230 |
| 8 | JM23000008 | Makita JM23000008 RIVET, MT230 |
| 9 | JM23000009 | Makita JM23000009 BASE COMP, MT230 |
| 10 | 810965-6 | Makita 810965-6 CAUTION LABEL, LC1230 |
| 11 | JM23000011 | Makita JM23000011 BASE SUPPORTER, MT230 |
| 12 | JM23000012 | Makita JM23000012 SCREW, MT230 |
| 13 | JM23000013 | Makita JM23000013 FLAT WASHER10, MT230 |
| 14 | JM23000014 | Makita JM23000014 SADDLE SHAPE WASHER, MT230 |
| 15 | JM23000015 | Makita JM23000015 ANTI-LOOSE NUTM10, MT230 |
| 16 | JM23000016 | Makita JM23000016 SLIDE PLATE, MT230 |
| 17 | JM23000017 | Makita JM23000017 MITER ANGLE POINTER, MT230 |
| 18 | JM23000018 | Makita JM23000018 COUNTERSUNK HEAD, MT230 |
| 19 | JM23000019 | Makita JM23000019 PIVOT, MT230 |
| 20 | JM23000141 | Makita JM23000141 KERF BOARD, MT230 |
| 22 | JM23000022 | Makita JM23000022 PROTECTION NET, MT230 |
| 23 | JM23000023 | Makita JM23000023 GUIDE RULE, MT230 |
| 24 | JM23000024 | Makita JM23000024 HEX.BOLTM8X30, MT230 |
| 25 | JM23000003 | Makita JM23000003 FLAT WASHER 8, MT230 |
| 26 | JM23000026 | Makita JM23000026 BIG FLAT WASHER 8, MT230 |
| 27 | JM23000027 | Makita JM23000027 HEX. BOLT M8 X 20, MT230 |
| 28 | JM23000028 | Makita JM23000028 HEX. NUT M8, MT230 |
| 29 | JM23000029 | Makita JM23000029 BEVEL POINTER, MT230 |
| 30 | JM23000030 | Makita JM23000030 FLAT WASHER5, MT230 |
| 31 | JM23000031 | Makita JM23000031 SPRING WASHER5, MT230 |
| 32 | JM23000032 | Makita JM23000032 PAN HEAD SCREW M5, MT230 |
| 33 | JM23000033 | Makita JM23000033 HEX. BOLT M8, MT230 |
| 34 | JM23000028 | Makita JM23000028 HEX. NUT M8, MT230 |
| 35 | JM23000034 | Makita JM23000034 RIVET, MT230 |
| 36 | JM23000035 | Makita JM23000035 SCALE LABEL, MT230 |
| 37 | JM23000036 | Makita JM23000036 ARM COMPLETE, MT230 |
| 38 | JM23000037 | Makita JM23000037 SHAFT, MT230 |
| 40 | JM23000039 | Makita JM23000039 PAN HEAD SCREW M6, MT230 |
| 41 | JM23000040 | Makita JM23000040 SPRING WASHER6, MT230 |
| 42 | JM23000041 | Makita JM23000041 FLAT WASHER6, MT230 |
| 43 | JM23000042 | Makita JM23000042 CLIP, MT230 |
| 44 | JM23000030 | Makita JM23000030 FLAT WASHER5, MT230 |
| 45 | JM23000031 | Makita JM23000031 SPRING WASHER5, MT230 |
| 46 | JM23000032 | Makita JM23000032 PAN HEAD SCREW M5, MT230 |
| 47 | JM23000143 | Makita JM23000143 KNOB, MT230 |
| 48 | JM23000013 | Makita JM23000013 FLAT WASHER10, MT230 |
| 49 | JM23000044 | Makita JM23000044 ANTI-LOOSE NUTM12, MT230 |
| 50 | JM23000045 | Makita JM23000045 FLAT WASHER12, MT230 |
| 51 | JM23000046 | Makita JM23000046 LOCK PIN CAP, MT230 |
| 52 | JM23000047 | Makita JM23000047 O RING, MT230 |
| 53 | JM23000048 | Makita JM23000048 PIN, MT230 |
| 54 | JM23000049 | Makita JM23000049 LIMIT PIN, MT230 |
| 55 | JM23000050 | Makita JM23000050 TORSIONAL SPRING, MT230 |
| 56 | JM23000051 | Makita JM23000051 RING, MT230 |
| 57 | JM23000052 | Makita JM23000052 HEX. SOCKET HEAD, MT230 |
| 58 | JM23000040 | Makita JM23000040 SPRING WASHER6, MT230 |
| 59 | JM23000041 | Makita JM23000041 FLAT WASHER6, MT230 |
| 60 | JM23000030 | Makita JM23000030 FLAT WASHER5, MT230 |
| 61 | JM23000031 | Makita JM23000031 SPRING WASHER5, MT230 |
| 62 | JM23000032 | Makita JM23000032 PAN HEAD SCREW M5, MT230 |
| 63 | JM23000053 | Makita JM23000053 PLATE, MT230 |
| 64 | JM23000054 | Makita JM23000054 Blade Lock Bolt MT230 MLS100 M2300 |
| 65 | JM23000055 | Makita JM23000055 STEPPED BOLT M5, MT230 |
| 66 | JM23000056 | Makita JM23000056 BUSH, MT230 |
| 67 | JM23000057 | Makita JM23000057 STEPPED BOLT M6, MT230 |
| 68 | JM23000058 | Makita JM23000058 LINK COMP, MT230 |
| 69 | JM23000059 | Makita JM23000059 DUST NOZZLE, MT230 |
| 70 | JM23000060 | Makita JM23000060 PAN HEAD SCREW M4, MT230 |
| 72 | JM23080002 | Makita JM23080002 MAKITA LABEL, MT230 |
| 73 | 817667-5 | Makita 817667-5 CAUTION LABEL, 4100NH |
| 74 | 810968-0 | Makita 810968-0 CAUTION LABEL, LC1230 |
| 75 | JM23000063 | Makita JM23000063 LIMIT RING, MT230 |
| 76 | JM23000064 | Makita JM23000064 SCREW NOT AVAILABLE |
| 77 | JM23000065 | Makita JM23000065 FLANGE, MT230 |
| 78 | JM23000066 | Makita JM23000066 LOCK SPRING, MT230 |
| 79 | JM23000067 | Makita JM23000067 SHAFT LOCK, MT230 |
| 80 | JM23000068 | Makita JM23000068 COVER, MT230 |
| 81 | JM23000030 | Makita JM23000030 FLAT WASHER5, MT230 |
| 82 | JM23000031 | Makita JM23000031 SPRING WASHER5, MT230 |
| 83 | JM23000069 | Makita JM23000069 PAN HEAD SCREW M5, MT230 |
| 84 | JM23000070 | Makita JM23000070 FLAT WASHER16, MT230 |
| 85 | JM23000071 | Makita JM23000071 ANTI-LOOSE NUT16, MT230 |
| 86 | JM23000072 | Makita JM23000072 SAFETY COVER COMP, MT230 |
| 87 | JM23000073 | Makita JM23000073 TORSION SPRING, MT230 |
| 88 | JM23000074 | Makita JM23000074 SQUARE NECK BOLTM6, MT230 |
| 89 | JM23000075 | Makita JM23000075 WHEELE, MT230 |
| 90 | JM23000076 | Makita JM23000076 E RING, MT230 |
| 91 | JM23000077 | Makita JM23000077 STEPPED BOLT M6, MT230 |
| 92 | JM23000078 | Makita JM23000078 RUBBER SLEEVE, MT230 |
| 93 | JM23000079 | Makita JM23000079 FIX PLATE, MT230 |
| 94 | JM23000080 | Makita JM23000080 ANTI-LOOSE NUTM6, MT230 |
| 95 | JM23000081 | Makita JM23000081 STEPPED BOLT M5, MT230 |
| 96 | ||
| 97 | 810964-8 | Makita 810964-8 CAUTION LABEL, LC1230 |
| 98 | JM23080055 | Makita JM23080055 NAME PLATE, MLS100 |
| 141 | JM23000126 | Makita JM23000126 WING BOLT, MT230 |
| 142 | JM23000132 | Makita JM23000132 BRACKET, MT230 |
| 143 | JM23000133 | Makita JM23000133 LOCK LEVER, MT230 |
| 144 | JM23000134 | Makita JM23000134 SPRING, MT230 |
| 145 | JM23000135 | Makita JM23000135 SCREW M5, MT230 |
| 146 | JM23000136 | Makita JM23000136 FLAT WASHER4, MT230 |
| 147 | JM23000137 | Makita JM23000137 SPRING WASHER4, MT230 |
| 148 | JM23000138 | Makita JM23000138 PAN HEADD SCREW M4X10, MT230 |
| 149 | JM23000139 | Makita JM23000139 ANTI-LOOSE NUTM5, MT230 |
| 150 | JM23000030 | Makita JM23000030 FLAT WASHER5, MT230 |

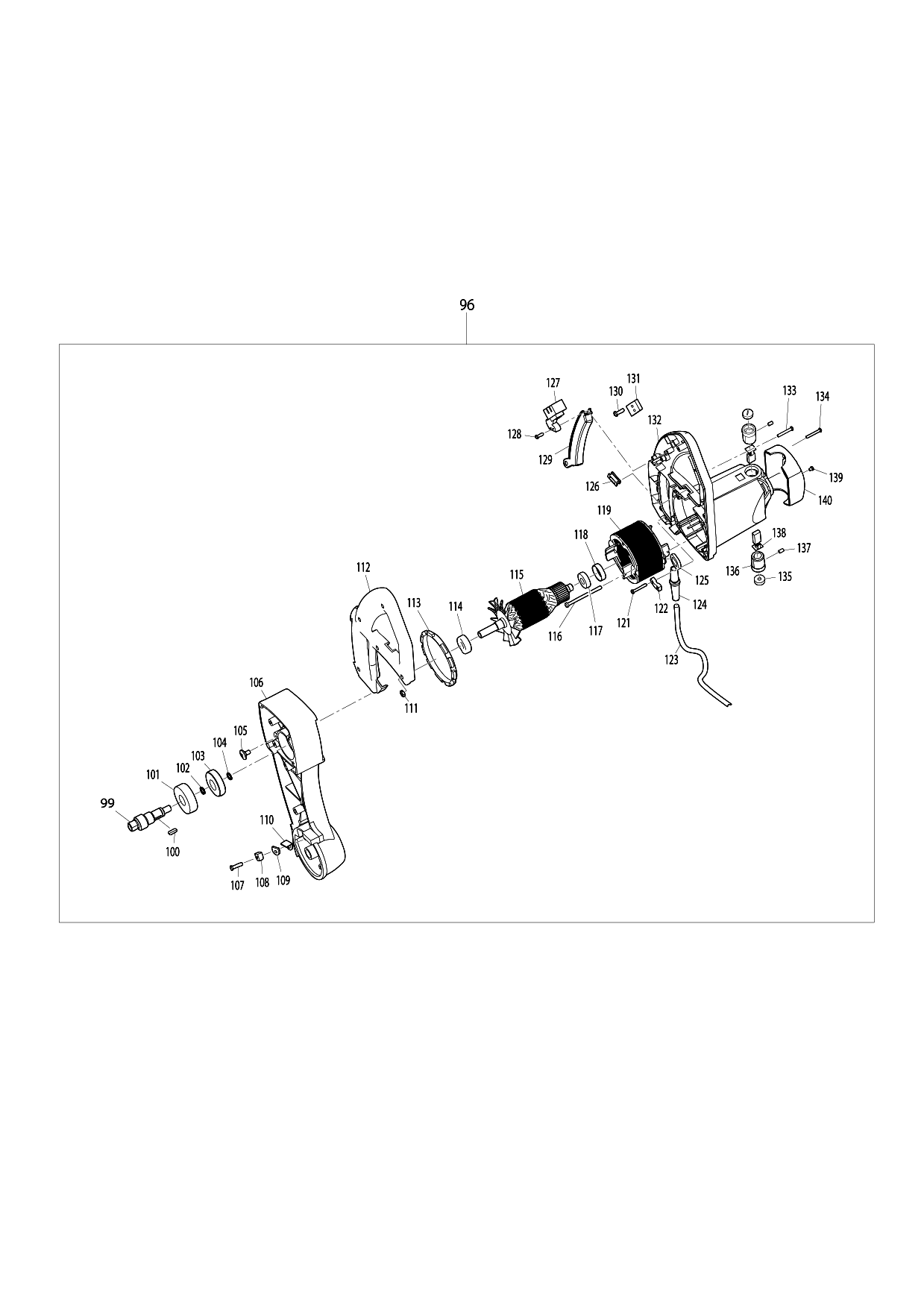

Sheet 2: Makita MLS100 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 99 | JM23000084 | Makita JM23000084 SPINDLE, MT230 |
| 100 | JM23000085 | Makita JM23000085 KEY5 X10, MT230 |
| 101 | JM23000086 | Makita JM23000086 BALL BEARING 6304-RZ, MT230 |
| 102 | JM23000087 | Makita JM23000087 SPACE RING 20, MT230 |
| 103 | JM23000088 | Makita JM23000088 HELICAL GEAR, MT230 |
| 104 | JM23000089 | Makita JM23000089 SPACE RING 16, MT230 |
| 105 | JM23000090 | Makita JM23000090 PAN HEAD SCREW M6, MT230 |
| 106 | JM23000091 | Makita JM23000091 GEAR HOUSING COMP, MT230 |
| 107 | JM23000092 | Makita JM23000092 PAN HEAD SCREW M5, MT230 |
| 108 | JM23000093 | Makita JM23000093 LIMIT PLATE, MT230 |
| 109 | JM23000094 | Makita JM23000094 LIMIT PAD, MT230 |
| 110 | JM23000095 | Makita JM23000095 ADJUST PAD, MT230 |
| 111 | JM23000096 | Makita JM23000096 HEX.NUTM4, MT230 |
| 112 | JM23000195 | |
| 113 | JM23000098 | Makita JM23000098 FAN GUIDE, MT230 |
| 114 | JM23000099 | Makita JM23000099 BALL BEARING 6201Z, MT230 |
| 115 | JM23000100 | Makita JM23000100 Armature Ass'y MT230 MLS100 M2300 |
| 116 | JM23000101 | Makita JM23000101 SELF TAPING, MT230 |
| 117 | JM23000102 | Makita JM23000102 BALL BEARING 6001Z, MT230 |
| 118 | JM23000103 | Makita JM23000103 RUBBER RING, MT230 |
| 119 | JM23000104 | Makita JM23000104 FIELD ASS'Y, MT230 |
| 121 | JM23000106 | Makita JM23000106 SELF TAPING, MT230 |
| 122 | JM23000107 | Makita JM23000107 STRAIN RELIEF, MT230 |
| 123 | JM23000156 | Makita JM23000156 POWER SUPPLY CORD, MT230 |
| 124 | JM23000109 | Makita JM23000109 CORD GUARD, MT230 |
| 125 | JM23000110 | Makita JM23000110 NOISE SUPPRESSOR, MT230 |
| 126 | JM23000111 | Makita JM23000111 CLAMP, MT230 |
| 127 | JM23000112 | Makita JM23000112 Switch CB21-B for MT230 MLS100 |
| 128 | JM23000113 | Makita JM23000113 SELF TAPING SCREWST3, MT230 |
| 129 | JM23000114 | Makita JM23000114 SWITCH LEVER, MT230 |
| 130 | JM23000115 | Makita JM23000115 SELF TAPING, MT230 |
| 131 | JM23000116 | Makita JM23000116 TERMINAL BASE, MT230 |
| 132 | JM23000194 | |
| 133 | JM23000118 | Makita JM23000118 PAN HEAD SCREW M4X30, MT230 |
| 134 | JM23000119 | Makita JM23000119 SELFTAPPING SCREW, MT230 |
| 135 | JM23000120 | Makita JM23000120 BRUSH HOLDER CAP, MT230 |
| 136 | JM23000121 | Makita JM23000121 BRUSH HOLDER, MT230 |
| 137 | JM23000122 | Makita JM23000122 HEX. SOCKET HEAD, MT230 |
| 138 | JM23000123 | Makita JM23000123 Carbon Brushes CB-500 for MT230 MLS100 |
| 139 | JM23000124 | Makita JM23000124 SELF TAPING SCREW ST5.2X12, MT230 |
| 140 | JM23000125 | Makita JM23000125 MOTOR REAR COVER, MT230 |
