Makita ML902: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita ML902: 26 positions on 1 sheet

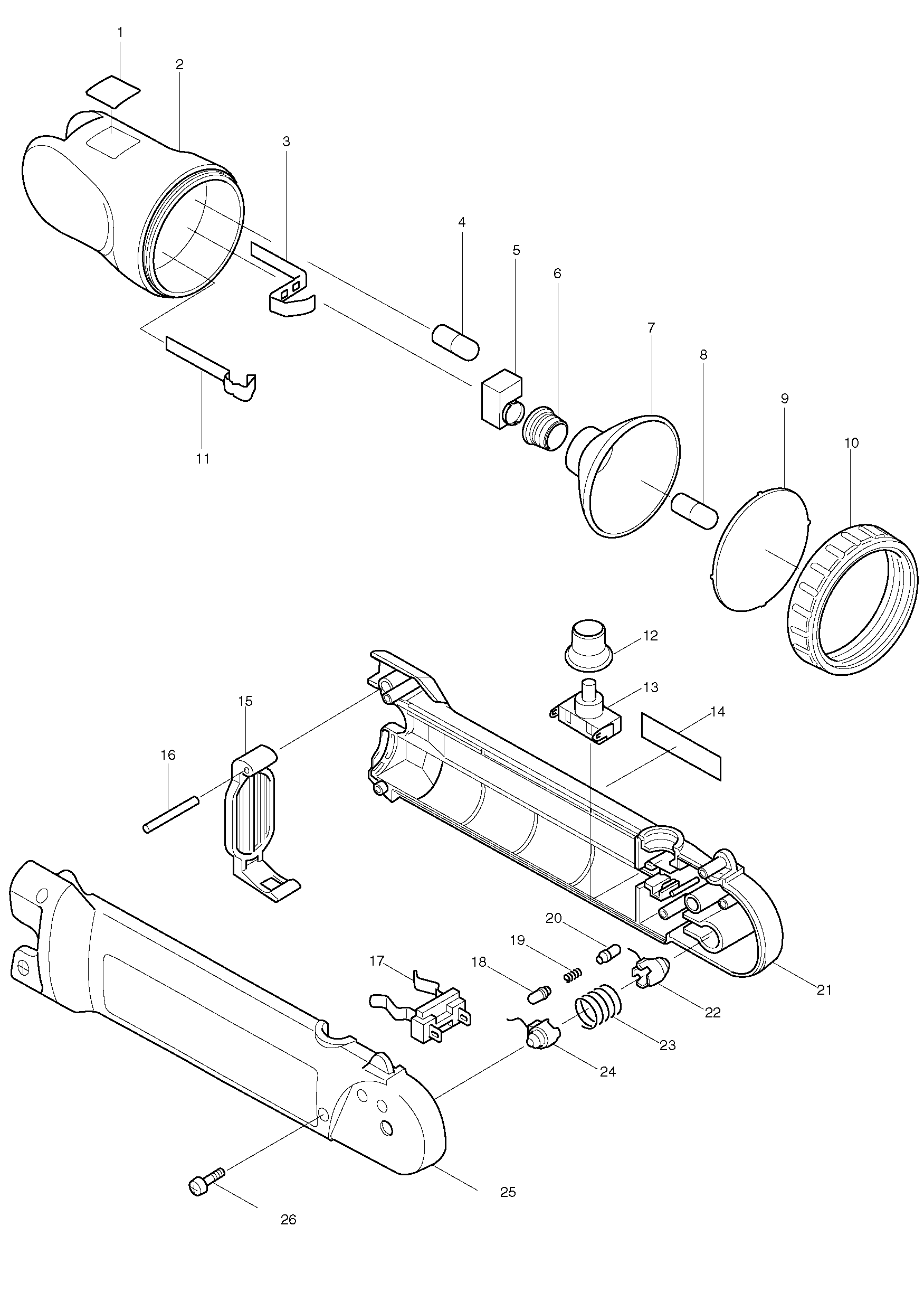

Sheet 1: Makita ML902 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 819088-7 | Makita 819088-7 MAKITA LABEL |
| 2 | 415760-5 | Makita 415760-5 CASE HEAD |
| 3 | 654136-3 | Makita 654136-3 BULB CONTACT PLATE A |
| 4 | 192545-3 | Makita 192545-3 Bulb Set (Pack of 2) 9.6V for ML903 ML902 |
| 5 | 415810-6 | Makita 415810-6 PROTECTOR |
| 6 | 415855-4 | |
| 7 | 163368-6 | Makita 163368-6 REFLECTOR FOR ML901 |
| 8 | 192545-3 | Makita 192545-3 Bulb Set (Pack of 2) 9.6V for ML903 ML902 |
| 9 | 415866-9 | Makita 415866-9 LENS, ML903 |
| 10 | 415807-5 | Makita 415807-5 REFLE CTOR RETAINER, ML903 |
| 11 | 654137-1 | Makita 654137-1 BULB CONTACT PLATE B |
| 12 | 421540-9 | Makita 421540-9 COVER FOR ML702 180 |
| 13 | 651709-3 | Makita 651709-3 SWITCH |
| 14 | 858104-0 | Makita 858104-0 NAME PLATE |
| 15 | 344549-3 | Makita 344549-3 SET PLATE |
| 16 | 256252-3 | Makita 256252-3 PIN, 6936FD |
| 17 | 643926-9 | Makita 643926-9 BATTERY HOLDER |
| 18 | 415811-4 | Makita 415811-4 KNOCK SHAFT |
| 19 | 233143-5 | Makita 233143-5 COMPRESSION SPRING 4 |
| 20 | 415811-4 | Makita 415811-4 KNOCK SHAFT |
| 21 | 415867-7 | Makita 415867-7 HOUSING L |
| 22 | 632533-3 | Makita 632533-3 PIVOT TERMINAL PCE L |
| 23 | 233144-3 | |
| 24 | 632524-4 | Makita 632524-4 PIVOT TERMINAL PCE R |
| 25 | 415868-5 | Makita 415868-5 HOUSING R |
| 26 | 265869-1 | Makita 265869-1 TAPPING SCREW 3X14 |
