Makita ML120
Makita ML120: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita ML120: 27 positions on 1 sheet

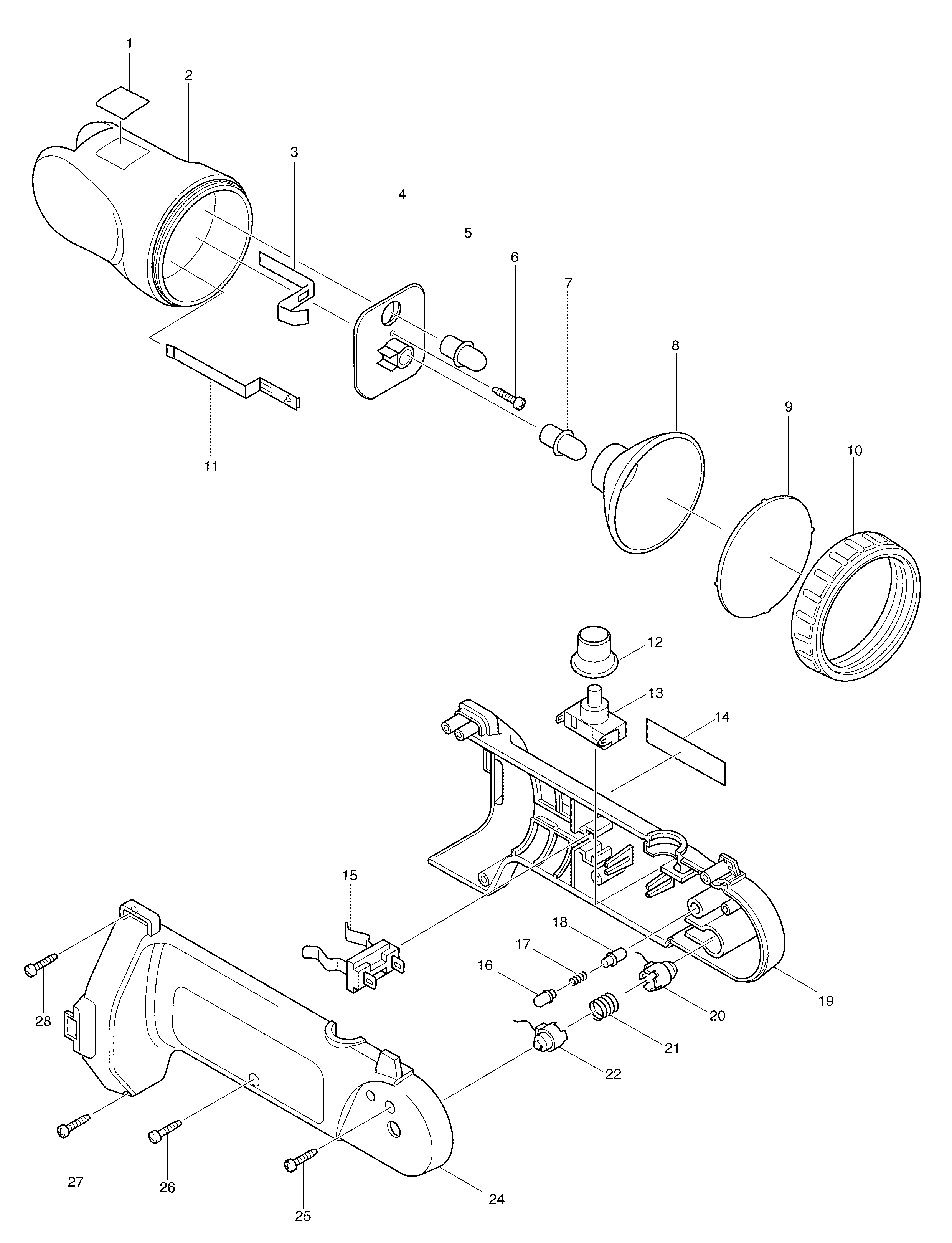

Sheet 1: Makita ML120 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 819088-7 | Makita 819088-7 MAKITA LABEL |
| 2 | GM00000020 | Makita GM00000020 HEAD ML120-140-180 |
| 3 | GM00000110 | Makita GM00000110 BULB CONTACT PLATE ( ) |
| 4 | GM00000080 | Makita GM00000080 Protector for Contact ML120/18 |
| 5 | A-83973 | Makita A-83973 Bulb Set for 12V to 14.4V Torches |
| 6 | GM00000150 | Makita GM00000150 SCREW 3X12 |
| 7 | A-83973 | Makita A-83973 Bulb Set for 12V to 14.4V Torches |
| 8 | GM00000130 | Makita GM00000130 REFLECTOR |
| 9 | GM00000070 | |
| 10 | GM00000010 | |
| 11 | GM00000120 | Makita GM00000120 BULB CONTACT PLATE (-) |
| 12 | 421540-9 | Makita 421540-9 COVER FOR ML702 180 |
| 13 | 651709-3 | Makita 651709-3 SWITCH |
| 14 | 859519-4 | Makita 859519-4 NAME PLATE ML120 |
| 15 | 643926-9 | Makita 643926-9 BATTERY HOLDER |
| 16 | 415811-4 | Makita 415811-4 KNOCK SHAFT |
| 17 | GM00000090 | Makita GM00000090 COMPRESSION SPRING 4 |
| 18 | 415811-4 | Makita 415811-4 KNOCK SHAFT |
| 19 | GM00000040 | Makita GM00000040 HOUSING L |
| 20 | 632523-6 | Makita 632523-6 PIVOT TERMINAL PCE |
| 21 | GM00000100 | Makita GM00000100 COMPRESSION SPRING 7 |
| 22 | 632524-4 | Makita 632524-4 PIVOT TERMINAL PCE R |
| 24 | GM00000030 | Makita GM00000030 HOUSING R |
| 25 | 265869-1 | Makita 265869-1 TAPPING SCREW 3X14 |
| 26 | 265869-1 | Makita 265869-1 TAPPING SCREW 3X14 |
| 27 | 265869-1 | Makita 265869-1 TAPPING SCREW 3X14 |
| 28 | 265869-1 | Makita 265869-1 TAPPING SCREW 3X14 |
