Bosch MHO 550

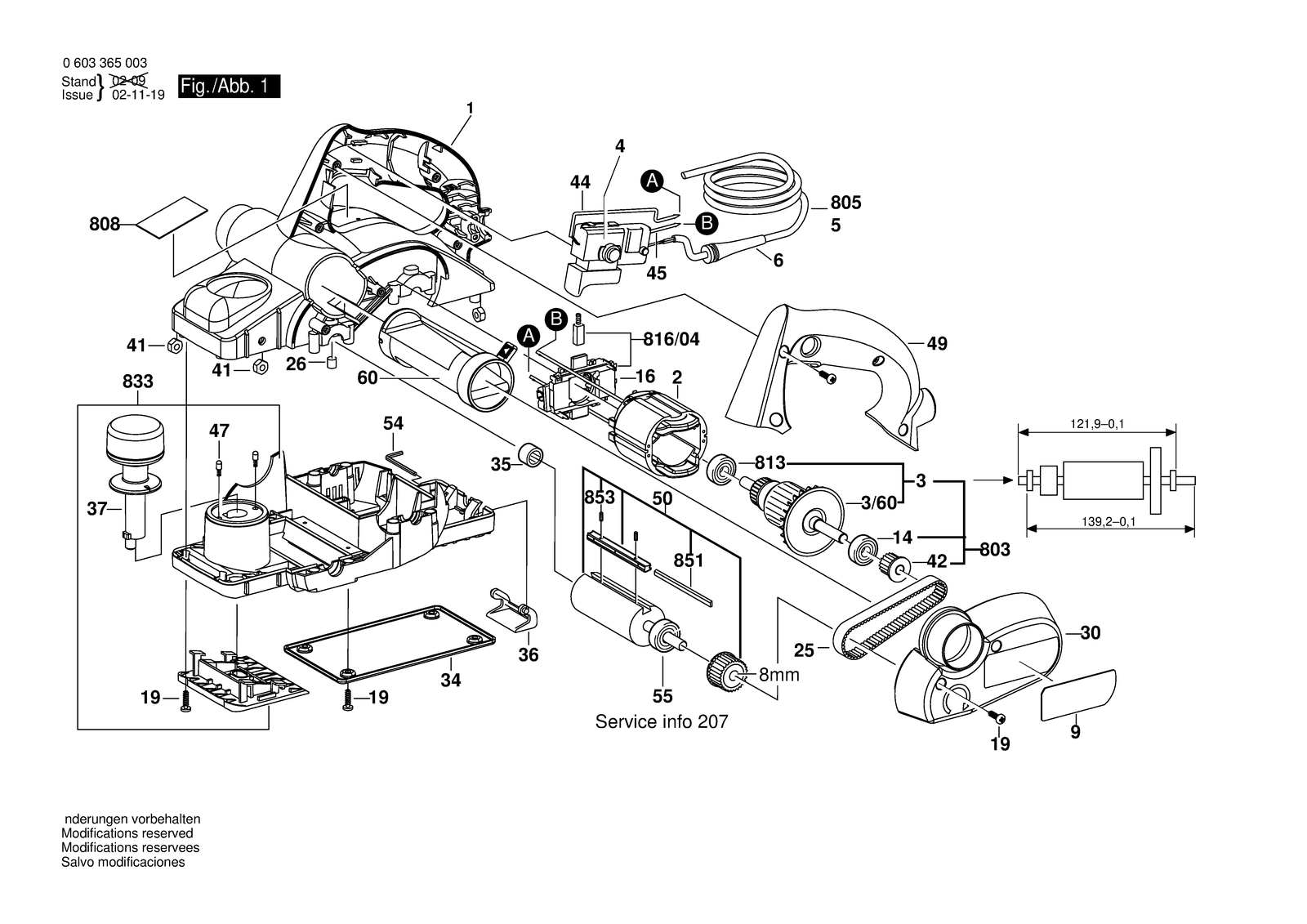

Bosch MHO 550 portable planer: exploded parts diagram, 1 sheet, 101 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch MHO 550: 101 positions on 1 sheet
Bosch MHO 550 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105037 | Housing Section Green |
| 1 | 2605104759 | Housing Section |
| 14 | 1610905011 | Groove ball bearing 9X24X7 |
| 14 | 1610905011 | Groove ball bearing 9X24X7 |
| 16 | 2604337086 | Brush Plate |
| 16 | 2604337106 | Brush Plate |
| 16 | 2604337086 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220643 | Field 100V |
| 2 | 2604220644 | Field 115-127V |
| 2 | 2610390992 | Field 230V |
| 2 | 2610390992 | Field 230V |
| 25 | 2604736001 | Toothed Belt |
| 25 | 2604736001 | Toothed Belt |
| 26 | 2603100056 | Damping rubber |
| 26 | 2603100056 | Damping rubber |
| 3 | 2604011196 | Armature 230-240V |
| 3 | 2604011213 | Armature 100V |
| 3 | 2604011214 | Armature 115-127V |
| 3 | 2604011196 | Armature 230-240V |
| 3/60 | 2606610096 | Fan |
| 3/60 | 2606610096 | Fan |
| 30 | 2605500149 | Gear Cover Black |
| 30 | 2605500157 | Gear Cover Black |
| 30 | 2605500157 | Gear Cover Black |
| 34 | 2608000225 | Base Plate |
| 34 | 2608000225 | Base Plate |
| 35 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 35 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 36 | 2601329104 | Knife Guard |
| 36 | 2601329074 | Knife Guard |
| 37 | 2602026094 | Handle Black |
| 37 | 2602026094 | Handle Black |
| 4 | 2607200531 | Switch |
| 4 | 2607200534 | Switch |
| 4 | 2607200531 | Switch |
| 41 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 41 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 42 | 2606625030 | Toothed Belt Wheel |
| 42 | 2606625030 | Toothed Belt Wheel |
| 44 | 2604448221 | Connecting Cable White L = 300 MM |
| 44 | 2604448221 | Connecting Cable White L = 300 MM |
| 45 | 2604448222 | Connecting Cable White L = 325 MM |
| 45 | 2604448222 | Connecting Cable White L = 325 MM |
| 47 | 2600590006 | Ratchet Cap |
| 47 | 2600590006 | Ratchet Cap |
| 49 | 2605133029 | Handle Plate Green |
| 49 | 2605133021 | Handle Cover |
| 5 | 1604460236 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460188 | Power supply cord Usa/cdn 2,68M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 2608584003 | Planer Head |
| 50 | 2608584003 | Planer Head |
| 54 | 1907950003 | Offset Screwdriver DIN 911 SW2,5 |
| 54 | 1907950003 | Offset Screwdriver DIN 911 SW2,5 |
| 55 | 2600905052 | Groove ball bearing 8X22X7 |
| 55 | 2600905052 | Groove ball bearing 8X22X7 |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 60 | 2600409027 | Deflector Pipe |
| 60 | 2600409025 | Deflector Pipe |
| 803 | 2604010990 | Armature |
| 803 | 2604010991 | Armature |
| 803 | 2604010992 | Armature 110V |
| 803 | 2604010990 | Armature |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601117121 | Marking Plate |
| 808 | 2601117122 | Marking Plate |
| 808 | 2601117123 | Marking Plate |
| 808 | 2601117124 | Nameplate |
| 808 | 2601117125 | Marking Plate |
| 808 | 2601117126 | Marking Plate |
| 808 | 2601117128 | Marking Plate |
| 808 | 2601117129 | Nameplate |
| 808 | 2601117272 | Marking Plate |
| 808 | 2601117273 | Nameplate |
| 808 | 2601117274 | Marking Plate |
| 808 | 2601117493 | Marking Plate |
| 808 | 2601117722 | Sticker |
| 813 | 2600905051 | Groove ball bearing 7X19X6 |
| 813 | 2600905051 | Groove ball bearing 7X19X6 |
| 816/04 | 2604321914 | Carbon-Brush Set |
| 816/04 | 2607014014 | Carbon-Brush Set |
| 816/04 | 2607014014 | Carbon-Brush Set |
| 833 | 2608000921 | Base Frame |
| 833 | 2608000923 | Base Frame |
| 851 | 2608635341 | Planing knife |
| 851 | 2608635341 | Planing knife |
| 853 | 2603400016 | Set screw |
| 853 | 2603400016 | Set screw |
| 9 | 2601117047 | Sticker |
| 9 | 2601117270 | Sticker |
