Bosch MDS 100

Bosch MDS 100 delta sander: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch MDS 100: 28 positions on 1 sheet

Bosch MDS 100 parts list (1 sheet)

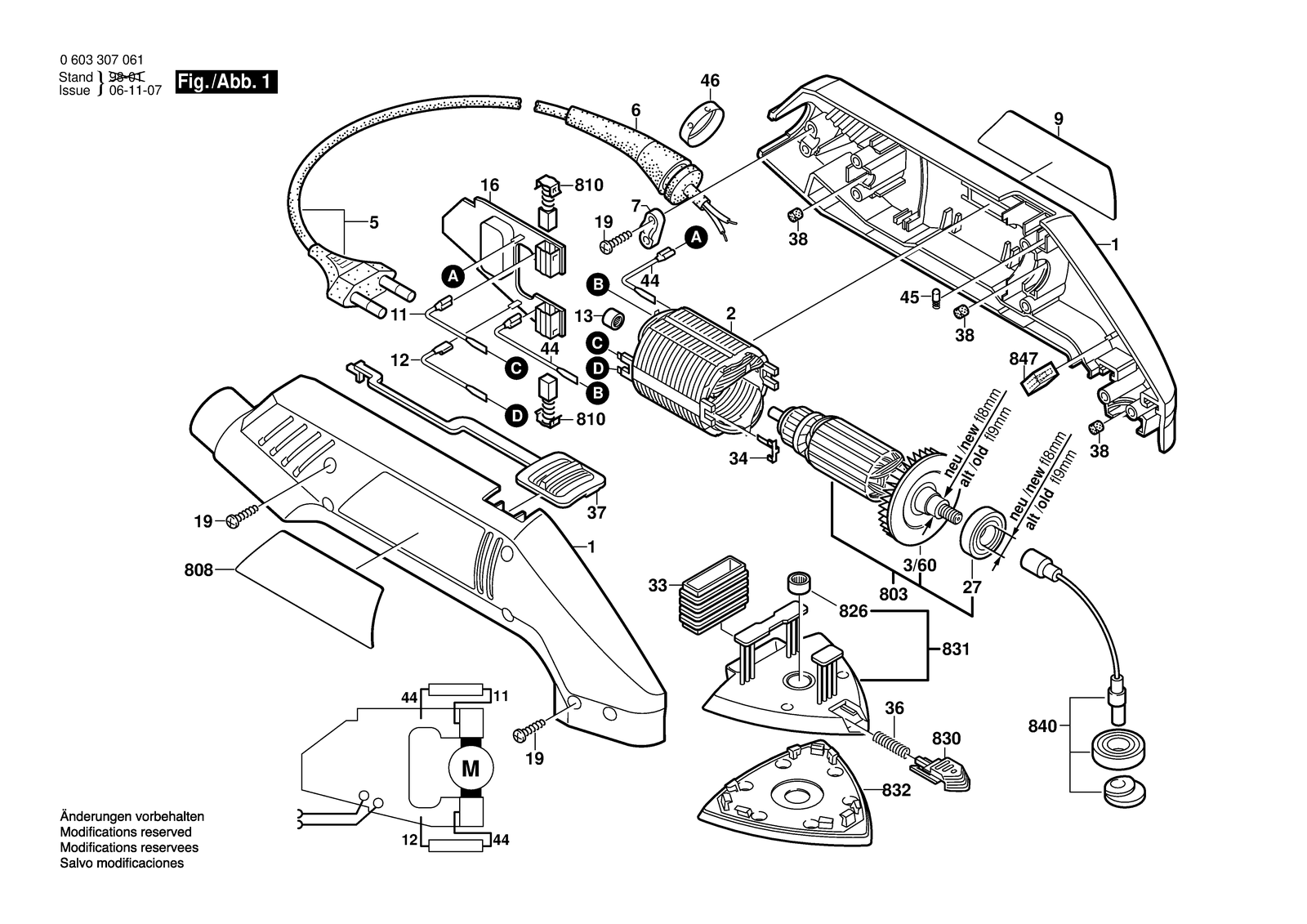

Bosch MDS 100 parts diagram, sheet 1
No.Part numberPart name
12605104686Housing Section Orange
112604448178Connecting Cable White L = 37 MM
132600917002Needle bearing
161607233095El Connection Plate 230V
192603490022Screw 4X16
22604220518Field 230-240V
272600905060Groove ball bearing 8X24X7
3/602606610084Fan
332600712003Flexible Connection
342601329037Contact Spring
362604610034Compression Spring
372602319008Switch Slide
382603100056Damping rubber
442604448034Connecting Cable White L=88 MM
452600590010Thrust Member
462600290025Clamping Ring
52604460125Power supply cord CH 2,65M 2 X 1,0MM H05VV-F
62600703017Grommet Ø6,4-Ø7,2X76 MM
72601035001Cable Clip
8032604010931Armature 230-240V
808160111A3HCNameplate
8102607014010Carbon-Brush Set
8262600917007Needle-Roller Bearing
8302608000144Button
8312601098901Tool Holding Fixture
8322608000143Sander Plate Black
8402603010002Flexible Shaft
8472608005068Guide Piece
