Bosch Master KF 12 A router: exploded parts diagram, 2 sheets, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Master KF 12 A: 42 positions on 2 sheets

Bosch Master KF 12 A parts list (2 sheets)

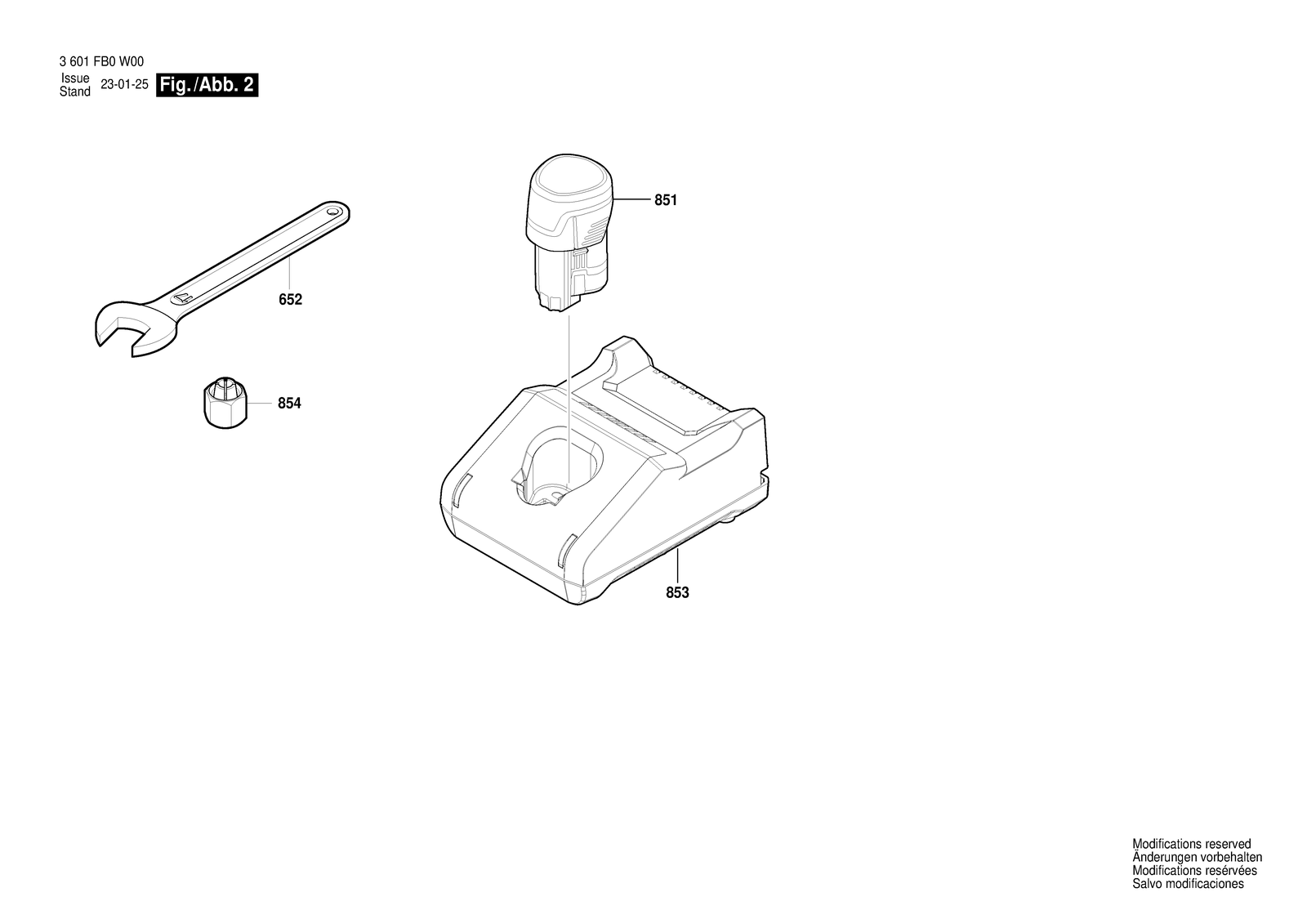

Bosch Master KF 12 A parts diagram, sheet 1Bosch Master KF 12 A parts diagram, sheet 2
No.Part numberPart name
116058066FPHousing
131600A00D66Belt
142609110253Self-locking nut
152916650006Retaining clip DIN 471-15X1-FST
161600A00P4HLocking Plate
171600A00P4KRetaining Stirrup
182160111A9W9Label
192603490017Torx Oval-Head Screw 3X10
202603490021Torx Oval-Head Screw 4X12
21160461201UCompression Spring
2216058080F6Bearing Flange
231600A00N9BSliding Rod
241600A00N9CBase Plate
251600A00N9DBase Plate
262603413035Oval-Head Screw M4X8
27160090006YBall Bearing
281600A02J0HPusher Unit
29160461201XCompression Spring
316072335DHElectronic Module
3/1/22607202355Switch
301600A00N9JThreaded Rod
311600A02J0EThumbwheel
322916011014Plain Washer DIN 125-A 6,4-ST
331600A00JN1Hex Socket Head Cap Screw
341600A00JN2Set screw
352916550006Retaining ring
361600A02J0FLocking Lever
372603100056Damping rubber
38160111C4P4Sticker
391600A0145DShim
41600A00N99Slide Switch
51600A011L4Slide Button
61600A01BV3Ratchet Cap
6521600A029PWSingle-Head Eng. Wrench
8021607000CM2Motor
8071607000CM3Output Shaft
808160111A9W8Nameplate
8511607A350E9Battery Pack Master Li-Ion 12V/2,0 AH 5700139002
8532607226167Fast Charger EU 10,8-12V, 30 Min AL 30-LI Pl
8542609199144Collet 6,0 Ø
8542609199145Contour sleeve 8,0 Ø
9160111A9WAManufacturer's nameplate
