Makita M6002
Makita M6002: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita M6002: 24 positions on 1 sheet

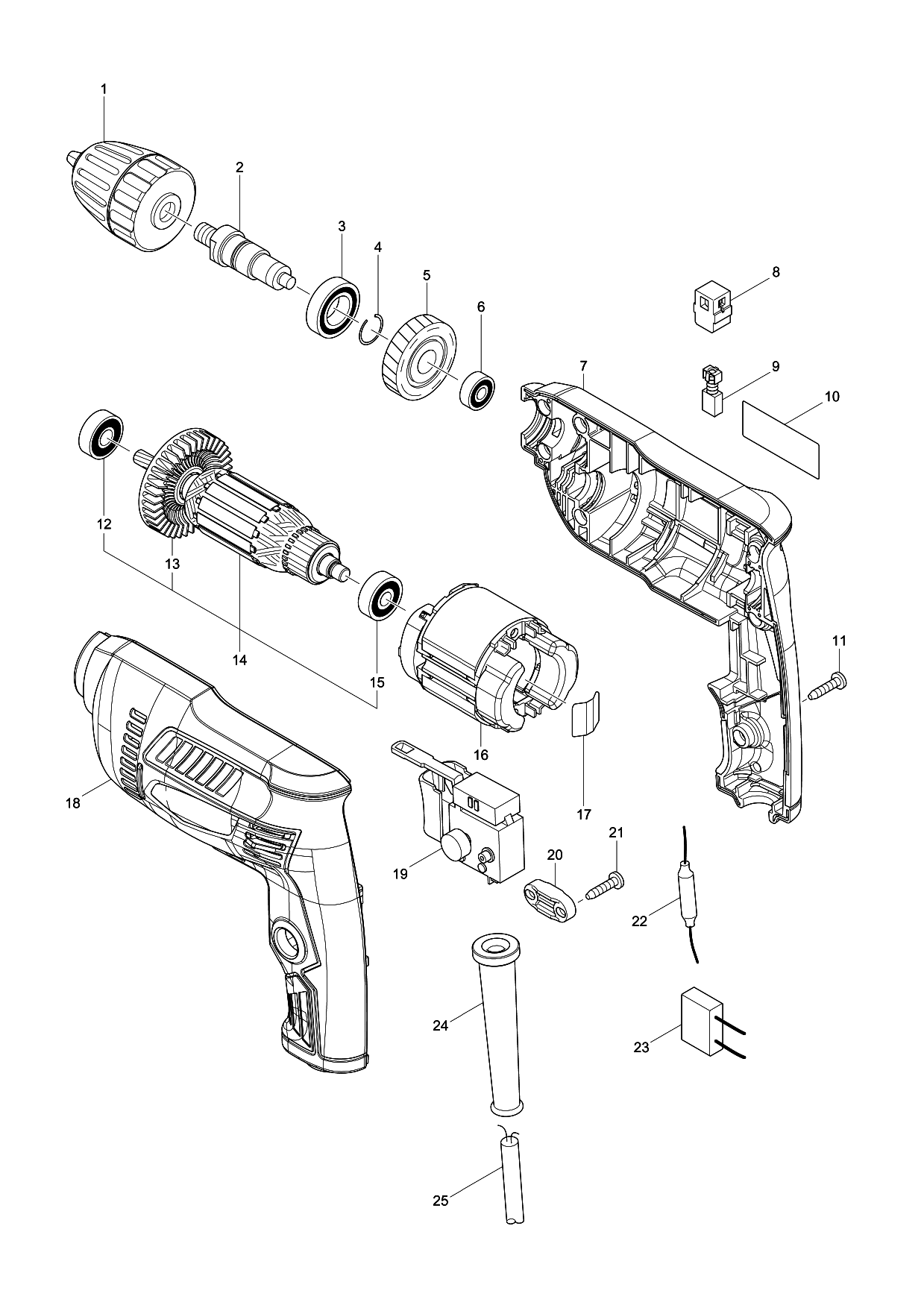

Sheet 1: Makita M6002 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 766026-9 | |
| 2 | 324376-4 | Makita 324376-4 SPINDLE, MT603 |
| 3 | 211242-3 | Makita 211242-3 BALL BEARING 6902ZZ, MT602 |
| 4 | 233925-5 | Makita 233925-5 RING SPRING 13, MT602 |
| 5 | 226578-7 | Makita 226578-7 HEICAL GEAR 35, MT603 |
| 6 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 7 | 183B08-2 | |
| 8 | 643566-3 | Makita 643566-3 BRUSH HOLDER 5*8 |
| 9 | 191998-3 | Makita 191998-3 Carbon Brushes CB-85 for HP1630 HP1631 MT81 |
| 10 | 850X32-9 | |
| 11 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 12 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 14 | 515849-0 | Makita 515849-0 ARMATURE ASSY 240V, MT607 |
| 15 | 210030-5 | Makita 210030-5 BALL BEARING 627ZZ, MT811 |
| 16 | 639358-6 | Makita 639358-6 FIELD 240V 195T, MT603 |
| 17 | 232210-3 | Makita 232210-3 LEAF SPRING, MT650 |
| 18 | 183B08-2 | |
| 19 | 650551-9 | Makita 650551-9 SWITCH, MT603 |
| 20 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 21 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 22 | 646147-2 | Makita 646147-2 CHOKE COIL B094-9-2, MT811 |
| 23 | 645190-8 | Makita 645190-8 CAPACITOR, MT950 |
| 24 | 682569-2 | Makita 682569-2 Cord Guard |
| 25 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
