Makita M3702
Makita M3702: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita M3702: 32 positions on 1 sheet

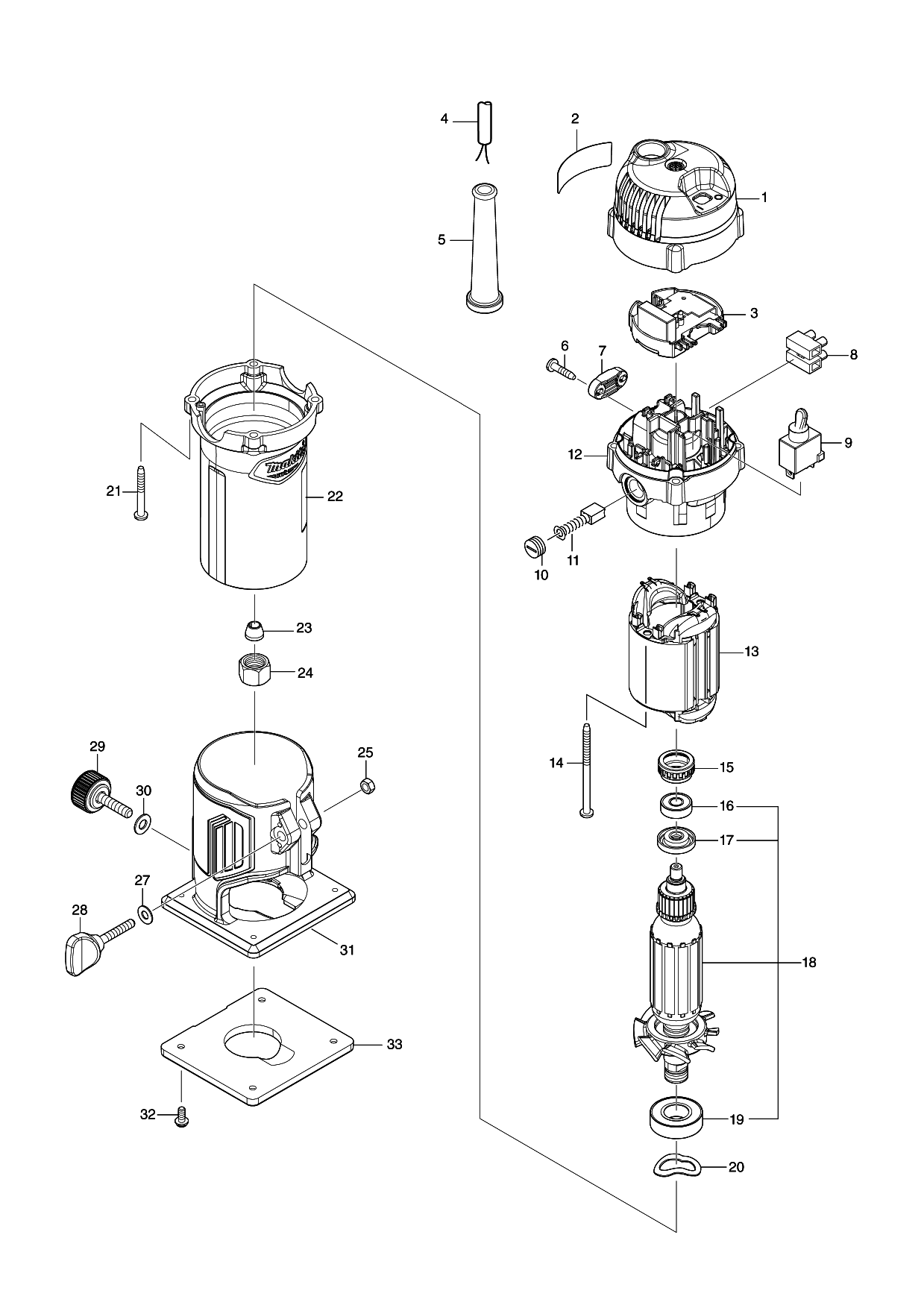

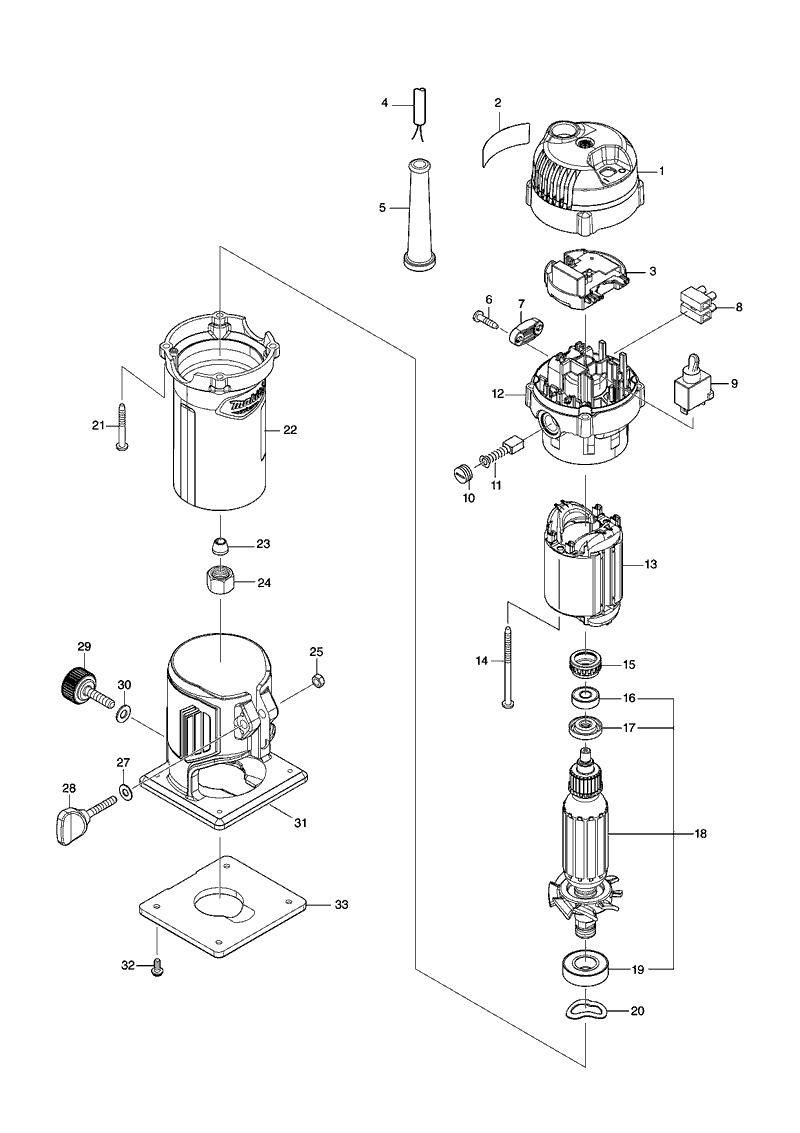

Sheet 1: Makita M3702 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 413774-8 | |
| 2 | 811T83-3 | |
| 3 | 620F47-0 | |
| 4 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
| 5 | 682569-2 | Makita 682569-2 Cord Guard |
| 6 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 7 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 8 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 9 | 651424-9 | Makita 651424-9 Switch STL106AT MT950 MT952 MT954 MT955 MT963 MT912 MT372 |
| 10 | 643987-9 | Makita 643987-9 HOLDER CAP, MT952 |
| 11 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 12 | 141D20-0 | |
| 13 | 634774-7 | |
| 14 | 266340-8 | Makita 266340-8 TAPPING SCREW 4*65, MT370 |
| 15 | 421868-5 | Makita 421868-5 RUBBER RING 19 WITH LABYRINTH, 9556NB |
| 16 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 17 | 681668-7 | Makita 681668-7 INSULATION WASHER |
| 18 | 510227-9 | Makita 510227-9 ARMATURE ASSY 240V |
| 19 | 211247-3 | Makita 211247-3 BALL BEARING 6002DDW |
| 20 | 267785-3 | Makita 267785-3 WAVE WASHER 23 |
| 21 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 22 | 141D79-7 | |
| 23 | 763662-2 | Makita 763662-2 Collet Cone 6 mm for 3709 3710 M3700 MT372 |
| 24 | 763661-4 | Makita 763661-4 Collet Nut 6 mm for 3709 3710 M3700 MT372 |
| 25 | 252156-7 | |
| 27 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 28 | 251867-1 | Makita 251867-1 Screw M5X30 for 3700B SP6000 3701 3702B SP6000 XPS02ZU |
| 29 | 265763-7 | Makita 265763-7 THUMB SCREW M6X25 |
| 30 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 31 | 454022-6 | Makita 454022-6 BASE |
| 32 | 265142-9 | Makita 265142-9 PAN HEAD SCREW M4X10, MT370 |
| 33 | 410585-2 | Makita 410585-2 BASE PROTECTOR, 3703 |
