Makita M0600
Makita M0600: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita M0600: 24 positions on 1 sheet

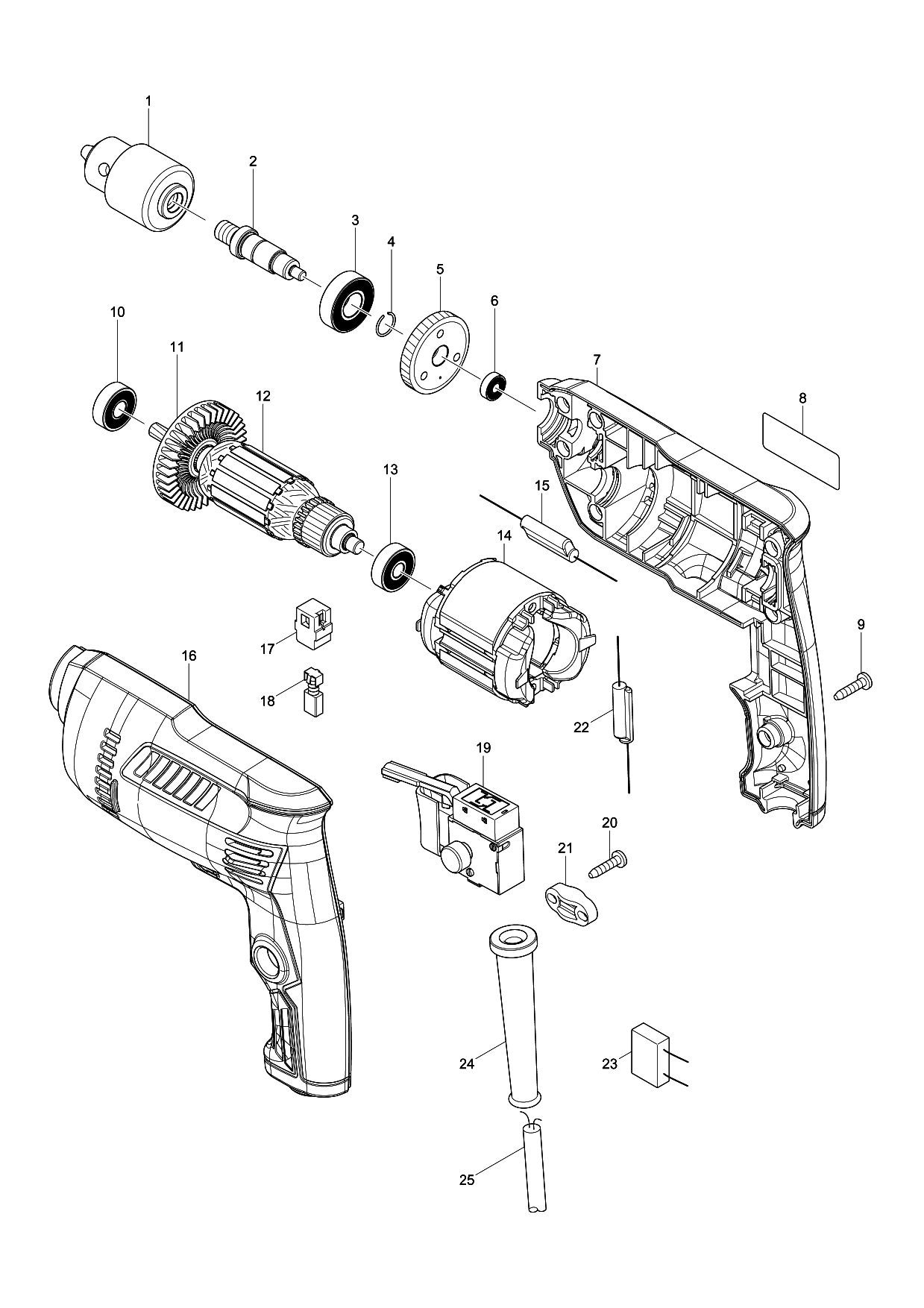

Sheet 1: Makita M0600 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 766014-6 | |
| 2 | 326025-9 | |
| 3 | 210119-9 | |
| 4 | 233950-6 | Makita 233950-6 RING SPRING, GA5010 |
| 5 | 227742-3 | |
| 6 | 210137-7 | Makita 210137-7 BALL BEARING 606ZZ, DHS680 |
| 7 | 183B21-0 | |
| 8 | 851A82-9 | |
| 9 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 10 | 210046-0 | Makita 210046-0 BALL BEARING 608ZZ |
| 12 | 515834-3 | |
| 13 | 210050-9 | |
| 14 | 633844-9 | |
| 15 | 646230-5 | |
| 16 | 183B21-0 | |
| 17 | 643566-3 | Makita 643566-3 BRUSH HOLDER 5*8 |
| 18 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 19 | 650240-6 | |
| 20 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 21 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 22 | 646231-3 | |
| 23 | 645273-4 | |
| 24 | 682569-2 | Makita 682569-2 Cord Guard |
| 25 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
