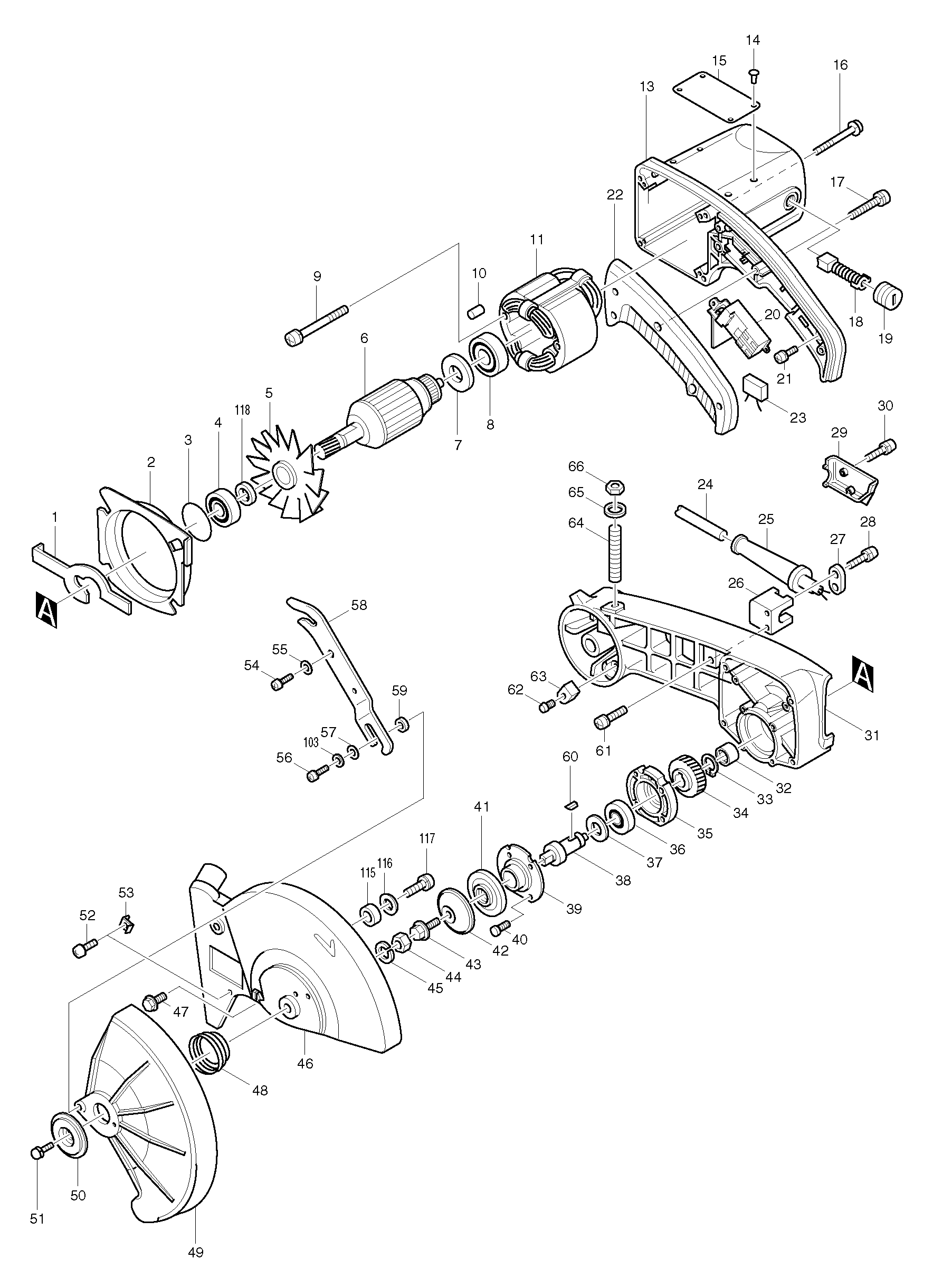

Sheet 1: Makita LS1440 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 163100-8 | Makita 163100-8 SHAFT LOCK |
| 2 | 411466-3 | Makita 411466-3 BAFFLE PLATE |
| 3 | 213459-4 | Makita 213459-4 O RING 32, 5007NB |
| 4 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 5 | 241514-2 | Makita 241514-2 FAN 92, LS1011 |
| 6 | 514988-3 | Makita 514988-3 ARMATURE ASS Y 220V |
| 7 | 681623-9 | Makita 681623-9 INSULATION WASHER |
| 8 | 211068-3 | Makita 211068-3 BALL BEARING 6200LB |
| 9 | 911290-9 | Makita 911290-9 PAN HEAD SCREW M5X65 |
| 10 | 263013-4 | Makita 263013-4 RUBBER PIN 4 |
| 11 | 524778-6 | Makita 524778-6 FIELD ASS'Y 220V |
| 13 | 159819-5 | |
| 14 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 15 | 856017-9 | |
| 16 | 251335-4 | |
| 17 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 18 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 19 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 20 | 651135-6 | OLDN Makita 651135-6 SWITCH SGE220RD-1 |
| 21 | 911101-8 | Makita 911101-8 PAN HEAD SCREW M4X6 |
| 22 | 410836-3 | Makita 410836-3 HANDLE COVER |
| 23 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 24 | 666066-6 | Makita 666066-6 POWER S.CORD HD-21 CORD, 9557PB |
| 25 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 26 | 154261-5 | Makita 154261-5 CLAMP BASE COMPLETE |
| 27 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 28 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 29 | 411467-1 | Makita 411467-1 CLAMP COVER |
| 30 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 31 | 157862-8 | Makita 157862-8 GEAR HOUSING |
| 32 | 212113-7 | Makita 212113-7 NEEDLE BEARING 1212 |
| 33 | 961060-6 | Makita 961060-6 RETANING RING S-20, HM1800 |
| 34 | 226411-3 | Makita 226411-3 HELICAL GEAR 41 |
| 35 | 315055-5 | |
| 36 | 211306-3 | Makita 211306-3 BALL BEARING 6204LLB |
| 37 | 253327-9 | |
| 38 | 321729-8 | |
| 39 | 285649-9 | Makita 285649-9 BEARING RETAINER 72 |
| 40 | 912231-8 | Makita 912231-8 COUNTERSUNK HEAD SCREW M5 X20 |
| 41 | 224250-5 | Makita 224250-5 INNER FLANGE 90 |
| 42 | 224249-0 | Makita 224249-0 OUTER FLANGE 90 LS1440 |
| 43 | 251644-1 | Makita 251644-1 Hex Flange Head Bolt M8*20 for 5007NB |
| 44 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 45 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 46 | 150570-0 | |
| 47 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 48 | 231939-8 | Makita 231939-8 SPRING 30 |
| 49 | 414084-6 | Makita 414084-6 SAFETY COVER |
| 50 | 343358-7 | Makita 343358-7 CENTER PLATE |
| 51 | 923311-5 | Makita 923311-5 CAP SQUARE NECK BOLT M6X1 |
| 52 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 53 | 343492-3 | Makita 343492-3 BLADE STOPPER |
| 54 | 251333-8 | Makita 251333-8 + PAN HEAD SCREW M8 |
| 55 | 253878-2 | Makita 253878-2 FLAT WASHER 10 |
| 56 | 251339-6 | Makita 251339-6 + PAN HD. SCREW M8 |
| 57 | 257146-5 | |
| 58 | 343792-1 | Makita 343792-1 GUIDE ARM |
| 59 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 60 | 254203-0 | Makita 254203-0 KEY 4 |
| 61 | 911121-2 | Makita 911121-2 PAN HEAD SCREW M4*14, GA400D |
| 62 | 251399-8 | Makita 251399-8 PAN HEAD SCREW M5 |
| 63 | 411479-4 | Makita 411479-4 CUSHION |
| 64 | 251959-6 | Makita 251959-6 SCREW M10X80 |
| 65 | 941252-3 | Makita 941252-3 FLAT WASHER, LF1000 |
| 66 | 931501-6 | Makita 931501-6 HEX. NUT M10 |
| 103 | 911256-9 | Makita 911256-9 PAN HEAD SCREW M5*35, LS1440 |
| 115 | 262044-0 | |
| 116 | 253011-6 | Makita 253011-6 FLAT WASHER 6, 3500 |
| 117 | 911216-1 | Makita 911216-1 PAN HEAD SCREW M5X14 |
| 118 | 267710-4 | Makita 267710-4 WASHER 15 FOR LS1440 |

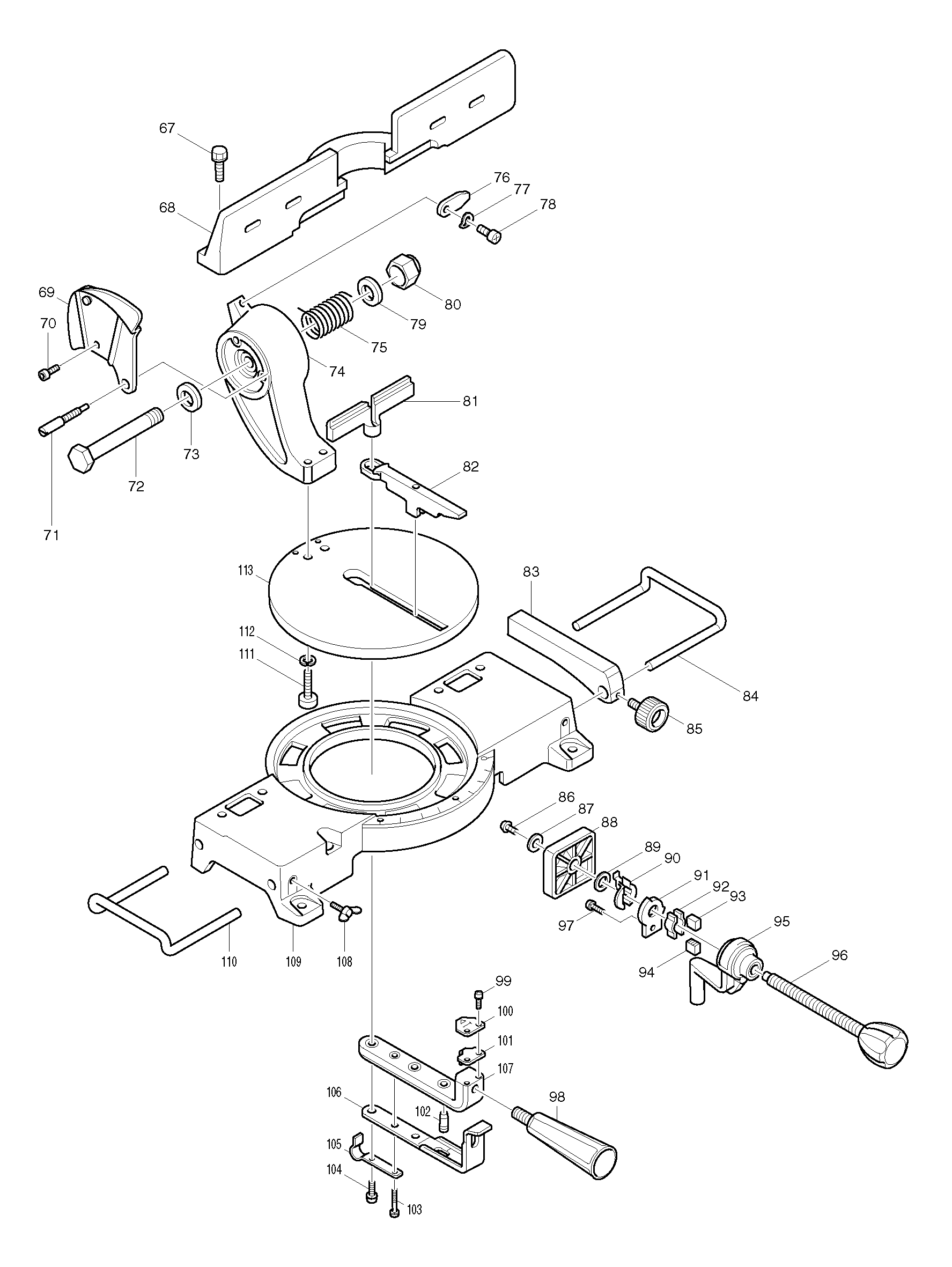

Sheet 2: Makita LS1440 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 67 | 921551-9 | Makita 921551-9 HEX. BOLT M10X30 |
| 68 | 316030-4 | Makita 316030-4 GUIDE FENCE |
| 69 | 163279-5 | Makita 163279-5 SUPPORTER |
| 70 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 71 | 322144-9 | Makita 322144-9 SET SCREW M10 |
| 72 | 251698-8 | Makita 251698-8 HEX. BOLT M16 |
| 73 | 253771-0 | Makita 253771-0 FLAT WASHER 16 |
| 74 | 154358-0 | Makita 154358-0 ARM COMPLETE |
| 75 | 231533-6 | Makita 231533-6 TORSION SPRING33, LS1440 |
| 76 | 341926-0 | Makita 341926-0 HANDLE LATCH |
| 77 | 253948-7 | Makita 253948-7 WAVE WASHER, LS0813 |
| 78 | 251298-4 | Makita 251298-4 PAN HEAD SCREW M8 |
| 79 | 253771-0 | Makita 253771-0 FLAT WASHER 16 |
| 80 | 252044-8 | Makita 252044-8 HEX. NUT M16-24 |
| 81 | 414092-7 | Makita 414092-7 FENCE PLATE |
| 82 | 410849-4 | Makita 410849-4 KERF BOARD |
| 83 | 312511-6 | |
| 84 | 322027-3 | Makita 322027-3 HOLDER, LS1440 |
| 85 | 251804-5 | Makita 251804-5 SCREW M6X13 |
| 86 | 911317-5 | |
| 87 | 253047-5 | Makita 253047-5 FLAT WASHER 6 |
| 88 | 315891-9 | |
| 89 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 90 | 341912-1 | |
| 91 | 342967-9 | Makita 342967-9 SET PLATE |
| 92 | 341911-3 | |
| 93 | 321490-7 | |
| 94 | 321491-5 | |
| 95 | 151201-4 | |
| 96 | 271275-0 | |
| 97 | 911216-1 | Makita 911216-1 PAN HEAD SCREW M5X14 |
| 98 | 273436-8 | Makita 273436-8 GRIP 37 |
| 99 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 100 | 816173-7 | |
| 101 | 342823-3 | Makita 342823-3 PLATE |
| 102 | 321981-8 | Makita 321981-8 LATCH PIN |
| 103 | 911256-9 | Makita 911256-9 PAN HEAD SCREW M5*35, LS1440 |
| 104 | 921456-3 | |
| 105 | 232093-1 | Makita 232093-1 LEAF SPRING |
| 106 | 343359-5 | Makita 343359-5 LATCH SPRING |
| 107 | 311795-3 | Makita 311795-3 Turning Stay for LS1430L |
| 108 | 924216-2 | Makita 924216-2 WING BOLT M5X15 |
| 109 | 150569-5 | |
| 110 | 322027-3 | Makita 322027-3 HOLDER, LS1440 |
| 111 | 922562-7 | Makita 922562-7 HEX. SOCKET HEAD BOLT M10 X40 |
| 112 | 942251-8 | Makita 942251-8 SPRING WASHER 10 |
| 113 | 311796-1 | DISC Genuine Makita 311796-1 TURN BASE |
