Makita LS1214F
Makita LS1214F: exploded parts diagram, 2 sheets, 181 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita LS1214F: 181 positions on 2 sheets

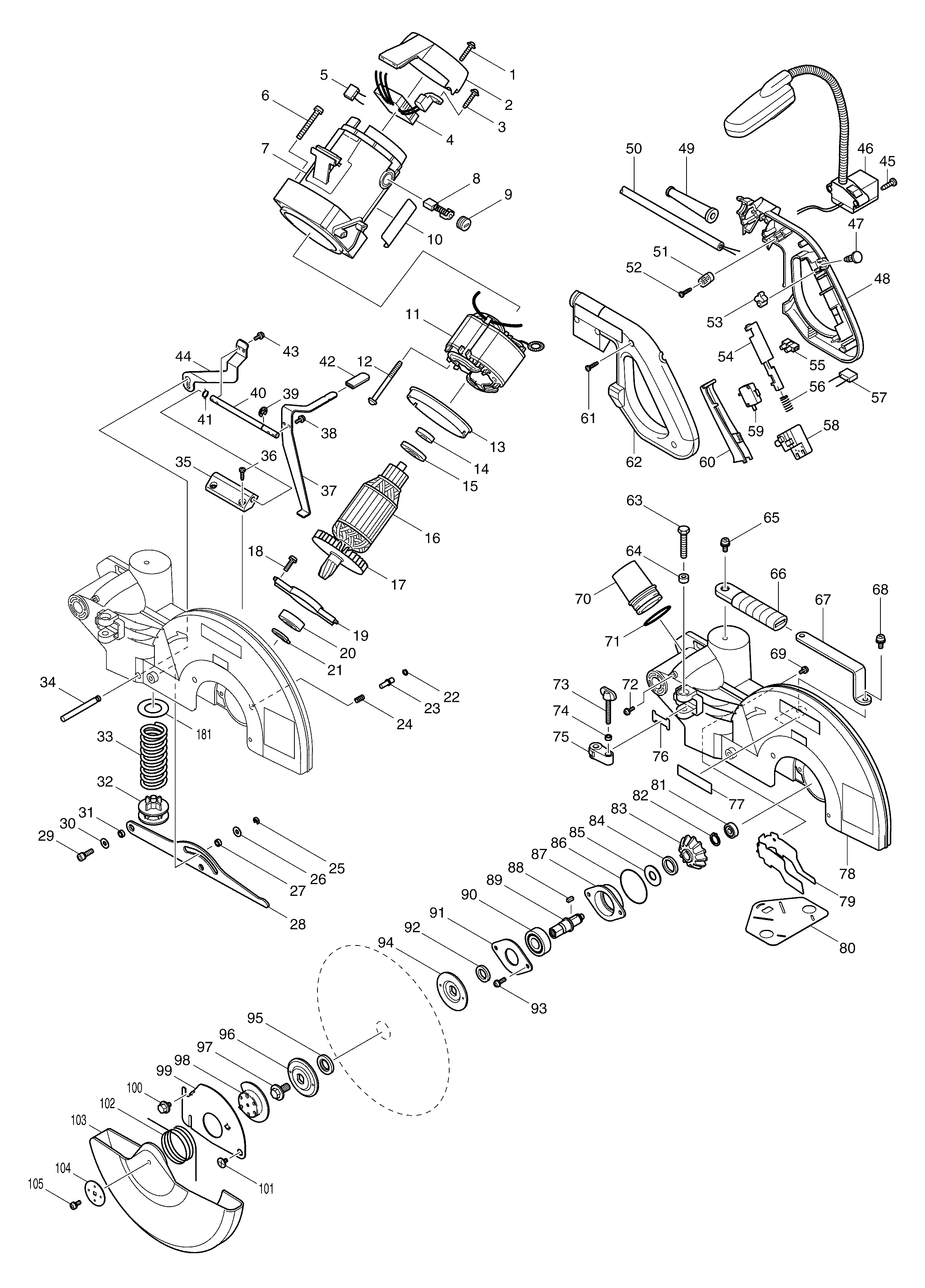

Sheet 1: Makita LS1214F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 416075-3 | Makita 416075-3 REAR COVER |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 631238-2 | Makita 631238-2 CONTROLLER |
| 5 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 6 | 911373-5 | Makita 911373-5 PAN HEAD SCREW M6X50 LS1013 |
| 7 | 153907-0 | Makita 153907-0 MOTOR HOUSING COMPLETE LS1214F |
| 8 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 9 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 10 | 860634-9 | Makita 860634-9 NAME PLATE LS1214F |
| 11 | 599508-4 | Makita 599508-4 FIELD ASS Y 220-240V |
| 12 | 266059-9 | Makita 266059-9 SELF-TAP FLANGE SCREW PT M5X75 |
| 13 | 416264-0 | Makita 416264-0 BAFFLE PLATE |
| 14 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 15 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 16 | 516738-2 | Makita 516738-2 ARMATURE ASS Y 220V |
| 18 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 19 | 285686-3 | Makita 285686-3 BEARING RETAINER 94 |
| 20 | 211251-2 | Makita 211251-2 BALL BEARING 6003VVCM, 5277NB |
| 21 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 22 | 231928-3 | Makita 231928-3 RING SPRING 8, LS1013 |
| 23 | 256633-1 | Makita 256633-1 PIN 6, LS1016L |
| 24 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 25 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 26 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 27 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 28 | 345419-9 | Makita 345419-9 LINK PLATE LS1214F |
| 29 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 30 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 31 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 32 | 316470-6 | Makita 316470-6 SPRING HOLDER |
| 33 | 233424-7 | Makita 233424-7 COMPRESSION SPRING 34 LS1214F |
| 34 | 324458-2 | Makita 324458-2 LOCK PIN 8 LS1214F |
| 35 | 418610-3 | Makita 418610-3 ROD HOLDER LS1214F |
| 36 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 37 | 345416-5 | Makita 345416-5 LOCK LEVER LS1214F |
| 38 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 39 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 40 | 324459-0 | Makita 324459-0 ROD 8 LS1214F |
| 41 | 231633-2 | Makita 231633-2 TORSION SPRING 8, LS1040 |
| 42 | 421589-9 | Makita 421589-9 CAP, LS1040 |
| 43 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 44 | 345417-3 | Makita 345417-3 LOCK PLATE, LS1214 |
| 45 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 46 | 125180-2 | Makita 125180-2 LIGHT ASSEMBLY, LS1040F |
| 47 | 411478-6 | Makita 411478-6 Switch Button LS1040 LS1214 LS1040F |
| 48 | 183842-8 | Makita 183842-8 HANDLE SET LS1214F |
| 49 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 50 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 51 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 52 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 53 | 414546-4 | Makita 414546-4 CAM |
| 54 | 416000-4 | Makita 416000-4 LOCK OFF LEVER, LS1040 |
| 55 | 654575-7 | Makita 654575-7 TERMINAL BLOCK, 5704R |
| 56 | 231457-6 | Makita 231457-6 COMPRESSION SPRING 3, LS1040 |
| 57 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 58 | 651923-1 | Makita 651923-1 Switch TG70B for LS1040 |
| 59 | 651941-9 | Makita 651941-9 SWITCH, LS1040 |
| 60 | 415999-0 | Makita 415999-0 SWITCH LEVER, LS1040 |
| 61 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 62 | 183842-8 | Makita 183842-8 HANDLE SET LS1214F |
| 63 | 921467-8 | Makita 921467-8 HEX. BOLT M8X45 |
| 64 | 262003-4 | Makita 262003-4 RUBBER RING 6 |
| 65 | 911323-0 | Makita 911323-0 PAN HEAD SCREW M6X16 WR, 5606B |
| 66 | 421562-9 | Makita 421562-9 GRIP |
| 67 | 344420-1 | |
| 68 | 911323-0 | Makita 911323-0 PAN HEAD SCREW M6X16 WR, 5606B |
| 69 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 70 | 416133-5 | Makita 416133-5 DUST NOZZLE |
| 71 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 72 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 73 | 265717-4 | Makita 265717-4 THUMB SCREW M6*43, LS0714 |
| 74 | 262001-8 | Makita 262001-8 URETHANE RING 5, 6906 |
| 75 | 317176-9 | Makita 317176-9 STOPPER ARM LS1013, LS1013 |
| 76 | 344045-1 | Makita 344045-1 STOPPER ARM PLATE |
| 77 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 78 | 183843-6 | |
| 79 | 345415-7 | Makita 345415-7 GUARD PLATE, LS1214 |
| 80 | 423332-2 | Makita 423332-2 GUARD LS1214F |
| 81 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 82 | 961054-1 | Makita 961054-1 RETAINING RING S-14 |
| 83 | 226750-1 | Makita 226750-1 SPIRAL BEVEL GEAR 35 |
| 84 | 262074-1 | Makita 262074-1 RUBBER RING 20 |
| 85 | 267035-6 | Makita 267035-6 FLAT WASHER 14 |
| 86 | 213675-8 | Makita 213675-8 O RING 54 LS1214F |
| 87 | 316473-0 | Makita 316473-0 BEARING BOX |
| 88 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 89 | 322989-5 | Makita 322989-5 SPINDLE, LS1212 |
| 90 | 211278-2 | Makita 211278-2 BALL BEARING 6203DDW, 9069 |
| 91 | 285828-9 | Makita 285828-9 BEARING RETAINER 66, LS1013 |
| 92 | 257022-3 | Makita 257022-3 RING 16, LS1040 |
| 93 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 94 | 224398-3 | Makita 224398-3 FLANGE 61 LS1214F |
| 95 | 257262-3 | Makita 257262-3 RING 16, LH1040 |
| 96 | 224398-3 | Makita 224398-3 FLANGE 61 LS1214F |
| 97 | 265405-3 | Makita 265405-3 HEX.FLANGE HEAD BOLT M10*20, LS1016L |
| 98 | 344473-0 | Makita 344473-0 CENTER PLATE |
| 99 | 344038-8 | Makita 344038-8 CENTER COVER |
| 100 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 101 | 265008-3 | Makita 265008-3 FLAT HEAD SCREW M5, LS1013 |
| 102 | 231613-8 | Makita 231613-8 TORSION SPRING 45, LS1212 |
| 103 | 418614-5 | Makita 418614-5 SAFETY COVER FOR LS1214F |
| 104 | 253977-0 | Makita 253977-0 FLAT WASHER 6 |
| 105 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 181 | 253791-4 | Makita 253791-4 FLAT WASHER 25 LS1214F |

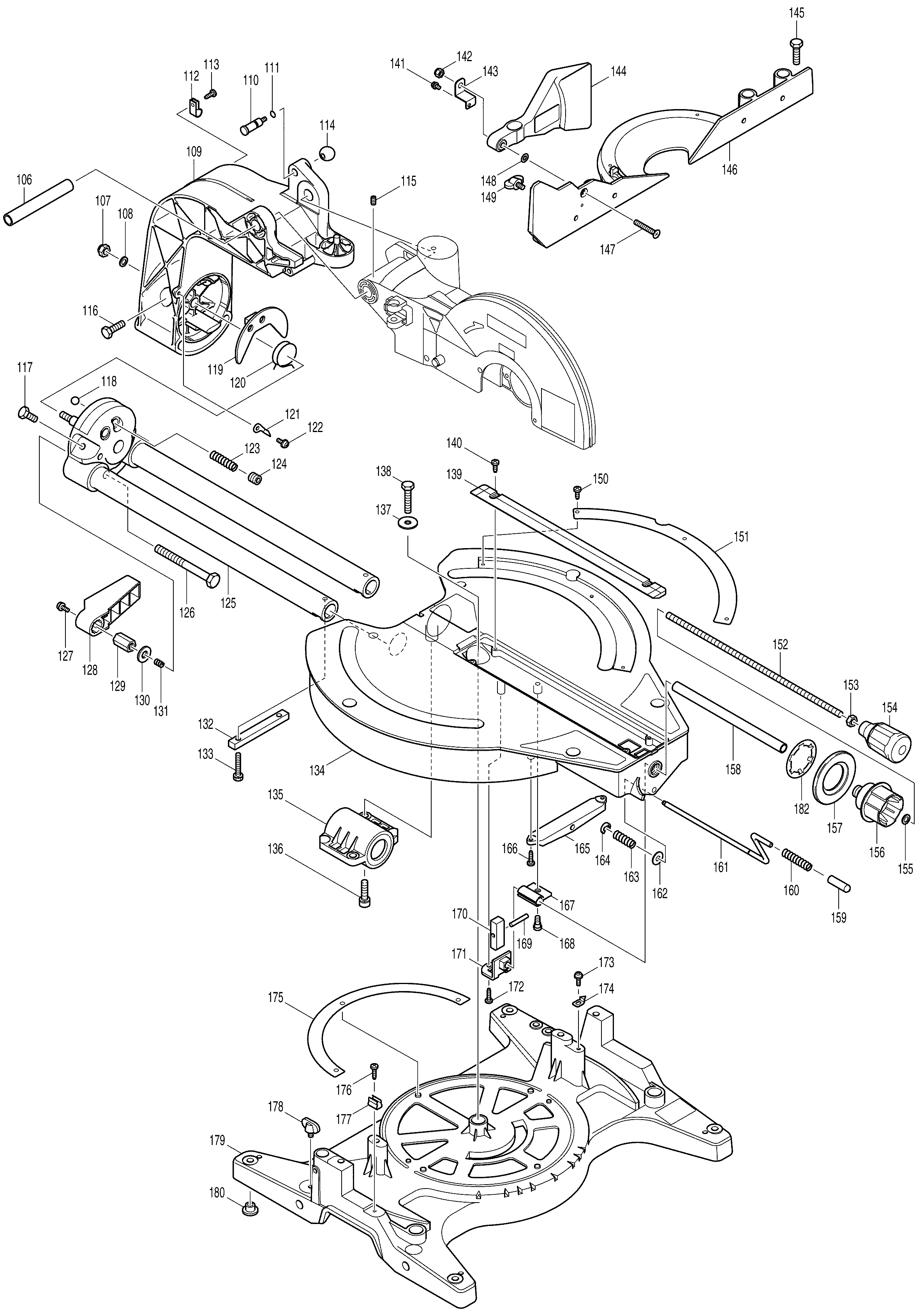

Sheet 2: Makita LS1214F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 106 | 331428-4 | Makita 331428-4 PIPE 16-113, 2414NB |
| 107 | 252105-4 | Makita 252105-4 HEX LOCK NUT M8*13, LS1040 |
| 108 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 109 | 317756-1 | Makita 317756-1 ARM LS1214F |
| 110 | 322629-5 | Makita 322629-5 STOPPER PIN, LS1212 |
| 111 | 213011-8 | Makita 213011-8 O RING 7, LS1216 |
| 112 | 687042-7 | Makita 687042-7 CORD CLAMP, 2012NB |
| 113 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 114 | 271601-3 | Makita 271601-3 Knob 20 for LS0713 |
| 115 | 251961-9 | Makita 251961-9 HEX S.H.SEI SCREW M6X10, LS1040 |
| 116 | 265455-8 | |
| 117 | 265412-6 | Makita 265412-6 HEX. BOLT M8X20 LS1013 |
| 118 | 216003-6 | Makita 216003-6 STEEL BALL 10 LS1013 |
| 119 | 345418-1 | Makita 345418-1 GUIDE PLATE LS1214F |
| 120 | 231626-9 | Makita 231626-9 TORSION SPRING 28, LS1013 |
| 121 | 413067-3 | Makita 413067-3 INDICATION PLATE |
| 122 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 123 | 233168-9 | Makita 233168-9 COMPRESSION SPRING 5 |
| 124 | 266131-7 | Makita 266131-7 HEX. SOCKET HEAD BOLT M12 X12 |
| 125 | 151459-5 | Makita 151459-5 ARM HOLDER COMPLETE, LS1013 |
| 126 | 251662-9 | Makita 251662-9 HEX. BOLT M10X100 |
| 127 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 128 | 416006-2 | Makita 416006-2 Lever 100 LS1013 LS1040 LF1000 |
| 129 | 252144-4 | Makita 252144-4 HEX NUT, LS1013 |
| 130 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 131 | 231266-3 | Makita 231266-3 COMPRESSION SPRING 5, LS0713F |
| 132 | 152542-1 | Makita 152542-1 SQUARE ROD COMPLETE, LS1013 |
| 133 | 921356-7 | Makita 921356-7 HEX BOLT M6X35, LS1013 |
| 134 | 153832-5 | Makita 153832-5 TURN BASE COMPLETE, LS1013 |
| 135 | 152540-5 | Makita 152540-5 BEARING BOX COMPLETE, LS1013 |
| 136 | 922451-6 | Makita 922451-6 HEX.SOCKET SCREW M8X30, LS1013 |
| 137 | 253852-0 | Makita 253852-0 FLAT WASHER 8, LS1013 |
| 138 | 265442-7 | Makita 265442-7 HEX. BOLT M8X40 |
| 139 | 415209-5 | Makita 415209-5 Plastic Insert Kerf Board LS1013 LS1013F LS1214 |
| 140 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 141 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 142 | 252014-7 | Makita 252014-7 HEX LOCK NUT M6*10, N5900B |
| 143 | 344463-3 | Makita 344463-3 SUB FENCE PLATE, LS1013 |
| 144 | 153890-1 | Makita 153890-1 SUB FENCE COMPLETE LS1214F |
| 145 | 265488-3 | Makita 265488-3 HEX BOLT M8*30, LS1040 |
| 146 | 317757-9 | Makita 317757-9 Guide Fence LS1214 |
| 147 | 912357-6 | Makita 912357-6 COUNTERSUNK HEAD SCREW M6 X35 |
| 148 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 149 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 150 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 151 | 816326-8 | Makita 816326-8 MITER SCALE PLATE, LS1013 |
| 152 | 266132-5 | Makita 266132-5 SCREW M8*320, LS1013 |
| 153 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 154 | 271314-6 | Makita 271314-6 KNOB, LS1013 |
| 155 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 156 | 152541-3 | Makita 152541-3 KNOB 48 COMPLETE, LS1013 |
| 157 | 421863-5 | Makita 421863-5 CAP, LS1214 |
| 158 | 331491-7 | Makita 331491-7 PIPE 9-200, LS1013 |
| 159 | 421563-7 | Makita 421563-7 CAP 10, LS1013 |
| 160 | 322924-3 | Makita 322924-3 COIL SPRING, LS1013 |
| 161 | 322909-9 | Makita 322909-9 LOCK PIN, LS1013 |
| 162 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 163 | 231307-5 | Makita 231307-5 COMPRESSION SPRING 6, LS1013 |
| 164 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 165 | 316899-6 | Makita 316899-6 PIN HOLDER, LS1013 |
| 166 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 167 | 344411-2 | Makita 344411-2 SLIDE STOPPER, LS1013 |
| 168 | 251267-5 | Makita 251267-5 PAN HEAD SCREW M6, LS1013 |
| 169 | 256196-7 | Makita 256196-7 PIN 5, LS1016 |
| 170 | 331493-3 | Makita 331493-3 TURN STOPPER, LS1013 |
| 171 | 344412-0 | Makita 344412-0 STOPPER HOLDER |
| 172 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 173 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 174 | 816128-2 | Makita 816128-2 POSITION PLATE, LS1013 |
| 175 | 344477-2 | Makita 344477-2 SLIDE PLATE, LS1013 |
| 176 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 177 | 232075-3 | Makita 232075-3 LEAF SPRING, LC1230 |
| 178 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 179 | 153889-6 | Makita 153889-6 BASE COMPLETE, LS1214 |
| 180 | 286212-1 | Makita 286212-1 CAP 20, LS1013 |
| 182 | 345494-5 | Makita 345494-5 STOPPER C, LS1214 |
