Makita LS1110F

Makita LS1110F: exploded parts diagram, 2 sheets, 169 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita LS1110F: 169 positions on 2 sheets

Sheet 1: Makita LS1110F parts diagram

Makita LS1110F parts diagram, sheet 1
No.Part numberPart name
1JM00000648Makita JM00000648 HANDLE LEFT
2JM23000154
3JM23100165Makita JM23100165 PROTECTION TUBE, LS1017L
4JM00000584Makita JM00000584 CORD CLAMP, LS0816F
5JM00000548Makita JM00000548 TAPPING SCREW ST4.2X13, LS0816F
6JM23100171Makita JM23100171 TERMINAL POLE, LS1017L
7JM00000573Makita JM00000573 PW CIRCUIT FOR LED LAMP, LS0816F
8JM23100177Makita JM23100177 BRAKE SYSTEM SWITCH KEY, LS1017L
9JM00000582Makita JM00000582 COMPRESSION SPRING, LS0816F
10JM00000581Makita JM00000581 LOCK OFF LINK ROCKER, LS0816F
11JM00000575Makita JM00000575 SWITCH LEVER, LS0816F
12JM00000577
13JM23100169Makita JM23100169 CAPACITOR, LS1017L
14JM00000647Makita JM00000647 HANDLE RIGHT
15JM00000579Makita JM00000579 LAMP SWITCH, LS0816F
16JM00000548Makita JM00000548 TAPPING SCREW ST4.2X13, LS0816F
17JM00000551Makita JM00000551 PAN HEAD SCREW M5X30, LS0816F
19JM00000534
20JM27000317Makita JM27000317 HEX SOCKET CAP SCREW(OR BOLT), MLT100
21JM00000643Makita JM00000643 OUTPUT SHAFT ASSEMBLY
22JM00000623
24JM23500137Makita JM23500137 BEARING 6201-2R
25JM23200032Makita JM23200032 BEARING 6001, LS1018L
26JM00000644
27JM23100172Makita JM23100172 ABSORBER RING, LS1017L
28JM00000625Makita JM00000625 BUFFLE PLATE
29JM00000660Makita JM00000660 SELF TAPPING SCREW ST5X60
30JM00000626Makita JM00000626 FIELD 230V
31JM00000629Makita JM00000629 MOTOR HOUSING ASSY
32JM00000635
33
34JM23000123Makita JM23000123 Carbon Brushes CB-500 for MT230 MLS100
35JM23100182Makita JM23100182 SCREW CAP, LS1017L
36JM23100007Makita JM23100007 FLAT WASHER 5, LS1017L
37JM00000551Makita JM00000551 PAN HEAD SCREW M5X30, LS0816F
38JM00000662
39JM00000661
40JM00000548Makita JM00000548 TAPPING SCREW ST4.2X13, LS0816F
41JM00000444Makita JM00000444 KNOB BOLT M6X46, LS0816F
42JM00000536Makita JM00000536 KNURLED NUT M6, LS0816F
43JM00000611Makita JM00000611 TORSION SPRING 38
44JM00000610
45JM00000609Makita JM00000609 PIVOT SHAFT 12X119
46JM00000537Makita JM00000537 HEX SOCKET SET SCREW M6X16, LS0816F
47JM00000532Makita JM00000532 HEX SOCKET HEAD BOLT M6X18, LS0816F
48JM00000531Makita JM00000531 R-PIN 6, LS0816F
49JM00000538Makita JM00000538 SET SCREW M6X18, LS0816F
50JM23100035Makita JM23100035 ANTI-LOOSEN RING, LS1017L
51JM00000460Makita JM00000460 TAPPING SCREW ST4.2X9.5, LS0816F
52JM00000460Makita JM00000460 TAPPING SCREW ST4.2X9.5, LS0816F
53JM00000618Makita JM00000618 DUST PORT
54JM00000619Makita JM00000619 DUST CHUTE PLATE
55JM23100098Makita JM23100098 LINK SLEEVE, LS1017L
56JM00000495Makita JM00000495 STEPPED H.S.H.BOLT M6X10, LS0816F
57JM00000621Makita JM00000621 LINK PLATE COMP
58JM23100071Makita JM23100071 THIN FLAT WASHER 6, LS1017L
59JM00000525Makita JM00000525 STOP RING E-5, LS0816F
60JM00000589
61
62JM00000540Makita JM00000540 LED LAMP BOX, LS0816F
63JM00000541Makita JM00000541 LED LAMP COMP, LS0816F
64JM00000622Makita JM00000622 LED WIRE COVER
65JM23100065Makita JM23100065 CROSS HEAD SCREW M4X8, LS1017L
67JM00000503
68JM00000504
69JM00000614
70JM00000615
71JM00000507
72JM00000616
73JM00000617
74JM00000510
75JM23100141Makita JM23100141 LOCKNUT M5, LS1017L
76JM00000530Makita JM00000530 STEPPED TRASS HEAD BOLT M6X10, LS0816F
77JM00000620Makita JM00000620 HEX SOCKET HEAD BOLT M8X20 LH
78JM23100124Makita JM23100124 BLADE FLANGE, LS1017L
79JM27000100Makita JM27000100 BLADE INNER LING 30.0, MLT100
80JM23100124Makita JM23100124 BLADE FLANGE, LS1017L

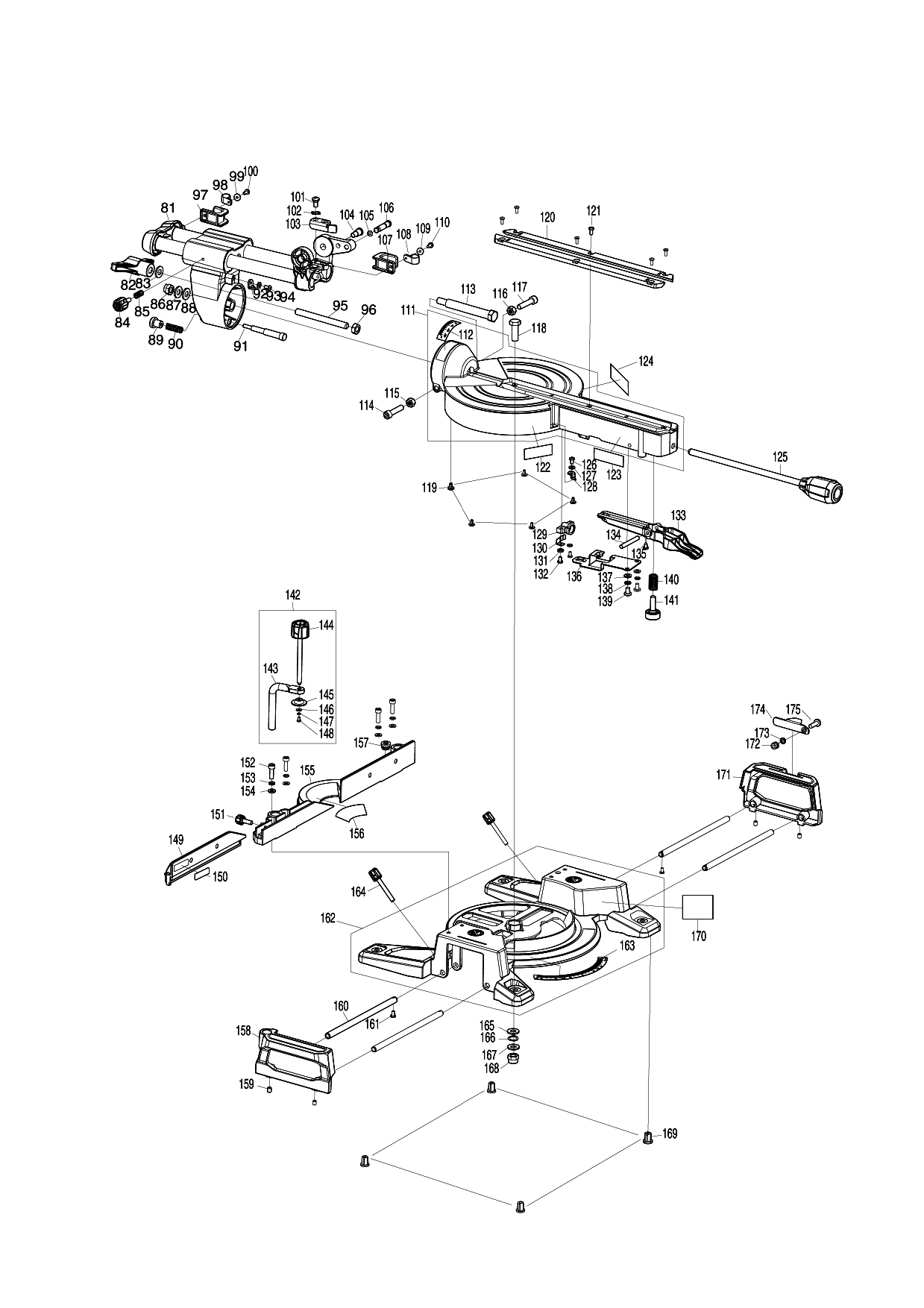

Sheet 2: Makita LS1110F parts diagram

Makita LS1110F parts diagram, sheet 2
No.Part numberPart name
81JM00000612
82JM00000477Makita JM00000477 WING NUT M10, LS0816F
83JM23100010Makita JM23100010 FLAT WASHER 10, LS1017L
84JM00000478Makita JM00000478 KNOB BOLT M6X20, LS0816F
85JM00000479Makita JM00000479 COMPRESSION SPRING 9X18, LS0816F
86JM23100009Makita JM23100009 LOCKNUT M10, LS1017L
87JM23100010Makita JM23100010 FLAT WASHER 10, LS1017L
88JM23100010Makita JM23100010 FLAT WASHER 10, LS1017L
89JM00000480Makita JM00000480 KNOB NUT M5, LS0816F
90JM00000481Makita JM00000481 COMPRESSION SPRING 10X32, LS0816F
91JM00000608Makita JM00000608 BEVEL STEP STOPPER BOLT M5X18
92JM00000482Makita JM00000482 BEVEL SCALE POINTER, LS0816F
93JM23100016Makita JM23100016 FLAT WASHER 4, LS1017L
94JM23100065Makita JM23100065 CROSS HEAD SCREW M4X8, LS1017L
95JM00000607Makita JM00000607 HEX SOCKET SCREW ROD M10X120
96JM23000015Makita JM23000015 ANTI-LOOSE NUTM10, MT230
97JM00000501Makita JM00000501 CORD REEL HOOK, LS0816F
98JM00000500Makita JM00000500 CORD CLIP, LS0816F
99JM00000499Makita JM00000499 BIG FLAT WASHER 5, LS0816F
100JM00000498Makita JM00000498 PAN HEAD SCREW M5X16, LS0816F
101JM00000517Makita JM00000517 STEPPED PAN HEAD SCREW M6X10, LS0816F
102JM23100094Makita JM23100094 WAVE SPRING WASHER, LS1017L
103JM00000516Makita JM00000516 CUTTING DEPTH ADJUSTABLE PLATE, LS0816F
104JM00000515Makita JM00000515 H.S.H. SPECIAL BOLT M10X10, LS0816F
105JM23100150Makita JM23100150 SEALING RING, LS1017L
106JM00000496Makita JM00000496 LOCK PIN, LS0816F
107JM00000501Makita JM00000501 CORD REEL HOOK, LS0816F
108JM00000500Makita JM00000500 CORD CLIP, LS0816F
109JM00000499Makita JM00000499 BIG FLAT WASHER 5, LS0816F
110JM00000498Makita JM00000498 PAN HEAD SCREW M5X16, LS0816F
112JM00000606
113JM00000467Makita JM00000467 CONNECTION SHAFT BOLT M10X20, LS0816F
114JM00000603Makita JM00000603 HEX SOCKET HEAD BOLT M8X40
115JM23000028Makita JM23000028 HEX. NUT M8, MT230
116JM23000028Makita JM23000028 HEX. NUT M8, MT230
117JM00000603Makita JM00000603 HEX SOCKET HEAD BOLT M8X40
118JM00000468Makita JM00000468 HEX BOLT M10X45, LS0816F
119JM00000453Makita JM00000453 SLIDING FOOT, LS0816F
120JM00000476Makita JM00000476 KERF BOARD, LS0816F
121JM23100033Makita JM23100033 CROSS HEAD SCREW M4X12, LS1017L
122
123JM23180057Makita JM23180057 CAUTION LABEL
124
125JM00000463Makita JM00000463 GRIP BOLT M10X244, LS0816F
126JM23100065Makita JM23100065 CROSS HEAD SCREW M4X8, LS1017L
127JM23100016Makita JM23100016 FLAT WASHER 4, LS1017L
128JM00000465Makita JM00000465 TURN BASE POINTER, LS0816F
129JM00000454Makita JM00000454 BACK SUPPORT, LS0816F
130JM00000455Makita JM00000455 LOCK PLATE, LS0816F
131JM23100015Makita JM23100015 SPRING WASHER 4, LS1017L
132JM00000456Makita JM00000456 PAN HEAD SCREW M4X16, LS0816F
133JM00000459Makita JM00000459 POSITION LOCK LEVER, LS0816F
134JM00000464Makita JM00000464 PIN 6X50, LS0816F
135JM00000460Makita JM00000460 TAPPING SCREW ST4.2X9.5, LS0816F
136JM00000457Makita JM00000457 POSITION SPRING PLATE, LS0816F
137JM23100041Makita JM23100041 FLAT WASHER, LS1017L
138JM23100151Makita JM23100151 SPRING WASHER 6, LS1017L
139JM00000604Makita JM00000604 PAN HEAD SCREW M6X12
140JM00000461Makita JM00000461 COMPRESSION SPRING 14.5X25, LS0816F
141JM00000462Makita JM00000462 FOOT BOLT M8X23, LS0816F
143JM00000474
144JM00000475
145JM00000473
146JM00000472
147JM23100015Makita JM23100015 SPRING WASHER 4, LS1017L
148JM23100033Makita JM23100033 CROSS HEAD SCREW M4X12, LS1017L
149JM00000602
150JM23580063
151JM00000449Makita JM00000449 KNOB BOLT M6X18, LS0816F
152JM00000450Makita JM00000450 HEX SOCKET HEAD BOLT M8X20, LS0816F
153JM23100061Makita JM23100061 SPRING WASHER 8, LS1017L
154JM23100060Makita JM23100060 FLAT WASHER 8, LS1017L
155JM00000601
156
157JM00000446Makita JM00000446 WRENCH HOLDER SLEEVE, LS0816F
158JM00000433Makita JM00000433 LEFT EXTENSION TABLE, LS0816F
159JM23100087Makita JM23100087 LOCK SCREW M6X8, LS1017L
160JM00000434Makita JM00000434 EXTENSION PIPE 10X210, LS0816F
161JM00000435Makita JM00000435 PAN HEAD SCREW M4X8, LS0816F
163JM00000439
164JM00000444Makita JM00000444 KNOB BOLT M6X46, LS0816F
165JM23100010Makita JM23100010 FLAT WASHER 10, LS1017L
166JM00000437Makita JM00000437 WAVE WASHER 10, LS0816F
167JM23100010Makita JM23100010 FLAT WASHER 10, LS1017L
168JM23100009Makita JM23100009 LOCKNUT M10, LS1017L
169JM00000436Makita JM00000436 RUBBER FOOT, LS0816F
170JM23180056Makita JM23180056 CAUTION LABEL, LS1017L
171JM00000442Makita JM00000442 RIGHT EXTENSION TABLE, LS0816F
172JM00000441Makita JM00000441 HEX. LOCK NUT M6, LS0816F
173JM23100041Makita JM23100041 FLAT WASHER, LS1017L
174JM00000443Makita JM00000443 SET PLATE, LS0816F
175JM00000074
