All parts of Makita LS1040F: 113 positions on 2 sheets

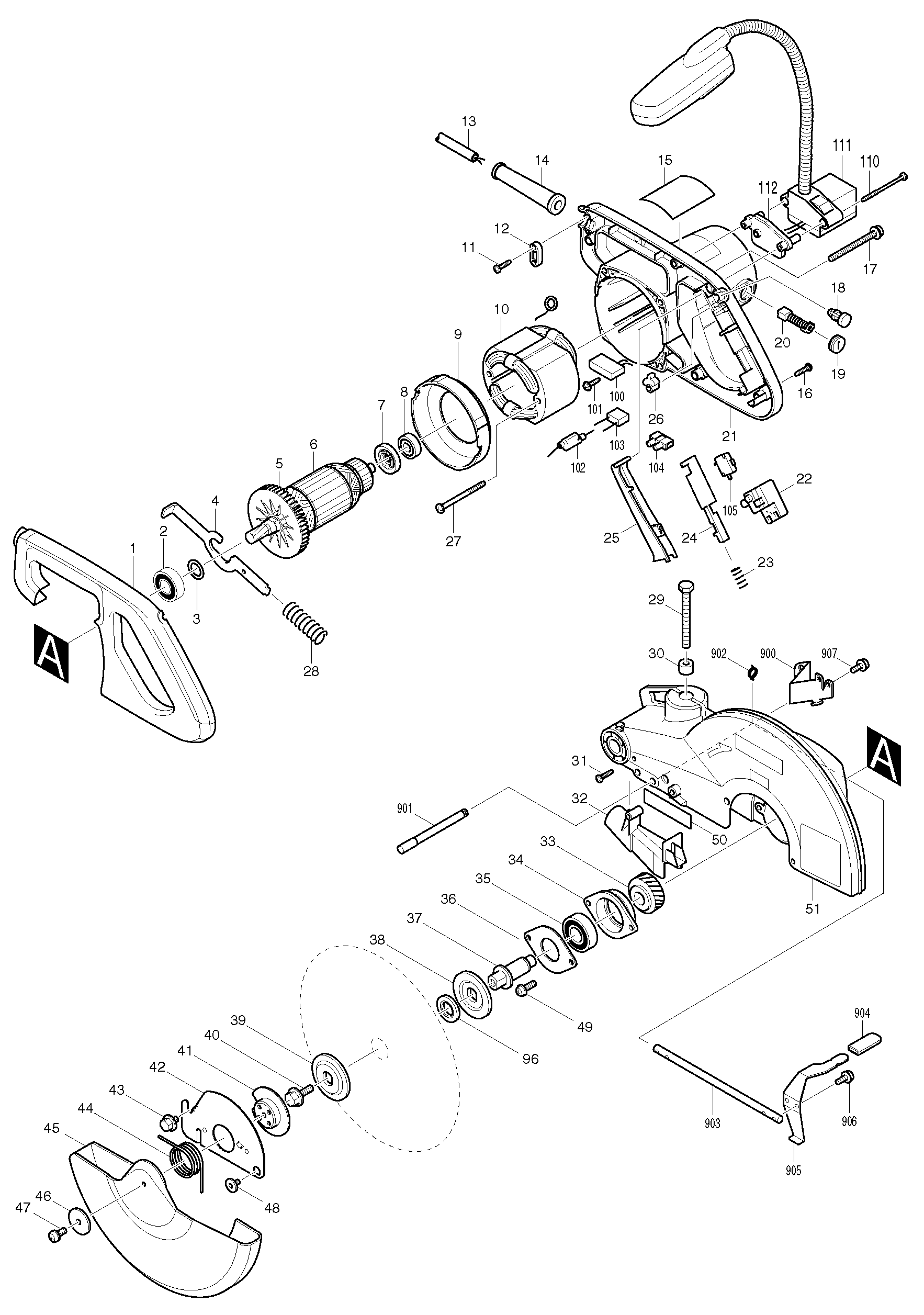

Sheet 1: Makita LS1040F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 416004-6 | Makita 416004-6 HANDLE COVER, LS1040 |
| 2 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 3 | 253853-8 | Makita 253853-8 FLAT WASHER 15, LS1040 |
| 4 | 343641-2 | Makita 343641-2 SHAFT LOCK, LS1040 |
| 6 | 516718-8 | Makita 516718-8 Armature Assembly 220V for LS1040 |
| 7 | 681640-9 | Makita 681640-9 INSULATION WASHER, 5377MG |
| 8 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 9 | 416442-2 | Makita 416442-2 BAFFLE PLATE, LS1040 |
| 10 | 526068-3 | Makita 526068-3 FIELD ASSY 220-240V, LS1040 |
| 11 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 12 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 13 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 14 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 15 | 850407-8 | |
| 16 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 17 | 911383-2 | Makita 911383-2 PAN HEAD SCREW M6X60 WR, LS1040 |
| 18 | 411478-6 | Makita 411478-6 Switch Button LS1040 LS1214 LS1040F |
| 19 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 20 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 21 | 153568-6 | |
| 22 | 651923-1 | Makita 651923-1 Switch TG70B for LS1040 |
| 23 | 231457-6 | Makita 231457-6 COMPRESSION SPRING 3, LS1040 |
| 24 | 416000-4 | Makita 416000-4 LOCK OFF LEVER, LS1040 |
| 25 | 415999-0 | Makita 415999-0 SWITCH LEVER, LS1040 |
| 26 | 414546-4 | Makita 414546-4 CAM |
| 27 | 266029-8 | Makita 266029-8 TAPPING SCREW PT 5X65, 5277NB |
| 28 | 231297-2 | Makita 231297-2 COMPRESSION SPRING 9, 5007MG |
| 29 | 251667-9 | Makita 251667-9 HEX BOLT M8*75, LS1040 |
| 30 | 262511-5 | Makita 262511-5 RUBBER SLEEVE 6, LS1040 |
| 31 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 32 | 416007-0 | Makita 416007-0 GUIDE COVER, LS1040 |
| 33 | 226465-0 | Makita 226465-0 HELICAL GEAR 42, LS1040 |
| 34 | 316821-3 | Makita 316821-3 BEARING BOX, LS1040 |
| 35 | 211256-2 | Makita 211256-2 BALL BEARING 6203LLB, LS1040 |
| 36 | 285685-5 | Makita 285685-5 BEARING RETAINER 64, LS1040 |
| 37 | 322865-3 | Makita 322865-3 SPINDLE, LS1040 |
| 38 | 224333-1 | Makita 224333-1 FLANGE 53, LH1040 |
| 39 | 224333-1 | Makita 224333-1 FLANGE 53, LH1040 |
| 40 | 265355-2 | Makita 265355-2 |
| 41 | 343639-9 | Makita 343639-9 CENTER PLATE, LS1040 |
| 42 | 344380-7 | Makita 344380-7 CENTER COVER, LS1040 |
| 43 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 44 | 231593-8 | Makita 231593-8 TORSION SPRING 36, LS1040 |
| 45 | 416003-8 | Makita 416003-8 SAFETY COVER, LS1040 |
| 46 | 267136-0 | Makita 267136-0 FLAT WASHER 5, LS1040 |
| 47 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 48 | 265985-9 | Makita 265985-9 HEX.SOCKET HEAD BOLTM6, LS1040 |
| 49 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 50 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 51 | 151489-6 | Makita 151489-6 BLADE CASE COMPLETE FOR LS1040 |
| 96 | 257137-6 | Makita 257137-6 RING 16 |
| 100 | 631588-5 | Makita 631588-5 SOFT START CIRCUIT PRICE, LS1040 |
| 101 | 266300-0 | Makita 266300-0 TAPPING SCREW 4*18, 9523NB |
| 102 | 646073-5 | Makita 646073-5 CHOKE COIL, LS1040 |
| 103 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 104 | 654575-7 | Makita 654575-7 TERMINAL BLOCK, 5704R |
| 105 | 651941-9 | Makita 651941-9 SWITCH, LS1040 |
| 110 | 266091-3 | Makita 266091-3 TAPPING SCREW 4X50, LS1040F |
| 111 | 125180-2 | Makita 125180-2 LIGHT ASSEMBLY, LS1040F |
| 112 | 418072-5 | Makita 418072-5 SUPPORTER, LS1040F |
| 900 | 344572-8 | Makita 344572-8 LOCK PLATE, LS1040 |
| 901 | 323720-2 | Makita 323720-2 LOCK PIN 8, LS1040 |
| 902 | 231633-2 | Makita 231633-2 TORSION SPRING 8, LS1040 |
| 903 | 323721-0 | Makita 323721-0 ROD 8, LS1040 |
| 904 | 421589-9 | Makita 421589-9 CAP, LS1040 |
| 905 | 345302-0 | Makita 345302-0 LOCK LEVER LS1040 |
| 906 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 907 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |

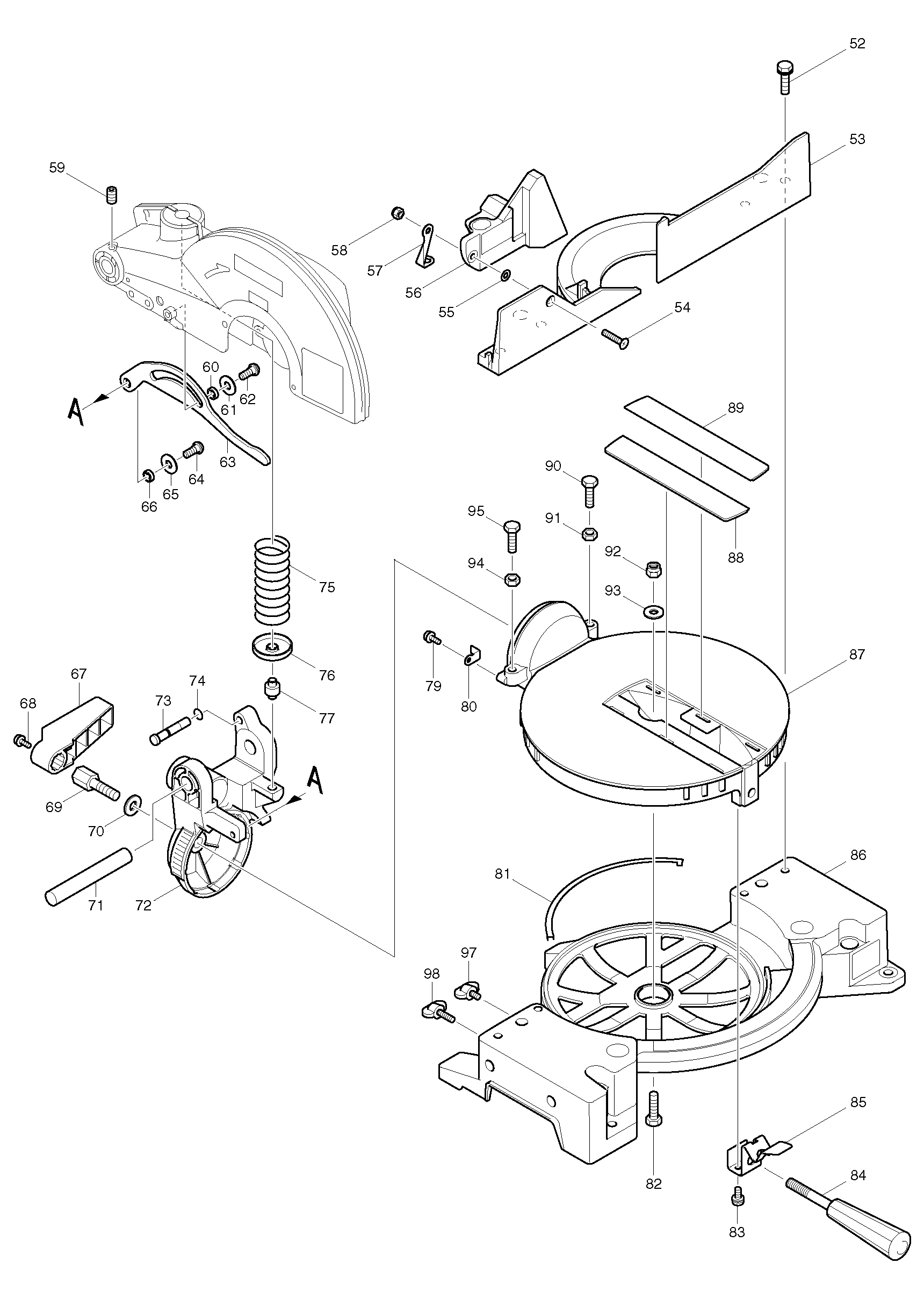

Sheet 2: Makita LS1040F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 52 | 265488-3 | Makita 265488-3 HEX BOLT M8*30, LS1040 |
| 53 | 316826-3 | |
| 54 | 912342-9 | Makita 912342-9 COUNTERSUNK HEAD SCREW M6 X25 |
| 55 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 56 | 150663-3 | Makita 150663-3 SUB FENCE COMPLETE, LS1040 |
| 57 | 344476-4 | Makita 344476-4 SUB FENCE PLATE, LS1040 |
| 58 | 252014-7 | Makita 252014-7 HEX LOCK NUT M6*10, N5900B |
| 59 | 251961-9 | Makita 251961-9 HEX S.H.SEI SCREW M6X10, LS1040 |
| 60 | 257162-7 | Makita 257162-7 WASHER 7, LS1040 |
| 61 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 62 | 265984-1 | Makita 265984-1 Hex. Socket Button H.S.M6 for LS1040 |
| 63 | 344377-6 | Makita 344377-6 LINK PLATE, LS1040 |
| 64 | 265984-1 | Makita 265984-1 Hex. Socket Button H.S.M6 for LS1040 |
| 65 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 66 | 257162-7 | Makita 257162-7 WASHER 7, LS1040 |
| 67 | 416006-2 | Makita 416006-2 Lever 100 LS1013 LS1040 LF1000 |
| 68 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 69 | 265437-0 | Makita 265437-0 HEX BOLT M10, LS1040 |
| 70 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 71 | 256836-7 | Makita 256836-7 ROD 16, LS1040 |
| 72 | 150664-1 | Makita 150664-1 ARM COMPLETE FOR LS1040 |
| 73 | 322317-4 | Makita 322317-4 STOPPER PIN, LS1040 |
| 74 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 75 | 233152-4 | Makita 233152-4 COMPRESSION SPRING 28, LS1040 |
| 76 | 344464-1 | Makita 344464-1 SPRING HOLDER, LS1040 |
| 77 | 256280-8 | Makita 256280-8 PIN 8, LS1040 |
| 79 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 80 | 344385-7 | |
| 81 | 343799-7 | Makita 343799-7 SLIDE PLATE, LS1040 |
| 82 | 921452-1 | Makita 921452-1 HEX BOLT M8X30, LS1040 |
| 83 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 84 | 273495-2 | Makita 273495-2 Grip 32 for LS1040 |
| 85 | 344381-5 | Makita 344381-5 KNOCK SPRING, LS1040 |
| 86 | 150648-9 | Makita 150648-9 BASE COMPLETE, LS1040 |
| 87 | 316824-7 | Makita 316824-7 TURN BASE, LS1040 |
| 88 | 416001-2 | Makita 416001-2 Kerf Board for LS1040 |
| 89 | 416001-2 | Makita 416001-2 Kerf Board for LS1040 |
| 90 | 921452-1 | Makita 921452-1 HEX BOLT M8X30, LS1040 |
| 91 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 92 | 252105-4 | Makita 252105-4 HEX LOCK NUT M8*13, LS1040 |
| 93 | 253762-1 | Makita 253762-1 FLAT WASHER 8, LS1045 |
| 94 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 95 | 921452-1 | Makita 921452-1 HEX BOLT M8X30, LS1040 |
| 97 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 98 | 265708-5 | Makita 265708-5 THUMB SCREW M6*20, LS1040 |
