Makita LS1020
Makita LS1020: exploded parts diagram, 2 sheets, 118 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita LS1020: 118 positions on 2 sheets
Sheet 1: Makita LS1020 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 163100-8 | Makita 163100-8 SHAFT LOCK |
| 2 | 411466-3 | Makita 411466-3 BAFFLE PLATE |
| 3 | 213459-4 | Makita 213459-4 O RING 32, 5007NB |
| 4 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 5 | 241514-2 | Makita 241514-2 FAN 92, LS1011 |
| 6 | 514817-0 | Makita 514817-0 ARMATURE ASS'Y 200V-220V |
| 7 | 681623-9 | Makita 681623-9 INSULATION WASHER |
| 8 | 211068-3 | Makita 211068-3 BALL BEARING 6200LB |
| 9 | 911290-9 | Makita 911290-9 PAN HEAD SCREW M5X65 |
| 10 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 11 | 524778-6 | Makita 524778-6 FIELD ASS'Y 220V |
| 12 | 157841-6 | Makita 157841-6 MOTOR HOUSING |
| 13 | 855945-5 | |
| 14 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 16 | 251335-4 | |
| 17 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 18 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 19 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 20 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 21 | 411467-1 | Makita 411467-1 CLAMP COVER |
| 22 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 23 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 24 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 25 | 410839-7 | Makita 410839-7 HANDLE COVER |
| 26 | 911101-8 | Makita 911101-8 PAN HEAD SCREW M4X6 |
| 27 | 651135-6 | OLDN Makita 651135-6 SWITCH SGE220RD-1 |
| 28 | 411468-9 | Makita 411468-9 CLAMP BASE |
| 29 | 682503-2 | Makita 682503-2 Cord Guard 8-90, 5806B |
| 30 | 666066-6 | Makita 666066-6 POWER S.CORD HD-21 CORD, 9557PB |
| 31 | 251953-8 | Makita 251953-8 SCREW M10X70 |
| 32 | 941252-3 | Makita 941252-3 FLAT WASHER, LF1000 |
| 33 | 931501-6 | Makita 931501-6 HEX. NUT M10 |
| 34 | 421328-7 | Makita 421328-7 CUSHION |
| 35 | 251399-8 | Makita 251399-8 PAN HEAD SCREW M5 |
| 36 | 911121-2 | Makita 911121-2 PAN HEAD SCREW M4*14, GA400D |
| 37 | 254203-0 | Makita 254203-0 KEY 4 |
| 38 | 912327-5 | Makita 912327-5 COUNTERSUNK HEAD SCREW M6 X18 |
| 39 | 342968-7 | Makita 342968-7 BAND HOLDER |
| 40 | 410723-6 | |
| 41 | 343465-6 | Makita 343465-6 GUIDE ARM |
| 42 | 253022-1 | |
| 43 | 251331-2 | Makita 251331-2 + PAN HEAD SCREW M6 |
| 44 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 45 | 257157-0 | Makita 257157-0 RING 8 |
| 46 | 251331-2 | Makita 251331-2 + PAN HEAD SCREW M6 |
| 47 | 923901-4 | Makita 923901-4 CAP SQUARE NECK BOLT M5X8 |
| 48 | 342971-8 | |
| 49 | 231933-0 | |
| 50 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 51 | 414032-5 | Makita 414032-5 SAFETY COVER |
| 52 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 53 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 54 | 151288-6 | Makita 151288-6 BLADE CASE |
| 55 | 251644-1 | Makita 251644-1 Hex Flange Head Bolt M8*20 for 5007NB |
| 56 | 224118-5 | |
| 57 | 224206-8 | Makita 224206-8 INNER FLANGE 55 |
| 58 | 911231-5 | Makita 911231-5 PAN HEAD SCREW M5*20, HR4002 |
| 59 | 285660-1 | |
| 60 | 321921-6 | Makita 321921-6 SPINDLE |
| 61 | 253328-7 | |
| 62 | 211256-2 | Makita 211256-2 BALL BEARING 6203LLB, LS1040 |
| 63 | 312982-7 | Makita 312982-7 BEARING BOX |
| 64 | 221712-4 | Makita 221712-4 HELICAL GEAR 41 |
| 65 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 66 | 212101-4 | Makita 212101-4 NEEDLE BEARING 1210 |
| 67 | 157857-1 | Makita 157857-1 GEAR HOUSING |
| 117 | 343492-3 | Makita 343492-3 BLADE STOPPER |
| 118 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 119 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |

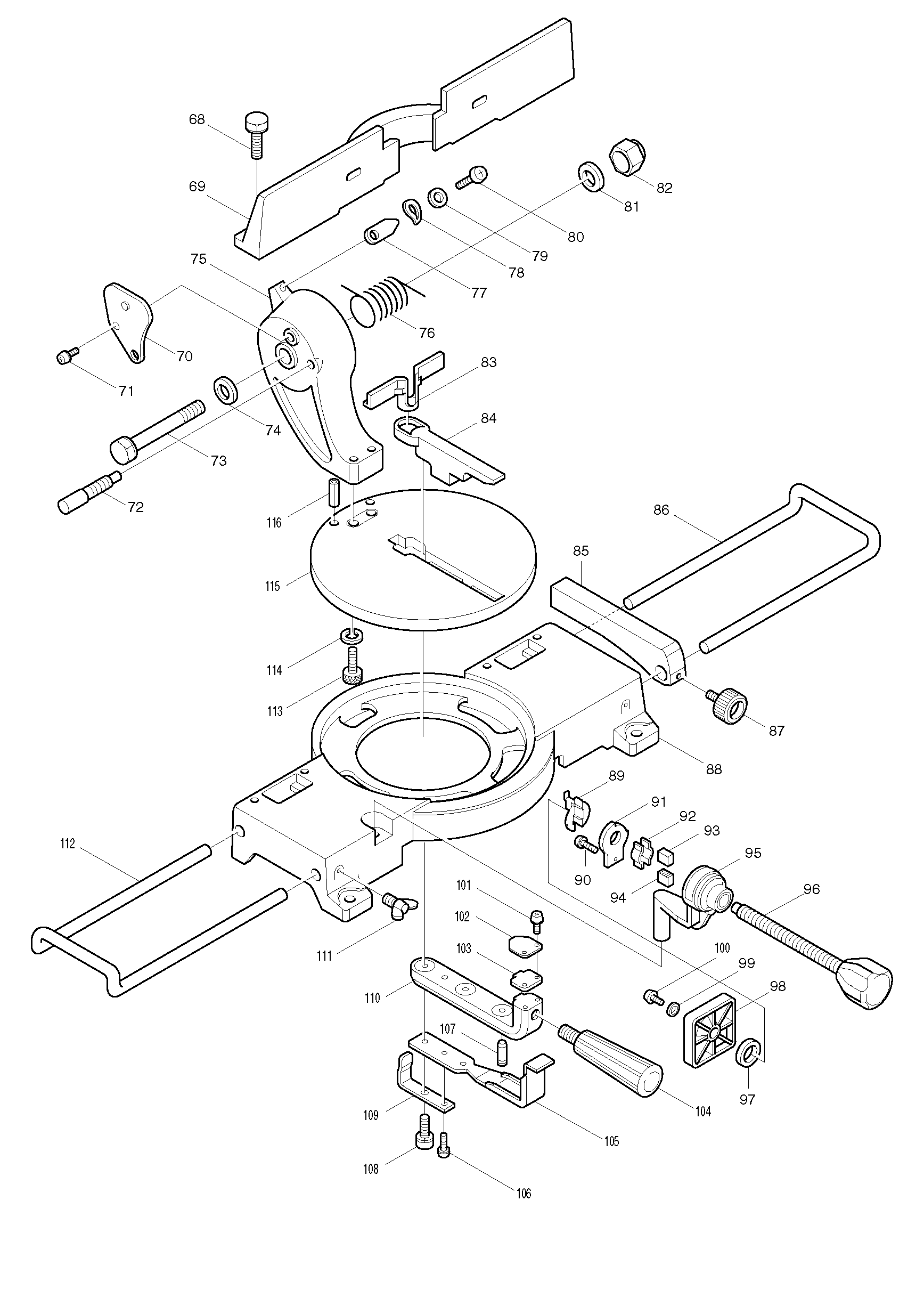

Sheet 2: Makita LS1020 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 68 | 921541-2 | Makita 921541-2 HEX. BOLT M10X25 |
| 69 | 316067-1 | |
| 70 | 163271-1 | Makita 163271-1 SUPPORTER |
| 71 | 911321-4 | Makita 911321-4 PAN HEAD SCREW M6X16 |
| 72 | 251954-6 | Makita 251954-6 SET SCREW M10 |
| 73 | 251698-8 | Makita 251698-8 HEX. BOLT M16 |
| 74 | 253771-0 | Makita 253771-0 FLAT WASHER 16 |
| 75 | 154355-6 | Makita 154355-6 ARM COMPLETE |
| 76 | 231530-2 | |
| 77 | 341511-9 | Makita 341511-9 STOPPER |
| 78 | 253948-7 | Makita 253948-7 WAVE WASHER, LS0813 |
| 79 | 253309-1 | Makita 253309-1 THIN WASHER 8 |
| 80 | 251267-5 | Makita 251267-5 PAN HEAD SCREW M6, LS1013 |
| 81 | 253771-0 | Makita 253771-0 FLAT WASHER 16 |
| 82 | 252044-8 | Makita 252044-8 HEX. NUT M16-24 |
| 83 | 414236-9 | |
| 84 | 410704-0 | |
| 85 | 312511-6 | |
| 86 | 321790-5 | |
| 87 | 251804-5 | Makita 251804-5 SCREW M6X13 |
| 88 | 151222-6 | Makita 151222-6 BASE COMPLETE |
| 89 | 341912-1 | |
| 90 | 911216-1 | Makita 911216-1 PAN HEAD SCREW M5X14 |
| 91 | 342967-9 | Makita 342967-9 SET PLATE |
| 92 | 341911-3 | |
| 93 | 321490-7 | |
| 94 | 321491-5 | |
| 95 | 151202-2 | Makita 151202-2 VICE ARM COMPLETE |
| 96 | 271272-6 | Makita 271272-6 KNOB 45 |
| 97 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 98 | 315891-9 | |
| 99 | 253047-5 | Makita 253047-5 FLAT WASHER 6 |
| 100 | 911317-5 | |
| 101 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 102 | 816173-7 | |
| 103 | 342823-3 | Makita 342823-3 PLATE |
| 104 | 273481-3 | Makita 273481-3 GRIP 32 |
| 105 | 342824-1 | Makita 342824-1 LATCH SPRING |
| 106 | 911246-2 | |
| 107 | 321789-0 | |
| 108 | 921441-6 | |
| 109 | 232091-5 | Makita 232091-5 LEAF STAY |
| 110 | 311772-5 | Makita 311772-5 TURNING STAY |
| 111 | 924311-8 | Makita 924311-8 WING BOLT M6X12 |
| 112 | 321790-5 | |
| 113 | 922457-4 | Makita 922457-4 HEX. SOCKET HEAD BOLT M8X |
| 114 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 115 | 311788-0 | Makita 311788-0 TURN BASE |
| 116 |
