Makita LS1016L
Makita LS1016L: exploded parts diagram, 2 sheets, 269 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita LS1016L: 269 positions on 2 sheets

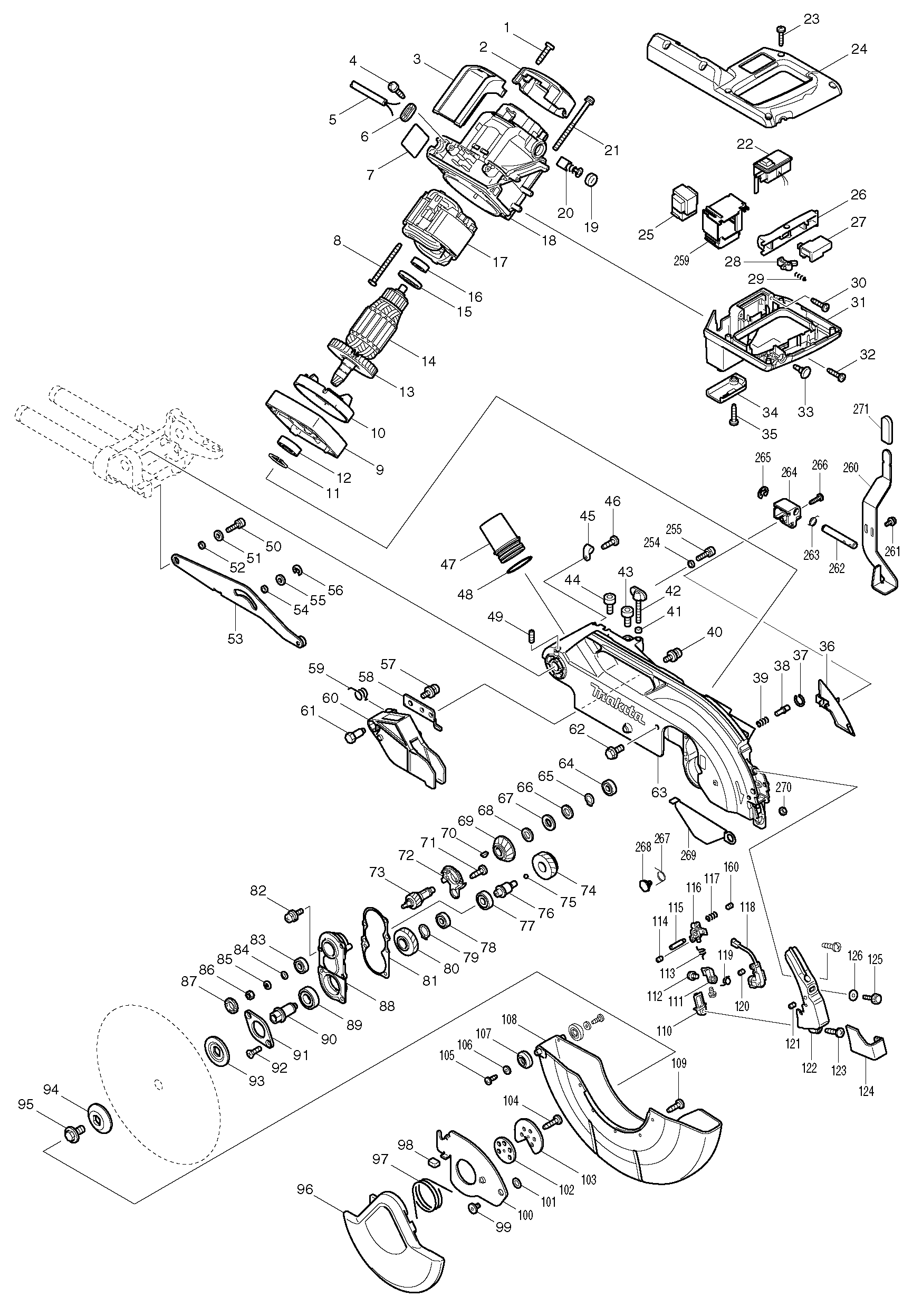

Sheet 1: Makita LS1016L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 450999-3 | Makita 450999-3 REAR COVER, LS1016L |
| 3 | 631866-3 | Makita 631866-3 CONTROLLER, LS1016 |
| 4 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 5 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 6 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 7 | 866470-1 | |
| 8 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 9 | 318399-2 | Makita 318399-2 MOTOR BRACKET, LS1016L |
| 10 | 451001-5 | Makita 451001-5 BAFFLE PLATE, LS1016L |
| 11 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 12 | 211275-8 | Makita 211275-8 BALL BEARING 6003DDW |
| 14 | 517824-2 | Makita 517824-2 ARMATURE ASSY 240V, LS1016 |
| 15 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 16 | 210067-2 | Makita 210067-2 BALL BEARING 6000ZZ, MT952 |
| 17 | 596349-9 | Makita 596349-9 FIELD ASSY 240V, LS1016 |
| 18 | 158958-8 | Makita 158958-8 MOTOR HOUSING COMPLETE |
| 19 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 20 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 21 | 911948-0 | Makita 911948-0 PAN HEAD SCREW M6*80, LS1016L |
| 22 | 638652-3 | Makita 638652-3 LASER SWITCH UNITE, LS1016 |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 24 | 158981-3 | Makita 158981-3 HANDLE COVER COMPLETE, LS1016L |
| 25 | 631908-3 | Makita 631908-3 NEW POWER SUPPLY CIRCUIT, LS1016 |
| 26 | 451003-1 | Makita 451003-1 SWITCH LEVER, LS1016L |
| 27 | 650618-3 | Makita 650618-3 Switch TG72B for LS1016 LS1016L LS1216 LS1216L |
| 28 | 416356-5 | Makita 416356-5 LOCK OFF LEVER, LF1000 |
| 29 | 231026-3 | Makita 231026-3 COMPRESSION SPRING 4, LS0714 |
| 30 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 31 | 140049-9 | Makita 140049-9 HANDLE COMPLETE, LS1016L |
| 32 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 33 | 451037-4 | Makita 451037-4 SWITCH BUTTON, LS1016L |
| 34 | 451000-7 | Makita 451000-7 LEAD COVER HOLDER, LS1016L |
| 35 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 36 | 451004-9 | Makita 451004-9 LEAD COVER, LS1016L |
| 37 | 231928-3 | Makita 231928-3 RING SPRING 8, LS1013 |
| 38 | 256633-1 | Makita 256633-1 PIN 6, LS1016L |
| 39 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 40 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 41 | 262001-8 | Makita 262001-8 URETHANE RING 5, 6906 |
| 42 | 265717-4 | Makita 265717-4 THUMB SCREW M6*43, LS0714 |
| 43 | 266488-6 | Makita 266488-6 HEX SOCKET HEAD BOLT M8*20, LS1016L |
| 44 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 45 | 687042-7 | Makita 687042-7 CORD CLAMP, 2012NB |
| 46 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 47 | 419277-0 | Makita 419277-0 Plastic Dust Nozzle Piece LS1030 LF1000 LS1216 Bag Extractor |
| 48 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 49 | 266321-2 | Makita 266321-2 H.S. HEAD SET SCREW M6*16, LS1016L |
| 50 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 51 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 52 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 53 | 158960-1 | Makita 158960-1 Link Plate Complete for LS1016L |
| 54 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 55 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 56 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 57 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 58 | 346050-4 | Makita 346050-4 GUARD HOLDER, LS1016L |
| 59 | 231675-6 | Makita 231675-6 TORSION SPRING 11, LF1000 |
| 60 | 451006-5 | Makita 451006-5 GUARD, LS1016L |
| 61 | 325645-6 | Makita 325645-6 GUARD SHAFT, LS1016L |
| 62 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 63 | 140290-4 | Makita 140290-4 BLADE CASE COMPLLS1016L |
| 64 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 65 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 66 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 67 | 261104-5 | Makita 261104-5 RUBBER WASHER 12, LS1016 |
| 68 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 69 | 227550-2 | Makita 227550-2 SPIRAL BEVEL GEAR 32, LS1016L |
| 70 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 71 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 72 | 451002-3 | Makita 451002-3 GREAS HOLDER, LS1016L |
| 73 | 227701-7 | Makita 227701-7 HELICAL GEAR 14, LS1016L |
| 74 | 227702-5 | Makita 227702-5 HELICAL GEAR 27, LS1016L |
| 75 | 216024-8 | Makita 216024-8 STEEL BALL 4, LS1016 |
| 76 | 325643-0 | Makita 325643-0 GEAR SHAFT, LS1016L |
| 77 | 210067-2 | Makita 210067-2 BALL BEARING 6000ZZ, MT952 |
| 78 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 79 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 80 | 227703-3 | Makita 227703-3 HELICAL GEAR 28, LS1016L |
| 81 | 442147-8 | Makita 442147-8 GASKET, LS1016L |
| 82 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 83 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 84 | 267010-2 | Makita 267010-2 FLAT WASHER 5, LS1016L |
| 85 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 86 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 87 | 285847-5 | Makita 285847-5 BEARING RETAINER 14-23, CS540D |
| 88 | 158957-0 | Makita 158957-0 BEARING BOX COMPLETE, LS1016L |
| 89 | 211236-8 | Makita 211236-8 Ball Bearing 6002DDW, BO3700 |
| 90 | 325644-8 | Makita 325644-8 SPINDLE, LS1016L |
| 91 | 285732-2 | Makita 285732-2 BEARING RETAINER51, LS1016L |
| 92 | 265034-2 | Makita 265034-2 COUNTERSUNK HEAD SCREW M5*16, 5606B |
| 93 | 224431-1 | Makita 224431-1 INNER FLANGE 53, LS1016 |
| 94 | 224432-9 | Makita 224432-9 OUTER FLANGE 53, LS1016 |
| 95 | 265405-3 | Makita 265405-3 HEX.FLANGE HEAD BOLT M10*20, LS1016L |
| 96 | 158959-6 | Makita 158959-6 SAFETY COVER A COMPETE, LS1016L |
| 97 | 231634-0 | Makita 231634-0 TORSION SPRING 45, LS1220 |
| 98 | 424190-9 | Makita 424190-9 CUSHION, LS1016 |
| 99 | 265985-9 | Makita 265985-9 HEX.SOCKET HEAD BOLTM6, LS1040 |
| 100 | 346048-1 | Makita 346048-1 CENTER COVER, LS1016L |
| 101 | 253932-2 | Makita 253932-2 WAVE WASHER 10, 2012NB |
| 102 | 344539-6 | Makita 344539-6 CENTER WASHER, LS1220 |
| 103 | 346047-3 | Makita 346047-3 CENTER PLATE, LS1016L |
| 104 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 105 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 106 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 107 | 424193-3 | Makita 424193-3 ROLLER, LS1016L |
| 108 | 451005-7 | |
| 109 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 110 | 418104-8 | Makita 418104-8 LENS, LS0714 |
| 111 | 419378-4 | Makita 419378-4 BLOCK B, LS0714 |
| 112 | 911003-8 | Makita 911003-8 PAN HEAD SCREW M3X6, 6226D |
| 113 | 231664-1 | Makita 231664-1 TORSION SPRING 9, LS0714 |
| 114 | 266318-1 | Makita 266318-1 H.S HEAD SET SCREW M4*6, LS0714 |
| 115 | 266306-8 | Makita 266306-8 SHOULDER SCREW M5, LS1016L |
| 116 | 419379-2 | Makita 419379-2 BLOCK C, LS1016 |
| 117 | 233471-8 | Makita 233471-8 COMPRESSION SPRING 6, LS0714L |
| 118 | 638651-5 | Makita 638651-5 Laser Circuit Complete for LS1016L |
| 119 | 231664-1 | Makita 231664-1 TORSION SPRING 9, LS0714 |
| 120 | 266318-1 | Makita 266318-1 H.S HEAD SET SCREW M4*6, LS0714 |
| 121 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 122 | 451014-6 | Makita 451014-6 LASER COVER, LS1016L |
| 123 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 124 | 451038-2 | Makita 451038-2 PROTECTOR COVER, LS1016L |
| 125 | 265753-0 | Makita 265753-0 THUMB SCREW M5*24, LS0714 |
| 126 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 160 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 254 | 257785-1 | Makita 257785-1 SLEEVE 6, LS1016 |
| 255 | 922226-3 | Makita 922226-3 HEX.SOCKET HEAD BOLT M5X18, LS1016L |
| 259 | 451412-4 | Makita 451412-4 CASE, LS1016 |
| 260 | 346075-8 | Makita 346075-8 LOCK LEVER, LS1016L |
| 261 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 262 | 325664-2 | Makita 325664-2 ROD 8, LS1016L |
| 263 | 231633-2 | Makita 231633-2 TORSION SPRING 8, LS1040 |
| 264 | 451129-9 | Makita 451129-9 ROD HOLDER, LS1016L |
| 265 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 266 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 267 | 233540-5 | Makita 233540-5 TORSION SPRING 11, EBH250U |
| 268 | 266514-1 | Makita 266514-1 HEX.HEAD BOLT M5, LS1016 |
| 269 | 346123-3 | Makita 346123-3 FRONT GUARD, LS1016L |
| 270 | 931203-4 | Makita 931203-4 HEX. NUT M5 |
| 271 | 421589-9 | Makita 421589-9 CAP, LS1040 |
Sheet 2: Makita LS1016L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 127 | 265026-1 | Makita 265026-1 Pan Head Screw M4 for LS1016L |
| 128 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 129 | 233267-7 | Makita 233267-7 COMPRESSION SPRING 7, LS1016L |
| 130 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 131 | 272261-4 | Makita 272261-4 LEVER 45, LS1016L |
| 132 | 325651-1 | Makita 325651-1 JOINT, LS1016L |
| 133 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 134 | 140070-8 | Makita 140070-8 UPPER FENCE R COMPLETE, LS1016L |
| 135 | 346058-8 | Makita 346058-8 GUIDE PLATE, LS1016L |
| 136 | 318415-0 | |
| 137 | 265783-1 | Makita 265783-1 THUMB SCREW M6*18, LS1016L |
| 138 | 318411-8 | Makita 318411-8 GUIDE FENCE, LS1016L |
| 139 | 922443-5 | Makita 922443-5 HEX. SOCKET HEAD BOLT M8*25, LS1016L |
| 140 | 256226-4 | Makita 256226-4 PIN 4, LS1016 |
| 141 | 266264-8 | Makita 266264-8 HEX.SOCKET SET SCREW M5*6, SS610D |
| 142 | 265783-1 | Makita 265783-1 THUMB SCREW M6*18, LS1016L |
| 143 | 318413-4 | |
| 144 | 140069-3 | Makita 140069-3 UPPER FENCE L COMPLETE, LS1016L |
| 145 | 346049-9 | Makita 346049-9 STOPPER ARM, LS1016L |
| 146 | 253948-7 | Makita 253948-7 WAVE WASHER, LS0813 |
| 147 | 253835-0 | Makita 253835-0 FLAT WASHER 8, LS0813F |
| 148 | 251267-5 | Makita 251267-5 PAN HEAD SCREW M6, LS1013 |
| 149 | 451036-6 | Makita 451036-6 SLEEVE 17, LS1016L |
| 150 | 323740-6 | Makita 323740-6 ROD 16, LS1220 |
| 151 | 271601-3 | Makita 271601-3 Knob 20 for LS0713 |
| 152 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 153 | 324183-5 | Makita 324183-5 Stopper Pin for LS1016L |
| 154 | 233537-4 | Makita 233537-4 Torsion Spring 35, LS1016L |
| 155 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 156 | 158962-7 | Makita 158962-7 STOPPER LEVER COMPLETE, LS1016L |
| 157 | 158961-9 | Makita 158961-9 FRONT ARM COMPLETE, LS1016L |
| 158 | 265783-1 | Makita 265783-1 THUMB SCREW M6*18, LS1016L |
| 159 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 160 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 161 | 158963-5 | Makita 158963-5 ARM COMPLETE, LS1016L |
| 162 | 318403-7 | Makita 318403-7 PIPE HOLDER, LS1016L |
| 163 | 266208-8 | Makita 266208-8 M6X8 Hex Socket Head Set Screw M6*8 for 5902B |
| 164 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 165 | 687042-7 | Makita 687042-7 CORD CLAMP, 2012NB |
| 166 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 167 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 168 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 169 | 216413-7 | Makita 216413-7 THRUST NEEDLE CAGE 1024, LS0713 |
| 170 | 451019-6 | Makita 451019-6 LEVER 105, LS1016L |
| 171 | 265589-7 | Makita 265589-7 HEX BOLT M10, LS1016L |
| 172 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 173 | 415208-7 | Makita 415208-7 Release Button for LS1016L |
| 174 | 233031-6 | Makita 233031-6 COMPRESSION SPRING 12, 9049 |
| 175 | 266488-6 | Makita 266488-6 HEX SOCKET HEAD BOLT M8*20, LS1016L |
| 176 | 318405-3 | Makita 318405-3 STOPPER, LS1016L |
| 177 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 178 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 179 | 231646-3 | Makita 231646-3 TORSION SPRING 14, LS0713F |
| 180 | 262051-3 | |
| 181 | 346071-6 | Makita 346071-6 PLATE, LS1016L |
| 182 | 266488-6 | Makita 266488-6 HEX SOCKET HEAD BOLT M8*20, LS1016L |
| 183 | 451008-1 | Makita 451008-1 ARM COVER, LS1016L |
| 184 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 185 | 343678-9 | Makita 343678-9 INDICATION PLATE, LS1212 |
| 186 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 187 | 158964-3 | Makita 158964-3 ARM HOLDER COMPLETE, LS1016L |
| 188 | 266488-6 | Makita 266488-6 HEX SOCKET HEAD BOLT M8*20, LS1016L |
| 189 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 190 | 451044-7 | Makita 451044-7 CAM, LS1016L |
| 191 | 325656-1 | Makita 325656-1 ROD 6, LS1016L |
| 192 | 272262-2 | Makita 272262-2 LEVER 22, LS1016L |
| 193 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 194 | 234122-6 | Makita 234122-6 COMPRESSION SPRING 6, LS1016 |
| 195 | 325655-3 | Makita 325655-3 LOCK PIN 8, LS1016L |
| 196 | 232250-1 | Makita 232250-1 LEAF SPRING, LS1016L |
| 197 | 325646-4 | Makita 325646-4 CENTER SHAFT, LS1016L |
| 198 | 451039-0 | Makita 451039-0 POSITION PLATE, LS1016L |
| 199 | 451070-6 | Makita 451070-6 ARM HOLDER COVER, LS1016L |
| 200 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 201 | 158967-7 | Makita 158967-7 SQUARE ROD CPL., LS1016L |
| 202 | 925251-3 | Makita 925251-3 HEX BOLT M5*30, LS0713 |
| 203 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 204 | 451013-8 | Makita 451013-8 Kerf Board for LS1016L LS1019L |
| 205 | 265585-5 | Makita 265585-5 HEX BOLT M8*45, LS1016L |
| 206 | 253762-1 | Makita 253762-1 FLAT WASHER 8, LS1045 |
| 207 | 140142-9 | Makita 140142-9 TURN BASE COMPLETE, LS1016L |
| 208 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 209 | 451009-9 | Makita 451009-9 INDICATION PLATE, LS1016L |
| 210 | 451011-2 | Makita 451011-2 RACK BLOCK, LS1016L |
| 211 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 212 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 213 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 214 | 346052-0 | Makita 346052-0 SLIDE LOCK PLATE, LS1016L |
| 215 | 286275-7 | Makita 286275-7 CAP, 5007MG |
| 216 | 961013-5 | Makita 961013-5 STOP RING E-7, LS1016 |
| 217 | 313165-2 | Makita 313165-2 CAM, LS1016L |
| 218 | 231131-6 | Makita 231131-6 COMPRESSION SPRING 11, LS1016 |
| 219 | 267047-9 | Makita 267047-9 FLAT WASHER 10, RP0900 |
| 220 | 273666-1 | Makita 273666-1 GRIP 50, LS1016L |
| 221 | 318410-0 | Makita 318410-0 PIN HOLDER, LS1016L |
| 222 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 223 | 451010-4 | Makita 451010-4 LOCK LEVER, LS1016L |
| 224 | 345272-3 | Makita 345272-3 LOCK LEVER PLATE, LS0714 |
| 225 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 226 | 266505-2 | Makita 266505-2 HEX SOCKET HEAD SCREW M6 |
| 228 | 346051-2 | Makita 346051-2 LOCK PLATE, LS1016L |
| 229 | 234104-8 | Makita 234104-8 COMPRESSION SPRING 13, LS1016L |
| 230 | 266306-8 | Makita 266306-8 SHOULDER SCREW M5, LS1016L |
| 231 | 231325-3 | Makita 231325-3 COMPRESSION SPRING 6, LS0714/1016 |
| 232 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 233 | 325649-8 | Makita 325649-8 LOCK PIN 6, LS1016L |
| 234 | 158968-5 | Makita 158968-5 LINEAR BEARING BOX COMPLETE, LS1016L |
| 235 | 451018-8 | Makita 451018-8 SPUR GEAR 43, LS1016L |
| 236 | 232249-6 | Makita 232249-6 LEAF SPRING, LS1016L |
| 237 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 238 | 922441-9 | Makita 922441-9 H.S.H BOLT M8*25, PC5001C |
| 239 | 421845-7 | Makita 421845-7 FOOT, MHW710 |
| 240 | 267195-4 | Makita 267195-4 FLAT WASHER 4, UC3020A |
| 241 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 242 | 140054-6 | Makita 140054-6 BASE COMPLETE, LS1016L |
| 243 | 810495-7 | |
| 245 | ||
| 246 | 817283-3 | Makita 817283-3 CAUTION LABEL, LS1016 |
| 247 | 816920-6 | Makita 816920-6 Mitter Scale Plate LS1016L |
| 248 | 451012-0 | Makita 451012-0 SLIDE PLATE, LS1016L |
| 249 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 250 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 251 | 232075-3 | Makita 232075-3 LEAF SPRING, LC1230 |
| 252 | 817283-3 | Makita 817283-3 CAUTION LABEL, LS1016 |
| 253 | ||
| 256 | 216024-8 | Makita 216024-8 STEEL BALL 4, LS1016 |
| 257 | 253874-0 | Makita 253874-0 Flat Washer 4 for UC3020A LS1016 |
| 258 | 266042-6 | Makita 266042-6 TAPPING SCREW BIND.CT 4*20, LS1016L |
Selected parts0
