Makita LS1013L
Makita LS1013L: exploded parts diagram, 2 sheets, 202 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita LS1013L: 202 positions on 2 sheets

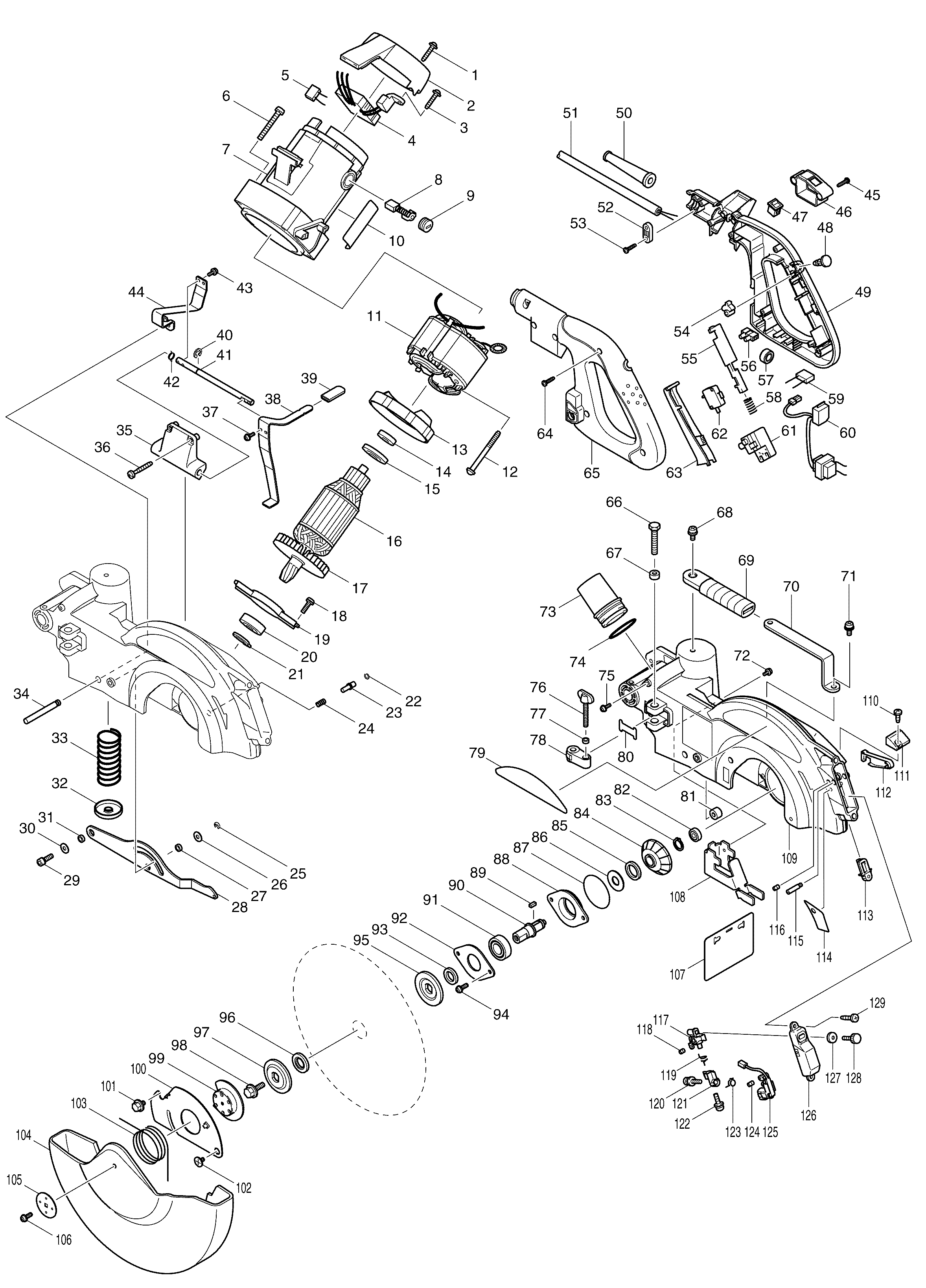

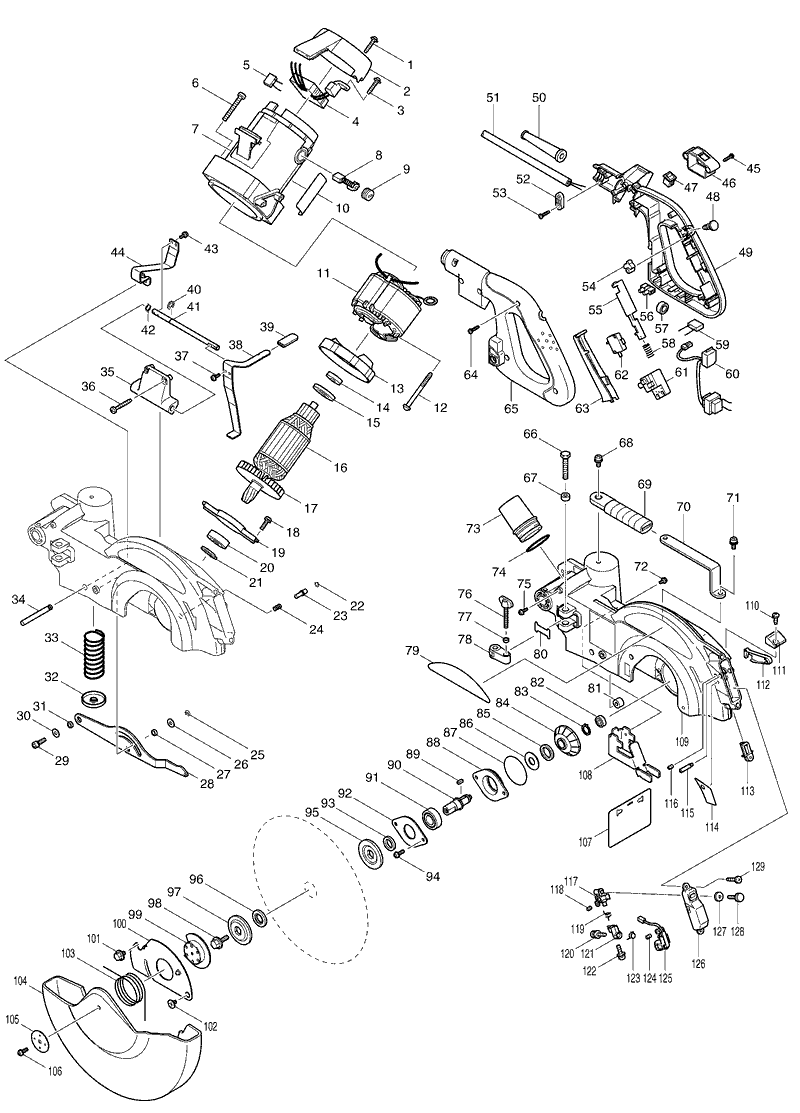

Sheet 1: Makita LS1013L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 15 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 16 | 516928-7 | Makita 516928-7 ARMATURE ASSY |
| 18 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 19 | 285686-3 | Makita 285686-3 BEARING RETAINER 94 |
| 20 | 211275-8 | Makita 211275-8 BALL BEARING 6003DDW |
| 21 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 22 | 231928-3 | Makita 231928-3 RING SPRING 8, LS1013 |
| 23 | 256633-1 | Makita 256633-1 PIN 6, LS1016L |
| 24 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 25 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 26 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 27 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 28 | 345604-4 | Makita 345604-4 LINK PLATE |
| 29 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 30 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 31 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 32 | 344464-1 | Makita 344464-1 SPRING HOLDER, LS1040 |
| 33 | 233461-1 | Makita 233461-1 COMPRESSION SPRING 28 |
| 34 | 324609-7 | Makita 324609-7 LOCK PIN 8 |
| 35 | 419075-2 | Makita 419075-2 ROD HOLDER |
| 36 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 37 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 38 | 345606-0 | Makita 345606-0 LEVER LS1013 |
| 39 | 421589-9 | Makita 421589-9 CAP, LS1040 |
| 40 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 41 | 324608-9 | Makita 324608-9 ROD LS1013L |
| 42 | 231633-2 | Makita 231633-2 TORSION SPRING 8, LS1040 |
| 43 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 44 | 345608-6 | Makita 345608-6 LOCK PLATE |
| 45 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 46 | 154541-9 | Makita 154541-9 SWITCH BOX COMPL. |
| 47 | 651522-9 | Makita 651522-9 SWITCH SLE6A, LS0714 |
| 48 | 411478-6 | Makita 411478-6 Switch Button LS1040 LS1214 LS1040F |
| 49 | 183980-6 | Makita 183980-6 HANDLE SET |
| 50 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 51 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 52 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 53 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 54 | 414546-4 | Makita 414546-4 CAM |
| 55 | 416000-4 | Makita 416000-4 LOCK OFF LEVER, LS1040 |
| 56 | 654575-7 | Makita 654575-7 TERMINAL BLOCK, 5704R |
| 57 | 688131-1 | Makita 688131-1 Line Filter for HR2432 |
| 58 | 231457-6 | Makita 231457-6 COMPRESSION SPRING 3, LS1040 |
| 59 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 60 | 631617-4 | Makita 631617-4 POWER SUPPLY CIRCUIT |
| 61 | 651923-1 | Makita 651923-1 Switch TG70B for LS1040 |
| 62 | 651941-9 | Makita 651941-9 SWITCH, LS1040 |
| 63 | 415999-0 | Makita 415999-0 SWITCH LEVER, LS1040 |
| 64 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 65 | 183980-6 | Makita 183980-6 HANDLE SET |
| 66 | 921467-8 | Makita 921467-8 HEX. BOLT M8X45 |
| 67 | 262003-4 | Makita 262003-4 RUBBER RING 6 |
| 68 | 911323-0 | Makita 911323-0 PAN HEAD SCREW M6X16 WR, 5606B |
| 69 | 421562-9 | Makita 421562-9 GRIP |
| 70 | 344420-1 | |
| 71 | 911323-0 | Makita 911323-0 PAN HEAD SCREW M6X16 WR, 5606B |
| 72 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 73 | 419277-0 | Makita 419277-0 Plastic Dust Nozzle Piece LS1030 LF1000 LS1216 Bag Extractor |
| 74 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 75 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 76 | 265717-4 | Makita 265717-4 THUMB SCREW M6*43, LS0714 |
| 77 | 262001-8 | Makita 262001-8 URETHANE RING 5, 6906 |
| 78 | 317176-9 | Makita 317176-9 STOPPER ARM LS1013, LS1013 |
| 79 | 819214-8 | Makita 819214-8 MAKITA LOGO LABEL, LS1040 |
| 80 | 344045-1 | Makita 344045-1 STOPPER ARM PLATE |
| 81 | 421952-6 | Makita 421952-6 CUSHION |
| 82 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 83 | 961054-1 | Makita 961054-1 RETAINING RING S-14 |
| 84 | 226742-0 | Makita 226742-0 Spiral Bevel Gear 33 for LS1013 |
| 85 | 262074-1 | Makita 262074-1 RUBBER RING 20 |
| 86 | 267035-6 | Makita 267035-6 FLAT WASHER 14 |
| 87 | 213673-2 | Makita 213673-2 O RING 52 |
| 88 | 316836-0 | Makita 316836-0 BEARING BOX, LS1013 |
| 89 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 90 | 322899-6 | Makita 322899-6 SPINDLE, LS1013 |
| 91 | 211275-8 | Makita 211275-8 BALL BEARING 6003DDW |
| 92 | 285828-9 | Makita 285828-9 BEARING RETAINER 66, LS1013 |
| 93 | 257022-3 | Makita 257022-3 RING 16, LS1040 |
| 94 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 95 | 224333-1 | Makita 224333-1 FLANGE 53, LH1040 |
| 96 | 257262-3 | Makita 257262-3 RING 16, LH1040 |
| 97 | 224333-1 | Makita 224333-1 FLANGE 53, LH1040 |
| 98 | 265355-2 | Makita 265355-2 |
| 99 | 344473-0 | Makita 344473-0 CENTER PLATE |
| 100 | 345603-6 | Makita 345603-6 CENTER COVER, LS1013L |
| 101 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 102 | 265008-3 | Makita 265008-3 FLAT HEAD SCREW M5, LS1013 |
| 103 | 231613-8 | Makita 231613-8 TORSION SPRING 45, LS1212 |
| 104 | 419073-6 | Makita 419073-6 SAFETY COVER |
| 105 | 253977-0 | Makita 253977-0 FLAT WASHER 6 |
| 106 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 107 | 421916-0 | Makita 421916-0 GUARD PLATE |
| 108 | 345610-9 | Makita 345610-9 GUARD PLATE, LS1013L |
| 109 | 188020-5 | Makita 188020-5 BLADE CASE SET |
| 110 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 111 | 419078-6 | Makita 419078-6 LEAD COVER HOLDER |
| 112 | 419076-0 | Makita 419076-0 LEAD COVER |
| 113 | 418104-8 | Makita 418104-8 LENS, LS0714 |
| 114 | 801262-1 | Makita 801262-1 LASERLINE LABEL |
| 115 | 266306-8 | Makita 266306-8 SHOULDER SCREW M5, LS1016L |
| 116 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 117 | 418107-2 | Makita 418107-2 BLOCK C LS0714FL |
| 118 | 266318-1 | Makita 266318-1 H.S HEAD SET SCREW M4*6, LS0714 |
| 119 | 231664-1 | Makita 231664-1 TORSION SPRING 9, LS0714 |
| 120 | 911014-3 | Makita 911014-3 PAN HEAD SCREW M3X10 |
| 121 | 418106-4 | Makita 418106-4 BLOCK B LS0714FL |
| 122 | 911014-3 | Makita 911014-3 PAN HEAD SCREW M3X10 |
| 123 | 231664-1 | Makita 231664-1 TORSION SPRING 9, LS0714 |
| 124 | 266318-1 | Makita 266318-1 H.S HEAD SET SCREW M4*6, LS0714 |
| 125 | 638356-7 | Makita 638356-7 LASER CIRCUIT COMPLETE LS0714FL |
| 126 | 418108-0 | Makita 418108-0 TOP COVER |
| 127 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 128 | 265753-0 | Makita 265753-0 THUMB SCREW M5*24, LS0714 |
| 129 | 266042-6 | Makita 266042-6 TAPPING SCREW BIND.CT 4*20, LS1016L |
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 416075-3 | Makita 416075-3 REAR COVER |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 631219-6 | Makita 631219-6 Controller 240v for LS1013 LS1013L |
| 5 | 645006-7 | Makita 645006-7 CAPACITOR PAB473, M560 |
| 6 | 911373-5 | Makita 911373-5 PAN HEAD SCREW M6X50 LS1013 |
| 7 | 154718-6 | Makita 154718-6 MOTOR HOUSING COMPL. |
| 8 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 9 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 10 | 861577-8 | |
| 11 | 599506-8 | Makita 599506-8 FIELD ASS'Y 220V LS1013 |
| 12 | 266029-8 | Makita 266029-8 TAPPING SCREW PT 5X65, 5277NB |
| 13 | 416107-6 | Makita 416107-6 BAFFLE PLATE LS1013 |
| 14 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |

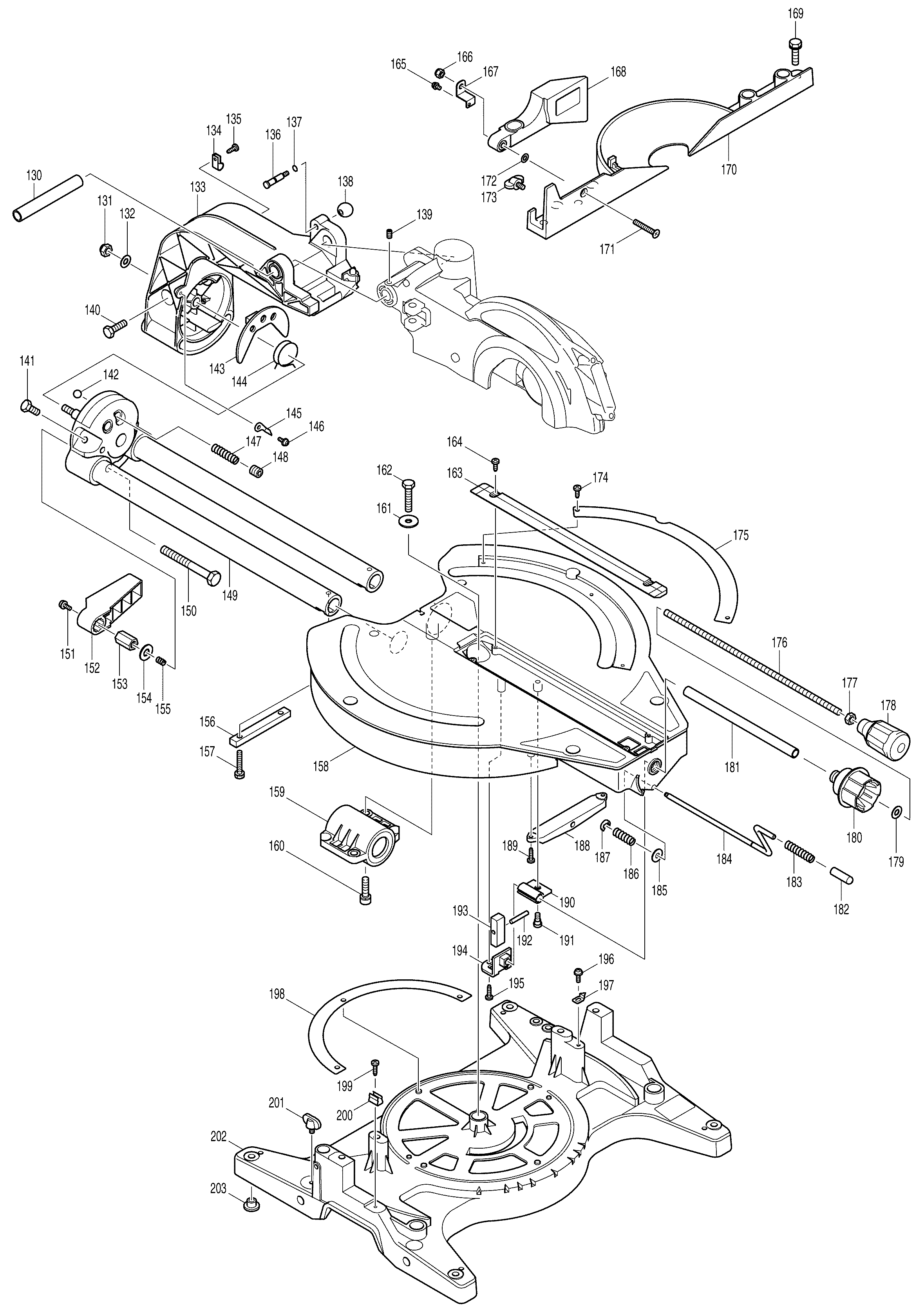

Sheet 2: Makita LS1013L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 130 | 331428-4 | Makita 331428-4 PIPE 16-113, 2414NB |
| 131 | 252105-4 | Makita 252105-4 HEX LOCK NUT M8*13, LS1040 |
| 132 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 133 | 317983-0 | Makita 317983-0 ARM, LS1013 |
| 134 | 687042-7 | Makita 687042-7 CORD CLAMP, 2012NB |
| 135 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 136 | 324183-5 | Makita 324183-5 Stopper Pin for LS1016L |
| 137 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 138 | 271601-3 | Makita 271601-3 Knob 20 for LS0713 |
| 139 | 251961-9 | Makita 251961-9 HEX S.H.SEI SCREW M6X10, LS1040 |
| 140 | 265455-8 | |
| 141 | 265412-6 | Makita 265412-6 HEX. BOLT M8X20 LS1013 |
| 142 | 216003-6 | Makita 216003-6 STEEL BALL 10 LS1013 |
| 143 | 345418-1 | Makita 345418-1 GUIDE PLATE LS1214F |
| 144 | 231626-9 | Makita 231626-9 TORSION SPRING 28, LS1013 |
| 145 | 413067-3 | Makita 413067-3 INDICATION PLATE |
| 146 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 147 | 233168-9 | Makita 233168-9 COMPRESSION SPRING 5 |
| 148 | 266131-7 | Makita 266131-7 HEX. SOCKET HEAD BOLT M12 X12 |
| 149 | 151459-5 | Makita 151459-5 ARM HOLDER COMPLETE, LS1013 |
| 150 | 251668-7 | Makita 251668-7 HEX. BOLT M10X90 |
| 151 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 152 | 416006-2 | Makita 416006-2 Lever 100 LS1013 LS1040 LF1000 |
| 153 | 252144-4 | Makita 252144-4 HEX NUT, LS1013 |
| 154 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 155 | 231266-3 | Makita 231266-3 COMPRESSION SPRING 5, LS0713F |
| 156 | 152542-1 | Makita 152542-1 SQUARE ROD COMPLETE, LS1013 |
| 157 | 921356-7 | Makita 921356-7 HEX BOLT M6X35, LS1013 |
| 158 | 153832-5 | Makita 153832-5 TURN BASE COMPLETE, LS1013 |
| 159 | 152540-5 | Makita 152540-5 BEARING BOX COMPLETE, LS1013 |
| 160 | 922451-6 | Makita 922451-6 HEX.SOCKET SCREW M8X30, LS1013 |
| 161 | 253852-0 | Makita 253852-0 FLAT WASHER 8, LS1013 |
| 162 | 265442-7 | Makita 265442-7 HEX. BOLT M8X40 |
| 163 | 419222-5 | Makita 419222-5 Kerf Board LS1013 |
| 164 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 165 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 166 | 252014-7 | Makita 252014-7 HEX LOCK NUT M6*10, N5900B |
| 167 | 344463-3 | Makita 344463-3 SUB FENCE PLATE, LS1013 |
| 168 | 154564-7 | Makita 154564-7 Sub Fence Complete for LS1013 |
| 169 | 265488-3 | Makita 265488-3 HEX BOLT M8*30, LS1040 |
| 170 | 316840-9 | Makita 316840-9 GUIDE RULE |
| 171 | 912357-6 | Makita 912357-6 COUNTERSUNK HEAD SCREW M6 X35 |
| 172 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 173 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 174 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 175 | 816326-8 | Makita 816326-8 MITER SCALE PLATE, LS1013 |
| 176 | 266132-5 | Makita 266132-5 SCREW M8*320, LS1013 |
| 177 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 178 | 271314-6 | Makita 271314-6 KNOB, LS1013 |
| 179 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 180 | 152541-3 | Makita 152541-3 KNOB 48 COMPLETE, LS1013 |
| 181 | 331491-7 | Makita 331491-7 PIPE 9-200, LS1013 |
| 182 | 421563-7 | Makita 421563-7 CAP 10, LS1013 |
| 183 | 322924-3 | Makita 322924-3 COIL SPRING, LS1013 |
| 184 | 322909-9 | Makita 322909-9 LOCK PIN, LS1013 |
| 185 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 186 | 231307-5 | Makita 231307-5 COMPRESSION SPRING 6, LS1013 |
| 187 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 188 | 316899-6 | Makita 316899-6 PIN HOLDER, LS1013 |
| 189 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 190 | 344411-2 | Makita 344411-2 SLIDE STOPPER, LS1013 |
| 191 | 251267-5 | Makita 251267-5 PAN HEAD SCREW M6, LS1013 |
| 192 | 256196-7 | Makita 256196-7 PIN 5, LS1016 |
| 193 | 331493-3 | Makita 331493-3 TURN STOPPER, LS1013 |
| 194 | 344412-0 | Makita 344412-0 STOPPER HOLDER |
| 195 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 196 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 197 | 816128-2 | Makita 816128-2 POSITION PLATE, LS1013 |
| 198 | 344477-2 | Makita 344477-2 SLIDE PLATE, LS1013 |
| 199 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 200 | 232075-3 | Makita 232075-3 LEAF SPRING, LC1230 |
| 201 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 202 | 153889-6 | Makita 153889-6 BASE COMPLETE, LS1214 |
| 203 | 286212-1 | Makita 286212-1 CAP 20, LS1013 |
Selected parts0
