Makita LS0815FL
Makita LS0815FL: exploded parts diagram, 3 sheets, 249 positions. Spare parts with part numbers, availability and prices.
execution LS0815FL
Scroll to zoom · drag to move
All parts on this sheet0
Checking availability…
All parts of Makita LS0815FL: 249 positions on 3 sheets

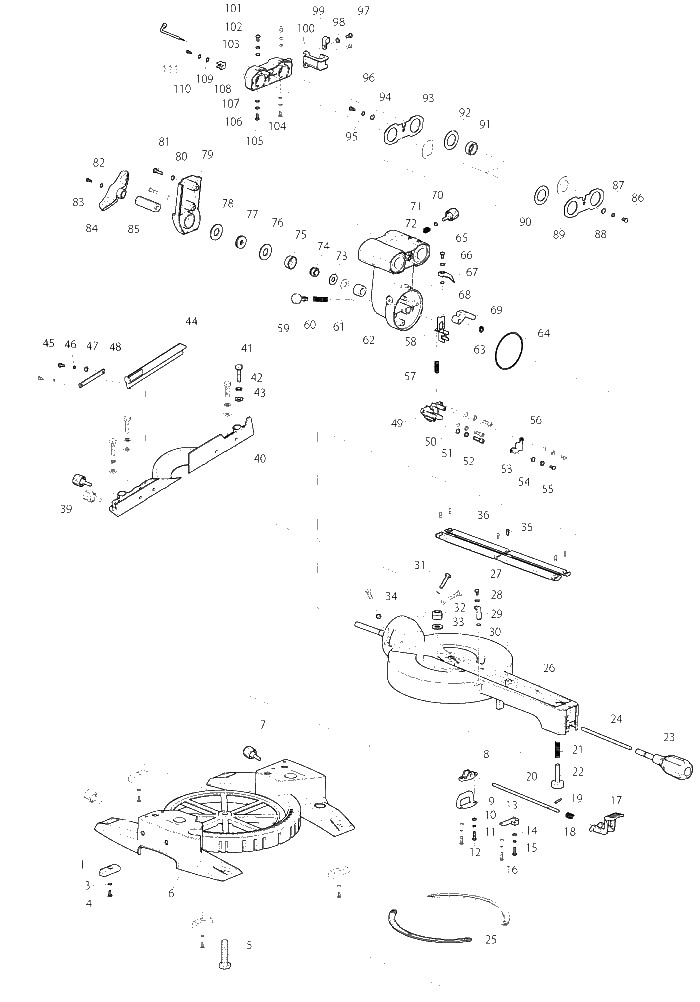

Sheet 1: Makita LS0815FL parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | JM23500132 | Makita JM23500132 BUFFER PAD |
| 3 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 4 | JM23500008 | Makita JM23500008 CROSS HEAD SCREW M4X10 |
| 5 | JM23500009 | Makita JM23500009 PIVOT SHAFT |
| 6 | JM23510001 | Makita JM23510001 BASE COMPLETE |
| 7 | JM23100013 | Makita JM23100013 KNOB FOR EXT.WING, LS1017L |
| 8 | JM23100025 | Makita JM23100025 WORKING TABLE LOCKING BRACKET, LS1017L |
| 9 | JM23100020 | Makita JM23100020 LOCK PLATE B, LS1017L |
| 10 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 11 | JM23100015 | Makita JM23100015 SPRING WASHER 4, LS1017L |
| 12 | JM23100033 | Makita JM23100033 CROSS HEAD SCREW M4X12, LS1017L |
| 13 | JM23100018 | Makita JM23100018 LOCK PLATE A, LS1017L |
| 14 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 15 | JM23100015 | Makita JM23100015 SPRING WASHER 4, LS1017L |
| 16 | JM23100033 | Makita JM23100033 CROSS HEAD SCREW M4X12, LS1017L |
| 17 | JM23100023 | Makita JM23100023 Press Plate for LS1017L LS1018L LS0815 |
| 18 | JM23100021 | Makita JM23100021 LOCK SPRING, LS1017L |
| 19 | JM23100022 | Makita JM23100022 LOCK PIN, LS1017L |
| 20 | JM23500015 | Makita JM23500015 LOCK SHAFT B |
| 21 | JM23500014 | Makita JM23500014 SPRING 11 |
| 22 | JM23500013 | Makita JM23500013 ADJUSTABLE ROD |
| 23 | JM23100027 | Makita JM23100027 MITER LOCKING HANDLE, LS1017L |
| 24 | JM23500016 | Makita JM23500016 LOCK SHAFT A |
| 25 | JM23500012 | Makita JM23500012 FRICTION PLATE |
| 26 | JM23510002 | Makita JM23510002 WORKING TABLE COMPLETE |
| 27 | JM23500008 | Makita JM23500008 CROSS HEAD SCREW M4X10 |
| 28 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 29 | JM23100030 | Makita JM23100030 MITER POINTER, LS1017L |
| 30 | JM23500053 | Makita JM23500053 OUT STAR WASHER 4 |
| 31 | JM23100034 | Makita JM23100034 HEX BOLT M6X28, LS1017L |
| 32 | JM23500023 | Makita JM23500023 LOCKNUT M8 |
| 33 | JM23500022 | Makita JM23500022 FLAT WASHER 8 |
| 34 | JM23100035 | Makita JM23100035 ANTI-LOOSEN RING, LS1017L |
| 35 | JM23500008 | Makita JM23500008 CROSS HEAD SCREW M4X10 |
| 36 | JM23100029 | Makita JM23100029 Table Insert, LS1017L |
| 39 | JM23100013 | Makita JM23100013 KNOB FOR EXT.WING, LS1017L |
| 40 | JM23500026 | Makita JM23500026 RIP FENCE |
| 41 | JM23100062 | Makita JM23100062 HEX BOLT M8X30, LS1017L |
| 42 | JM23100061 | Makita JM23100061 SPRING WASHER 8, LS1017L |
| 43 | JM23100060 | Makita JM23100060 FLAT WASHER 8, LS1017L |
| 44 | JM23510013 | Makita JM23510013 SUB FENCE COMPLETE |
| 45 | JM23100065 | Makita JM23100065 CROSS HEAD SCREW M4X8, LS1017L |
| 46 | JM23100015 | Makita JM23100015 SPRING WASHER 4, LS1017L |
| 47 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 48 | JM23500024 | Makita JM23500024 KEY |
| 49 | JM23500095 | Makita JM23500095 45 DEGREE LIMIT BRACKET |
| 50 | JM23100007 | Makita JM23100007 FLAT WASHER 5, LS1017L |
| 51 | JM23100149 | Makita JM23100149 SPRING WASHER 5, LS1017L |
| 52 | JM23500096 | Makita JM23500096 H.S.BOLT M5X14 |
| 53 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 54 | JM23100015 | Makita JM23100015 SPRING WASHER 4, LS1017L |
| 55 | JM23500008 | Makita JM23500008 CROSS HEAD SCREW M4X10 |
| 56 | JM23500097 | Makita JM23500097 45 DEGREE COVER |
| 57 | JM23500094 | Makita JM23500094 SPRING 8 |
| 58 | JM23500093 | Makita JM23500093 45 DEGREE LIMIT PLATE COMPLETE |
| 59 | JM23100051 | Makita JM23100051 LIMITED KNOB, LS1017L |
| 60 | JM23100049 | Makita JM23100049 MITER PRESSION SPRING, LS1017L |
| 61 | JM23100052 | Makita JM23100052 CLAMP PLATE, LS1017L |
| 62 | JM23510008 | Makita JM23510008 SUPPORT ARM COMPLETE |
| 63 | JM23500079 | Makita JM23500079 RETAINING RING 8 |
| 64 | JM23500078 | Makita JM23500078 FRICTION RING |
| 65 | JM23100033 | Makita JM23100033 CROSS HEAD SCREW M4X12, LS1017L |
| 66 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 67 | JM23100048 | Makita JM23100048 BEVEL POINTER, LS1017L |
| 68 | JM23500053 | Makita JM23500053 OUT STAR WASHER 4 |
| 69 | JM23500080 | Makita JM23500080 90 DEGREE LIMIT BRACKET |
| 70 | JM23100086 | Makita JM23100086 SLIDING BAR LOCKING KNOB, LS1017L |
| 71 | JM23100190 | Makita JM23100190 SPECIAL WASHER 6, LS1017L |
| 72 | JM23100088 | Makita JM23100088 PRESSURE SPRING, LS1017L |
| 73 | JM23100010 | Makita JM23100010 FLAT WASHER 10, LS1017L |
| 74 | JM23100009 | Makita JM23100009 LOCKNUT M10, LS1017L |
| 75 | JM23100053 | Makita JM23100053 BOWL TYPE PLATE, LS1017L |
| 76 | JM23100055 | Makita JM23100055 BIG FLAT WASHER 10X26X2.5, LS1017L |
| 77 | JM23100054 | Makita JM23100054 SURFACE BEARING, LS1017L |
| 78 | JM23100055 | Makita JM23100055 BIG FLAT WASHER 10X26X2.5, LS1017L |
| 79 | JM23500086 | Makita JM23500086 SUPPORT ARM COVER |
| 80 | JM23100007 | Makita JM23100007 FLAT WASHER 5, LS1017L |
| 81 | JM23100006 | Makita JM23100006 CROSS HEAD SCREW M5X20, LS1017L |
| 82 | JM23100019 | Makita JM23100019 CROSS HEAD SCREW M4X18, LS1017L |
| 83 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 84 | JM23500087 | Makita JM23500087 BEVEL LOCKING HANDLE |
| 85 | JM23500088 | Makita JM23500088 HEX NUT |
| 86 | JM23500081 | Makita JM23500081 CROSS HEAD SCREW M5X12 |
| 87 | JM23100007 | Makita JM23100007 FLAT WASHER 5, LS1017L |
| 88 | JM23100149 | Makita JM23100149 SPRING WASHER 5, LS1017L |
| 89 | JM23500082 | Makita JM23500082 SUPPORT ARM COVER |
| 90 | JM23500083 | Makita JM23500083 DUSTPROOF RING |
| 91 | JM23500084 | Makita JM23500084 BEARING GASKET |
| 92 | JM23500083 | Makita JM23500083 DUSTPROOF RING |
| 93 | JM23500082 | Makita JM23500082 SUPPORT ARM COVER |
| 94 | JM23100007 | Makita JM23100007 FLAT WASHER 5, LS1017L |
| 95 | JM23100149 | Makita JM23100149 SPRING WASHER 5, LS1017L |
| 96 | JM23500081 | Makita JM23500081 CROSS HEAD SCREW M5X12 |
| 97 | JM23100019 | Makita JM23100019 CROSS HEAD SCREW M4X18, LS1017L |
| 98 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 99 | JM23100072 | Makita JM23100072 CORD CLAMP, LS1017L |
| 100 | JM23500066 | Makita JM23500066 CABLE HOLDER BRACKET |
| 101 | JM23500081 | Makita JM23500081 CROSS HEAD SCREW M5X12 |
| 102 | JM23100149 | Makita JM23100149 SPRING WASHER 5, LS1017L |
| 103 | JM23100007 | Makita JM23100007 FLAT WASHER 5, LS1017L |
| 104 | JM23100007 | Makita JM23100007 FLAT WASHER 5, LS1017L |
| 105 | JM23500081 | Makita JM23500081 CROSS HEAD SCREW M5X12 |
| 106 | JM23100149 | Makita JM23100149 SPRING WASHER 5, LS1017L |
| 107 | JM23500085 | Makita JM23500085 SLIDING BAR BRACKET |
| 108 | JM23100091 | Makita JM23100091 WRENCH CLIP, LS1017L |
| 109 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 110 | JM23100015 | Makita JM23100015 SPRING WASHER 4, LS1017L |
| 111 | JM23100033 | Makita JM23100033 CROSS HEAD SCREW M4X12, LS1017L |

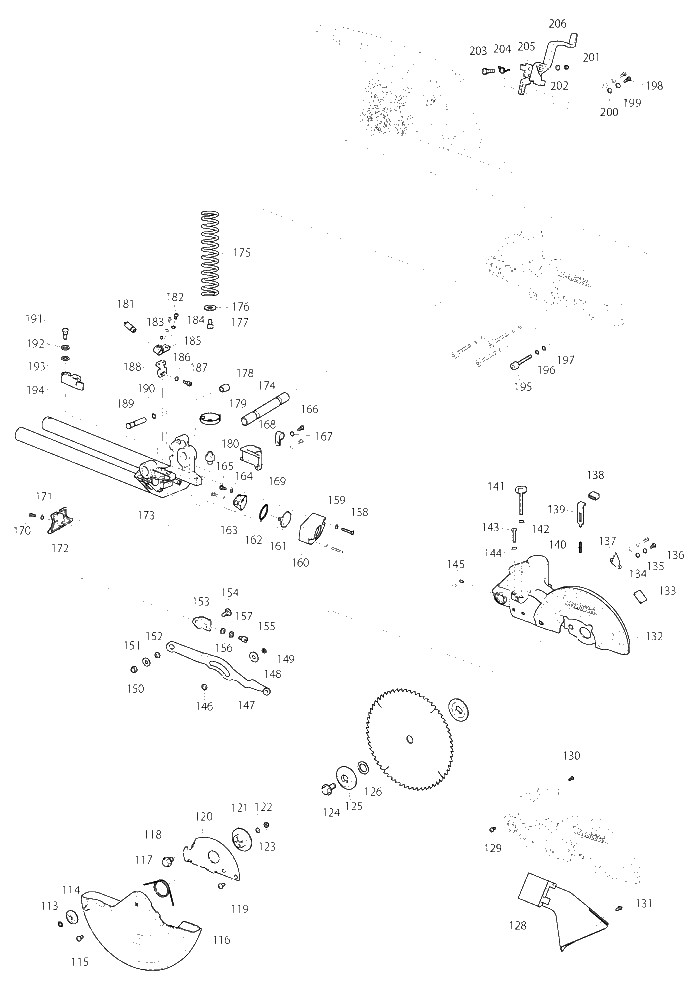

Sheet 2: Makita LS0815FL parts diagram
| No. | Part number | Part name |
|---|---|---|
| 113 | JM23100103 | Makita JM23100103 WHEEL LOCK RING, LS1017L |
| 114 | JM23100102 | Makita JM23100102 GUARD WHEEL, LS1017L |
| 115 | JM23500031 | Makita JM23500031 SQUARE NECK BOLT M5*12 |
| 116 | JM23510004 | Makita JM23510004 Low Blade Guard Complete for LS0815FL |
| 117 | JM23500035 | Makita JM23500035 GUARD SPRING |
| 118 | JM23500134 | Makita JM23500134 HEX BOLT M8*15 |
| 119 | JM23100113 | Makita JM23100113 CROSSHEAD SCREW FOR GUARD, LS1017L |
| 120 | JM23500036 | Makita JM23500036 LOW GUARD FIX PLATE |
| 121 | JM23500037 | Makita JM23500037 GUARD LINKAGE CENTER PLATE |
| 122 | JM23100007 | Makita JM23100007 FLAT WASHER 5, LS1017L |
| 123 | JM23100141 | Makita JM23100141 LOCKNUT M5, LS1017L |
| 124 | JM23500135 | Makita JM23500135 BLADE BOLT |
| 125 | JM23500038 | Makita JM23500038 BLADE FLANGE |
| 126 | JM23100144 | Makita JM23100144 BLADE INNER RING, LS1017L |
| 128 | JM23500039 | Makita JM23500039 Dust Port LS0815F |
| 129 | JM23500040 | Makita JM23500040 SCREW ST4.2*12 |
| 130 | JM23500040 | Makita JM23500040 SCREW ST4.2*12 |
| 131 | JM23500034 | Makita JM23500034 CROSS HEAD SCREW M5*25 |
| 132 | JM23510005 | Makita JM23510005 UP BLADE GUARD COMPLETE |
| 133 | JM23500047 | Makita JM23500047 GUARD INSERT |
| 134 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 135 | JM23100015 | Makita JM23100015 SPRING WASHER 4, LS1017L |
| 136 | JM23100033 | Makita JM23100033 CROSS HEAD SCREW M4X12, LS1017L |
| 137 | JM23500048 | Makita JM23500048 LOCK PLATE |
| 138 | JM23100138 | Makita JM23100138 LOCK COVER |
| 139 | JM23500050 | Makita JM23500050 LOCK PLATE |
| 140 | JM23500049 | Makita JM23500049 LOCK SPRING 5 |
| 141 | JM23100119 | Makita JM23100119 LIMITED KNOB, LS1017L |
| 142 | JM23100035 | Makita JM23100035 ANTI-LOOSEN RING, LS1017L |
| 143 | JM23500051 | Makita JM23500051 HEX BOLT M6X25 |
| 144 | JM23100035 | Makita JM23100035 ANTI-LOOSEN RING, LS1017L |
| 145 | JM23500052 | Makita JM23500052 H.S. SET SCREW M6*8 |
| 146 | JM23100098 | Makita JM23100098 LINK SLEEVE, LS1017L |
| 147 | JM23510003 | Makita JM23510003 LINK COMPLETE |
| 148 | JM23100071 | Makita JM23100071 THIN FLAT WASHER 6, LS1017L |
| 149 | JM23100115 | Makita JM23100115 RETAINING RING 5, LS1017L |
| 150 | JM23500027 | Makita JM23500027 LOCK THIN NUT M6 |
| 151 | JM23100071 | Makita JM23100071 THIN FLAT WASHER 6, LS1017L |
| 152 | JM23100098 | Makita JM23100098 LINK SLEEVE, LS1017L |
| 153 | JM23500055 | Makita JM23500055 Link Fix Plate |
| 154 | JM23500054 | Makita JM23500054 SQUARE NECK BOLT M6*14 |
| 155 | JM23500071 | Makita JM23500071 H.S. BOLT M6*12 |
| 156 | JM23100151 | Makita JM23100151 SPRING WASHER 6, LS1017L |
| 157 | JM23100190 | Makita JM23100190 SPECIAL WASHER 6, LS1017L |
| 158 | JM23500056 | Makita JM23500056 CROSS HEAD SCREW M4X28 |
| 159 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 160 | JM23500057 | Makita JM23500057 LAMP COVER |
| 161 | JM23500058 | Makita JM23500058 LAMP LEN |
| 162 | JM23500059 | Makita JM23500059 SEALING RING |
| 163 | JM23510006 | Makita JM23510006 LAMP ASSY |
| 164 | JM23500128 | Makita JM23500128 FLAT WASHER 3 |
| 165 | JM23500062 | Makita JM23500062 SELF-TAPPING CROSS ST2.9X13 |
| 166 | JM23100019 | Makita JM23100019 CROSS HEAD SCREW M4X18, LS1017L |
| 167 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 168 | JM23100072 | Makita JM23100072 CORD CLAMP, LS1017L |
| 169 | JM23500066 | Makita JM23500066 CABLE HOLDER BRACKET |
| 170 | JM23500008 | Makita JM23500008 CROSS HEAD SCREW M4X10 |
| 171 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 172 | JM23500077 | Makita JM23500077 BRACKET BACK COVER |
| 173 | JM23510007 | Makita JM23510007 UP BLADE GUARD BRACKET |
| 174 | JM23500064 | Makita JM23500064 CONNECTION SHAFT |
| 175 | JM23500072 | Makita JM23500072 SPRING 32 |
| 176 | JM23500022 | Makita JM23500022 FLAT WASHER 8 |
| 177 | JM23500071 | Makita JM23500071 H.S. BOLT M6*12 |
| 178 | JM23100097 | Makita JM23100097 PIN CAP, LS1017L |
| 179 | JM23500065 | Makita JM23500065 SPRING BRACKET |
| 180 | JM23500063 | Makita JM23500063 SPRING SUPPORT PIN |
| 181 | JM23500070 | Makita JM23500070 LASER |
| 182 | JM23500068 | Makita JM23500068 H.S.BOLT M4X8 |
| 183 | JM23500069 | Makita JM23500069 H.S. SET SCREW M4*6 |
| 184 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 185 | JM23500067 | Makita JM23500067 LASER BRACKET |
| 186 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 187 | JM23100067 | Makita JM23100067 H.S.BOLT M4X12, LS1017L |
| 188 | JM23500073 | Makita JM23500073 LASER MOVING PLATE |
| 189 | JM23100193 | Makita JM23100193 PINC, LS1018L |
| 190 | JM23100150 | Makita JM23100150 SEALING RING, LS1017L |
| 191 | JM23100096 | Makita JM23100096 DEPTH ADJUSTABLE PLATE BOLT, LS1017L |
| 192 | JM23100060 | Makita JM23100060 FLAT WASHER 8, LS1017L |
| 193 | JM23100094 | Makita JM23100094 WAVE SPRING WASHER, LS1017L |
| 194 | JM23100092 | Makita JM23100092 CUTTING DEPTH ADJUSTABLE PLATE, LS1017L |
| 195 | JM23500041 | Makita JM23500041 H.S.BOLT M6X40 |
| 196 | JM23100151 | Makita JM23100151 SPRING WASHER 6, LS1017L |
| 197 | JM23100190 | Makita JM23100190 SPECIAL WASHER 6, LS1017L |
| 198 | JM23100033 | Makita JM23100033 CROSS HEAD SCREW M4X12, LS1017L |
| 199 | JM23100015 | Makita JM23100015 SPRING WASHER 4, LS1017L |
| 200 | JM23100016 | Makita JM23100016 FLAT WASHER 4, LS1017L |
| 201 | JM23100141 | Makita JM23100141 LOCKNUT M5, LS1017L |
| 202 | JM23100007 | Makita JM23100007 FLAT WASHER 5, LS1017L |
| 203 | JM23100139 | Makita JM23100139 LEVER SCREW, LS1017L |
| 204 | JM23500045 | Makita JM23500045 LEVER SPRING |
| 205 | JM23500044 | Makita JM23500044 LOCK LEVER BRACKET |
| 206 | JM23500043 | Makita JM23500043 LOCK LEVER |

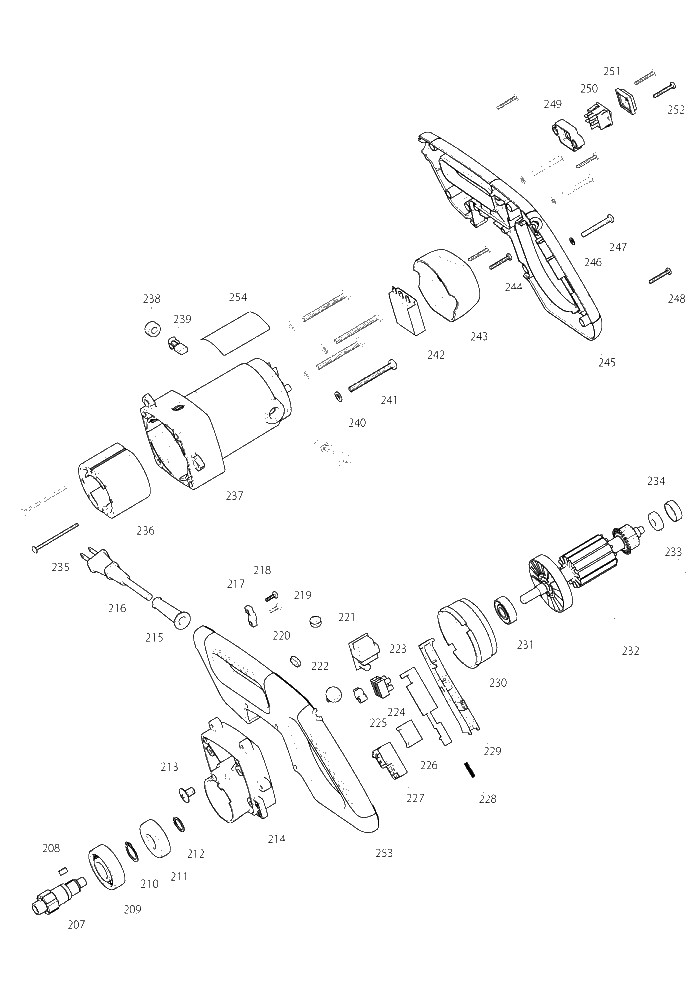

Sheet 3: Makita LS0815FL parts diagram
| No. | Part number | Part name |
|---|---|---|
| 207 | JM23500103 | Makita JM23500103 OUTPUT SHAFT |
| 208 | JM23100156 | Makita JM23100156 KEY 5X10 |
| 209 | JM23100157 | Makita JM23100157 BEARING 6304 |
| 210 | JM23100158 | Makita JM23100158 RETAINING RING 20 |
| 211 | JM23500104 | Makita JM23500104 GEAR WHEEL |
| 212 | JM23100160 | Makita JM23100160 RETAINING RING 16 |
| 213 | JM23100161 | Makita JM23100161 OUTPUT SHAFT SCREW M8X12 |
| 214 | JM23510011 | Makita JM23510011 GEAR BOX COMPLETE |
| 215 | JM23100165 | Makita JM23100165 PROTECTION TUBE, LS1017L |
| 216 | JM23000156 | Makita JM23000156 POWER SUPPLY CORD, MT230 |
| 217 | JM23100166 | Makita JM23100166 CORD CLAMP, LS1017L |
| 218 | JM23500040 | Makita JM23500040 SCREW ST4.2*12 |
| 219 | JM23500108 | Makita JM23500108 PROTECTIVE SLEEVE |
| 220 | JM23500133 | Makita JM23500133 MAGNETIC RING ASSY |
| 221 | JM23500109 | Makita JM23500109 TRANSFORMER |
| 222 | JM23100177 | Makita JM23100177 BRAKE SYSTEM SWITCH KEY, LS1017L |
| 223 | JM23100175 | Makita JM23100175 SWITCH LOCK PLATE, LS1017L |
| 224 | JM23100171 | Makita JM23100171 TERMINAL POLE, LS1017L |
| 225 | JM23100173 | Makita JM23100173 SWITCH LOCK BRACKET, LS1017L |
| 226 | JM23100169 | Makita JM23100169 CAPACITOR, LS1017L |
| 227 | JM23100179 | Makita JM23100179 ELECTRIC SWITCH, LS1017L |
| 228 | JM23100176 | Makita JM23100176 SWITCH HANDLE SPRING, LS1017L |
| 229 | JM23100174 | Makita JM23100174 SWITCH HANDLE, LS1017L |
| 230 | JM23500110 | Makita JM23500110 BAFFLER RING |
| 231 | JM23500137 | Makita JM23500137 BEARING 6201-2R |
| 233 | JM23500111 | Makita JM23500111 BEARING 608 |
| 234 | JM23500112 | Makita JM23500112 DAMPING RING |
| 235 | JM23500113 | Makita JM23500113 SELF-TAPPING CROSS ST4.2X60 |
| 236 | JM23500004 | Makita JM23500004 FIELD 230V |
| 237 | JM23510012 | Makita JM23510012 MOTOR HOUSING COMPLETE |
| 238 | JM23500116 | Makita JM23500116 BRUSH COVER |
| 239 | JM23500117 | Makita JM23500117 Carbon Brushes CB-500 LS0815F |
| 240 | JM23100190 | Makita JM23100190 SPECIAL WASHER 6, LS1017L |
| 241 | JM23500118 | Makita JM23500118 CROSS HEAD CROSS HEAD M6X60 |
| 242 | JM23100186 | Makita JM23100186 Soft Starter for LS1017L LS1018L LS0815FL |
| 243 | JM23500119 | Makita JM23500119 MOTOR REAR COVER |
| 244 | JM23100167 | Makita JM23100167 SELF TAPPING SCREW M4X16, LS1017L |
| 245 | JM23500121 | Makita JM23500121 RIGHT HANDLE |
| 246 | JM23100007 | Makita JM23100007 FLAT WASHER 5, LS1017L |
| 247 | JM23500123 | Makita JM23500123 CROSS HEAD SCREW M5X40 |
| 248 | JM23100167 | Makita JM23100167 SELF TAPPING SCREW M4X16, LS1017L |
| 249 | JM23500124 | Makita JM23500124 SWITCH BRACKET |
| 250 | JM23500125 | Makita JM23500125 LASER SWITCH |
| 251 | JM23500126 | Makita JM23500126 LASER SWITCH PROTECTIVE COVER |
| 252 | JM23500120 | Makita JM23500120 SELF-TAPPING CROSS ST4.2X28 |
| 253 | JM23500107 | Makita JM23500107 LEFT HANDLE |
| 254 | JM23580018 | |
| 232 | JM23500001 | Makita JM23500001 ARMATURE |
Selected parts0
