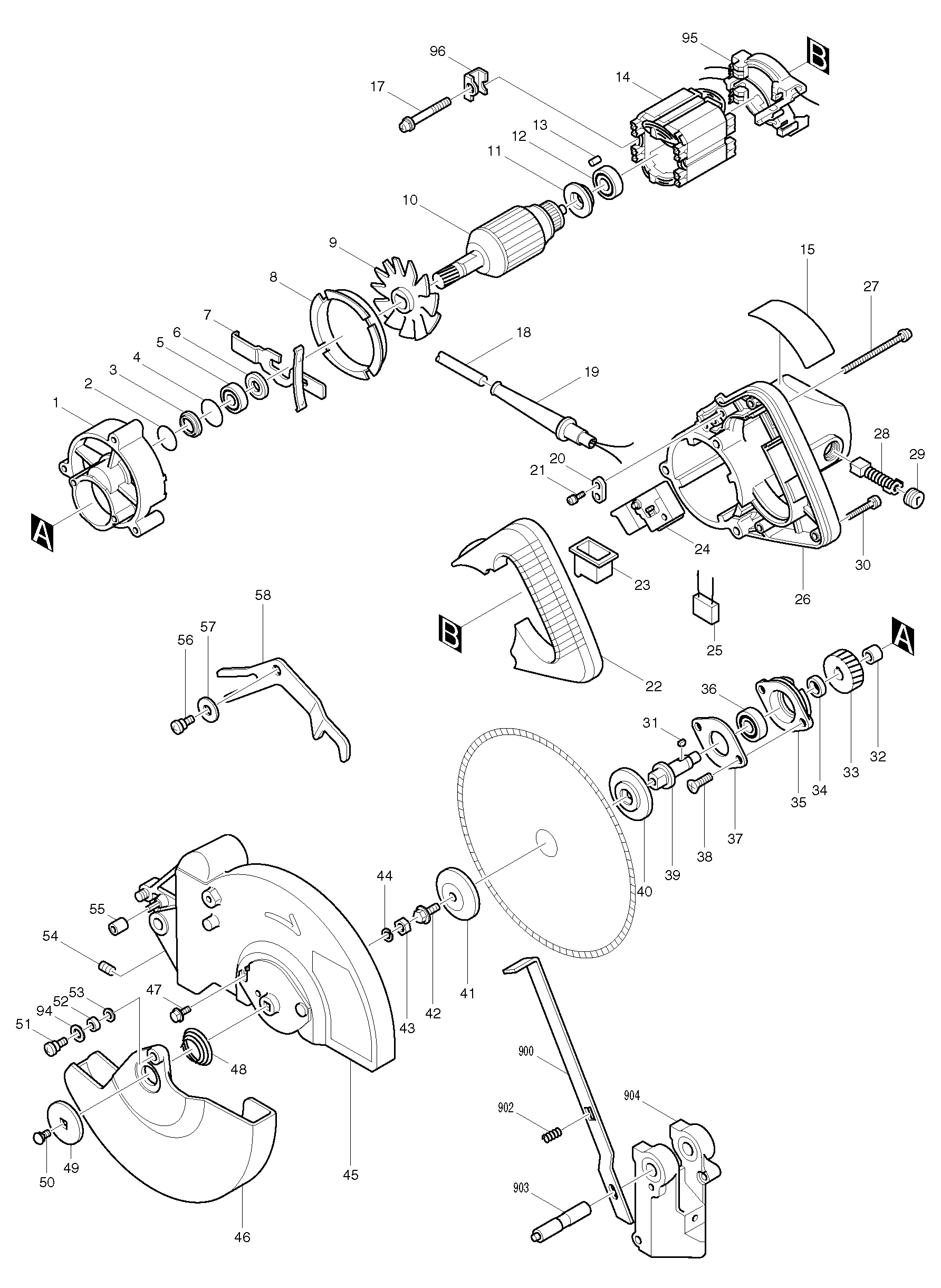

Sheet 1: Makita LS0810 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 157402-2 | Makita 157402-2 GEAR HOUSING |
| 2 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 3 | 343318-9 | Makita 343318-9 WASHER 23 |
| 4 | 213406-5 | Makita 213406-5 O RING 30, HR2810 |
| 5 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 6 | 253769-7 | Makita 253769-7 FLAT WASHER 10 |
| 7 | 163109-0 | Makita 163109-0 SHAFT LOCK |
| 8 | 343319-7 | Makita 343319-7 BAFFLE PLATE |
| 9 | 241838-6 | Makita 241838-6 FAN 68 |
| 10 | 512867-9 | Makita 512867-9 ARMATURE ASS Y 200V |
| 11 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 12 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 13 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 14 | 528776-2 | |
| 15 | 855942-1 | Makita 855942-1 NAME PLATE LS0810 |
| 17 | 911285-2 | Makita 911285-2 PAN HEAD SCREW M5X60 |
| 18 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 19 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 20 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 21 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 22 | 410650-7 | |
| 23 | 421142-1 | Makita 421142-1 SWITCH COVER |
| 24 | 651333-2 | Makita 651333-2 SWITCH SGE210R-1 |
| 25 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 26 | 159839-9 | Makita 159839-9 MOTOR HOUSING |
| 27 | 911293-3 | Makita 911293-3 PAN HEAD SCREW M5X70 |
| 28 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 29 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 30 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 31 | 254011-9 | Makita 254011-9 WOOD RUFF KEY 4, GA7011C |
| 32 | 212004-2 | Makita 212004-2 NEEDLE BEARING 810 |
| 33 | 221602-1 | Makita 221602-1 HELICAL GEAR 44 |
| 34 | 257010-0 | Makita 257010-0 RING 12, JS1300 |
| 35 | 315875-7 | Makita 315875-7 BEARING BOX |
| 36 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 37 | 285659-6 | Makita 285659-6 BEARING RETAINER 48 |
| 38 | 251316-8 | Makita 251316-8 COUNTERSUNK HEAD SCREW M4 X20 |
| 39 | 321904-6 | Makita 321904-6 SPINDLE |
| 40 | 224233-5 | |
| 41 | 224234-3 | Makita 224234-3 OUTER FLANGE 45 |
| 42 | 265226-3 | Makita 265226-3 FLANGE HEX. BOLT M6*17, 4100NH |
| 43 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 44 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 45 | 151446-4 | Makita 151446-4 BLADE CASE |
| 46 | 414323-4 | Makita 414323-4 SAFETY COVER |
| 47 | 265323-5 | Makita 265323-5 HEX. FLANGE HEAD BOLT M5X |
| 48 | 231934-8 | Makita 231934-8 SPIRAL SPRING 26, LS0714 |
| 49 | 253977-0 | Makita 253977-0 FLAT WASHER 6 |
| 50 | 923901-4 | Makita 923901-4 CAP SQUARE NECK BOLT M5X8 |
| 51 | 251331-2 | Makita 251331-2 + PAN HEAD SCREW M6 |
| 52 | 257157-0 | Makita 257157-0 RING 8 |
| 53 | 253047-5 | Makita 253047-5 FLAT WASHER 6 |
| 54 | 265832-4 | Makita 265832-4 HEX. SOCKET HEAD BOLT M5X |
| 55 | 262513-1 | |
| 56 | 251331-2 | Makita 251331-2 + PAN HEAD SCREW M6 |
| 57 | 253022-1 | |
| 58 | 343466-4 | |
| 94 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 95 | 632121-6 | Makita 632121-6 SUPPORT COMPLETE |
| 96 | 343657-7 | Makita 343657-7 RETAINER |
| 900 | 164837-0 | Makita 164837-0 LOCK LEVER |
| 902 | 231223-1 | Makita 231223-1 Compression Spring 6 |
| 903 | 322110-6 | Makita 322110-6 HINGE PIN 12 |
| 904 | 152311-0 | Makita 152311-0 ARM COMPLETE |
Sheet 2: Makita LS0810 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 59 | 231771-0 | Makita 231771-0 TENSION SPRING 9 |
| 60 | 251210-4 | |
| 61 | 231038-6 | Makita 231038-6 COMPRESSION SPRING 6, LS0810 |
| 62 | 322110-6 | Makita 322110-6 HINGE PIN 12 |
| 63 | 951234-7 | Makita 951234-7 SPRING PIN 6-55 |
| 64 | 152311-0 | Makita 152311-0 ARM COMPLETE |
| 65 | 321906-2 | |
| 66 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 67 | 911216-1 | Makita 911216-1 PAN HEAD SCREW M5X14 |
| 68 | 163272-9 | |
| 69 | 251872-8 | |
| 70 | 263003-7 | Makita 263003-7 NYLON PIN 5 |
| 71 | 322051-6 | Makita 322051-6 BOLT M6 |
| 72 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 73 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 74 | 414232-7 | |
| 75 | 414233-5 | Makita 414233-5 FENCE PLATE |
| 76 | 216004-4 | Makita 216004-4 STEEL BALL 7.9 |
| 77 | 231038-6 | Makita 231038-6 COMPRESSION SPRING 6, LS0810 |
| 78 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 79 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 80 | 315868-4 | Makita 315868-4 TURN BASE |
| 81 | 443067-9 | Makita 443067-9 FELT |
| 82 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 83 | 342948-3 | Makita 342948-3 ADJUSTING PLATE |
| 84 | 911246-2 | |
| 85 | 231038-6 | Makita 231038-6 COMPRESSION SPRING 6, LS0810 |
| 86 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 87 | 912226-1 | Makita 912226-1 COUNTERSUNK HEAD SCREW M5 X18 |
| 88 | 253930-6 | Makita 253930-6 FLAT WASHER 7, 9035 |
| 89 | 151445-6 | |
| 90 | 410645-0 | |
| 91 | 410645-0 | |
| 92 | 922376-4 | Makita 922376-4 HEX. SOCKET HEAD BOLT M6X |
| 93 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
