Sheet 1: Makita LS0714L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911228-4 | Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG |
| 2 | 267136-0 | Makita 267136-0 FLAT WASHER 5, LS1040 |
| 3 | 418657-7 | Makita 418657-7 SAFETY COVER FOR LS0714FL |
| 4 | 265008-3 | Makita 265008-3 FLAT HEAD SCREW M5, LS1013 |
| 5 | 265461-3 | Makita 265461-3 Hex. Bolt M6X25 for LS0714 |
| 6 | 224397-5 | Makita 224397-5 INNER FLANGE 40, 5007NB |
| 7 | 285715-2 | Makita 285715-2 BEARING RETAINER 55, LS0714 |
| 8 | 323798-5 | Makita 323798-5 SPINDLE, LS0711 |
| 9 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 10 | 317037-3 | Makita 317037-3 BEARING BOX, LS0714 |
| 11 | 213565-5 | Makita 213565-5 O RING 42, 9067 |
| 12 | 257010-0 | Makita 257010-0 RING 12, JS1300 |
| 13 | 226497-7 | Makita 226497-7 HELICAL GEAR 47, LS0714 |
| 14 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 15 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 16 | 183864-8 | Makita 183864-8 BLADE CASE LS0714FL |
| 17 | 231934-8 | Makita 231934-8 SPIRAL SPRING 26, LS0714 |
| 18 | 344639-2 | Makita 344639-2 CENTER WASHER LS800DW |
| 19 | 265473-6 | Makita 265473-6 HEX.BOLT M6X14, LS0714 |
| 20 | 344641-5 | Makita 344641-5 CENTER COVER LS800DW |
| 21 | 345410-7 | Makita 345410-7 CENTER PLATE |
| 22 | 224282-2 | Makita 224282-2 OUTER FLANGE 40, LS0714 |
| 23 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 24 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 25 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 26 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 27 | 345411-5 | Makita 345411-5 LINK PLATE |
| 28 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 29 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 30 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 31 | 266061-2 | Makita 266061-2 TAPPING SCREW BIND CT4X8 |
| 32 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 33 | 416133-5 | Makita 416133-5 DUST NOZZLE |
| 34 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 35 | 265381-1 | Makita 265381-1 HEX BOLT M6*16, LC1230 |
| 36 | 262001-8 | Makita 262001-8 URETHANE RING 5, 6906 |
| 37 | 265717-4 | Makita 265717-4 THUMB SCREW M6*43, LS0714 |
| 38 | 345438-5 | Makita 345438-5 GUARD PLATE, LS0714 |
| 39 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 40 | 423333-0 | Makita 423333-0 GUARD, LS0714 |
| 41 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 42 | 418109-8 | Makita 418109-8 LEAD COVER A, LS0714 |
| 43 | 418111-1 | Makita 418111-1 LEAD COVER HOLDER, LS0714 |
| 44 | 418110-3 | Makita 418110-3 LEAD COVER B, LS0714 |
| 45 | 418104-8 | Makita 418104-8 LENS, LS0714 |
| 46 | 801262-1 | Makita 801262-1 LASERLINE LABEL |
| 47 | 266306-8 | Makita 266306-8 SHOULDER SCREW M5, LS1016L |
| 48 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 49 | 418107-2 | Makita 418107-2 BLOCK C LS0714FL |
| 50 | 266318-1 | Makita 266318-1 H.S HEAD SET SCREW M4*6, LS0714 |
| 51 | 231664-1 | Makita 231664-1 TORSION SPRING 9, LS0714 |
| 52 | 911014-3 | Makita 911014-3 PAN HEAD SCREW M3X10 |
| 53 | 418106-4 | Makita 418106-4 BLOCK B LS0714FL |
| 54 | 911014-3 | Makita 911014-3 PAN HEAD SCREW M3X10 |
| 55 | 231664-1 | Makita 231664-1 TORSION SPRING 9, LS0714 |
| 56 | 266318-1 | Makita 266318-1 H.S HEAD SET SCREW M4*6, LS0714 |
| 57 | 638356-7 | Makita 638356-7 LASER CIRCUIT COMPLETE LS0714FL |
| 58 | 418108-0 | Makita 418108-0 TOP COVER |
| 59 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 60 | 265753-0 | Makita 265753-0 THUMB SCREW M5*24, LS0714 |
| 61 | 266042-6 | Makita 266042-6 TAPPING SCREW BIND.CT 4*20, LS1016L |
| 62 | 324455-8 | Makita 324455-8 LOCK PIN, LS0714 |
| 63 | 418655-1 | Makita 418655-1 ROD HOLDER, LS0714 |
| 64 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 65 | 231316-4 | Makita 231316-4 COMPRESSION SPRING 7 |
| 66 | 324456-6 | Makita 324456-6 ROD 8, LS0714 |
| 67 | 421589-9 | Makita 421589-9 CAP, LS1040 |
| 68 | 345437-7 | Makita 345437-7 LOCK LEVER LS0714 |
| 69 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 70 | 345436-9 | Makita 345436-9 LOCK PLATE, LS0714 |
| 71 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 72 | 266046-8 | Makita 266046-8 TAPPING SCREW 5X50, HR2010 |
| 73 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 74 | 211101-1 | Makita 211101-1 BEARING 6001LLB, JR3060T |
| 75 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 76 | 233092-6 | Makita 233092-6 COMPRESSION SPRING 5, 5806B |
| 77 | 344642-3 | Makita 344642-3 SHAFT LOCK, LS0714 |
| 79 | 510061-7 | Makita 510061-7 Armature Assy 220V for LS0714 LS0714L LS0714F |
| 80 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 81 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 82 | 261110-0 | Makita 261110-0 URETHANE WASHER 18, LS0714 |
| 83 | 416537-1 | Makita 416537-1 BAFFLE PLATE, LS0714 |
| 84 | 634353-1 | Makita 634353-1 FIELD 220-240V FOR 4131 |
| 85 | 638360-6 | Makita 638360-6 SUPPORT COMPLETE |
| 86 | 183862-2 | Makita 183862-2 HANDLE SET FOR LS0714FL |
| 87 | 665870-0 | |
| 88 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 89 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 90 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 91 | 151900-8 | Makita 151900-8 MOTOR HOUSNG COMPLETE LS0714L, LS0714L |
| 92 | 416538-9 | Makita 416538-9 UPPER COVER, LS0714 |
| 93 | 911273-9 | Makita 911273-9 PAN HEAD SCREW M5X50 WR, 2414NB |
| 94 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 95 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 96 | 861201-3 | |
| 97 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 98 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 99 | 416534-7 | Makita 416534-7 SWITCH LEVER, LS0714 |
| 100 | 631608-5 | Makita 631608-5 POER SUPPLY CERCUIT, LS0714FL |
| 101 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 102 | 256098-7 | Makita 256098-7 PIN 5 |
| 103 | 416533-9 | Makita 416533-9 LOCK OFF LEVER, LS0714 |
| 104 | 231026-3 | Makita 231026-3 COMPRESSION SPRING 4, LS0714 |
| 105 | 911273-9 | Makita 911273-9 PAN HEAD SCREW M5X50 WR, 2414NB |
| 106 | 651522-9 | Makita 651522-9 SWITCH SLE6A, LS0714 |
| 107 | 411478-6 | Makita 411478-6 Switch Button LS1040 LS1214 LS1040F |
| 108 | 154541-9 | Makita 154541-9 SWITCH BOX COMPL. |
| 109 | 183862-2 | Makita 183862-2 HANDLE SET FOR LS0714FL |
| 110 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 113 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |

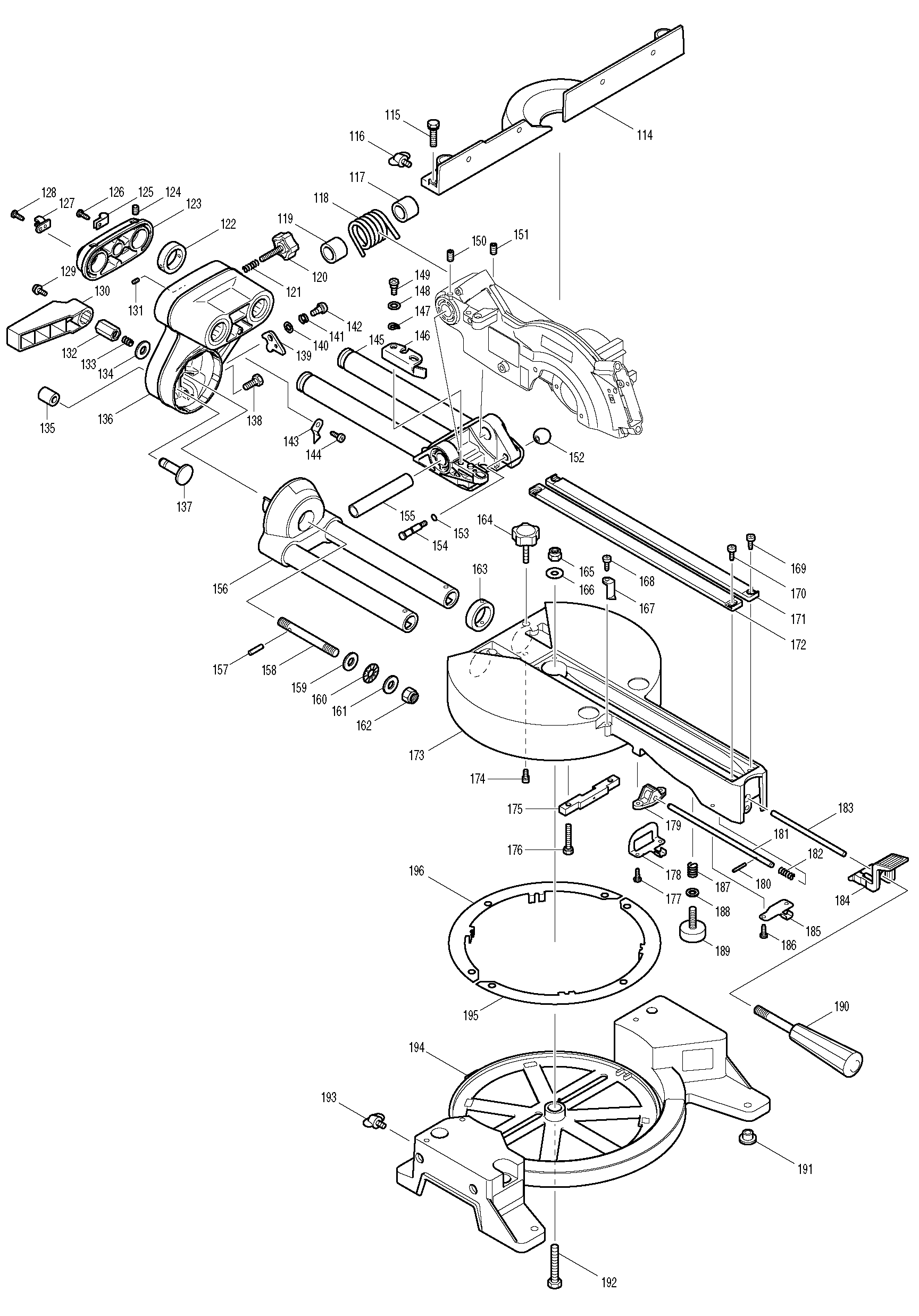

Sheet 2: Makita LS0714L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 114 | 317039-9 | Makita 317039-9 GUIDE FENCE, LS0714 |
| 115 | 265489-1 | Makita 265489-1 HEX.BOLT M6X25, LS0714 |
| 116 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 117 | 416535-5 | Makita 416535-5 SLEEVE 17, LS0714 |
| 118 | 231638-2 | Makita 231638-2 TORSION SPRING 28, LS0714 |
| 119 | 416535-5 | Makita 416535-5 SLEEVE 17, LS0714 |
| 120 | 251897-2 | Makita 251897-2 THUMB SCREW M6*33, LS0713 |
| 121 | 231325-3 | Makita 231325-3 COMPRESSION SPRING 6, LS0714/1016 |
| 122 | 257214-4 | Makita 257214-4 RING 26, LS0713 |
| 123 | 317617-5 | Makita 317617-5 PIPE HOLDER, LS0713 |
| 124 | 266208-8 | Makita 266208-8 M6X8 Hex Socket Head Set Screw M6*8 for 5902B |
| 125 | 687042-7 | Makita 687042-7 CORD CLAMP, 2012NB |
| 126 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 127 | 416536-3 | Makita 416536-3 WRENCH HOLDER, LS0714 |
| 128 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 129 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 130 | 416006-2 | Makita 416006-2 Lever 100 LS1013 LS1040 LF1000 |
| 131 | 913106-4 | Makita 913106-4 SET SCREW M4*8, LS0713 |
| 132 | 252144-4 | Makita 252144-4 HEX NUT, LS1013 |
| 133 | 231266-3 | Makita 231266-3 COMPRESSION SPRING 5, LS0713F |
| 134 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 135 | 286236-7 | Makita 286236-7 CAP 28, MT920 |
| 136 | 153463-0 | Makita 153463-0 ARM COMPLETE, LS0714 |
| 137 | 324295-4 | Makita 324295-4 RELEASE PIN, LS0714 |
| 138 | 265381-1 | Makita 265381-1 HEX BOLT M6*16, LC1230 |
| 139 | 345299-3 | Makita 345299-3 STOPPER PLATE, LS0713 |
| 140 | 253726-5 | Makita 253726-5 FLAT WASHER 6, LS0713 |
| 141 | 231663-3 | Makita 231663-3 TORSION SPRING 8, LS0713F |
| 142 | 265113-6 | Makita 265113-6 PAN HEAD SCREW M5, LS0713 |
| 143 | 343678-9 | Makita 343678-9 INDICATION PLATE, LS1212 |
| 144 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 145 | 153462-2 | Makita 153462-2 FRONT ARM COMPLETE, LS0713 |
| 146 | 344643-1 | Makita 344643-1 STOPPER ARM, LS0711 |
| 147 | 253948-7 | Makita 253948-7 WAVE WASHER, LS0813 |
| 148 | 253835-0 | Makita 253835-0 FLAT WASHER 8, LS0813F |
| 149 | 251267-5 | Makita 251267-5 PAN HEAD SCREW M6, LS1013 |
| 150 | 251961-9 | Makita 251961-9 HEX S.H.SEI SCREW M6X10, LS1040 |
| 151 | 266321-2 | Makita 266321-2 H.S. HEAD SET SCREW M6*16, LS1016L |
| 152 | 271601-3 | Makita 271601-3 Knob 20 for LS0713 |
| 153 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 154 | 324183-5 | Makita 324183-5 Stopper Pin for LS1016L |
| 155 | 331350-5 | Makita 331350-5 PIPE 16-90, LS0714 |
| 156 | 153482-6 | Makita 153482-6 ARM HOLDER COMPLETE, LS0713 |
| 157 | 256100-6 | Makita 256100-6 PIN 5, LS0713 |
| 158 | 266320-4 | Makita 266320-4 SCREW M10, LS0714 |
| 159 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 160 | 216413-7 | Makita 216413-7 THRUST NEEDLE CAGE 1024, LS0713 |
| 161 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 162 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 163 | 257214-4 | Makita 257214-4 RING 26, LS0713 |
| 164 | 251897-2 | Makita 251897-2 THUMB SCREW M6*33, LS0713 |
| 165 | 252105-4 | Makita 252105-4 HEX LOCK NUT M8*13, LS1040 |
| 166 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 167 | 416355-7 | Makita 416355-7 POSITION PLATE, LS0840F |
| 168 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 169 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 170 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 171 | 417993-8 | Makita 417993-8 Kerf Board LS0714 |
| 172 | 417993-8 | Makita 417993-8 Kerf Board LS0714 |
| 173 | 153464-8 | Makita 153464-8 TURN BASE COMPLETE LS0714F |
| 174 | 922111-0 | Makita 922111-0 H.S.HEAD BOLT M4*10 WITH W, EBH252L |
| 175 | 153580-6 | Makita 153580-6 SQUARE ROD COMPLETE, LS713FL |
| 176 | 925251-3 | Makita 925251-3 HEX BOLT M5*30, LS0713 |
| 177 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 178 | 344601-7 | Makita 344601-7 LOCK PLATE, LS1045 |
| 179 | 317616-7 | Makita 317616-7 PIN HOLDER, LS0714 |
| 180 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 181 | 324288-1 | Makita 324288-1 LOCK PIN, LS0713 |
| 182 | 231325-3 | Makita 231325-3 COMPRESSION SPRING 6, LS0714/1016 |
| 183 | 324289-9 | Makita 324289-9 ROD 6, LS0713 |
| 184 | 416450-3 | Makita 416450-3 LOCK LEVER, LS1045 |
| 185 | 345272-3 | Makita 345272-3 LOCK LEVER PLATE, LS0714 |
| 186 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 187 | 231418-6 | Makita 231418-6 COMPRESSION SPRING 9, LS0714 |
| 188 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 189 | 266296-5 | Makita 266296-5 ADJUST BOLT |
| 190 | 273515-2 | Makita 273515-2 Grip 32 for LS0714 |
| 191 | 286212-1 | Makita 286212-1 CAP 20, LS1013 |
| 192 | 921472-5 | Makita 921472-5 HEX BOLT M8*50, LS0713 |
| 193 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 194 | 153950-9 | Makita 153950-9 BASE COMPLETE, LS0714FL |
| 195 | 344646-5 | Makita 344646-5 SLIDE PLATE, LS0813F |
| 196 | 344646-5 | Makita 344646-5 SLIDE PLATE, LS0813F |
Selected parts0
