Makita LS002G
Makita LS002G: exploded parts diagram, 2 sheets, 218 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita LS002G: 218 positions on 2 sheets

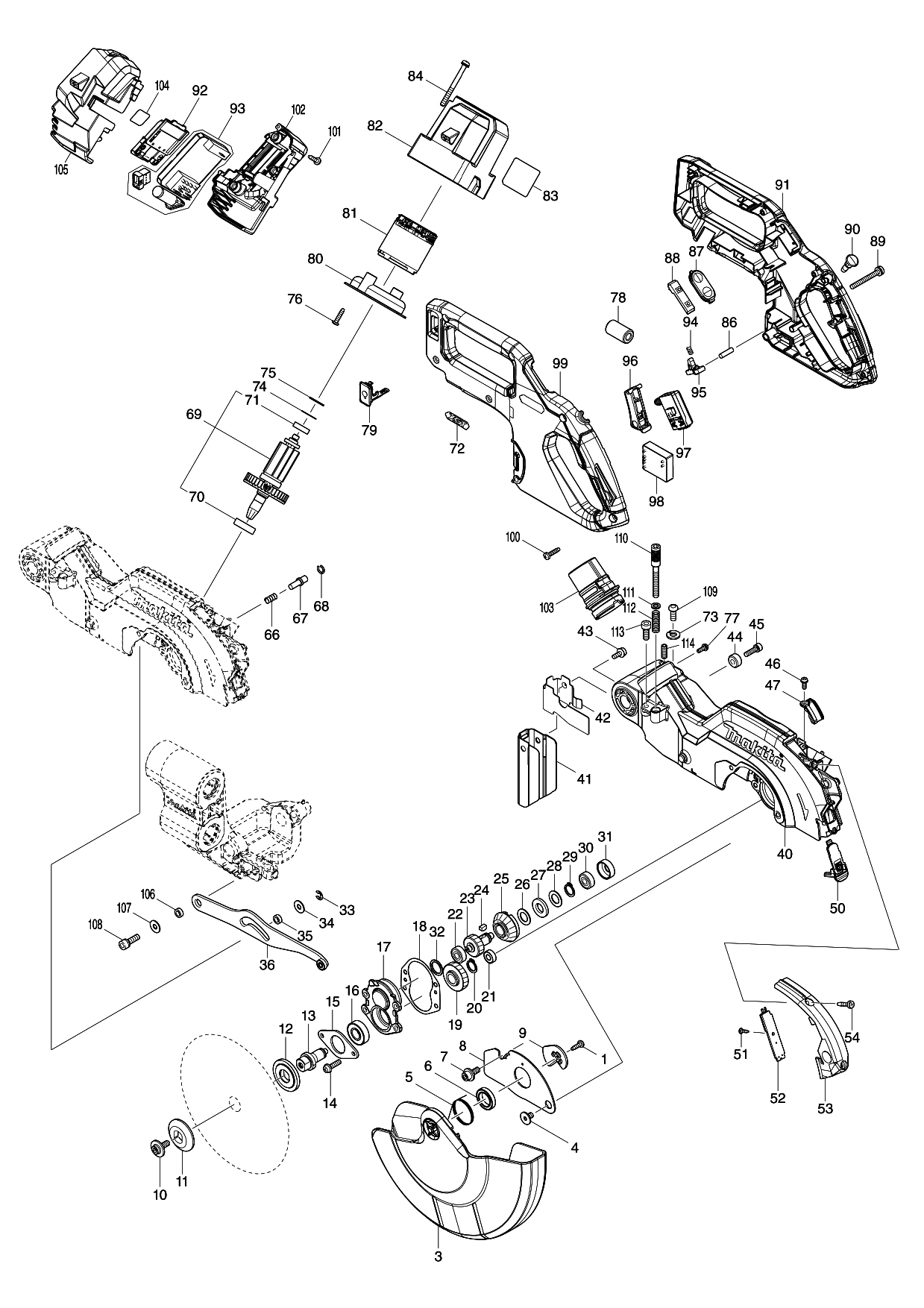

Sheet 1: Makita LS002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 3 | 412933-1 | Makita 412933-1 SAFETY COVER, LS002G |
| 4 | 265985-9 | Makita 265985-9 HEX.SOCKET HEAD BOLTM6, LS1040 |
| 5 | 232311-7 | Makita 232311-7 TORSION SPRING 30 |
| 6 | 210150-5 | Makita 210150-5 BALL BEARING 6803DDW |
| 7 | 266732-1 | Makita 266732-1 H.S.H BOLT M6X16 LS0714 |
| 8 | 347731-3 | |
| 9 | 347059-9 | Makita 347059-9 CENTER PLATE |
| 10 | 266733-9 | Makita 266733-9 HSH Bolt M6X16 for LS0714, LS0714FL |
| 11 | 224275-9 | Makita 224275-9 OUTER FLANGE 40, 5740NB |
| 12 | 224614-3 | Makita 224614-3 INNER FLANGE 40, LS002G |
| 13 | 327697-3 | |
| 14 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 15 | 285043-5 | Makita 285043-5 BEARING RETAINER 52, LS002G |
| 16 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 17 | 312A44-7 | Makita 312A44-7 BEARING BOX, LS002G |
| 18 | 422652-1 | Makita 422652-1 GASKET, LS002G |
| 19 | 227838-0 | Makita 227838-0 HELICAL GEAR 43, LS002G |
| 20 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 21 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 22 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 23 | 227837-2 | Makita 227837-2 HELICAL GEAR 30, LS002G |
| 24 | 254011-9 | Makita 254011-9 WOOD RUFF KEY 4, GA7011C |
| 25 | 227836-4 | Makita 227836-4 SPIRAL BEVEL GEAR 33, LS002G |
| 26 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 27 | 261104-5 | Makita 261104-5 RUBBER WASHER 12, LS1016 |
| 28 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 29 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 30 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 31 | 424605-6 | |
| 32 | 261153-2 | Makita 261153-2 URETHAN WASHER 15, DLS600 |
| 33 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 34 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 35 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 36 | 140W98-4 | Makita 140W98-4 LINK PLATE COMPLETE, LS002G |
| 40 | 140W84-5 | Makita 140W84-5 BLADE CASE COMPLETE, LS002G |
| 41 | 422651-3 | Makita 422651-3 GUARD, LS002G |
| 42 | 345438-5 | Makita 345438-5 GUARD PLATE, LS0714 |
| 43 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 44 | 257785-1 | Makita 257785-1 SLEEVE 6, LS1016 |
| 45 | 922226-3 | Makita 922226-3 HEX.SOCKET HEAD BOLT M5X18, LS1016L |
| 46 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 47 | 458075-7 | Makita 458075-7 LEAD COVER |
| 50 | 140X03-7 | Makita 140X03-7 LENS COMPLETE, LS002G |
| 51 | 266421-8 | Makita 266421-8 TAPPING SCREW 3*10, HR2810 |
| 52 | 620E07-6 | Makita 620E07-6 LED CIRCUIT, LS002G |
| 53 | 141A59-5 | Makita 141A59-5 LED COVER COMPLETE, LS002G |
| 54 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 66 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 67 | 256633-1 | Makita 256633-1 PIN 6, LS1016L |
| 68 | 231928-3 | Makita 231928-3 RING SPRING 8, LS1013 |
| 69 | 519649-0 | Makita 519649-0 ROTOR ASS'Y, LS002G |
| 70 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 71 | 210017-7 | Makita 210017-7 BALL BEARING 607DDW, 9528B |
| 72 | 8024V5-2 | |
| 73 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 74 | 253842-3 | Makita 253842-3 FLAT WASHER 14, HR2410 |
| 75 | 261153-2 | Makita 261153-2 URETHAN WASHER 15, DLS600 |
| 76 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 77 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 78 | 688162-0 | Makita 688162-0 LINE FILTER |
| 79 | 140F99-0 | |
| 80 | 459933-0 | |
| 81 | 629A26-5 | Makita 629A26-5 STATOR, LS002G |
| 82 | 412926-8 | Makita 412926-8 MOTOR HOUSING, LS002G |
| 83 | 858A05-8 | |
| 84 | 911278-9 | Makita 911278-9 PAN HEAD SCREW M5X55 |
| 86 | 256123-4 | Makita 256123-4 PIN 5 |
| 87 | 140X02-9 | Makita 140X02-9 SWITCH PLATE COMPLETE, LS002G |
| 88 | 631973-2 | Makita 631973-2 SWITCH UNIT, CL141FD |
| 89 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 90 | 417113-4 | Makita 417113-4 Switch Button |
| 91 | 183R96-5 | Makita 183R96-5 HANDLE SET, LS002G |
| 92 | 632P64-8 | |
| 93 | 620E06-8 | Makita 620E06-8 CONTROLLER, LS002G |
| 94 | 231026-3 | Makita 231026-3 COMPRESSION SPRING 4, LS0714 |
| 95 | 416533-9 | Makita 416533-9 LOCK OFF LEVER, LS0714 |
| 96 | 459966-5 | |
| 97 | 651083-9 | Makita 651083-9 SWITCH |
| 98 | 620E08-4 | Makita 620E08-4 POWER SUPPLY CIRCUIT, LS002G |
| 99 | 183R96-5 | Makita 183R96-5 HANDLE SET, LS002G |
| 100 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 101 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 102 | 183R92-3 | Makita 183R92-3 BATTERY HOUSING SET, LS002G |
| 103 | 459250-8 | |
| 104 | 858A11-3 | |
| 105 | 183R92-3 | Makita 183R92-3 BATTERY HOUSING SET, LS002G |
| 106 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 107 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 108 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 109 | 265484-1 | Makita 265484-1 HEX SOCKET HEAD BOLT M6X |
| 110 | 265B58-0 | Makita 265B58-0 HEX SOCKET HEAD BOLT M6X45, LS002G |
| 111 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 112 | 233343-7 | Makita 233343-7 COMPRESSION SPRING 7, HR2450 |
| 113 | 266757-5 | Makita 266757-5 HEX SOCKET HEAD BOLT M6X16 |
| 114 | 266321-2 | Makita 266321-2 H.S. HEAD SET SCREW M6*16, LS1016L |

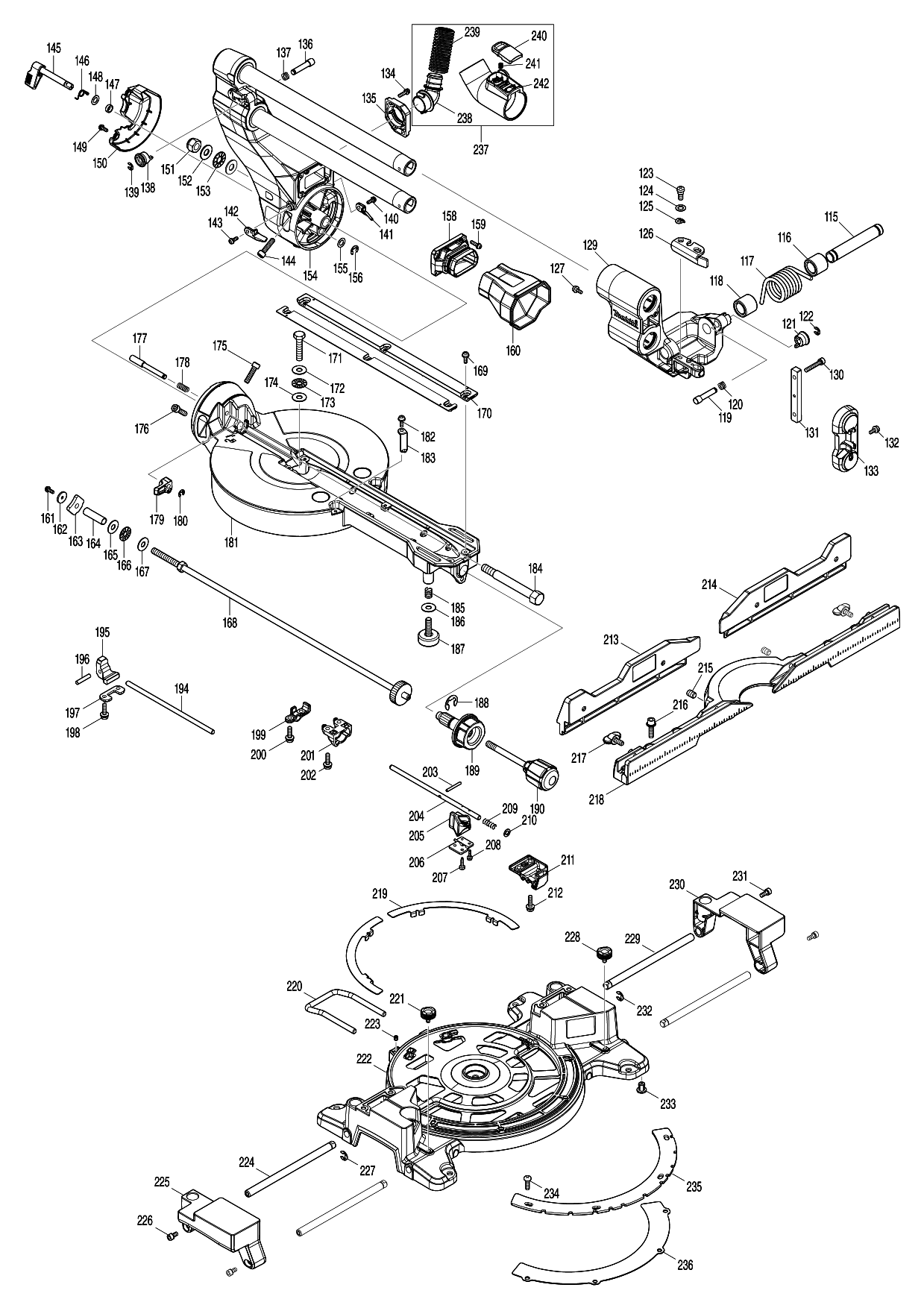

Sheet 2: Makita LS002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 115 | 327710-7 | Makita 327710-7 ROD 16, LS002G |
| 116 | 416905-8 | |
| 117 | 231685-3 | |
| 118 | 416905-8 | |
| 119 | 327702-6 | Makita 327702-6 LOCK PIN 7-9, LS002G |
| 120 | 234316-3 | |
| 121 | 271428-1 | |
| 122 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 123 | 251267-5 | Makita 251267-5 PAN HEAD SCREW M6, LS1013 |
| 124 | 253215-0 | Makita 253215-0 FLAT WASHER 8 |
| 125 | 253948-7 | Makita 253948-7 WAVE WASHER, LS0813 |
| 126 | 344643-1 | Makita 344643-1 STOPPER ARM, LS0711 |
| 127 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 129 | 140W83-7 | Makita 140W83-7 FRONT ARM COMPLETE, LS002G |
| 130 | 922251-4 | Makita 922251-4 HEX. SOCKET HEAD BOLT M5X |
| 131 | 327705-0 | Makita 327705-0 SQUARE ROD, LS002G |
| 132 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 133 | 412938-1 | Makita 412938-1 RAIL HOLDER, LS002G |
| 134 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 135 | 412947-0 | Makita 412947-0 INLET, LS002G |
| 136 | 327702-6 | Makita 327702-6 LOCK PIN 7-9, LS002G |
| 137 | 234316-3 | |
| 138 | 271428-1 | |
| 139 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 140 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 141 | 412943-8 | Makita 412943-8 INDICATION PLATE R, LS002G |
| 142 | 412942-0 | Makita 412942-0 INDICATION PLATE L, LS002G |
| 143 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 144 | 251582-7 | Makita 251582-7 HEX.SOCKET HEAD BOLT M6*25 |
| 145 | 271466-3 | Makita 271466-3 LEVER 30, LS002G |
| 146 | 232651-3 | Makita 232651-3 TORSION SPRING 8, LS002G |
| 147 | 257848-3 | Makita 257848-3 RING 8, LS002G |
| 148 | 253215-0 | Makita 253215-0 FLAT WASHER 8 |
| 149 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 150 | 412934-9 | Makita 412934-9 ARM COVER, LS002G |
| 151 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 152 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 153 | 216413-7 | Makita 216413-7 THRUST NEEDLE CAGE 1024, LS0713 |
| 154 | 140W82-9 | Makita 140W82-9 ARM COMPLETE, LS002G |
| 155 | 253215-0 | Makita 253215-0 FLAT WASHER 8 |
| 156 | 961013-5 | Makita 961013-5 STOP RING E-7, LS1016 |
| 158 | 412944-6 | Makita 412944-6 DUST GUIDE HOLDER, LS002G |
| 159 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 160 | 422648-2 | Makita 422648-2 DUST GUIDE, LS002G |
| 161 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 162 | 253400-5 | Makita 253400-5 FLAT WASHER 4 |
| 163 | 347759-1 | |
| 164 | 257849-1 | Makita 257849-1 SLEEVE 8, LS002G |
| 165 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 166 | 216415-3 | Makita 216415-3 THRUST NEEDLE GAGE 821, 6826 |
| 167 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 168 | 162942-7 | Makita 162942-7 LOCK SHAFT COMPLETE |
| 169 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 170 | 412940-4 | |
| 171 | 265442-7 | Makita 265442-7 HEX. BOLT M8X40 |
| 172 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 173 | 216415-3 | Makita 216415-3 THRUST NEEDLE GAGE 821, 6826 |
| 174 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 175 | 251582-7 | Makita 251582-7 HEX.SOCKET HEAD BOLT M6*25 |
| 176 | 251582-7 | Makita 251582-7 HEX.SOCKET HEAD BOLT M6*25 |
| 177 | 327704-2 | Makita 327704-2 STOPPER ROD, LS002G |
| 178 | 234122-6 | Makita 234122-6 COMPRESSION SPRING 6, LS1016 |
| 179 | 271465-5 | Makita 271465-5 LEVER 24, LS002G |
| 180 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 181 | 140W81-1 | |
| 182 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 183 | 459928-3 | |
| 184 | 327698-1 | Makita 327698-1 CENTER SHAFT, LS002G |
| 185 | 231418-6 | Makita 231418-6 COMPRESSION SPRING 9, LS0714 |
| 186 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 187 | 266432-3 | Makita 266432-3 ADJUST BOLT M8*27, LS0611 |
| 188 | 961062-2 | Makita 961062-2 STOP RING E-12, 439 |
| 189 | 271464-7 | Makita 271464-7 GRIP 46, LS002G |
| 190 | 271463-9 | |
| 194 | 327700-0 | Makita 327700-0 LOCK ROD 6, LS002G |
| 195 | 313326-4 | Makita 313326-4 TURN STOPPER, LS002G |
| 196 | 256186-0 | Makita 256186-0 PIN 5 |
| 197 | 347601-6 | |
| 198 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 199 | 312A46-3 | Makita 312A46-3 PIN HOLDER, LS002G |
| 200 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 201 | 412941-2 | Makita 412941-2 LEAD BLOCK, LS002G |
| 202 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 203 | 256267-0 | Makita 256267-0 PIN 3 |
| 204 | 327701-8 | Makita 327701-8 LOCK PIN 6, LS002G |
| 205 | 412939-9 | Makita 412939-9 LEVER 38, LS002G |
| 206 | 347760-6 | Makita 347760-6 LEVER PLATE, LS002G |
| 207 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 208 | 911013-5 | Makita 911013-5 PAN HEAD SCREW M3X10, DF456D |
| 209 | 233201-7 | Makita 233201-7 COMPRESSION SPRING 6, AN611 |
| 210 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 211 | 312A45-5 | Makita 312A45-5 GEAR COVER, LS002G |
| 212 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 213 | 140W85-3 | Makita 140W85-3 UPPER FENCE L COMPLETE, LS002G |
| 214 | 140W86-1 | Makita 140W86-1 UPPER FENCE R COMPLETE, LS002G |
| 215 | 266089-0 | Makita 266089-0 H.S.SET SCREW(FLAT POINT)M8X12, LS002G |
| 216 | 922344-7 | Makita 922344-7 H.S.H BOLT M6X25 |
| 217 | 265701-9 | Makita 265701-9 THUMB SCREW M6X14, 5604R |
| 218 | 312A38-2 | |
| 219 | 347758-3 | |
| 220 | 327706-8 | Makita 327706-8 BASE SUPPORTER, LS002G |
| 221 | 265785-7 | Makita 265785-7 THUMB SCREW, KP0800 |
| 222 | 140W80-3 | Makita 140W80-3 BASE COMPLETE, LS002G |
| 223 | 266264-8 | Makita 266264-8 HEX.SOCKET SET SCREW M5*6, SS610D |
| 224 | 327703-4 | Makita 327703-4 ROD 10, LS002G |
| 225 | 312A42-1 | Makita 312A42-1 SUB BASE L, LS002G |
| 226 | 922211-6 | Makita 922211-6 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 227 | 961013-5 | Makita 961013-5 STOP RING E-7, LS1016 |
| 228 | 265785-7 | Makita 265785-7 THUMB SCREW, KP0800 |
| 229 | 327703-4 | Makita 327703-4 ROD 10, LS002G |
| 230 | 312A43-9 | Makita 312A43-9 SUB BASE R, LS002G |
| 231 | 922211-6 | Makita 922211-6 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 232 | 961013-5 | Makita 961013-5 STOP RING E-7, LS1016 |
| 233 | 286044-6 | |
| 234 | 251546-1 | Makita 251546-1 PAN HEAD SCREW M5, LS1019L |
| 235 | 347756-7 | Makita 347756-7 MITER SCALE PLATE, LS002G |
| 236 | 347757-5 | Makita 347757-5 MITER LOCK PLATE, LS002G |
| 238 | 412945-4 | |
| 239 | 245062-3 | |
| 240 | 458939-5 | |
| 241 | 232485-4 | |
| 242 | 412946-2 |
Selected parts0
