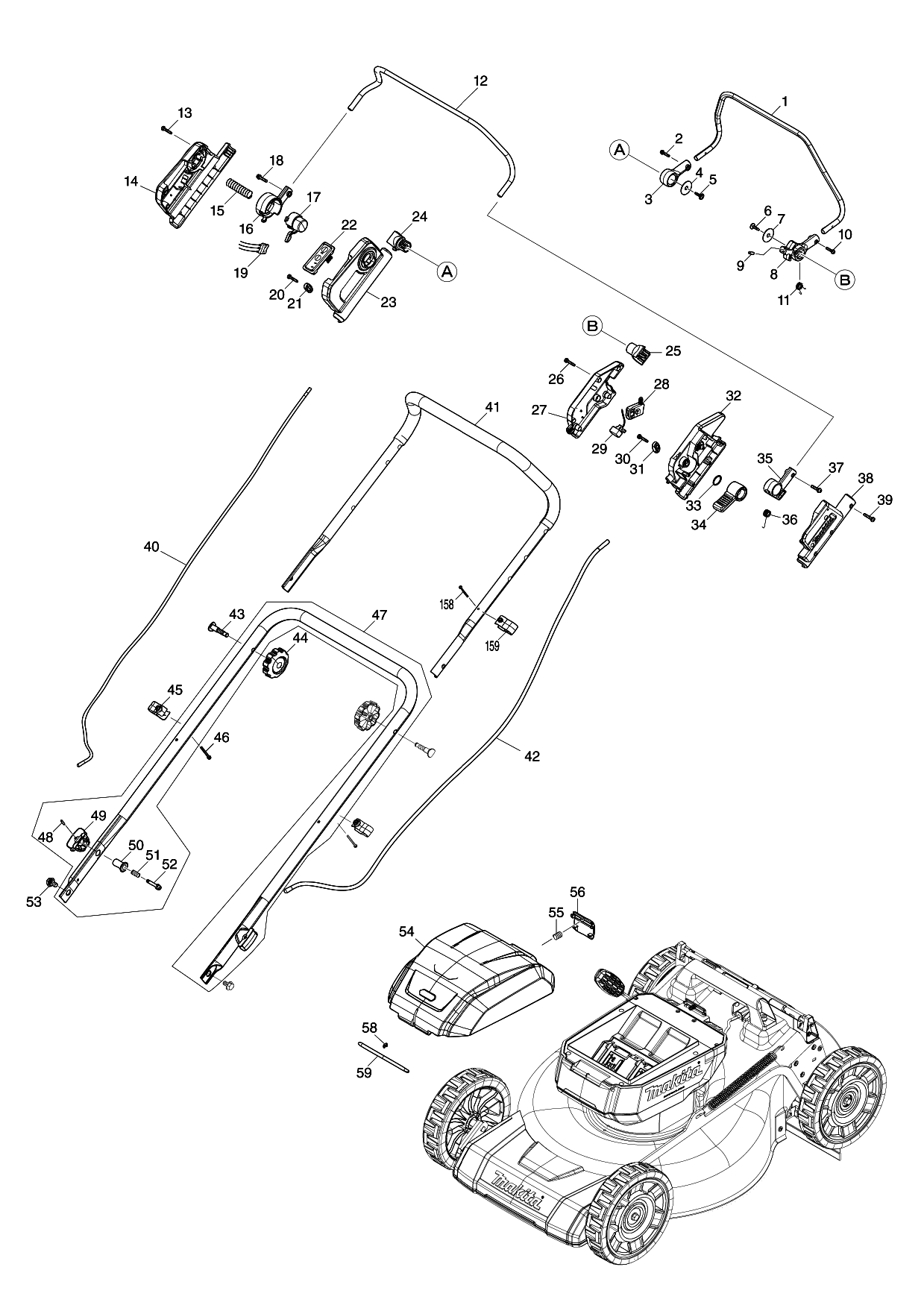

Sheet 1: Makita LM002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 327425-6 | |
| 2 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 3 | 459858-8 | |
| 4 | 253814-8 | Makita 253814-8 FLAT WASHER 8 |
| 5 | 265620-9 | |
| 6 | 265620-9 | |
| 7 | 253814-8 | Makita 253814-8 FLAT WASHER 8 |
| 8 | 413B10-4 | |
| 9 | 268225-4 | Makita 268225-4 PIN 5 |
| 10 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 11 | 232566-4 | |
| 12 | 327424-8 | |
| 13 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 14 | 183X93-7 | |
| 15 | 231227-3 | Makita 231227-3 COMPRESSION SPRING 15 |
| 16 | 459856-2 | |
| 17 | 459857-0 | |
| 18 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 19 | 632T11-3 | |
| 20 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 21 | 687123-7 | Makita 687123-7 CORD CLAMP, MT952 |
| 22 | 141M31-9 | |
| 23 | 183X93-7 | |
| 24 | 413A98-8 | |
| 25 | 413A98-8 | |
| 26 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 27 | 183U35-3 | |
| 28 | 651083-9 | Makita 651083-9 SWITCH |
| 29 | 620J45-8 | |
| 30 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 31 | 687123-7 | Makita 687123-7 CORD CLAMP, MT952 |
| 32 | 413A95-4 | |
| 33 | 213A12-2 | |
| 34 | 413B01-5 | |
| 35 | 459863-5 | |
| 36 | 232575-3 | |
| 37 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 38 | 183U35-3 | |
| 39 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 40 | 699215-0 | |
| 41 | 327871-3 | |
| 42 | 699216-8 | |
| 43 | 265C08-1 | |
| 44 | 265C06-5 | |
| 45 | 413L52-8 | |
| 46 | 911168-6 | Makita 911168-6 PAN HEAD SCREW M4X40 |
| 48 | 258004-8 | Makita 258004-8 SPRING PIN 2.5-16 |
| 49 | 413943-1 | |
| 50 | 327A66-4 | |
| 51 | 234121-8 | Makita 234121-8 COMPRESSION SPRING 8, FS4300 |
| 52 | 327A65-6 | |
| 53 | 265C07-3 | |
| 54 | 136880-9 | |
| 55 | 231037-8 | Makita 231037-8 COMPRESSION SPRING 7, 3612BR |
| 56 | 459852-0 | |
| 58 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 59 | 327536-7 | |
| 158 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 159 | 413944-9 |

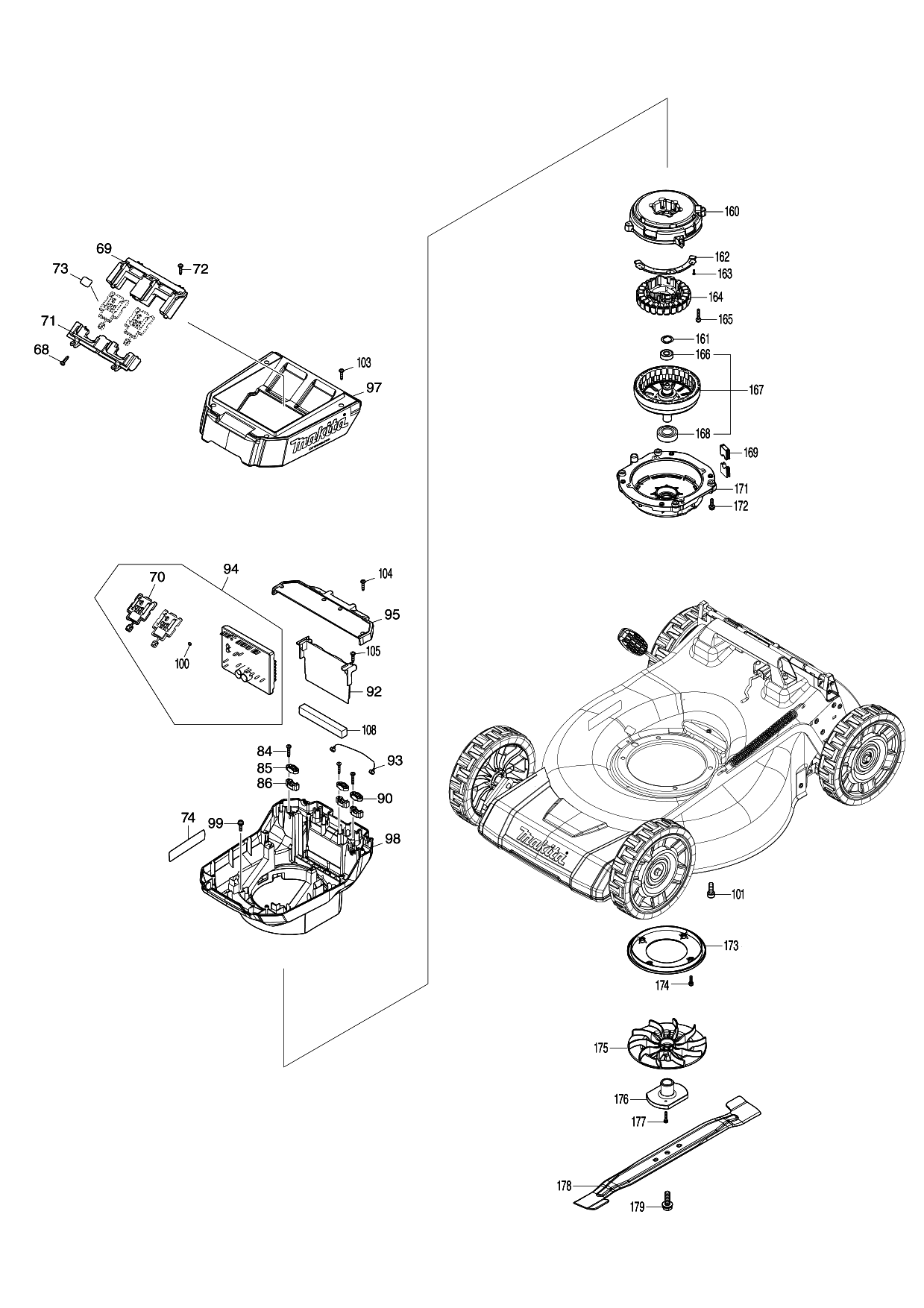

Sheet 2: Makita LM002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 68 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 69 | 183X12-3 | |
| 70 | 632T08-2 | |
| 71 | 183X12-3 | |
| 72 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 73 | 8582C8-9 | |
| 74 | 8582C2-1 | |
| 84 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 85 | 687123-7 | Makita 687123-7 CORD CLAMP, MT952 |
| 86 | 687051-6 | Makita 687051-6 STRAIN RELIEF |
| 90 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 92 | 413L30-8 | |
| 93 | 620J46-6 | |
| 95 | 141M28-8 | |
| 97 | 413L22-7 | |
| 98 | 413L21-9 | |
| 99 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 100 | 652031-1 | |
| 101 | 922441-9 | Makita 922441-9 H.S.H BOLT M8*25, PC5001C |
| 103 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 104 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 105 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 108 | 422956-1 | |
| 160 | 141M30-1 | |
| 161 | 253455-0 | |
| 162 | 620J44-0 | |
| 163 | 265C89-5 | |
| 164 | 629B84-7 | |
| 165 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 166 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 167 | 519785-2 | |
| 168 | 211332-2 | Makita 211332-2 BEARING 6004LLU, HR4002 |
| 169 | 422955-3 | |
| 171 | 312D43-7 | |
| 172 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 173 | 413L53-6 | |
| 174 | 911126-2 | Makita 911126-2 PAN HEAD SCREW M4X16, 5900B |
| 175 | 240205-2 | |
| 176 | 312D48-7 | |
| 177 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 178 | 191V96-5 | |
| 179 | 265A69-9 |

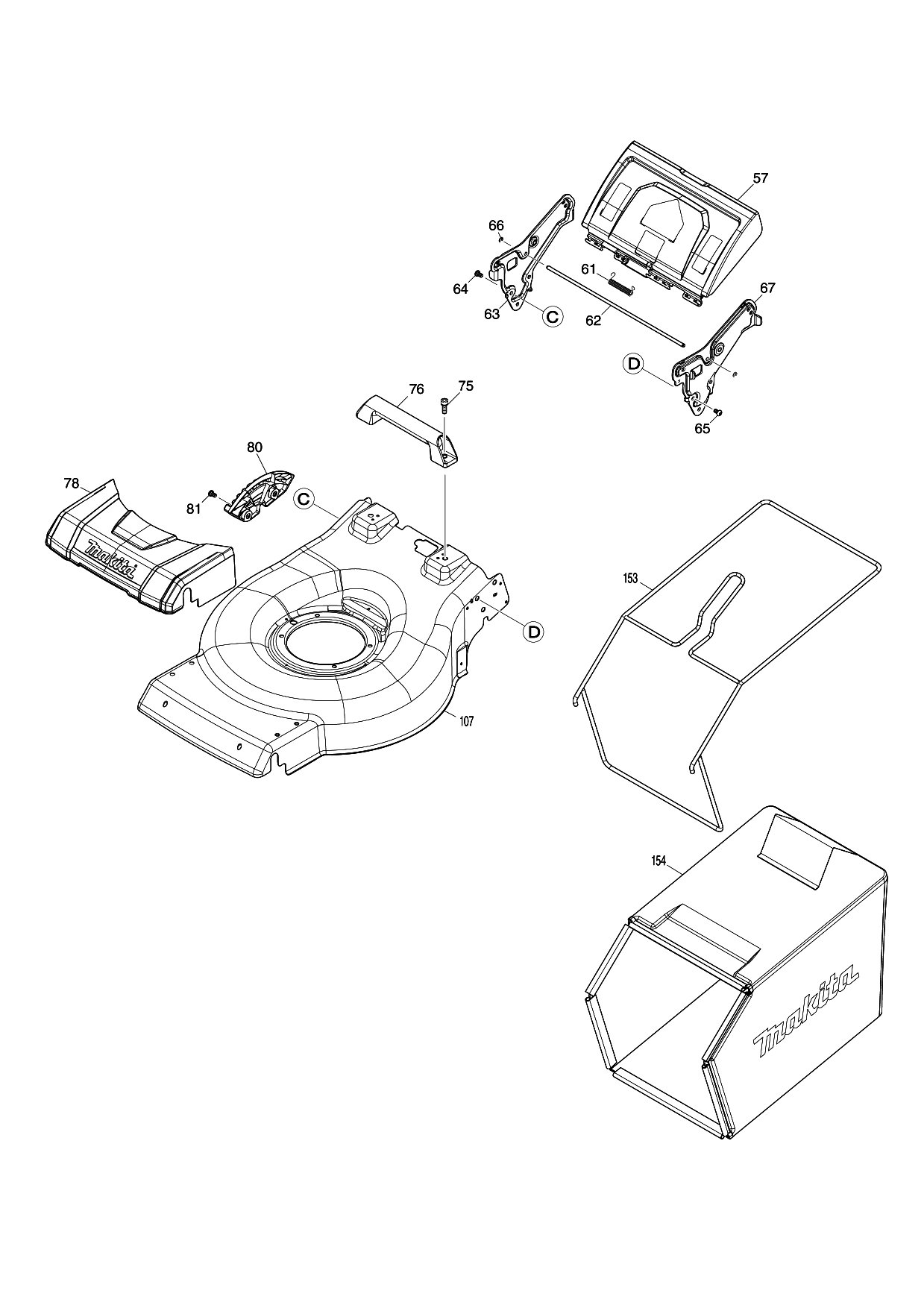

Sheet 3: Makita LM002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 57 | 141M22-0 | |
| 61 | 232721-8 | |
| 62 | 327A64-8 | |
| 63 | 347A56-1 | |
| 64 | 265B20-5 | |
| 65 | 265B20-5 | |
| 66 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 67 | 347A55-3 | |
| 75 | 922441-9 | Makita 922441-9 H.S.H BOLT M8*25, PC5001C |
| 76 | 413L42-1 | |
| 78 | 413L33-2 | |
| 80 | 413L43-9 | |
| 81 | 265B20-5 | |
| 107 | 141S44-6 | |
| 153 | 162C45-5 | |
| 154 | 162C13-8 |

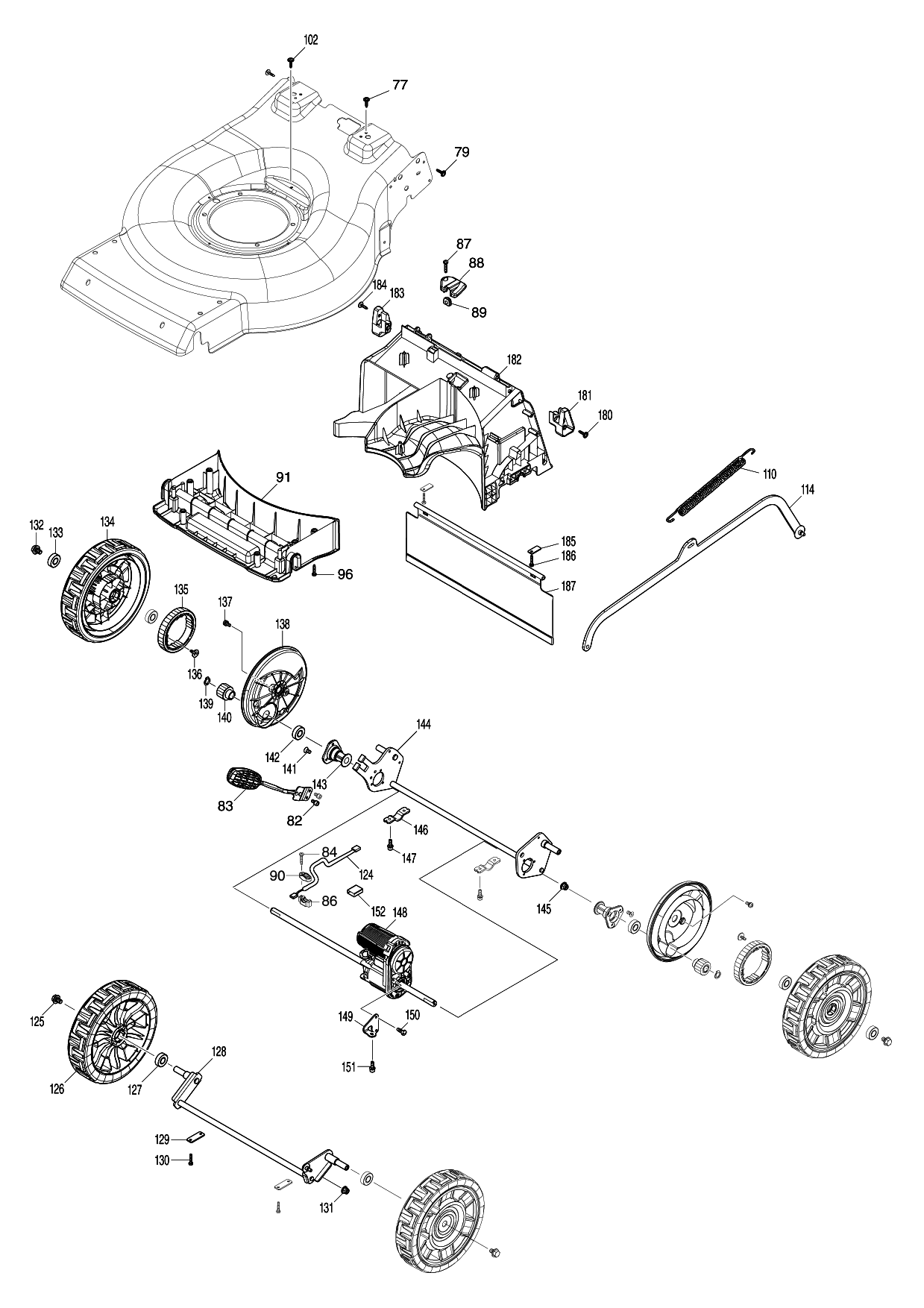

Sheet 4: Makita LM002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 77 | 265620-9 | |
| 79 | 265620-9 | |
| 82 | 922311-2 | Makita 922311-2 HEX. SOCKET HEAD BOLT M6X |
| 83 | 162B98-8 | |
| 87 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 88 | 413L50-2 | |
| 89 | 422526-6 | |
| 91 | 413L35-8 | |
| 96 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 102 | 265620-9 | |
| 110 | 232628-8 | |
| 114 | 347A58-7 | |
| 124 | 699214-2 | |
| 125 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 126 | 141M25-4 | |
| 127 | 210163-6 | Makita 210163-6 BALL BEARING 6001DDW |
| 128 | 162C00-7 | |
| 129 | 347869-4 | |
| 130 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 131 | 252301-4 | |
| 132 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 133 | 210163-6 | Makita 210163-6 BALL BEARING 6001DDW |
| 134 | 141M26-2 | |
| 135 | 227913-2 | |
| 136 | 265B00-1 | |
| 137 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 138 | 413L40-5 | |
| 139 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 140 | 227A00-3 | |
| 141 | 251951-2 | Makita 251951-2 HEX. SOCKET HEAD BOLT M5X |
| 142 | 210163-6 | Makita 210163-6 BALL BEARING 6001DDW |
| 143 | 313390-5 | |
| 144 | 162C02-3 | |
| 145 | 252301-4 | |
| 146 | 347865-2 | |
| 147 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 148 | 122E54-8 | |
| 149 | 347A59-5 | |
| 150 | 266388-0 | Makita 266388-0 TAPPING SCREW 5*70, UC3020A |
| 151 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 152 | 683A20-1 | |
| 180 | 265620-9 | |
| 181 | 183X16-5 | |
| 182 | 413L37-4 | |
| 183 | 183X16-5 | |
| 184 | 265620-9 | |
| 185 | ||
| 186 | ||
| 187 |
