Makita LH1040F
Makita LH1040F: exploded parts diagram, 2 sheets, 154 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita LH1040F: 154 positions on 2 sheets

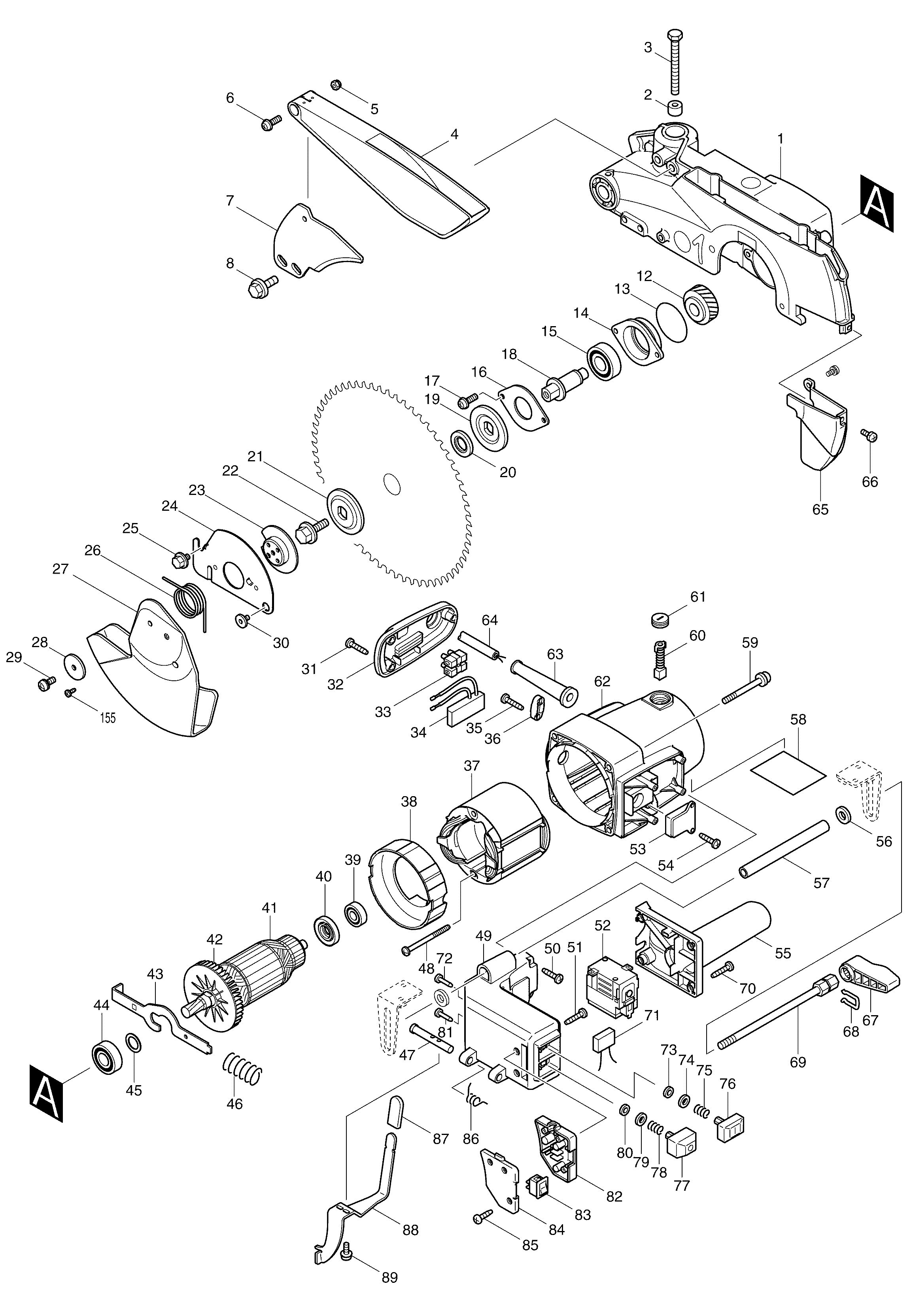

Sheet 1: Makita LH1040F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 153993-1 | Makita 153993-1 BLADE CASE COMPLETE LH1040, LH1040 |
| 2 | 262511-5 | Makita 262511-5 RUBBER SLEEVE 6, LS1040 |
| 3 | 251667-9 | Makita 251667-9 HEX BOLT M8*75, LS1040 |
| 4 | 154521-5 | Makita 154521-5 COVER COMPLETE LH1040 |
| 5 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 6 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 7 | 345423-8 | Makita 345423-8 RIVING KNIFE, LH1040 |
| 8 | 251644-1 | Makita 251644-1 Hex Flange Head Bolt M8*20 for 5007NB |
| 12 | 226465-0 | Makita 226465-0 HELICAL GEAR 42, LS1040 |
| 13 | 213621-1 | Makita 213621-1 O-RING 46, LH1040 |
| 14 | 316821-3 | Makita 316821-3 BEARING BOX, LS1040 |
| 15 | 211256-2 | Makita 211256-2 BALL BEARING 6203LLB, LS1040 |
| 16 | 285685-5 | Makita 285685-5 BEARING RETAINER 64, LS1040 |
| 17 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 18 | 322865-3 | Makita 322865-3 SPINDLE, LS1040 |
| 19 | 224333-1 | Makita 224333-1 FLANGE 53, LH1040 |
| 20 | 257262-3 | Makita 257262-3 RING 16, LH1040 |
| 21 | 224333-1 | Makita 224333-1 FLANGE 53, LH1040 |
| 22 | 265355-2 | Makita 265355-2 |
| 23 | 343639-9 | Makita 343639-9 CENTER PLATE, LS1040 |
| 24 | 344380-7 | Makita 344380-7 CENTER COVER, LS1040 |
| 25 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 26 | 231593-8 | Makita 231593-8 TORSION SPRING 36, LS1040 |
| 27 | 418625-0 | Makita 418625-0 SAFETY COVER, LH1040 |
| 28 | 267136-0 | Makita 267136-0 FLAT WASHER 5, LS1040 |
| 29 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 30 | 265985-9 | Makita 265985-9 HEX.SOCKET HEAD BOLTM6, LS1040 |
| 31 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 32 | 418620-0 | Makita 418620-0 HOUSING COVER, LH1040 |
| 33 | 654561-8 | Makita 654561-8 TERMINAL BLOCK, 2012NB |
| 34 | 631613-2 | Makita 631613-2 SOFT START CIRCUIT, LH1040 |
| 35 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 36 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 37 | 599519-9 | Makita 599519-9 FIELD ASSY 220-240V, LH1040 |
| 38 | 418621-8 | Makita 418621-8 BAFFLE PLATE, LH1040 |
| 39 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 40 | 681640-9 | Makita 681640-9 INSULATION WASHER, 5377MG |
| 41 | 516718-8 | Makita 516718-8 Armature Assembly 220V for LS1040 |
| 43 | 343641-2 | Makita 343641-2 SHAFT LOCK, LS1040 |
| 44 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 45 | 267280-3 | Makita 267280-3 FLAT WASHER 15, LS1040 |
| 46 | 231297-2 | Makita 231297-2 COMPRESSION SPRING 9, 5007MG |
| 47 | 324496-4 | Makita 324496-4 LOCK PIN 8, LH1040 |
| 48 | 266029-8 | Makita 266029-8 TAPPING SCREW PT 5X65, 5277NB |
| 49 | 418630-7 | Makita 418630-7 SWITCH BOX, LH1040 |
| 50 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 51 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 52 | 652772-9 | Makita 652772-9 RELAY 305.232.01, LF1000 |
| 53 | 153996-5 | Makita 153996-5 CLAMP PLATE COMPLETE, LH1040 |
| 54 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 55 | 153995-7 | Makita 153995-7 HANDLE COMPLETE, LH1040 |
| 56 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 57 | 331683-8 | Makita 331683-8 PIPE 9-126, LH1040 |
| 58 | 860810-5 | |
| 59 | 911383-2 | Makita 911383-2 PAN HEAD SCREW M6X60 WR, LS1040 |
| 60 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 61 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 62 | 153994-9 | Makita 153994-9 MOTOR HOUSING COMPL. LH1040 |
| 63 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 64 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 65 | 165389-4 | Makita 165389-4 BLADE GUARD, LH1040 |
| 66 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 67 | 272230-5 | Makita 272230-5 Lever 54 for N5900B |
| 68 | 231955-0 | Makita 231955-0 RING SPRING 12, N5900B |
| 69 | 331682-0 | Makita 331682-0 LOCK BOLT M8*150, LH1040 |
| 70 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 71 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 72 | 418618-7 | Makita 418618-7 PIN, LF1000 |
| 73 | 443103-1 | Makita 443103-1 FELT RING 6, 6409 |
| 74 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 75 | 231025-5 | Makita 231025-5 Compression Spring 8 for UC3020A |
| 76 | 418616-1 | Makita 418616-1 SWITCH LEVER ON, LF1000 |
| 77 | 418617-9 | Makita 418617-9 SWITCH LEVER OFF, LF1000 |
| 78 | 231025-5 | Makita 231025-5 Compression Spring 8 for UC3020A |
| 79 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 80 | 443103-1 | Makita 443103-1 FELT RING 6, 6409 |
| 81 | 418618-7 | Makita 418618-7 PIN, LF1000 |
| 82 | 418623-4 | Makita 418623-4 LIGHT SWITCH BOX, LH1040F |
| 83 | 651522-9 | Makita 651522-9 SWITCH SLE6A, LS0714 |
| 84 | 418624-2 | Makita 418624-2 LIGHT SWITCH BOX COVER, LH1040F |
| 85 | 265893-4 | Makita 265893-4 TAPPING SCREW BT 3*12, LH1040F |
| 86 | 231674-8 | Makita 231674-8 TORSION SPRING 9, LH1040 |
| 87 | 421589-9 | Makita 421589-9 CAP, LS1040 |
| 88 | 345427-0 | Makita 345427-0 LOCK LEVER, LH1040 |
| 89 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 155 | 265954-0 | Makita 265954-0 TAPPING SCREW BIND PT3X8 |

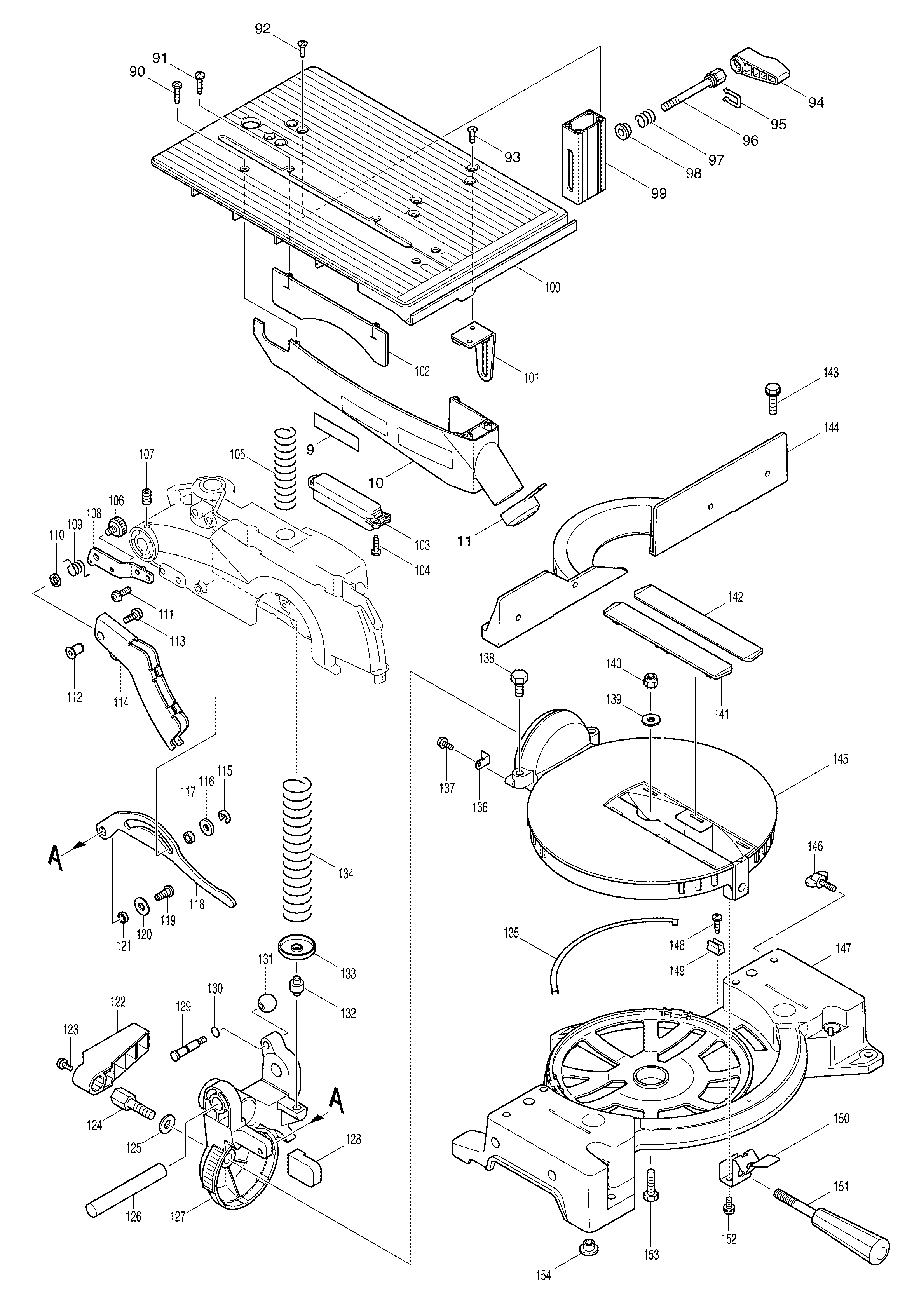

Sheet 2: Makita LH1040F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 9 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 10 | 183881-8 | Makita 183881-8 UNDER GUARD L SET, LH1040 |
| 11 | 421362-7 | Makita 421362-7 CAP, LH1040 |
| 90 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 91 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 92 | 912222-9 | Makita 912222-9 COUNTERSUNK HEAD M5X16, M926 |
| 93 | 912222-9 | Makita 912222-9 COUNTERSUNK HEAD M5X16, M926 |
| 94 | 272230-5 | Makita 272230-5 Lever 54 for N5900B |
| 95 | 231955-0 | Makita 231955-0 RING SPRING 12, N5900B |
| 96 | 331681-2 | Makita 331681-2 LOCK BOLT M8*70, LH1040 |
| 97 | 233042-1 | Makita 233042-1 COMPRESSION SPRING 14, LH1040 |
| 98 | 257675-8 | Makita 257675-8 SLEEVE 8, UC3020A |
| 99 | 317779-9 | Makita 317779-9 TABLE SUPPORT, LH1040 |
| 100 | 153992-3 | Makita 153992-3 TABLE COMPLETE, LH1040 |
| 101 | 165388-6 | Makita 165388-6 SUPPORT PLATE, LH1040 |
| 102 | 418619-5 | Makita 418619-5 UNDER GUARD R, LH1040 |
| 103 | 631611-6 | Makita 631611-6 LIGHT CIRCUIT, LH1040F |
| 104 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 105 | 233415-8 | Makita 233415-8 COMPRESSION SPRING 21, LH1040 |
| 106 | 251812-6 | Makita 251812-6 Thumb Screw M5*10 for HP451D |
| 107 | 251961-9 | Makita 251961-9 HEX S.H.SEI SCREW M6X10, LS1040 |
| 108 | 345425-4 | Makita 345425-4 GUARD HOLDER, LH1040 |
| 109 | 231675-6 | Makita 231675-6 TORSION SPRING 11, LF1000 |
| 110 | 267070-4 | Makita 267070-4 FLAT WASHER 10, LF1000 |
| 111 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 112 | 324497-2 | Makita 324497-2 GUARD SHAFT, LH1040 |
| 113 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 114 | 345426-2 | Makita 345426-2 GUARD, LH1040 |
| 115 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 116 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 117 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 118 | 344377-6 | Makita 344377-6 LINK PLATE, LS1040 |
| 119 | 265984-1 | Makita 265984-1 Hex. Socket Button H.S.M6 for LS1040 |
| 120 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 121 | 257162-7 | Makita 257162-7 WASHER 7, LS1040 |
| 122 | 416006-2 | Makita 416006-2 Lever 100 LS1013 LS1040 LF1000 |
| 123 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 124 | 265437-0 | Makita 265437-0 HEX BOLT M10, LS1040 |
| 125 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 126 | 256836-7 | Makita 256836-7 ROD 16, LS1040 |
| 127 | 154463-3 | Makita 154463-3 Arm Complete for LS1040 |
| 128 | 421867-7 | Makita 421867-7 CAP, LH1040 |
| 129 | 324183-5 | Makita 324183-5 Stopper Pin for LS1016L |
| 130 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 131 | 271601-3 | Makita 271601-3 Knob 20 for LS0713 |
| 132 | 256280-8 | Makita 256280-8 PIN 8, LS1040 |
| 133 | 344464-1 | Makita 344464-1 SPRING HOLDER, LS1040 |
| 134 | 233414-0 | Makita 233414-0 COMPRESSION SPRING 27, LH1040 |
| 135 | 343799-7 | Makita 343799-7 SLIDE PLATE, LS1040 |
| 136 | 344385-7 | |
| 137 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 138 | 265455-8 | |
| 139 | 253762-1 | Makita 253762-1 FLAT WASHER 8, LS1045 |
| 140 | 252105-4 | Makita 252105-4 HEX LOCK NUT M8*13, LS1040 |
| 141 | 418615-3 | Makita 418615-3 KERF BOARD, LH1040 |
| 142 | 418615-3 | Makita 418615-3 KERF BOARD, LH1040 |
| 143 | 265488-3 | Makita 265488-3 HEX BOLT M8*30, LS1040 |
| 144 | 317782-0 | Makita 317782-0 GUIDE FENCE, LH1040 |
| 145 | 316824-7 | Makita 316824-7 TURN BASE, LS1040 |
| 146 | 265708-5 | Makita 265708-5 THUMB SCREW M6*20, LS1040 |
| 147 | 153998-1 | Makita 153998-1 BASE COMPLETE, LH1040 |
| 148 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 149 | 232075-3 | Makita 232075-3 LEAF SPRING, LC1230 |
| 150 | 344381-5 | Makita 344381-5 KNOCK SPRING, LS1040 |
| 151 | 273495-2 | Makita 273495-2 Grip 32 for LS1040 |
| 152 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 153 | 921452-1 | Makita 921452-1 HEX BOLT M8X30, LS1040 |
| 154 | 286212-1 | Makita 286212-1 CAP 20, LS1013 |
